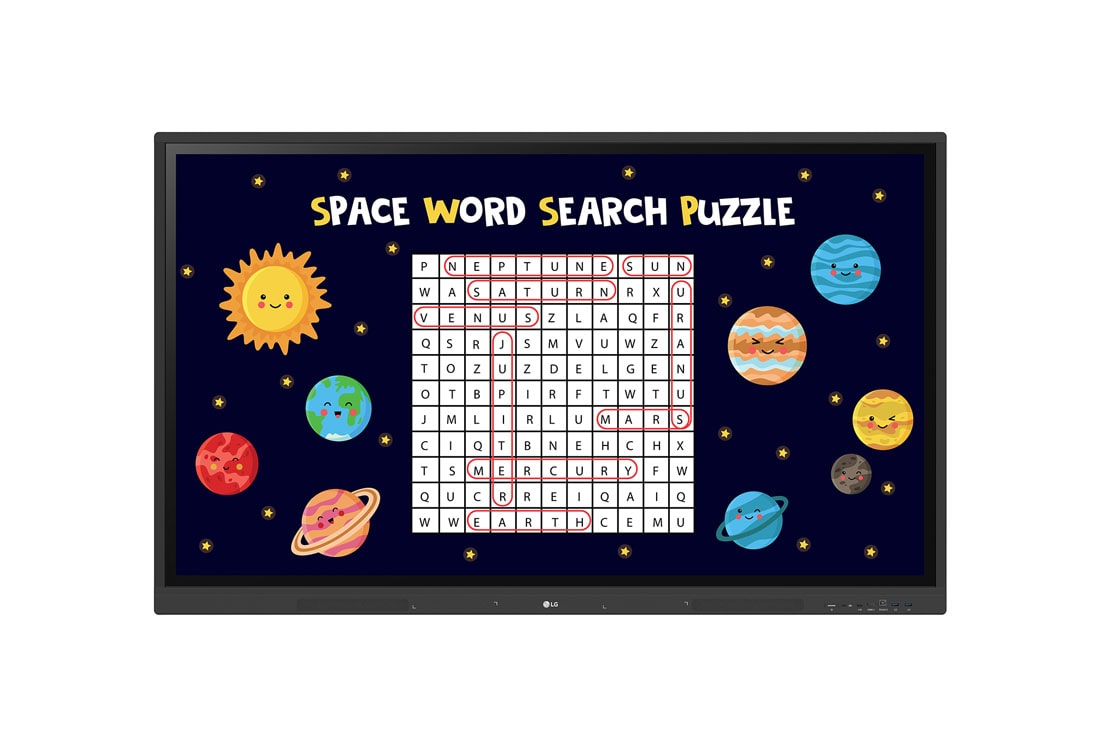

LG CreateBoard

75TR3DK-B

Key Features

Brightness (w/o Glass) : 440 nit (Max.), 390 nit (Typ.)
Resolution : 3,840 × 2,160 (UHD)
Multi-Touch Point : 40 Points (Max.)

All Spec

ACCESSORY

Basic: Power Cord 3M*1, USB Cable (Type A-Type B) 5M*1, HDMI Cable 3M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module

Optional: Wall Mount(WM-L000S), Floor Stand(ST-000F, ST-860F)

CERTIFICATION

EMC: FCC Class "A" / CE

ERP / Energy Star: YES / NO

Safety: CB / NRTL

CONNECTIVITY

Audio In: YES

Audio Out: YES

DP In: NO

DP Out: NO

DVI-D In: NO

External Speaker Out: NO

HDMI In: YES (3ea)

HDMI In (HDCP Ver.): 2.2

HDMI Out: YES

IR In: NO

RGB In: YES

RJ45(LAN) In: YES (1ea)

RJ45(LAN) Out: YES

RS232C In: YES

RS232C Out: NO

Touch USB: USB2.0 Type B (2ea)

USB In: USB3.0 Type A (4ea), USB2.0 Type A (1ea), USB Type C (1ea)

DEDICATED FEATURE - CREATE BOARD

Bluetooth: Bluetooth 5.0

CPU: Quad core A55

GPU: Mail G52 Multicore 2

LAN: Gigabit LAN

Memory(RAM): 4GB

OS ver. (Android): Android 11

Storage: 32GB

Wi-Fi: 802.11a/b/g/n/ac/ax (WiFi 6)

DEDICATED FEATURE - TOUCH

Accuracy (Typ.): ±1mm

Available Object Size for Touch: Ø2mm ↑

Interface: USB2.0

Multi Touch Point: Max. 40 Points(Windows), Max. 32 Points(Android)

Operating System Support: Windows 7/8/10/Linux/Mac/Android (Linux/Mac Support one point touch)

Protection Glass Thickness: 3mm (Anti-Glare)

Protection Glass Transmission: 0.88

Response Time ('Paint' app on Windows 10 PC): 5ms ↓

ENVIRONMENT CONDITIONS

Operation Humidity: 10 % to 90 %

Operation Temperature: 0 °C to 40 °C

FEATURE - HARDWARE

Auto Brightness Sensor: YES

Internal Memory (eMMC): 32GB

Local Key Operation: NO

Power Indicator: YES

Temperature Sensor: NO

Wi-Fi/BT (Built-in): YES

FEATURE - SOFTWARE

Booting Logo Image: YES

Crestron Connected: NO

HDMI-CEC: NO

Network Ready: NO

PBP: YES (2PBP)

PIP: YES

PM mode: NO

Screen Share: YES

Setting Data Cloning: NO

Smart Energy Saving: YES

Wake on LAN: YES

LANGUAGE

OSD: English, Denmark, Finnish, German, Korean, Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Spanish, Swedish, Hungarian, Thai

MECHANICAL SPECIFICATION

Bezel Color: Black

Bezel Width: T/R/L/B : 15/15/15/44mm

Carton Dimensions (W x H x D): 1863 × 1140 × 225mm

Handle: NO

Monitor Dimensions (W x H x D): 1709 × 1020 × 88mm

Packed Weight: 60.6Kg

VESA Standard Mount Interface: 800 x 400mm

Weight (Head): 47.3Kg

OPS COMPATIBILITY

OPS Power Built-in: YES

OPS Type compatible: YES (Slot)

PANEL

Aspect Ratio: 16:9

Back Light Type: Direct

Brightness: 390nit (Typ., without Glass)

Color Depth (Number of Colors): 16.7 Million colors

Color Gamut: NTSC 72%

Contrast Ratio: 1,200:1

Dynamic CR: 5,000:1

Life time: 50,000Hrs (L30)

Native Resolution: 3840 x 2160 (UHD)

Operation Hours (Hours/Day): 16/7

Panel Technology: IPS

Portait / Landscape: NO / YES

Refresh Rate: 60Hz

Response Time: 8ms (G to G)

Screen Size (Inch): 75

Surface Treatment (Haze): Haze 25%

Viewing Angle (H x V): 178º x 178º

POWER

Power Supply: AC 100-240V~, 50/60Hz

Power Type: Built-in Power

POWER CONSUMPTION

BTU (British Thermal Unit): 768 BTU/Hr(Typ.), 1467 BTU/Hr(Max.)

DPM: 0.5W

Max.: 430W

Power off: 0.5W

Typ.: 225W

SOFTWARE COMPATIBILITY

Connected Care: YES

SOUND

Speaker (Built-in): YES (15W x 2)

SPECIAL FEATURE

Conformal Coating (Power Board): YES
