Interactive Digital Board

86TR3D-B
Front View With Infill Image
Front View
+15 degree side view
Left Side View
Right Side View
-15 degree Right View
Top View
Front View With Infill Image
Front View
+15 degree side view
Left Side View
Right Side View
-15 degree Right View
Top View

Key Features

  • Brightness: 410 cd/m2
  • Touch Type: InGlass™
  • Touch Point: Max. 20 points
  • Interface: HDMI (3), DP, DVI, RGB, RS232C, RJ45, USB (2), OPS USB, Touch USB (2), Wi-fi Built-in
More
Excellent visibility with Ultra HD

Large 86 Screen with Ultra HD Resolution

With a large 86" screen, it can accommodate a wider view range for more viewers. With a large screen space, the display does not compromise the details of documents, images, and video - it delivers them with vivid, sharp resolution, thus providing an immersive and efficient working environment.
Excellent visibility with Ultra HD

Wide Viewing Angle with IPS Panel

IPS Panel generates consistent and accurate colors regardless of viewing angle. As viewers can see contents on the display from any angle, it aids effective communication between presenter and audience and increases message delivery effect.
Multiple Screen

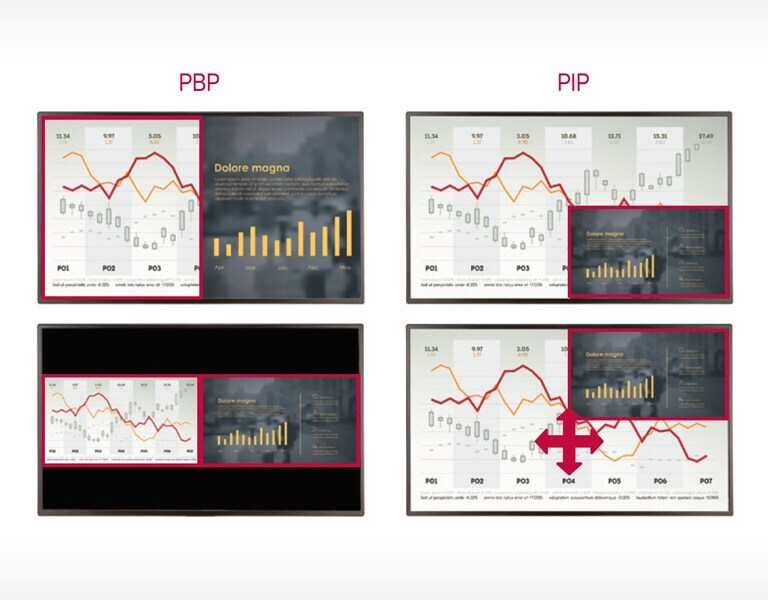

PBP(Picture by Picture) / PIP(Picture in Picture)

PBP/PIP enables two different content sources to be displayed in various layout settings including full screen, original ratio, and sub screen modes. This gives great flexibility to users to allocate space for each content source.
Outstanding Touch Performance

Small Object Touch

Compared to legacy signage, it allows more detailed and gentle touch (minimum radius: 3mm). In addition, users can now write in small-sized letters, check small icons, enabling sophisticated writing that fits document style requirements.
Outstanding Touch Performance

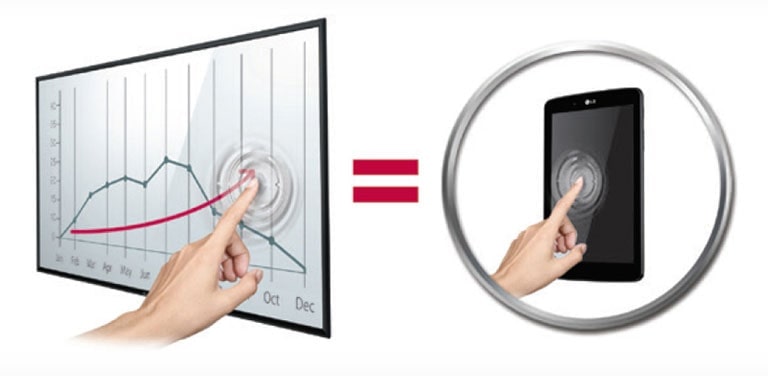

Intuitive Touch

InGlass™ touch performance is similar to that of mobile devices, providing users with a familiar feeling when they touch the screen, enabling them to easily use the touch screen without confusion.
Outstanding Touch Performance

20 Point Multi-Touch

It provides a more realistic sense of touch since it can recognize up to 20 simultaneous touches at once with no need for a separate pen.
Enhanced User Convenience

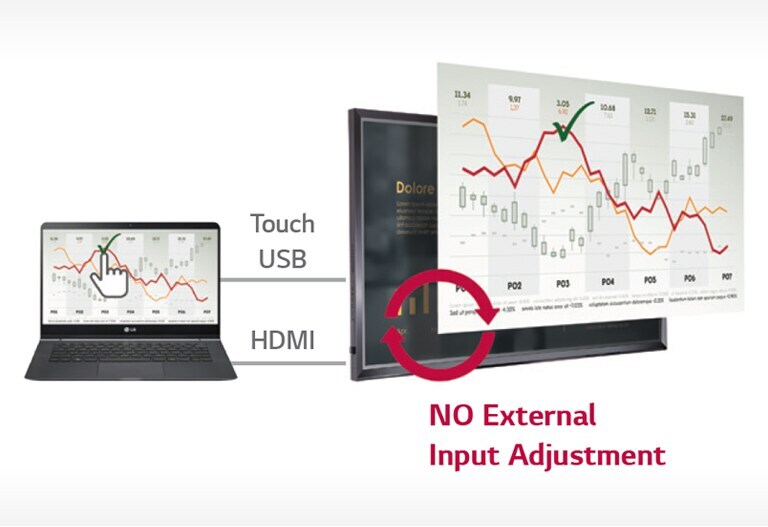

Auto Signal Switching

With its auto signal switching function, the display can detect input/touch signals and automatically change the source if the new input has a higher priority than the previous source. Users can save time by setting up the signals before a meeting or presentation.
Enhanced User Convenience

Easy Touch OSD on Display

User can transition into desired mode and setting by a simple touch on OSD. Users can create shortcuts for inputting their preferences.
Enhanced User Convenience

Embedded IDB App

webOS-based IDB App* enables users to write on the screen without an additional writing solution and media player (PC). It is a complete way to enhance collaboration efficiency during a meeting, by combining whole processes which includes file sharing, writing, and saving on LG IDB.
Enhanced User Convenience

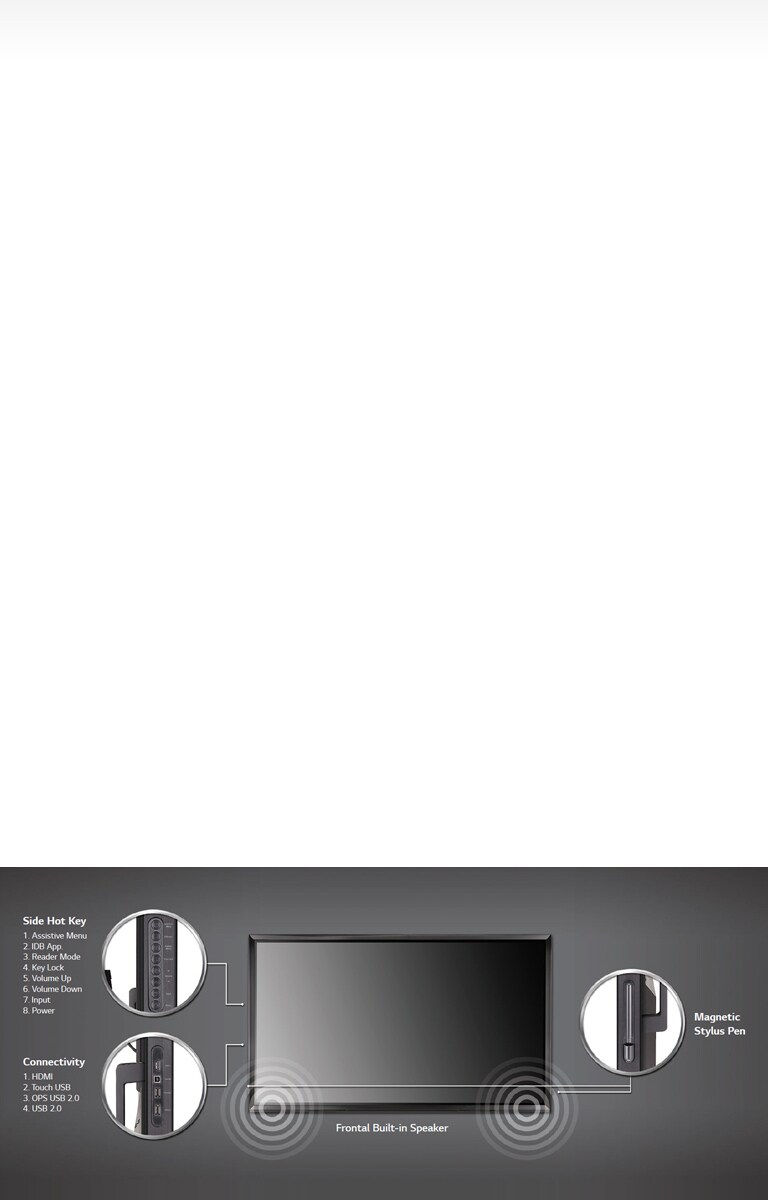

User-Friendly Configuration

The interfaces are arranged with total focus on user convenience. The side hot key located on the left-hand side allows quick and easy operation of various functions. Two touch pens are placed on either side of the display for easy use and storage. Two 10W speakers are built in to the front of the screen a more immersive audio experience.
Enhanced User Convenience

Eye Care Support

Reader mode decreases blue light, a cause of eye strain, by 70％, improving the comfort of those who are viewing the screen for a long time. Also the anti-glare coating on the screen reduces reflection for better visibility. And brightness is automatically adjusted according to ambient light of the surrounding to reduce eye strain.

Alt text

*Touch points can vary depending on the connection environment.

Alt text

*The menu design (GUI) is subject to change without notice

Alt text

*It is expected to be availabale at the end of 2017

Key Feature

  • Brightness: 410 cd/m<sup>2</sup>
  • Touch Type: InGlass™
  • Touch Point: Max. 20 points
  • Interface: HDMI (3), DP, DVI, RGB, RS232C, RJ45, USB (2), OPS USB, Touch USB (2), Wi-fi Built-in
Print

All Spec

PANEL

  • Screen Size

    86

  • Panel Technology

    IPS

  • Aspect Ratio

    16 : 9

  • Native Resolution

    3,840 x 2,160 (UHD)

  • Pixels(H x V x 3)

    24,883,200

  • Brightness

    410cd/m<sup>2</sup>(350cd/m<sup>2</sup> w/Protection Glass)

  • Contrast Ratio

    1,200:1

  • Dynamic CR

    500,000:1

  • Color Gamut

    NTSC: 72%

  • Viewing Angle(H x V)

    178 x 178

  • Color Depth

    1.06 Billion

  • Response Time

    8ms(G to G)

  • Surface Treatment

    Low Haze 3%

  • Life time(Typ.)

    30,000 Hrs (Typ.)

  • Operation Hours

    16Hr

  • Orientation

    Landscape

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    100-240V~, 50/60Hz

  • Power Type

    Built-In Power

PHYSICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    (T/L/R) 50.7mm, (B) 62.2mm

  • Monitor Dimension(W x H x D)

    2,026.9x1,180.3x96.8mm

  • Weight(Head)

    92.7 kg

  • Carton Dimensions(W x H x D) with pallet

    2,190x1,470x371mm

  • Packed Weight

    121.2 kg

  • Handle

    Yes

  • VESA™ Standard Mount Interface

    600 x 400

POWER CONSUMPTION

  • Max

    360W↓

  • Typ.

    330W↓

  • Smart Enegy Saving(Test Movie)

    200W↓

  • DPM

    0.5W↓

  • Power off

    0.5W↓

MEDIA PLAYER COMPATIBILITY

  • OPS type compatible

    Yes

SOFTWARE COMPATIBILITY

  • SuperSign-Premium/W/lite

    Yes (SuperSign-Premium)

  • SuperSign-Link/C

    Yes (SuperSign-Link)

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG, HDMI(3M), Regulation Book, Phone to RS232C Gender, Touch Pen(2ea), Eyebolt(2ea)

  • Optional

    OPS Kit(KT-OPSA)

AUDIO

  • Balance

    Yes

  • Audio Power

    20W(10W x 2)

  • Equalizer

    Yes

  • Sound mode

    Standard, Cinema, Clear Voice III, Sports, Music, Game

SPECIAL FEATURES

  • Temperature Sensor

    Yes

  • Auto Brightness Sensor

    Yes

  • Source Selection

    HDMI1, HDMI2/HDMI3/DVI, OPS, DP, RGB, USB

  • Brightness/Contrast/Backlight

    Yes

  • Position/Size

    Yes

  • Auto Config/Phase (RGB)

    Yes

  • Language (OSD)

    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic

  • Language (USB Playback)

    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic

  • Language (Manual)

    English, French, Italian, German, Spanish, Portugues, Hungarian, Greek, Russian, Ukrainian, Polish, Arabic, Indonesian, Korean, Turkish, Czech, Slovak, Taiwanese, Danish, Norwegian, Swedish, Finnish, Uzbekistan

  • Language (ESG)

    English, French, Spanish, Portugues, Italian, Polish, German, Greek, Czech, Slovak, Ukrainian, Russian, Uzbekistan, Taiwanese, Japanese, Portugues(Brazil) ,Arabic

  • ISM Method

    Normal, White Wash, Color Wash, User image, User Video, Orbiter, Inversion, Washing Bar * Scheduling is supported additionally

  • Advanced

    Dynamic Contrast, Dynamic Color, Color Gamut, Skin Color, Sky Color, Grass color, Gamma

  • Time

    Clock, On/Off Timer, Auto Off, Automatic Standby

  • Input Label

    Yes (PC/DTV)

  • Power on Status

    Standby, PWR, LST

  • Key operation

    IR operation, Local key operation, Touch Operation

  • DPM Select

    Yes (off/1/3/5/10min)

  • Energy Saving

    Yes

  • Power Indicatior On/Off

    Yes

  • File Play with USB

    Yes

  • PIP/PBP

    Yes (2)

  • Internal Memory

    64GB (System 4GB + Available 60GB)

  • Wi-Fi

    802.11n combo built-in

  • USB Cloning

    Logo image download, Sent to USB, Receive from USB

  • Brightness control

    Yes (Off, Auto, Minimum, Medium, Maxium)

  • Contents Scheduling

    USB, Internal memory

  • Calibration mode

    Yes

  • Off/On Scheduler

    Yes

  • Sync mode

    Time sync, Content sync, Network sync

  • PM mode

    Power Off, Sustain Aspect Ratio, Screen Off, Screen Off Always, Screen off & Backlight

  • Holiday schedule

    Yes

  • Firamware update (LAN)

    Yes

  • Local time auto setting

    Yes

  • Reader Mode - Low Blue Right

    Yes

  • Crestron SDK.

    Yes

  • HDMI-CEC 2.0 (Partially Supported)

    Yes

  • IDB App.

    Yes (IDB App v1.5 From Dec. '17)

  • Power on Default

    Yes

  • Wake on LAN

    Yes

  • Digital Audio input

    Yes

  • Power on Delay

    0 ~ 250

  • Passward change

    Yes

  • SetID Setup

    Manual, Auto

  • Lock Mode

    Home Dashboard, USB, OSD, IR Operation, Local Key Operation, Wi-Fi, Scheen Share

  • Fail over

    USB, RGB, DP, OPS, DVI, HDMI, Internal Memory

  • SuperSign Server Setup

    SIgnage name, Server IP setting, Server IP Status

  • No Signal image (Up to 5MB)

    Yes

  • Screen Share

    Mirroring, SoftAP

  • Beacon

    On/Off

  • Screen Fault detection

    Yes

  • OPS PC power Control

    Sync On, Sync On/Off, Disable

STANDARD(CERTIFICATION)

  • Safety

    UL / cUL / CB / TUV / KC

  • EMC

    FCC Class "A" / CE / KCC

INPUT

  • Digital - HDMI

    Yes (3), Rear : 2ea, Side : 1ea(HDMI3) HDMI1: Support 4K/60Hz & HDCP2.2, HDMI2/3: Support 4K/30Hz & HDCP1.4

  • Digital - DP

    O(1), DP /HDCP1.4 Rear : 1ea

  • Digital - DVI-D

    Yes (1), Rear : 1ea

  • Analog - RGB

    Yes (1), Rear : 1ea

  • Audio In

    Yes (1), DVI/RGB

  • External Control - RS232C IN

    Yes (1)

  • External Control - RJ45

    Yes (1)

  • USB(USB3.0)

    Yes (1), Rear : 1ea

  • USB(USB2.0)

    Yes (2), Side : 2ea (1ea for Set, 1ea for OPS)

  • Touch Out(USB2.0,B Type)

    Yes (2), Rear : 1ea, Side : 1ea

  • HDTV Formats

    HDMI : 720p, 1080i, 1080p, 2160p

OUTPUT

  • External Control - RS232C OUT

    Yes (1)
