UHD Large Screen Signage Display

110UM5K-B

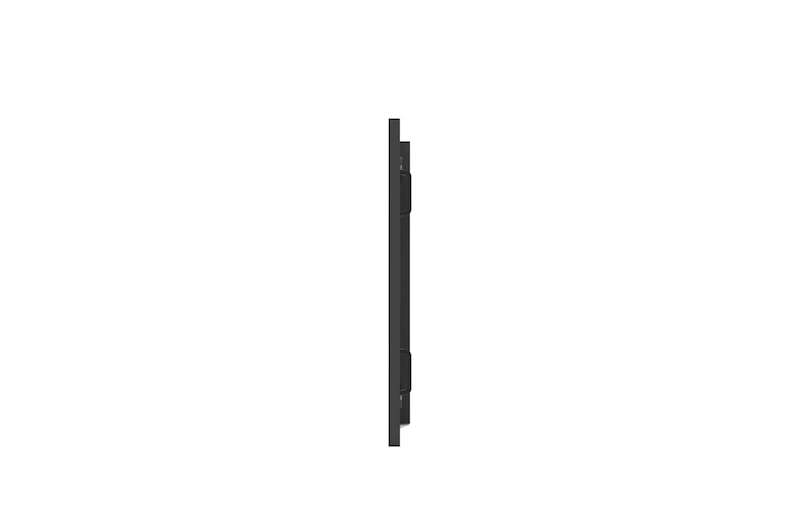

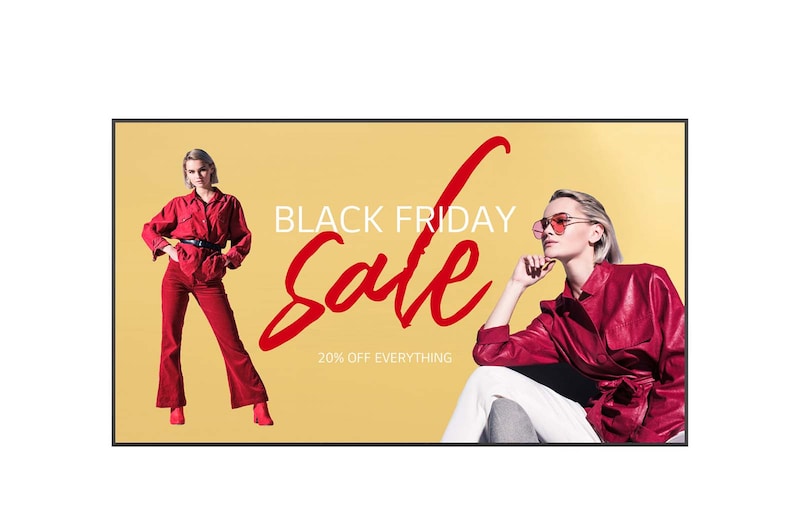

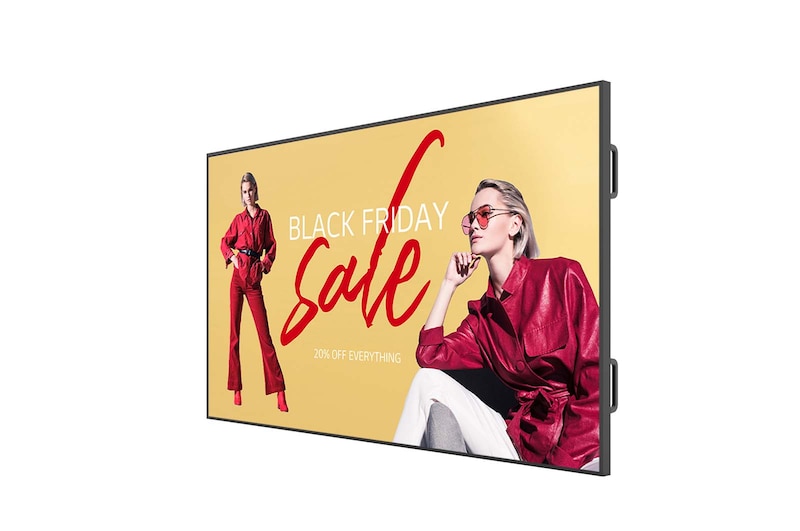

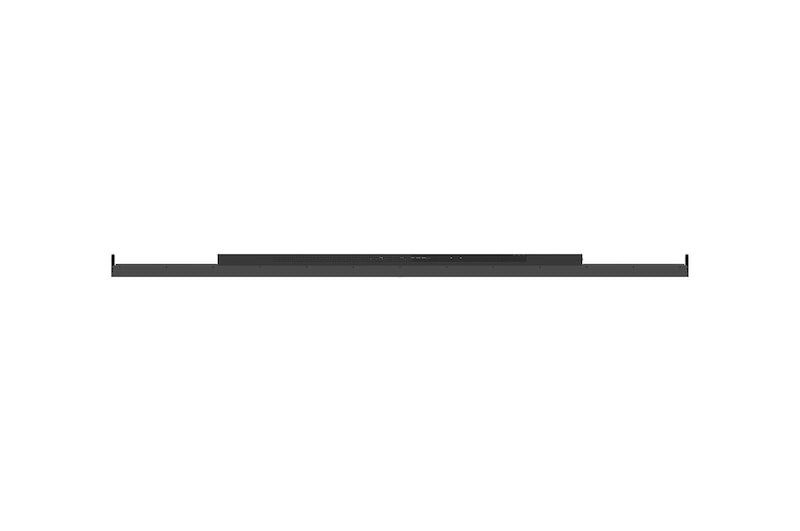

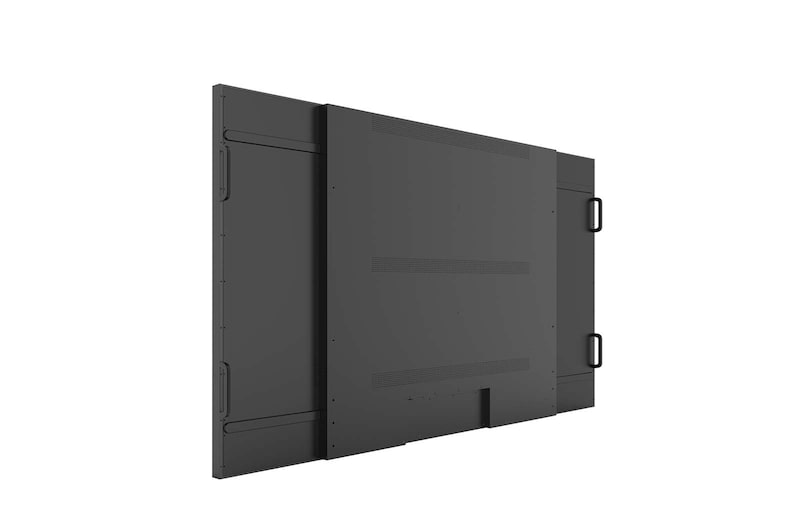

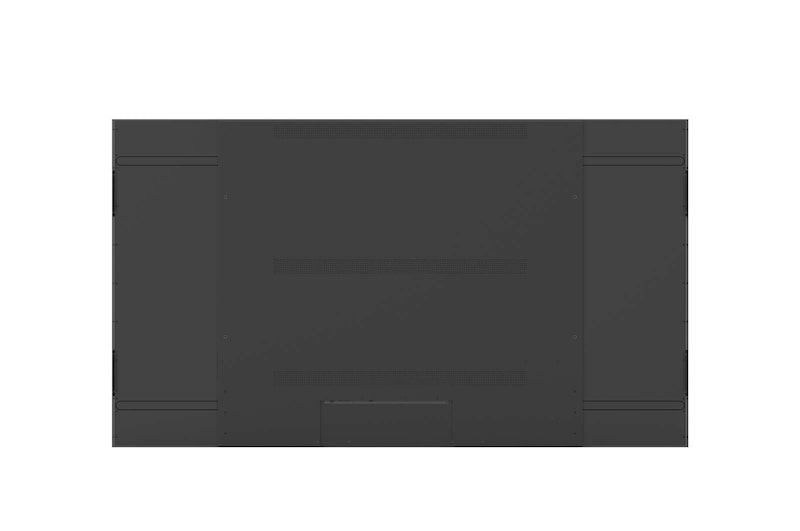

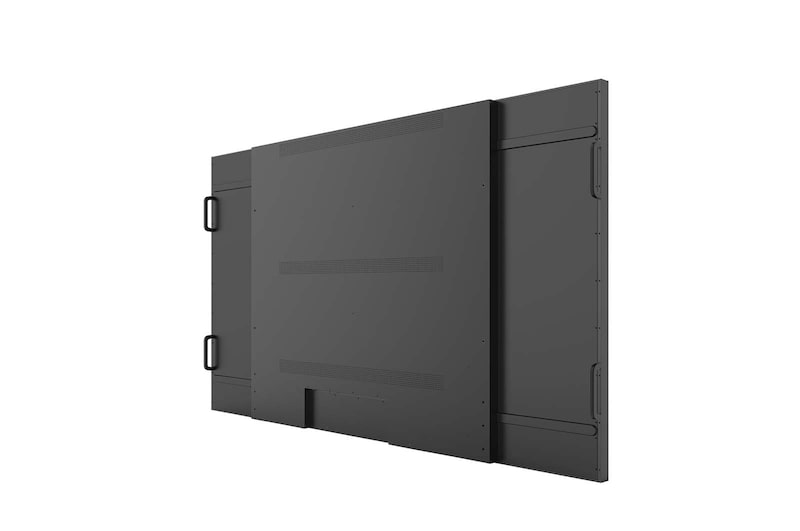

LG UHD Large Screen Signage Display, 110UM5K-B
LG UHD Large Screen Signage Display, 110UM5K-B
LG UHD Large Screen Signage Display, 110UM5K-B
LG UHD Large Screen Signage Display, 110UM5K-B
LG UHD Large Screen Signage Display, 110UM5K-B
LG UHD Large Screen Signage Display, 110UM5K-B
LG UHD Large Screen Signage Display, 110UM5K-B
LG UHD Large Screen Signage Display, 110UM5K-B
LG UHD Large Screen Signage Display, 110UM5K-B
LG UHD Large Screen Signage Display, 110UM5K-B
LG UHD Large Screen Signage Display, 110UM5K-B
LG UHD Large Screen Signage Display, 110UM5K-B
LG UHD Large Screen Signage Display, 110UM5K-B
LG UHD Large Screen Signage Display, 110UM5K-B
LG UHD Large Screen Signage Display, 110UM5K-B
LG UHD Large Screen Signage Display, 110UM5K-B
LG UHD Large Screen Signage Display, 110UM5K-B
LG UHD Large Screen Signage Display, 110UM5K-B
LG UHD Large Screen Signage Display, 110UM5K-B
LG UHD Large Screen Signage Display, 110UM5K-B

Key Features

  • Brightness : 500 nit (Typ.)
  • Resolution : ULTRA HD (3,840 x 2,160)
  • Bezel : 17 mm (Even bezel)
  • Built-in Speaker (10 W + 10 W)
  • Interface : HDMI(3) / DP / DVI-D / USB 2.0 / RS232C / RJ45 / Audio / IR & Light Sensor
More
A large display is installed on a shopping mall’s interior wall, and the display’s screen is showing advertisements clearly and vibrantly.

A large display is installed on a shopping mall’s interior wall, and the display’s screen is showing advertisements clearly and vibrantly.

UHD Large Screen Signage Display with LG webOS Platform

*All images in this page are for illustrative purposes only.

The difference comparing at a glance is shown in Ultra HD quality, which is four times higher than Full HD.

Super High Resolution

Delivering immersive viewing experience by 4 times higher definition picture quality than FHD.
UM5K has a brightness of 500 nits, so it is clearly visible, even under strong light.

Adequate Brightness Level

The UM5K series boasts an adequate brightness level of 500 cd/m² for indoor displays, effectively showcasing content and capturing the public’s attention. This makes it an adequate display solution for marketing purposes in various settings, including meeting rooms, airports, retail outlets, and shopping malls.

*Actual images available may differ from the example images shown.

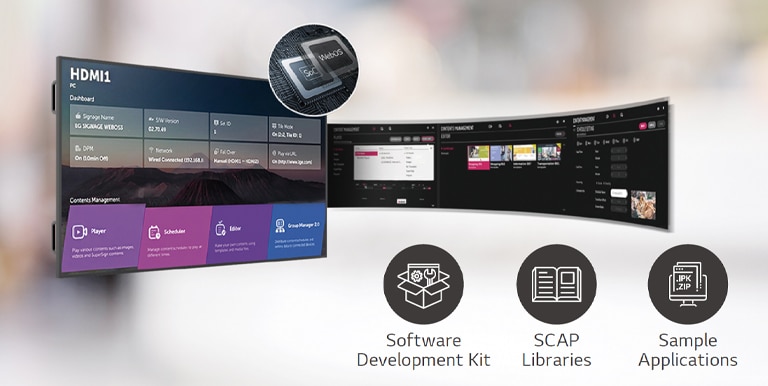

A number of tasks can be done at the same time with the intuitive GUI.

High-Performance with webOS

LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
One signage on the wall has a built-in speaker which renders rich audio.

Built-in Speaker

Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

*Internal Built-in Speaker Support (L/R max 10 W)

Slim Design

Being slim, a closer installation to the wall is advised. Additionally, this increases the screen’s immersive experience and provides a sophisticated design, improving the installed-space’s décor.

The bezel size of UM5K is 17mm. And the depth of the UM5K 98" is 79.5mm, and 110" is 99mm.

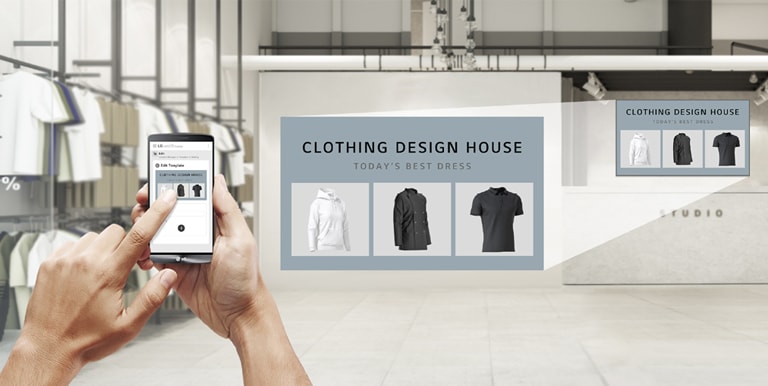

In a clothing store, a user is using the app to produce promotional content to display on the UM5K installed on the store’s wall.

Mobile Content Management

You can create a store profile and get template recommendations using the Promota* app. Users can customize templates as needed and easily create and manage content not only on PCs but also on mobile devices.

*LG Promota is can be downloaded from the App Store and Google Play store. (Not available for Europe/CIS Region)
*In Korea, the name is not Promota, but Mustard.

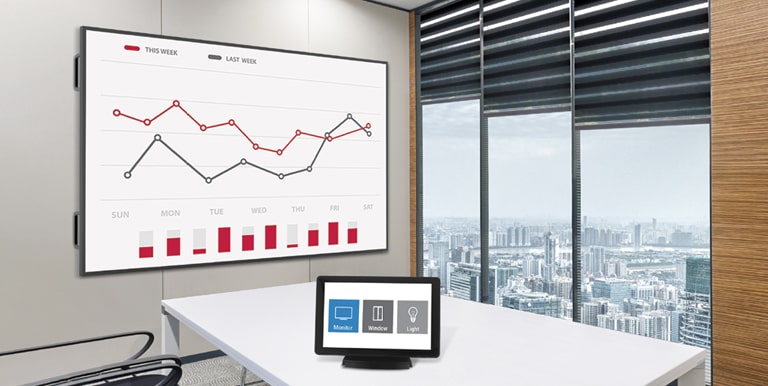

The AV control system helps users control the UM5K

Compatible with AV Control System

The UM5K series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

*Network based control

SuperSign Solutions

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software.

Key Feature

  • Brightness : 500 nit (Typ.)
  • Resolution : ULTRA HD (3,840 x 2,160)
  • Bezel : 17 mm (Even bezel)
  • Built-in Speaker (10 W + 10 W)
  • Interface : HDMI(3) / DP / DVI-D / USB 2.0 / RS232C / RJ45 / Audio / IR & Light Sensor
Print

All Spec

PANEL

  • Screen Size (Inch)

    110"

  • Panel Technology

    ADS

  • Back Light Type

    Direct

  • Aspect Ratio

    16:9

  • Native Resolution

    3840 x 2160 (UHD)

  • Refresh Rate

    120Hz

  • Brightness

    500nit (Typ.)

  • Contrast Ratio

    1,200:1

  • Dynamic CR

    1,000,000:1

  • Color Gamut

    DCI-P3 88%↑

  • Viewing Angle (H x V)

    178 X 178

  • Color Depth (Number of Colors)

    8bits + FRC, 1.07Billion colors

  • Response Time

    8ms (G to G)

  • Surface Treatment (Haze)

    1%

  • Life time

    50,000(Min.)

  • Operation Hours (Hours/Day)

    16/7

  • Portait / Landscape

    No / Yes

CONNECTIVITY

  • HDMI In

    Yes(3), HDMI1/HDMI2 : HDCP 2.2/1.4 HDMI3 : HDCP 1.4

  • DP In

    Yes(1), HDCP2.2/1.3

  • DVI-D In

    Yes(1), HDCP1.4

  • Audio In

    Yes(1)

  • RS232C In

    Yes(1), 4pin Phone-jack

  • RJ45(LAN) In

    Yes(1)

  • IR In

    Yes(1)

  • USB In

    USB2.0 Type A(1)

  • HDMI Out

    Yes(1)

  • Audio Out

    Yes(1)

  • RS232C Out

    Yes(1), 4pin Phone-jack

  • Daisy Chain

    O(Input HDMI, DP, DVI / Output HDMI)

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    Even bezel : 17mm

  • Weight (Head)

    80Kg

  • Packed Weight

    110Kg

  • Monitor Dimensions (W x H x D)

    2474 x 1408 x 99mm

  • Carton Dimensions (W x H x D)

    2680 x 1730 x 320mm

  • Handle

    Yes

  • VESA Standard Mount Interface

    1500 x 600

FEATURE - HARDWARE

  • Internal Memory (eMMC)

    16GB

  • Wi-Fi/BT (Built-in)

    Yes

  • Temperature Sensor

    Yes

  • Auto Brightness Sensor

    Yes

  • Acceleration(Gyro) Sensor

    Yes

  • Power Indicator

    Yes

  • Local Key Operation

    Yes

FEATURE - SOFTWARE

  • OS Ver. (webOS)

    webOS6.0

  • Local Contents Scheduling

    Yes

  • Group Manager

    Yes

  • USB Plug & Play

    Yes

  • Fail over

    Yes

  • Booting Logo Image

    Yes

  • No Signal Image

    Yes

  • RS232C Sync

    Yes

  • Local Network Sync

    Yes

  • PIP

    Yes

  • PBP

    Yes(4)

  • Screen Share

    Yes

  • Video Tag

    Yes(4)

  • Play via URL

    Yes

  • Gapless Playback

    Yes

  • Tile Mode Setting

    Yes (Max. 15x15)

  • Setting Data Cloning

    Yes

  • SNMP

    Yes

  • ISM Method

    Yes

  • Auto Set ID

    Yes

  • Status Mailing

    Yes

  • Control Manager

    Yes

  • Smart Energy Saving

    Yes

  • PM mode

    Yes

  • Wake on LAN

    Yes

  • Network Ready

    Yes

  • Beacon

    Yes

  • HDMI-CEC

    Yes

  • SI Server Setting

    Yes

  • webRTC

    Yes

  • Pro:Idiom

    Yes

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • Typ.

    440

  • Max.

    570

  • BTU (British Thermal Unit)

    1501 BTU/Hr(Typ.), 1945 BTU/Hr(Max)

  • Smart Energy Saving (70%)

    308W

  • DPM

    0.5W

  • Power off

    0.5W

SOUND

  • Speaker (Built-in)

    Yes (10W X 2)

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC

  • ERP / Energy Star

    Yes(NewErP) / No

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    Yes

  • SuperSign Control+

    Yes

  • SuperSign WB

    Yes

  • SuperSign Cloud

    Yes

  • Promota

    Yes

  • Mobile CMS

    Yes

  • Connected Care

    Yes

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkiye, Arabic, Polski

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG, IR/Light sensor receiver, Regulation Book, Phone to RS232C Gender
