IPS Panel

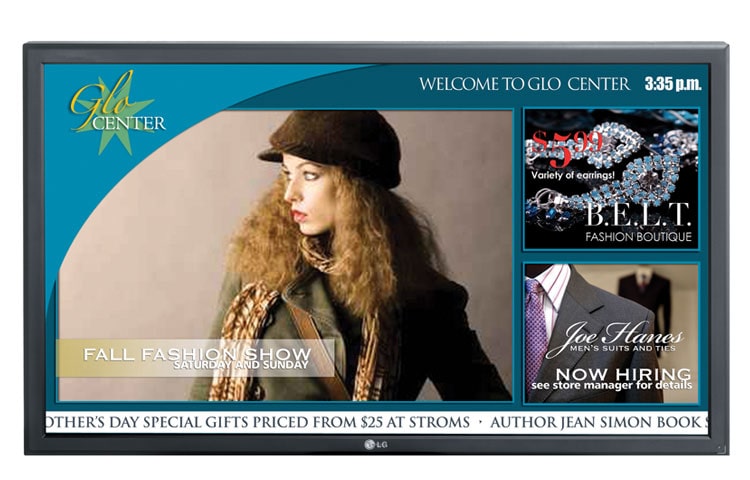

Designed for 24/7 continuous operation, the 47VL10 displays advertisements, information and broadcast video with Full HD brilliance. As a part of the SuperSign Solution, the 47VL10 has ez-Net Manager Compatibility along with optional external media player attachable. Its integrated RJ-45 LAN control enables individual management for multiple displays and eliminates the need for an IP card and an IP Interface box. With landscape, portrait and 5x5 tile mode capabilities, the 47VL10 adapts to your signage needs.

All Spec

PANEL

Panel Technology
IPS
Pixels (H x V x 3)
6220600
Response Time
9ms (G to G)
Aspect Ratio
16:9
Surface Treatment
Hard Coating (3H), Anti-glare
Tni
110°C
Viewing Angle
178°/178°
Brightness
500 cd/m2
Color Depth
1.06 Billion
Color Gamut
0.72
Contrast Ratio
1,300:1 (Typ.), 3,000:1(DCR)
Display Area
46.9” measured diagonally
LCD Panel Type
47”
Lifetime
50,000 Hr., Portrait & Landscape
Native Resolution
1920 x 1080 (FHD)

ENVIRONMENT CONDITIONS

Operation Humidity
10% ~ 80%
Operation Tempature
0°C ~ 40°C

POWER

Power Supply
100 -240V~, 50/60Hz
Power Consumption Power Off
0.5W
Power Type
Built-in Power
Power Consumption Max/Normal
300W (Max), 260W (Typ)
Power Consumption DPMS Off
1.0W (RGB)/2.0W (HDMI/DVI)

MEDIA PLAYER COMPATIBILITY

External Media player Attatchable
Yes

SOFTWARE COMPATIBILITY

Supersign Compatibility
Elite-s

AUDIO

Audio Power
20W (10W x 2)
Clear Voice II
Yes
Sound mode
Standard, Music, Cinema, Sports, Game, User
Speaker On/off
Yes
Balance
Yes

INPUT(REAR)

Audio
RGB/DVI Audio, Component Audio (RCA)
Analog
Component (BNC), RGB
External Control
RS232C, RJ45
HDTV Formats
HDMI: 720P/1080i/1080p
Digital
HDMI/DVI with HDCP

VIDEO

Pixel Frequency
148.5MHz (RGB, HDMI/DVI)
Sync Compatability
Separate/Composite/Digital
V-Scanning Frequency
V-Scanning Frequency
Video Input
RGB, HDMI/DVI
Color temperature
Warm/Medium/Cool/User
H-Scanning Frequency
50~83kHz (RGB, HDMI/DVI)
Max Input Resolution
1920 X 1080 @ 60Hz @ 60Hz (RGB, HDMI/DVI)
Picture mode
Vivid/Standard/Cinema/Sports/Game/User 1/User 2
Recommended Resolution
1920 X 1080 @ 60Hz @ 60Hz (RGB, HDMI/DVI)

OUTPUT(REAR)

Audio
External speaker

SPECIAL FEATURES

Position/Size
Yes
Power Indicator On/Off
Yes
Source Selection
HDMI/DVI, RGB, AV
Split Zoom (Self Video Wall, 5 x 5 Max)
Yes, supports natural mode
Temperature Sensor
Yes
Time
Auto sleep/Power on Delay
Advanced
Gamma/Film mode/Black level/Noise Reduction
Auto Config/Phrase
Yes
Auto Power/Source Memory
Yes
Brightness/Contrast/Backlight
Yes
Cooling FAN
Yes
DPM Select
Yes
Energy Saving
Yes, Level1/Level2/Level3
ISM Method
Normal/White wash/Orbiter/Inversion/Dot wash
Information Display
Serial Number, SET ID, MNT S/W Version, LAN S/W Version
Key Lock
Yes
Language (Manual)
English/French/Spanish/ Italian/German/Portuguese/Korean/Japanese/Chinese/RussianHungarian/Greek/Dutch/Kazakh/Ukrainian/Polish/Arabic/ Indonesian
Language (OSD)
English/French/Spanish/Italian/German/Portuguese/Korean/Japanese/Chinese/Russian

STANDARD(CERTIFICATIONS)

EMC
FCC Class "B" / VCCI / C-tick / CE / KCC
Safety
UL/cUL/CB scheme/TUV

EZ-NET MANAGER COMPATIBILITY

ez-Net MANAGER COMPATIBILITY
Single/Group WAN control, Scheduling, Instant Messaging, Self Diagnosis(Temp, FAN, Lamp), Alarm Service through mailing, S/W upgrade via Network
