84" LED Commercial Monitor
Contact Us

84" LED Commercial Monitor

Share This Content.

You Can Share The Items You Like With Your Friends

84" LED Commercial Monitor

84WS70MS

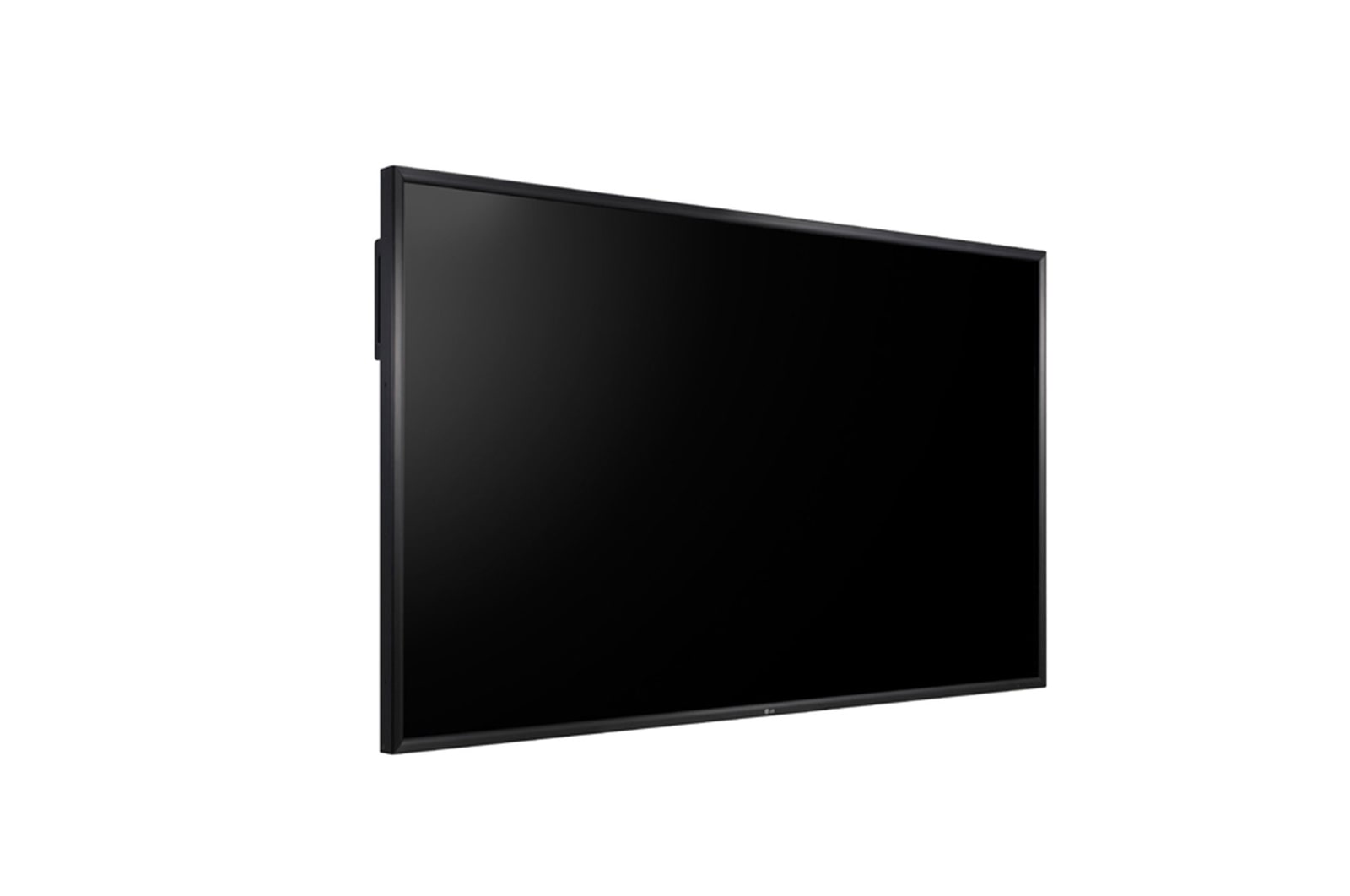

-45 Degree Right Angled View

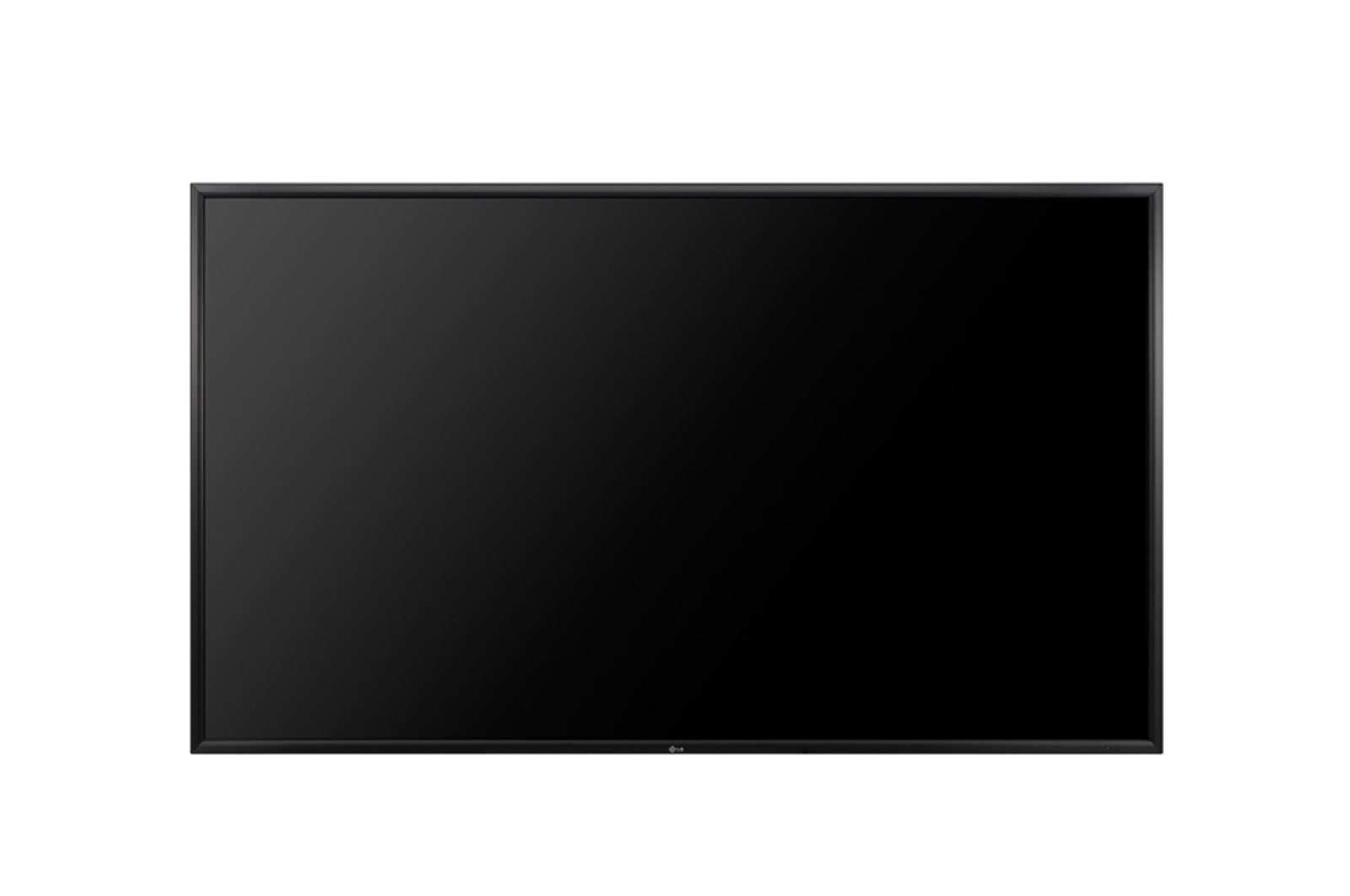

Front View
-15 degree Right Angled View
Right Side View
Left Angled View
Left Side View
Rear View

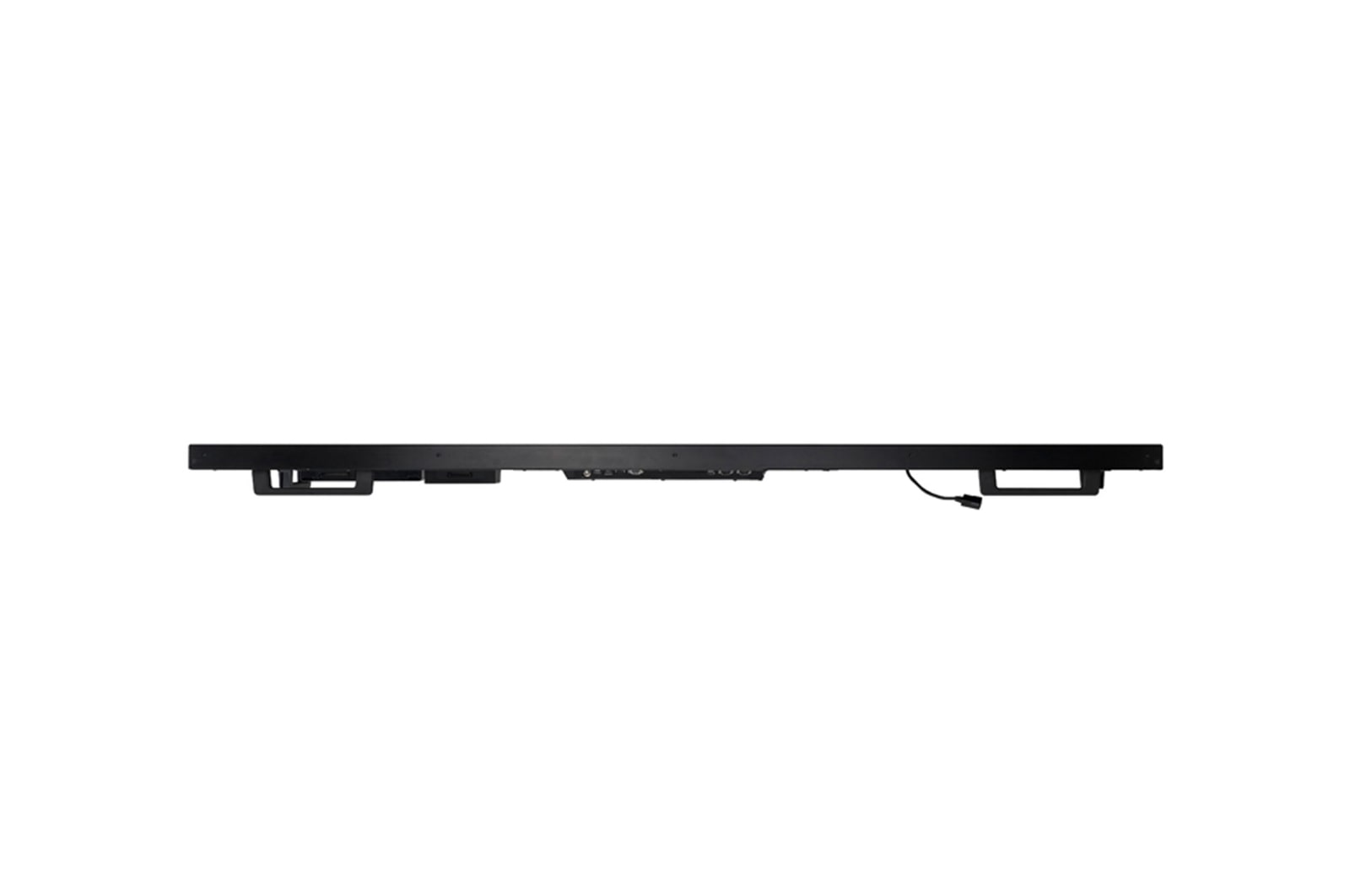

Top View
Bottom View
-45 Degree Right Angled View
Front View
-15 degree Right Angled View
Right Side View
Left Angled View
Left Side View
Rear View
Top View
Bottom View

Key Features

  • 84" Edge LED Large Screen
  • Super High Resolution 3,840 x 2,160 (Ultra HD)
  • Clear & Vivid Picture (Dynamic CR : 500,000 : 1)
  • Auto Brightness Sensor
More

84" Edge LED Large Screen

Providing immersive wide viewing with high quality.

Super High Resolution 3,840 x 2,160 (Ultra HD)

With super high resolution large screen size LED display, the display will offer incredible picture quality and detail.

Clear & Vivid Picture (Dynamic CR : 500,000 : 1)

Local Dimming Technology allows brightness to be controlled in block units. This ensures brightness and clarity providing high picture quality. As a bonus, power consumption is reduced.

Auto Brightness Sensor

Screen brightness is automatically adjusted by its surrounding illumination level. • For days, automatically raise the brightness level for better visibility. • For nights, automatically lower the brightness to save energy.

Smart Energy Saving

Reduction energy consumption by approximately 30%.

Hybrid Type Media Player Built-In Ready (MP700, MP500)

Making your signage look even slimmer and helps you maintain the system far more conveniently.

Key Feature

  • 84" Edge LED Large Screen
  • Super High Resolution 3,840 x 2,160 (Ultra HD)
  • Clear & Vivid Picture (Dynamic CR : 500,000 : 1)
  • Auto Brightness Sensor
Print

All Spec

PANEL

  • Screen Size

    84"

  • Panel Technology

    IPS

  • Aspect Ratio

    16:9

  • Native Resolution

    3840 x 2160 (UHD)

  • Brightness

    500 cd/m2

  • Contrast Ratio

    1,400:1

  • Dynamic CR

    500,000:1

  • Tni

    110°C

  • Viewing Angle (H x V)

    178° x 178°

  • Response Time

    12ms (G to G)

  • Surface Treatment

    Anti-glare Haze 10%

  • Lifetime

    50,000 Hrs (Typ.)

  • Orientation

    Portrait & Landscape

ENVIRONMENT CONDITIONS

  • Operation Tempature

    0°C ~40°C

  • Operation Humidity

    10% ~80%

POWER

  • Power Supply

    100 -240V~, 50/60Hz

  • Power Consumption Typical / Smart Energy Saving

    350W/200W

  • Power Consumption DPMS

    1.5W

  • Power Consumption Power Off

    0.5W

PHYSICAL SPECIFICATION

  • Bezel Width

    27.9mm

  • Monitor Dimensions (W x H x D)(head only)

    192.3cm x 110.9cm x 5.1cm (Including Handle: 10.1cm)

  • Monitor Weight (head only)

    72.9Kg

  • Carton Dimensions (W x H x D)

    203.4cm x 121.3cm x 31.4cm

  • Packed Weight

    87.2Kg

  • VESA TM Standard Mount Interface

    600mm x 400mm

MEDIA PLAYER COMPATIBILITY

  • Slot PC compatible (optional)

    Yes (MP500, MP700)

SOFTWARE COMPATIBILITY

  • SuperSign Elite-c

    Yes

ACCESSORY

  • Included

    D-Sub Cable, Power Cord, Remote Controller(include battery 2ea ), CD(Manual/Elite-C/ESG), Eye Bolt(2EA)

  • Optional

    Media Player: MP700/MP500 SP-2000, LSW630

AUDIO

  • Balance

    Yes

  • Audio Power

    20W (10W x 2)

  • Speaker On/Off

    Yes

  • Clear Voice II

    Yes

INPUT(REAR)

  • Digital

    HDMI (1), DVI-D (1), Display Port (1) with HDCP for all input

  • Analog

    RGB(1), Composite(1)

  • Audio

    RGB/DVI-D/AV

  • External Control

    RS232C(1), RJ45(1), IR(1, Internal)

  • USB

    USB 2.0 x 2

  • HDTV Formats

    Composite : 576i | HDMI : 720p, 1080i, 1080p, 2160p

OUTPUT(REAR)

  • Digital

    DVI-D (1)

  • Analog

    RGB(1)

  • Audio

    Yes(1), Line out(1)

  • External Control

    RS232C(1), IR(1, Internal)

SPECIAL FEATURES

  • Smart Energy Saving

    Yes

  • Temp Sensor

    Yes

  • Auto Brightness Sensor

    Yes

  • ISM Method

    Yes

  • Key Lock

    Yes

STANDARD(CERTIFICATIONS)

  • Safety

    UL/c-UL/CB scheme/TUV

  • EMC

    FCC Class "A" / VCCI / C-tick / CE / KCC

  • Erp / Energy Star

    Yes / No

White Paper

extension : pdf
Quest for Genius.pdf
Download

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
