webOS Box

WP600-B

Key Features

webOS 6.0 Smart Signage Platform
UHD Video Playback
Embedded CMS
Compatibility with LG SuperSign Solutions and Real-time LG ConnectedCare

The User-Friendly Smart Signage Platform

The WP600 webOS box operates webOS 6.0, the user-friendly LG smart signage platform, and is attached to existing LG digital signages and upgrades them regardless of their original platform. It can execute several tasks at once while providing smooth content playback, and provides an excellent user experience with an intuitive menu and convenient features.

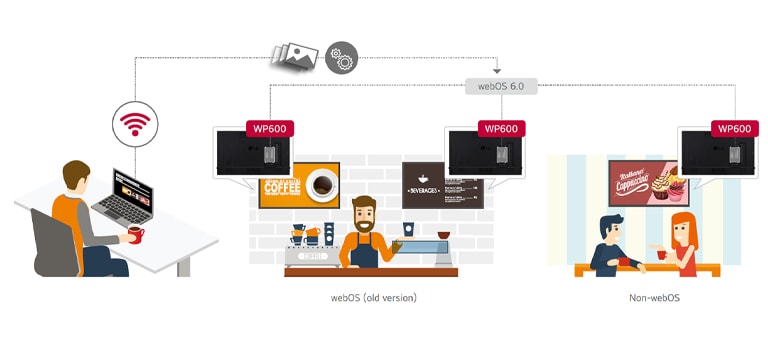

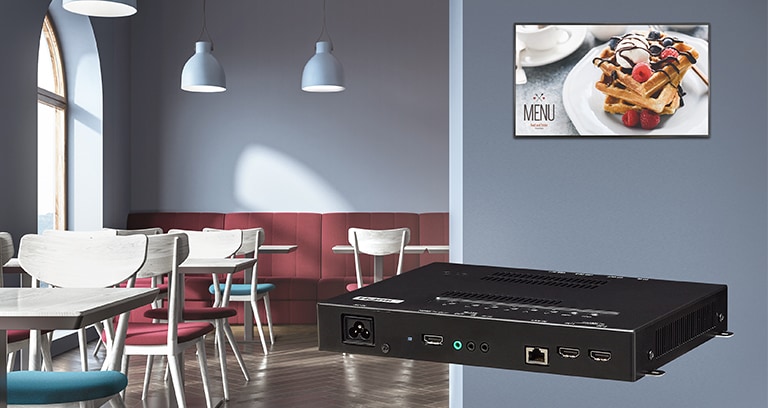

WP600 is connected to LG digital signage to perform several functions.

*All images in this page are for illustrative purposes only and may differ from the actual product.

webOS 6.0 Smart Signage Platform

The WP600 may be applied towards any type of LG digital signages. The webOS box provides user-friendly functions with dedicated menus essential for business use. This way, users are able to easily manage and distribute content or develop web-based applications for multiple signages simultaneously. Moreover, the WP600 has expanded its versatile ability to control displays.

WP600 supports the play of UHD video, and this shopping mall digital signage scene is one of examples.

UHD Video Playback Supported

The WP600 supports Ultra HD high-quality video playback which delivers colour and details of content vividly, with four times higher definition than FHD. Only a single webOS box is required for this superior picture quality.

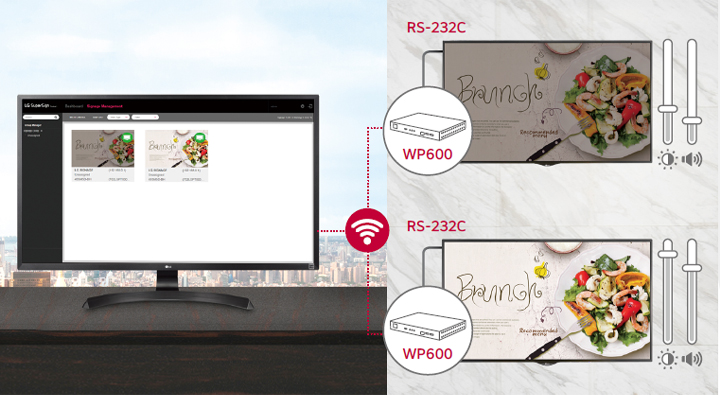

WP600 allows the users to flexibly control the brightness and volume of multiple LG digital signages through RS-232C cable connection.

Display Control Capability

Beyond content management, control commands from the WP600 can be sent to LG digital signages through the RS-232C cable connection. It allows users to flexibly set up display values such as power, brightness or volume for optimal operation.

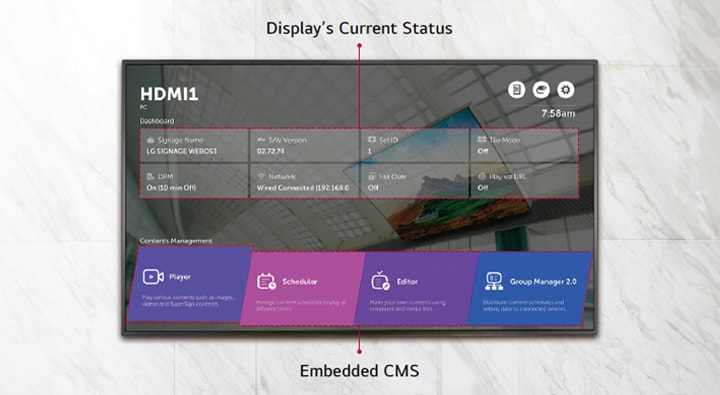

WP600 provides a home menu showing display’s current status and embedded CMS.

All-in-One Home Menu

The WP600 offers a signage-dedicated home menu that shows key information related to signage operation at a glance. A dashboard showing the status of devices, a content management menu, and shortcuts leading to quick settings greatly enhance user convenience.

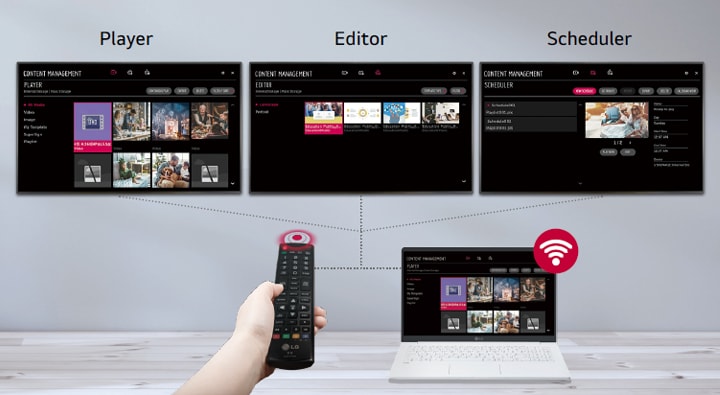

Users can set up players, editors, schedulers, etc. for displays using various devices from remote controls to laptops.

Embedded Content Management

The embedded CMS^{(Content Management System)} allows users to edit content using internal/external sources and set playlists to play at the desired schedule. Users can easily explore and manage content through the intuitive GUI, using various input devices, from a remote control to a laptop.

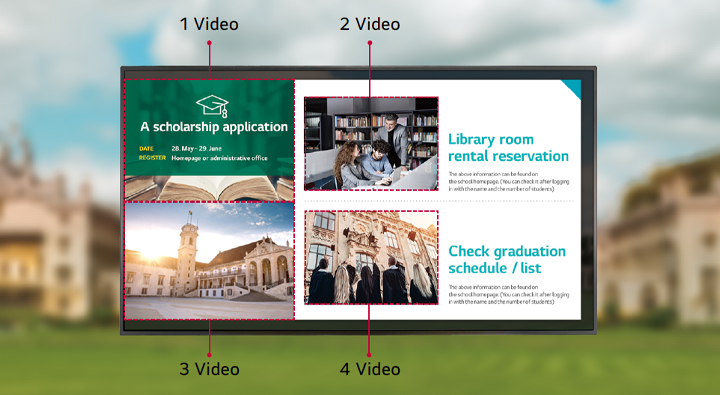

Multi Video Tags

Several different videos can be played at the same time using the multi video tags feature. This gives you great flexibility to organize and deploy content when various content items need to be delivered simultaneously via web apps.

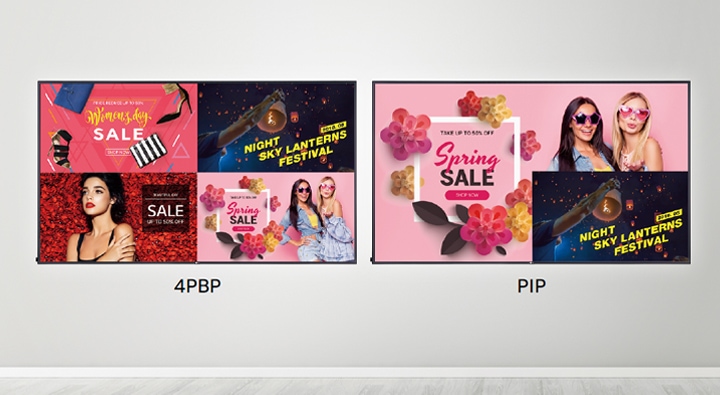

PBP provides 4 screens for 1 display, and PIP consists of the main screen and second screen in various layouts.

Multi Screen with PBP/PIP

PBP^{(Picture-By-Picture)} features multi screen in a single display with up to 4 input sources while PIP^{(Picture-In-Picture)} supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content source.

WP600 is compatible with LG SuperSign Solutions and uses SuperSign to facilitate the creation and distribution of various contents.

Compatibility with LG SuperSign Solutions

LG SuperSign is a comprehensive and indispensable software solution for the integrated management of LG digital signages. With SuperSign, content creation and distribution gets intuitive and centralized monitoring and control becomes simple, helping your business save time and operate effectively across different locations.

LG employees are remotely monitoring LG digital signage installed in other locations using a cloud-based LG monitoring solution.

Real-time LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

*The availability differs by regions.

webOS 6.0 Smart Signage Platform
UHD Video Playback
Embedded CMS
Compatibility with LG SuperSign Solutions and Real-time LG ConnectedCare

All Spec

FEATURE - HARDWARE

Internal Memory (eMMC)
8GB
Local Key Operation
Yes
Temperature Sensor
Yes
Wi-Fi/BT (Built-in)
Yes

FEATURE - SOFTWARE

Beacon
Yes
Control Manager
Yes
External Input Rotation
Yes
Fail over
Yes
Gapless Playback
Yes
Group Manager
Yes
HDMI-CEC
Yes(HDMI Out)
ISM Method
Yes
Local Contents Scheduling
Yes
Local Network Sync
Yes
Network Ready
Yes
No Signal Image
Yes
OS Ver. (webOS)
webOS6.0
PBP
Yes(4)
PIP
Yes
Play via URL
Yes
Pro:Idiom
Yes
Screen Rotation
Yes
Screen Share
Yes
Setting Data Cloning
Yes(RS-232C, Network, USB)
SI Server Setting
Yes
SNMP
Yes
Status Mailing
Yes
Tile Mode Setting
Yes(Max. 15x15)
USB Plug & Play
Yes
Video Tag
Yes(4)
Wake on LAN
Yes
webRTC
Yes

SOFTWARE COMPATIBILITY

Connected Care
Yes
Mobile CMS
Yes
Promota
Yes
SuperSign Cloud
Yes
SuperSign CMS
Yes
SuperSign Control+
Yes
SuperSign WB
Yes

CONNECTIVITY

DP In
Yes(1), HDCP1.3
DP Out
Yes(1), SST, DaisyChain Only (input : DP)
HDMI In
Yes(2), HDCP2.2
HDMI Out
Yes(1), FHD or UHD(4k,60)
IR In
Yes(1), Phone-jack
RJ45(LAN) In
Yes(1)
RS232C In
Yes(1), Phone-jack
RS232C Out
Yes(1, phone jack)
USB In
USB2.0 Type A(2)

POWER

Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power

POWER CONSUMPTION

BTU (British Thermal Unit)
78.48 BTU/Hr(Typ.), 92.13 BTU/Hr(Max)
DPM
0.5W@WOL Off
Max.
27W
Power off
0.5W
Typ.
23W

MECHANICAL SPECIFICATION

Bezel Color
Black
Carton Dimensions (W x H x D)
339 x 124 x 314mm
Monitor Dimensions (W x H x D)
258 x 36.5 x 186mm
Packed Weight
1.77Kg
Weight (Head)
0.87Kg

ENVIRONMENT CONDITIONS

Operation Humidity
10% to 80%
Operation Temperature
0°C to 40°C

LANGUAGE

OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic
