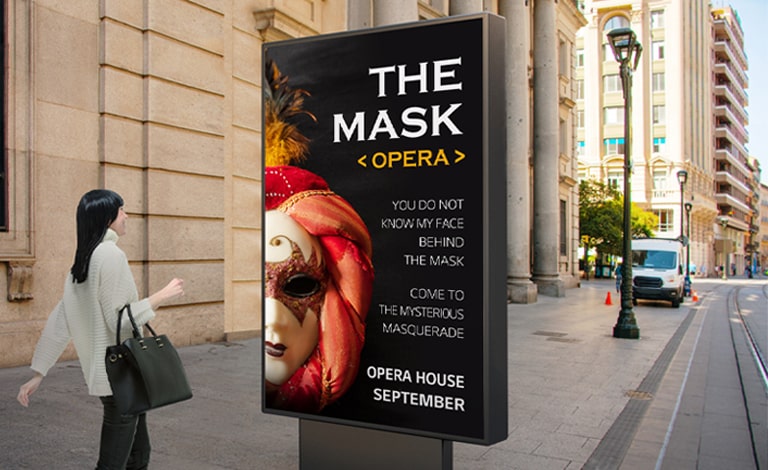

A display as tall as a person is installed at eye level on the street, and a woman who is walking past is watching a clear-image-quality opera advertisement on the display’s screen.
* All images in this page are for illustrative purposes only.
The GSED series is designed to support redundancy of signal, providing users with comfort. With an additional system controller, customers can get continuous operation while the dual controllers can reduce screen failures with bi-directional signal input.

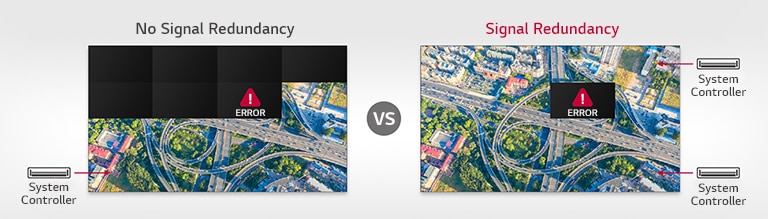

In the case of no signal redundancy, the error is blacked out starting at the beginning of the display. However, in the case of signal redundancy, only the error part is blacked out.
* To use Signal redundancy properly, video transmission system has to be arranged suitably. Please check it with LG engineer to confirm it.
When connected with LG's CVEA system controller, the GSED series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.

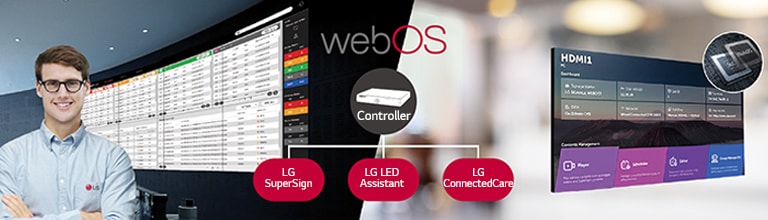

The LG employee is remotely monitoring the GSED series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables GSED series to be compatible with LG software solutions.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.
* SuperSign CMS service needs to be purchased separately.
Certification
CE, FCC, ETL
Pixel Configuration
Single SMD
Pixel Pitch(mm)
2.50
Module Resolution (WxH)
96 x 108
Module Dimensions(WxH,mm)
240 x 270
Weight per Module (kg)
1.05
No. of Modules per Cabinet (WxH)
2 x 2
Cabinet Resolution (WxH)
192 x 216
Cabinet Dimensions (W x H x D, mm)
480 x 540 x 70
Cabinet Surface Area (㎡)
0.260
Weight per Cabinet (kg/unit)
8.5
Weight per Square Meter (kg/m²)
32.7
Physical Pixel Density (pixels/m²)
160,000
Flatness of Cabinet (mm)
±1.0
Cabinet Material
Aluminum
Service Access
Front and Rear
Max Brightness (After Calibration, nit)
4,000
Colour Temperature (K)
3,500~8,500
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
140
Brightness Uniformity
97%
Colour Uniformity
±0.05Cx,Cy
Contrast Ratio
4,000:1
Processing Depth (bit)
16 (HDR10, HDR10 Pro)
Power Consumption (W/Cabinet, Max.)
180
Power Consumption (W/Cabinet, Avg.)
72
Power Consumption (W/m², Max.)
694
Heat Dissipation (BTU/h/Cabinet, Max.)
614
Heat Dissipation (BTU/h/Cabinet, Avg.)
246
Heat Dissipation (BTU/h/m², Max.)
2,368
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
LED Lifetime (Half brightness)
100,000
Operating Temperature(℃)
-30°C to +50°C
Operating Humidity
0~90%RH
IP rating Front
IP65
IP rating Rear
IP65
Controller
CVEA
Environment
RoHS, REACH
90 Degree Corner Cut
Yes
