LG 31.5" 4K IPS Surgical Monitor
Contact Us

LG 31.5" 4K IPS Surgical Monitor

Share This Content.

You Can Share The Items You Like With Your Friends

LG 31.5" 4K IPS Surgical Monitor

32HL714S-W
LG 31.5" 4K IPS Surgical Monitor, 32HL714S-W
LG 31.5" 4K IPS Surgical Monitor, 32HL714S-W
LG 31.5" 4K IPS Surgical Monitor, 32HL714S-W
LG 31.5" 4K IPS Surgical Monitor, 32HL714S-W
LG 31.5" 4K IPS Surgical Monitor, 32HL714S-W
LG 31.5" 4K IPS Surgical Monitor, 32HL714S-W
LG 31.5" 4K IPS Surgical Monitor, 32HL714S-W
LG 31.5" 4K IPS Surgical Monitor, 32HL714S-W
LG 31.5" 4K IPS Surgical Monitor, 32HL714S-W
LG 31.5" 4K IPS Surgical Monitor, 32HL714S-W
LG 31.5" 4K IPS Surgical Monitor, 32HL714S-W
LG 31.5" 4K IPS Surgical Monitor, 32HL714S-W
LG 31.5" 4K IPS Surgical Monitor, 32HL714S-W
LG 31.5" 4K IPS Surgical Monitor, 32HL714S-W
LG 31.5" 4K IPS Surgical Monitor, 32HL714S-W
LG 31.5" 4K IPS Surgical Monitor, 32HL714S-W
LG 31.5" 4K IPS Surgical Monitor, 32HL714S-W
LG 31.5" 4K IPS Surgical Monitor, 32HL714S-W
LG 31.5" 4K IPS Surgical Monitor, 32HL714S-W
LG 31.5" 4K IPS Surgical Monitor, 32HL714S-W
LG 31.5" 4K IPS Surgical Monitor, 32HL714S-W
LG 31.5" 4K IPS Surgical Monitor, 32HL714S-W

Key Features

  • 31.5" 4K (3840x2160) IPS
  • Support HDR10
  • Mirror & Rotation Mode
  • Failover Input Switch
  • 12G-SDI Support
  • Up to 4PBP, PIP
More
4K Surgical Display

Large Display for Surgical Precision

LG 4K surgical high-resolution monitor with LG's innovative technology provides accuracy, user convenience and reliability for precise surgery.

accuracy___31_5"_4k_ips_/_hdr10_/ sRGB 115_ Area, Convenience_ 4PBP

31.5-inch 4K IPS

Enhanced Accuracy with Wide View

With 31.5-inch 4K IPS display, the LG surgical monitor provides visual comfort for viewing accurate images with others from any angle. So it reduces the risk of misperception and helps to produce better outcomes.

31.5" 4K : Full HD 4K, IPS Wide Viewing Angle : 178°

cie_1931_color_space_diagram__srgb_/ LG, 15_ larger color space

sRGB 115% (Area), Over 99% (Coverage)

Supporting sRGB 115% (Area), Over 99% (Coverage) and the standard DICOM Part 14, the 32HL714S surgical monitor is designed for accurate colour recognition and depth perception during invasive surgery. It enables surgeons to view accurate, realistic images and allow precise surgery.
None Brightness Stabilization VS. Brightness Stabilization

Brightness Stabilization

LG surgical monitor with Brightness Stabilization can maintain constant brightness. Its sensor carefully measures the backlight and local lighting conditions. Then it optimizes the correct brightness for the surgical procedure.

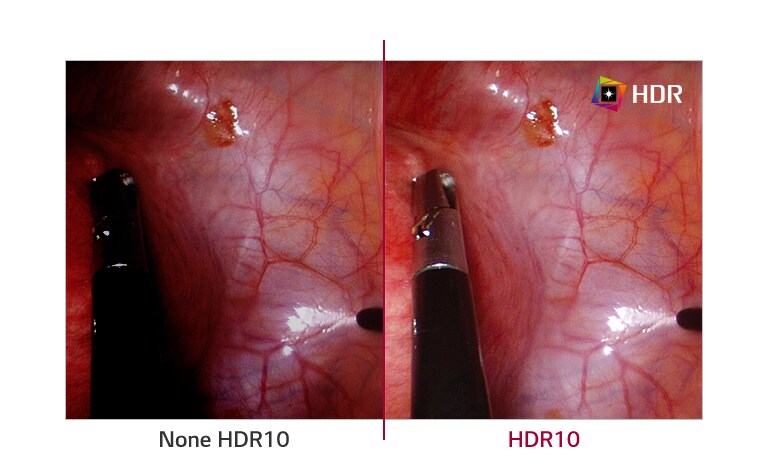

None HDR10 VS. HDR10

Support HDR10

LG 4K surgical monitor is compatible with HDR-supported medical devices such as endoscope cameras. It can deliver images from devices vividly without crushing blacks in dark areas.
PBP, PIP & 12G-SDI Support

Multiple Signals on One Screen

The 32HL714S supports up to 4PBP, PIP and extended ports, allowing you to see multiple signals from several devices on one screen. You can set a combination screen of the endoscopic video from endoscopic camera, the vital sign imagery and the fluoroscopic imagery.

3pbp_/__4pbp_/__pip_/ 12G-SDI Support with 4K

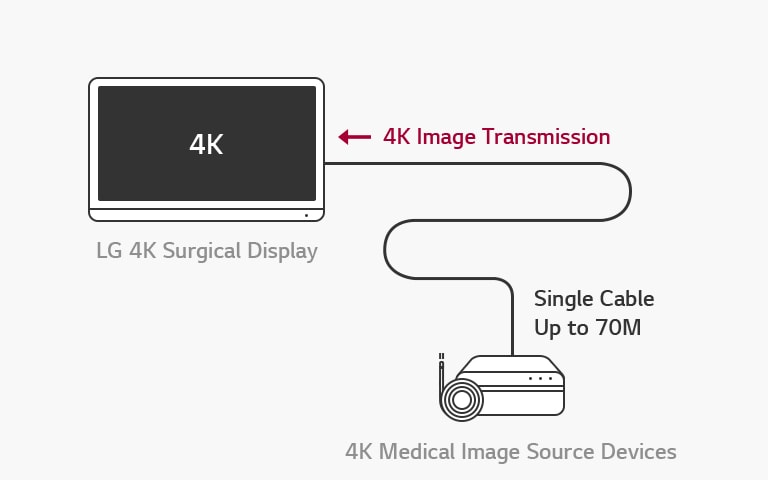

12G-SDI Support : LG 4K Surgical Display enables long-distance transmission of 4K signals over a single coaxial cable without latency for stable surgery.

12G-SDI Support

The 32HL714S features a 31.5-inch 4K (3840x2160) IPS display with 12G-SDI Support, which enables long-distance transmission of 4K signals over a single coaxial cable without latency for stable surgery. (12G-SDI input transmission maximum distance may vary by manufacturers: Up to 50M using BELDEN 1694A cable / Up to 70M using CANARE UHD 5.5C cable)
Failover Input Switch : When the main sourceis missing, the display will automatically switch to a failover source and restore the main source once the signal is back.

Failover Input Switch

When the main source is missing, the display will automatically switch to a failover (backup) source and restore the main source once the signal is back. You can set the main input and failover input in the setting menu of monitor.
Original screen, Mirror screen and 180° Rotation
Mirror & Rotation

Find the Perfect Operating View

The 32HL714S with Mirror & Rotation functions, helps you to set the perfectly optimized operating view for improving your convenience in the operating room. You can select the 180 degrees rotated image or the mirror image you want to see.
Dustproof

Dustproof & Water Resistant

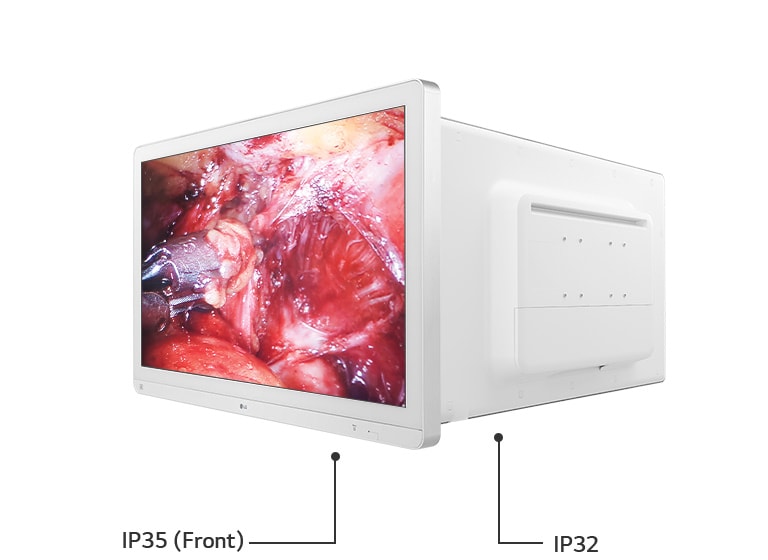

To ensure protection against contact with objects such as blood or bodily fluids, LG surgical monitors are cleanable and durable, with ratings of IP35 on the front and IP32 on the body except for front, securing them from any direction.

Key Feature

  • 31.5" 4K (3840x2160) IPS
  • Support HDR10
  • Mirror & Rotation Mode
  • Failover Input Switch
  • 12G-SDI Support
  • Up to 4PBP, PIP
Print

All Spec

CONNECTIVITY

  • 3G-SDI

    Yes (12G INx1/OUTx1,Single, 2SI, Square, SFP)

  • 12G-SDI

    Yes (12G INx1/OUTx1,Single, 2SI, Square, SFP)

  • DisplayPort

    Yes (in 1ea/out 1ea)

  • Display Port (Colour/Length)

    Black/1.8m

  • DP (HDCP Version)

    2.2

  • DP (Max. Resolution at Hz)

    3840 x 2160 at 60Hz

  • DP (V Frequency)

    56~61Hz

  • DP Version

    1.2

  • DVI

    Yes (1In / 1Out)

  • DVI (Max Resolution at Hz)

    1920 x 1080 at 60Hz

  • DVI (V Frequency)

    56~61Hz

  • HDMI

    Yes (1ea)

  • HDMI (HDCP Version)

    2.2

  • HDMI (Max. Resolution at Hz)

    3840 x 2160 @60Hz

  • HDMI (V Frequency)

    56~61Hz

  • HDMI Version

    2.0

  • HDMI (Colour/Length)

    Black/1.8m

  • RS-232

    Yes (1ea)

  • USB Downstream Port

    Yes (1ea/ver2.0)

  • USB Upstream Port

    Yes (1ea/ver2.0)

  • [Location]

    Bottom

FEATURE

  • Hot Key

    Yes (2 keys)

  • Brightness stabilization

    Yes

  • Black Stabilizer

    Yes

  • Factory Calibration

    Yes (Delta E<5, Gamma 1.8~2.6/DICOM curve)

  • HW Calibration

    Yes (True Colour Pro)

  • DICOM Compliant

    Yes

  • Colour Temperature

    6500K / 7500K / 9300KManual (5000K ~ 10000K)

  • Flicker Safe

    Yes

  • HDR 10

    Yes

  • HDR Effect

    Yes

  • OSD Language

    17 Language

  • PBP

    Yes (2PBP/3PBP/4PBP)

  • PIP

    Yes

  • Picture Mode

    (SDR)Custom, Mono, Vivid, HDR Effect, DICOM, Calibration 1, Calibration 2, (HDR)Custom, Vivid, Standard

  • Rotation & Mirror Mode

    Yes

  • Failover Input Switch

    Yes

  • Smart Energy Saving

    Yes

  • User Preset

    Yes

  • Super Resolution+

    Yes

  • Uniformity

    Yes

SW APPLICATION

  • True Colour Pro

    Yes

POWER

  • AC Input

    100-240Vac, 50/60Hz

  • DC Output

    24V, 7.5A

  • Power Consumption (DC Off)

    Less than 0.3W

  • Power Consumption (Max.)

    180W

  • Type

    External Power(Adapter)

DIMENSIONS/WEIGHT

  • Dimension in Shiping (W x H x D)

    883x599x200mm / 34.76"x23.58"x7.87"

  • Dimension without Stand (W x H x D)

    764.6x480.8x94.4mm / 30.1"x18.93"x3.72"

  • Pallet Stuffing (20ft/40ft/40ft HC)

    216EA / 405EA / 495EA

  • Weight in Shipping

    18.5kg(40.8lb)

  • Weight without Stand

    13.5kg(29.8lb)

ACCESSORY

  • Adapter

    Yes

  • Adapter (Colour)

    White

  • Calibration Report (Paper)

    Yes

  • Power Cord

    Yes

  • Power Cord (Colour/Length)

    White / 1.5m

WARRANTY

  • Years/Hours

    3/10,000hr

DISPLAY

  • Aspect Ratio

    16:9

  • Backlight Dimming Technology

    Global Dimming

  • Backlight Technology

    LED

  • Backlight Type

    Edge

  • Brightness (Min.)

    650 cd/m²

  • Brightness (Typ.)

    800cd/m²

  • Brightness (Stabilization)

    500cd/m²

  • Colour Bit

    10bit

  • Colour Depth (Number of Colours)

    1.07B

  • Colour Gamut (Typ.)

    sRGB 115%(Area),sRGB over 99%(Coverage)

  • Contrast Ratio (Typ.)

    1300:1

  • Contrast Ratio with DFC

    Mega

  • Panel Type

    IPS

  • Pixel Pitch(H x V)

    0.18159mm x 0.18159mm

  • Resolution

    3840 x 2160

  • Response Time (GTG)

    14ms(Off-setting), 5ms(Faster-setting)

  • Size (Inch)

    31.5

  • Size (cm)

    80.0051

  • Surface Treatment

    Protection Glass (1.6t, Anti-Reflection, Anti-fingerprint)

  • Viewing Angle (CR≥10)

    178°(Right/Left), 178°(Up/Down)

STANDARD

  • IEC (IEC 60601-1 / IEC 60601-1-2)

    Yes

  • EN (EN 60601-1 / EN 60601-1-2)

    Yes

  • IEC (IEC 60950-1 / IEC 55032, 55024)

    Yes

  • EN (EN 60950-1 / EN 55032, 55024)

    Yes

  • cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)

    Yes

  • FCC (FCC part 15 Class A)

    Yes

  • FDA

    Registration (Class I)

  • ISO13485

    Yes

  • GMP

    Yes

  • KGMP

    Yes

  • RoHS

    Yes

  • REACH

    Yes

  • WEEE

    Yes

  • MFDS

    Yes

  • IP(Front/Except for front)

    IP35/IP32

  • Vandal-proof

    IK06

MECHANICAL

  • Borderless Design

    Normal

  • Colour (Back Cover)

    White

  • Colour (Middle Cabinet)

    Silver

  • Machanical Power Switch

    Yes

  • Wall Mount Size

    200x100mm/100x100mm

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
