27.6-inch 16:18 DualUp Monitor with Ergo Stand and USB Type-C™

Support

27.6-inch 16:18 DualUp Monitor with Ergo Stand and USB Type-C™

28MQ780-B

27.6-inch 16:18 DualUp Monitor with Ergo Stand and USB Type-C™

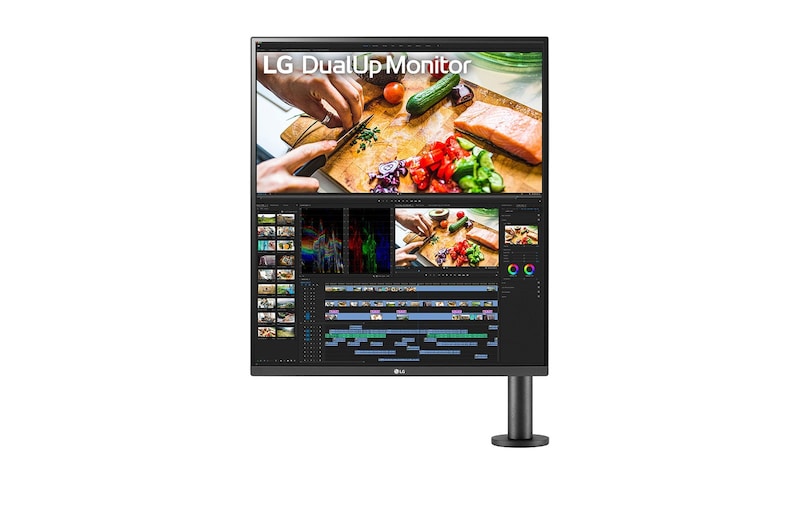

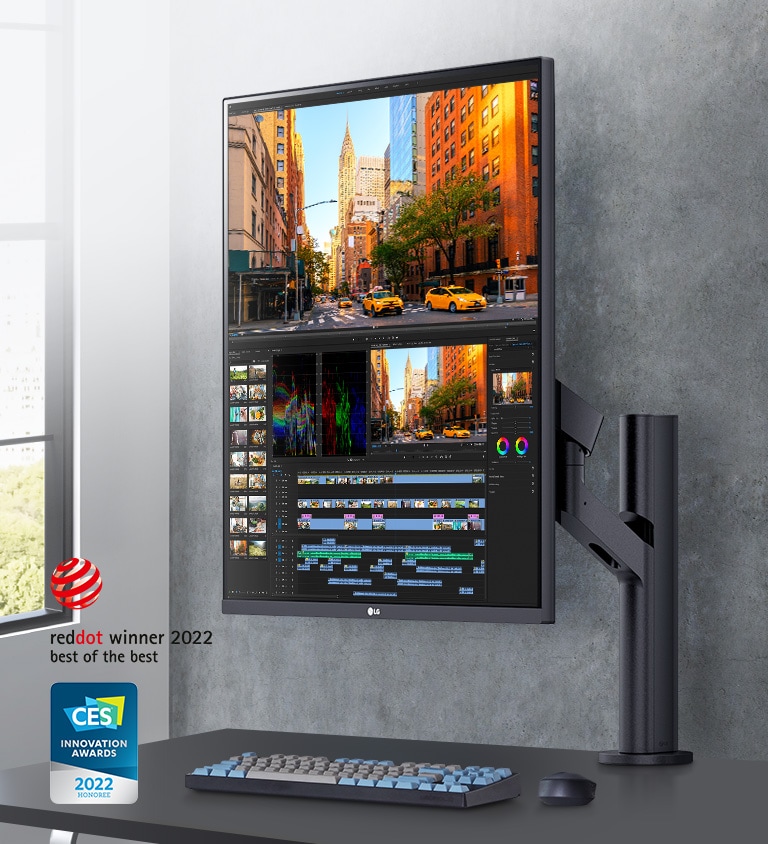

front view with the monitor arm on the right

Double the Screen, Twice the Experience

Enhance your efficiency with a new format of 16:18 aspect ratio SDQHD display.

Stunning Image Quality

SDQHD (2560 x 2880) Nano IPS
DCI-P3 98% (Typ.) & HDR10

Ergonomics

Ergonomic Stand with C-Clamp
Various Movement of Display

User Convenience

USB Type-C™
Easy Installation

*The images simulated to enhance feature understanding. It may differ from actual use.

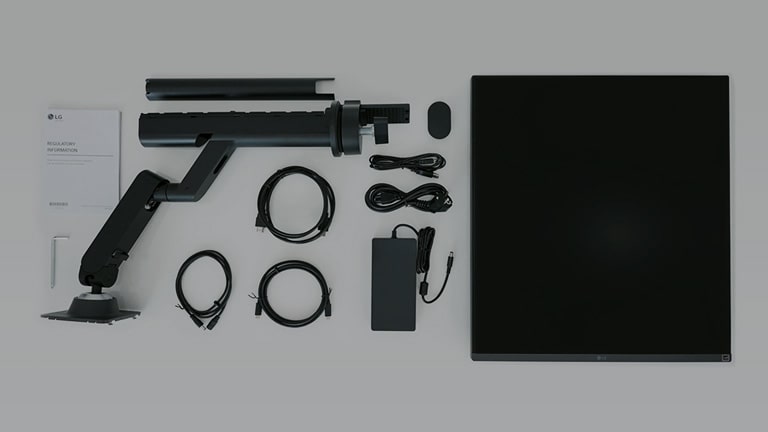

New DualUp Monitor UNBOXING and SETUP

Let's going to take a look inside of new DualUp monitor box and get to know the process of installing it, one by one.

*The product images in the video are for illustrational purposes only and might differ from the real product.

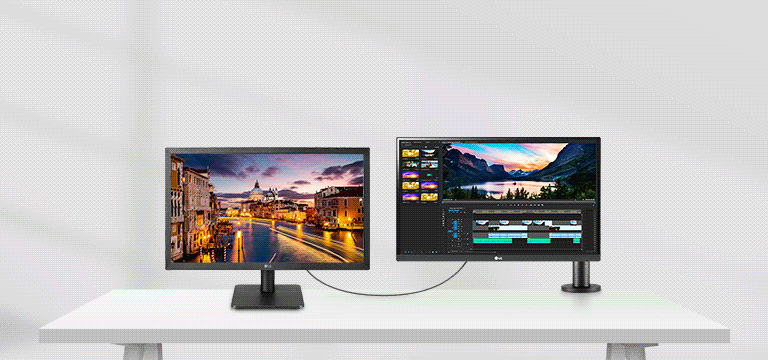

More Screen and Less Space

DualUp monitor only occupied compact space for one monitor but this 16:18 aspect ratio monitor support, two 21.5-inch monitors (16:9 aspect ratio), at one screen. It enhances work efficiency and productivity at the same time.

DualUp monitor only occupied compact space for one monitor but this 16:18 aspect ratio monitor support, two 21.5-inch monitors, at one screen.

*The images simulated to enhance feature understanding. It may differ from actual use.

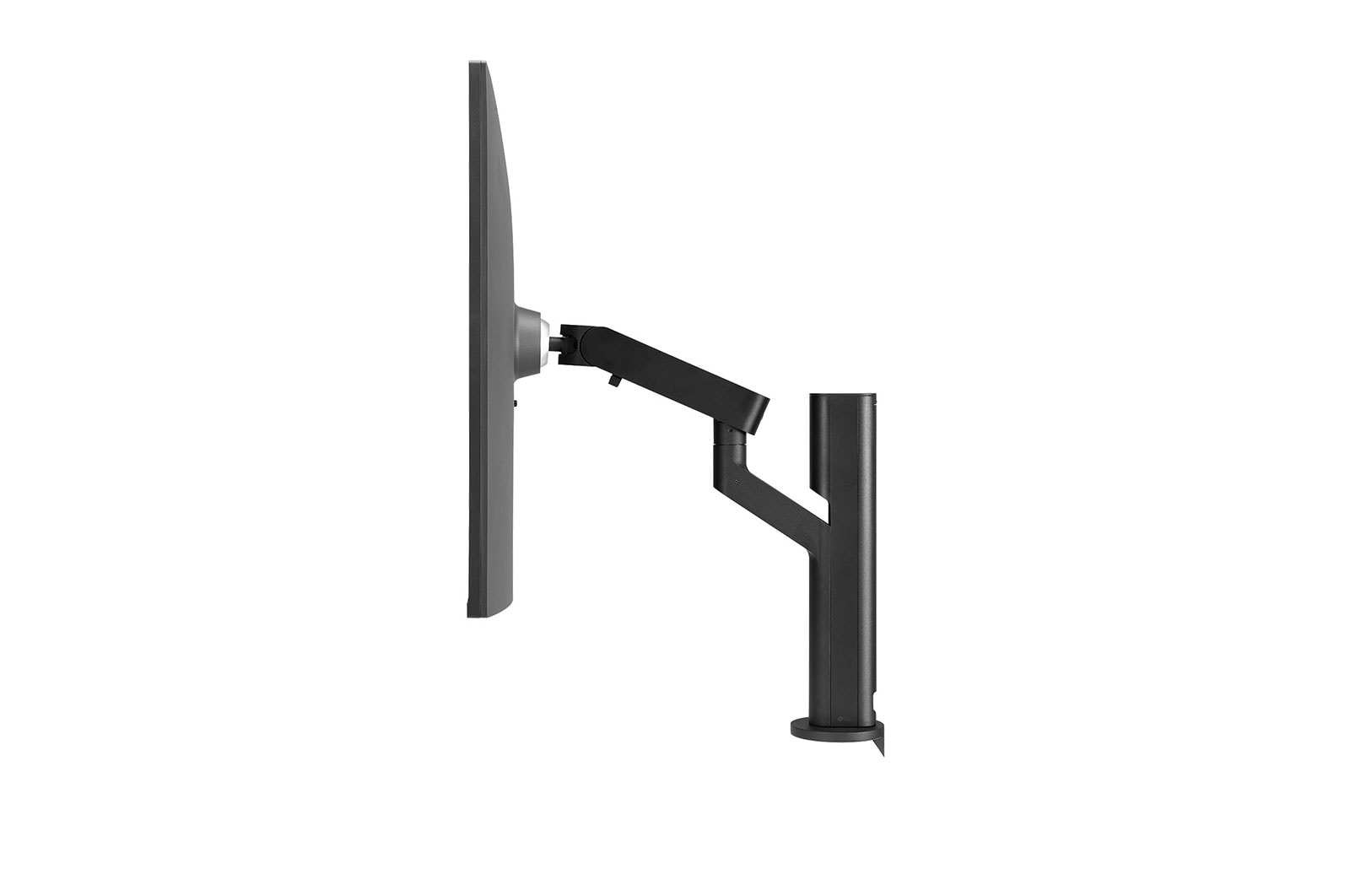

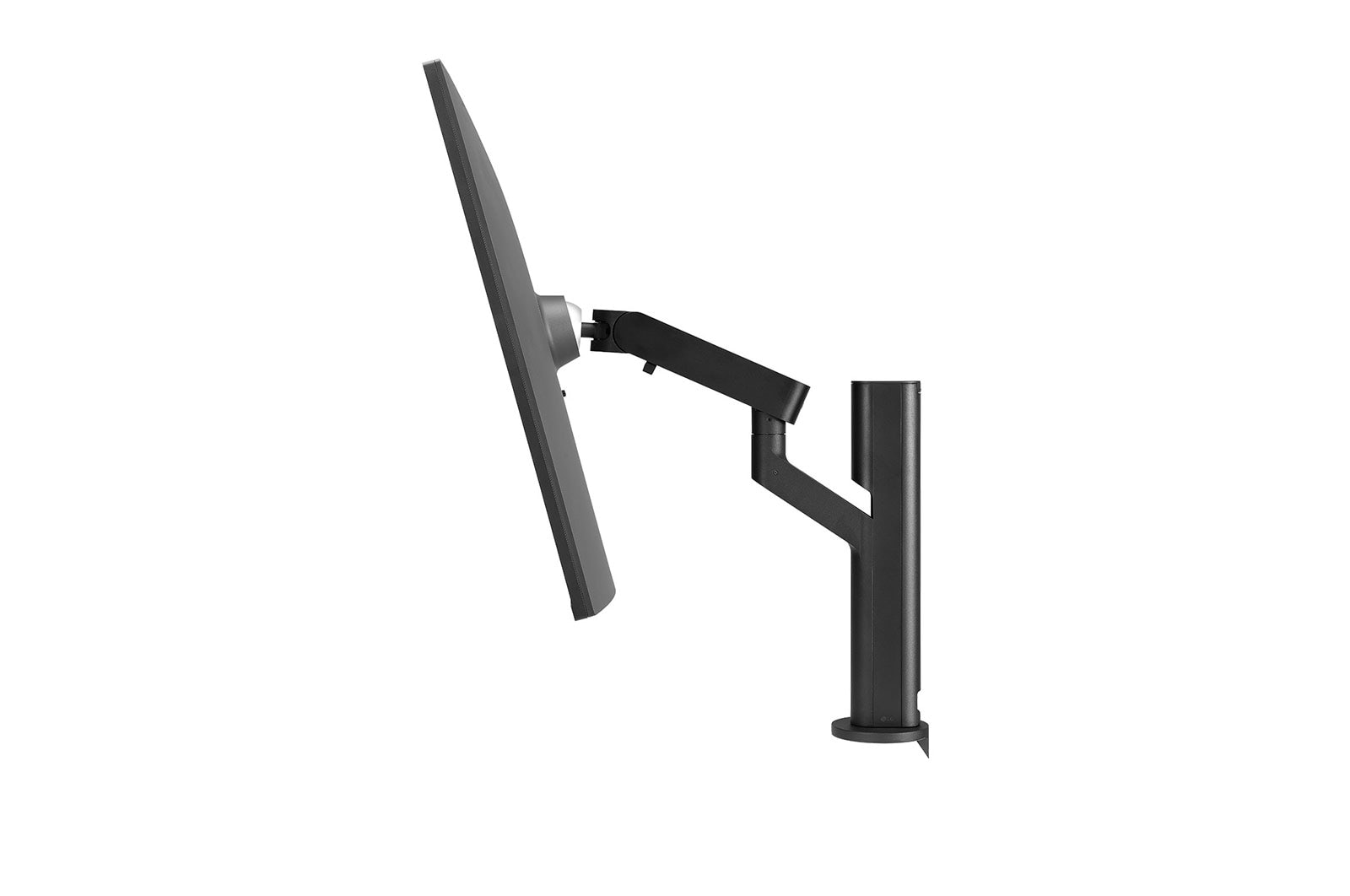

Various Movement of Display

Ergonomic Movement within Eye Rotation Range

Enhanced flexibility of the Ergo stand* offers expanded ergonomic adjustment of extend, retract, swivel, pivot, height and tilt as well as providing perfect position of screen for more comfortable and sustainable user experience.

*Ergo Stand: Extend/Retract 210mm, Swivel ±335°, Pivot 90° (Counterclockwise), Height 130mm, Down Height 35mm, Tilt ±25°.
**The product images in the video are for illustrational purpose only and might differ from the real product.

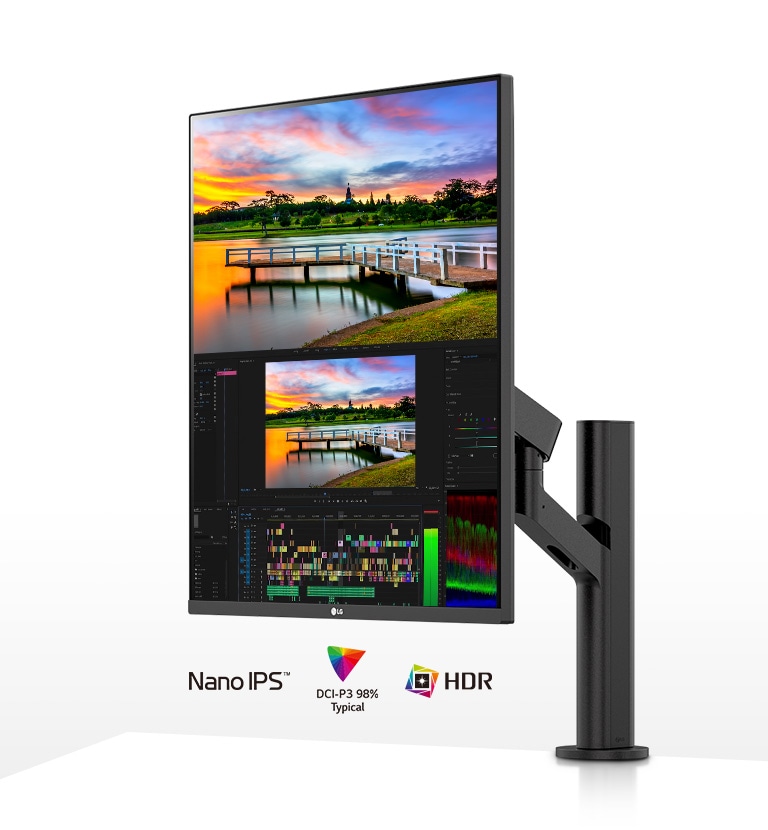

Nano IPS display supports a wide colour spectrum, 98% of DCI-P3 colour gamut, and offers vibrant colour reproduction with the support of HDR10.

SDQHD Nano IPS Display

Stunning Image Quality, Apposite to Your Work

The 27.6-inch SDQHD (2560 x 2880, 16:18 aspect ratio) Nano IPS display supports a wide colour spectrum, 98% of DCI-P3 colour gamut, and offers vibrant colour reproduction with the support of HDR10.

*The images simulated to enhance feature understanding. It may differ from actual use.

Live Colour Low Blue Light

Increase Viewing Comfort while Maintaining Colour Quality

LG's Live Colour Low Blue Light with TÜV Rheinland Eyesafe® Display Certification helps to protect your eyes against blue light by combining RGB hardware and software adjustments while maintaining vivid colour quality.

*TÜV Rheinland certification ID (Low Blue Light - Hardware Solution): 1111250391.
*The images simulated to enhance feature understanding. It may differ from actual use.

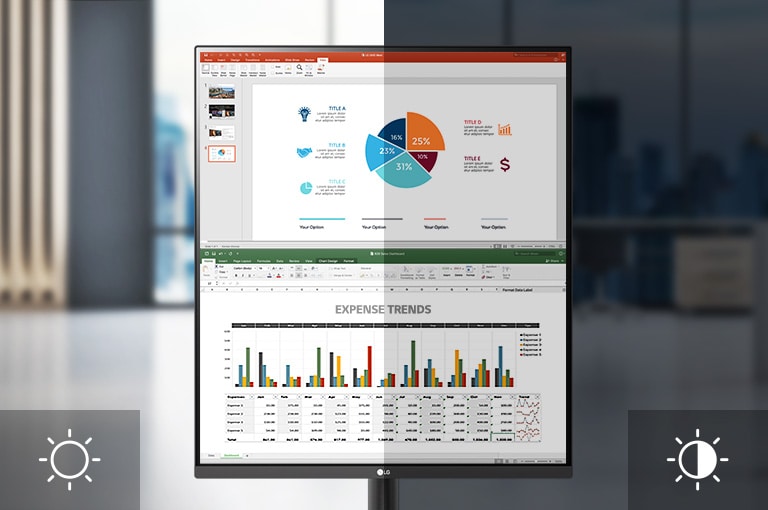

The sensor reacts to light, making the screen brighter in bright areas and darker in the dark.

Ambient Light Sensor

Reducing Eye Strain with Auto Brightness Control

The sensor reacts to light, making the screen brighter in bright areas and darker in the dark. It provides a comfortable working environment.

*The images simulated to enhance feature understanding. It may differ from actual use.

Ideal Monitor for Creating, Developing, and Multitasking

LG DualUp Monitor, a new style display of 16:18 aspect ratio, helps to boost efficiency and productivity. You can check more information at a glace within the extended upper and lower space.

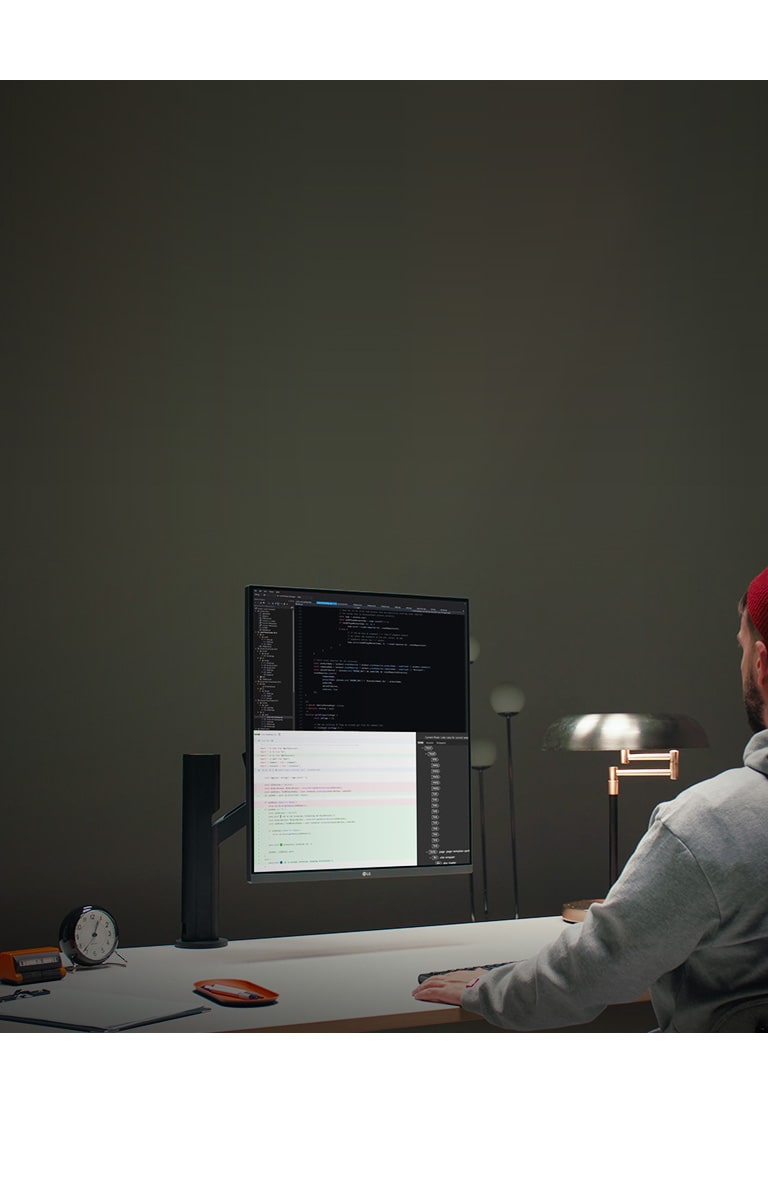

For Programmer

When coding, you can see code or text more on the double-size screen without having the mouse scroll.

For Creator & Streamer

While streaming the service with DualUp monitor, you can also check a lot of chat tracks in real-time.

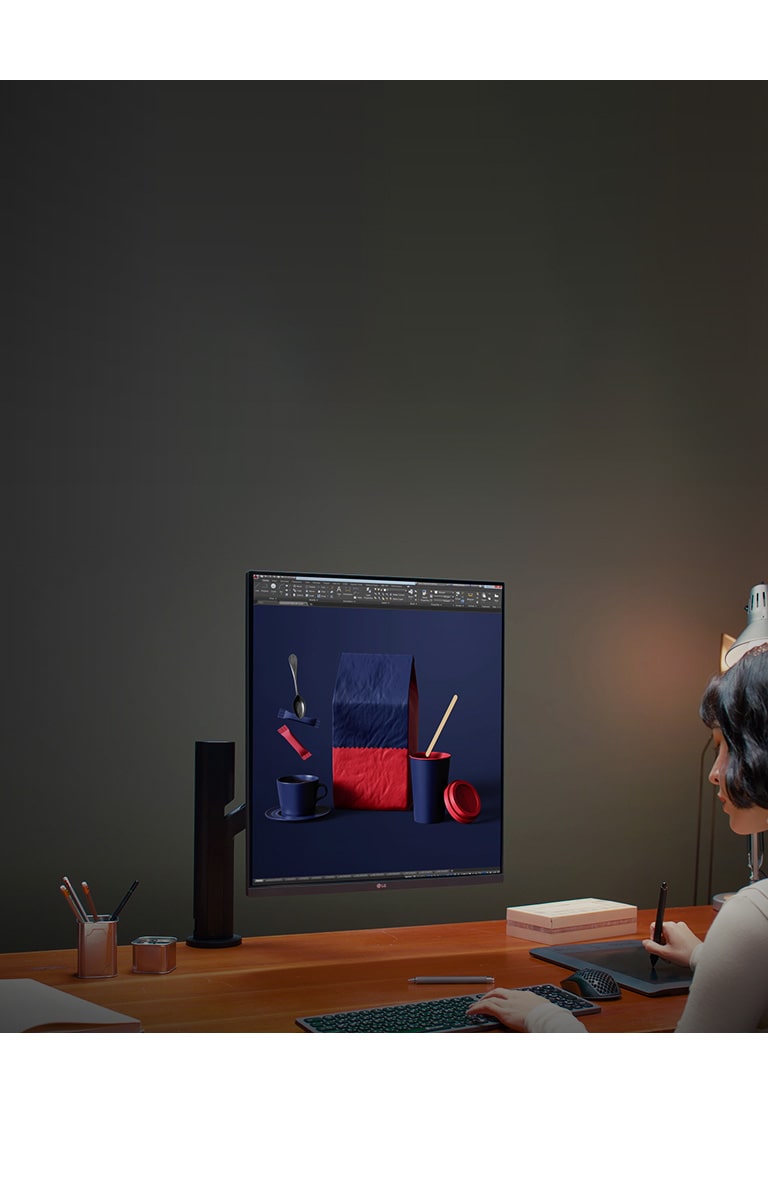

For Designer

DualUp monitor provides a widescreen for editing many layers at a glance and takes up less surface area for a wider workspace.

For Office Worker

DualUp monitor helps to process work efficiently by checking multiple datasheets with the vertically extended screen.

*The images simulated to enhance feature understanding. It may differ from actual use.

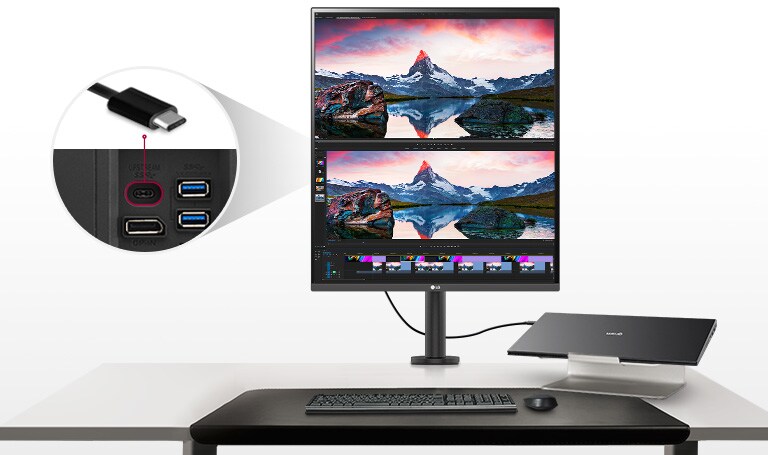

USB Type-C™

Easy Control and Connectivity

USB Type-C™ port allows from display and data transferring to connected device charging (up to 90W), enabling support for your laptop all at the same time over a single cable.

Display

Power Delivery

Data

USB Type-C™ offering easy control and connectivity

*To work properly, the USB Type-C™ cable included in the package is required to connect the USB Type-C™ port to the monitor.

How to Utilize DualUp Monitor Set-up

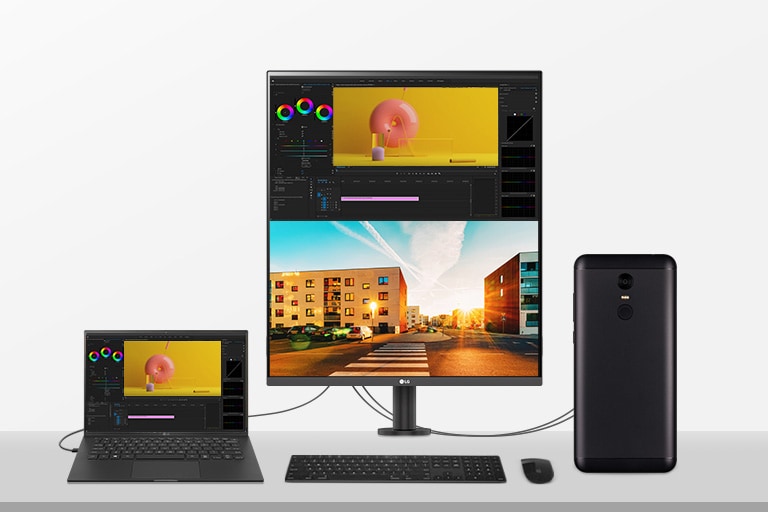

PBP & Built-in KVM*

DualUp monitor allows you to control multiple contents from two computers with the picture-by-picture feature. Also, the built-in KVM feature helps to manage content with a single keyboard and mouse.

By connecting two cables, you can utilize a dual monitor setup.

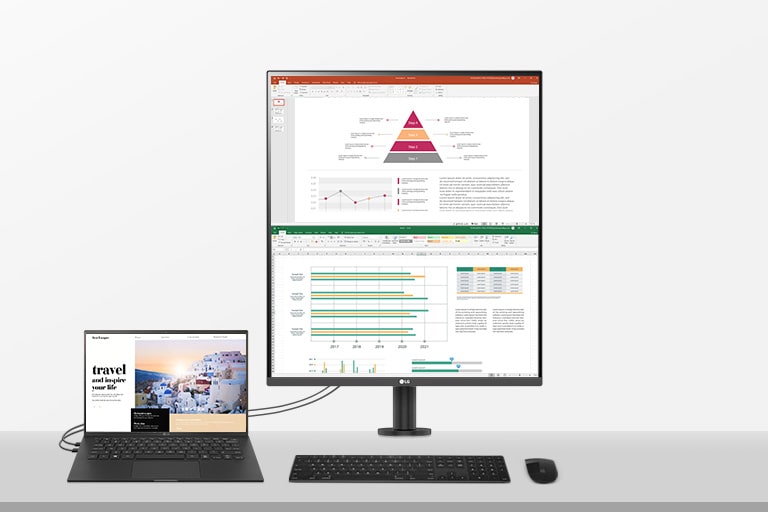

1 Source PBP**

By connecting two cables, out of HDMI, DisplayPort, and USB Type-C™, you can utilize a dual monitor setup with 28MQ780. It helps to control two-screen easily without using software or shortcut keys.

*KVM: Keyboard, Video Monitor, and Mouse.
**It can be connected via the USB Type-C™ cable, HDMI cable, and USB2.0 upstream cable included with the package.
**DisplayPort cable is NOT included with the package.

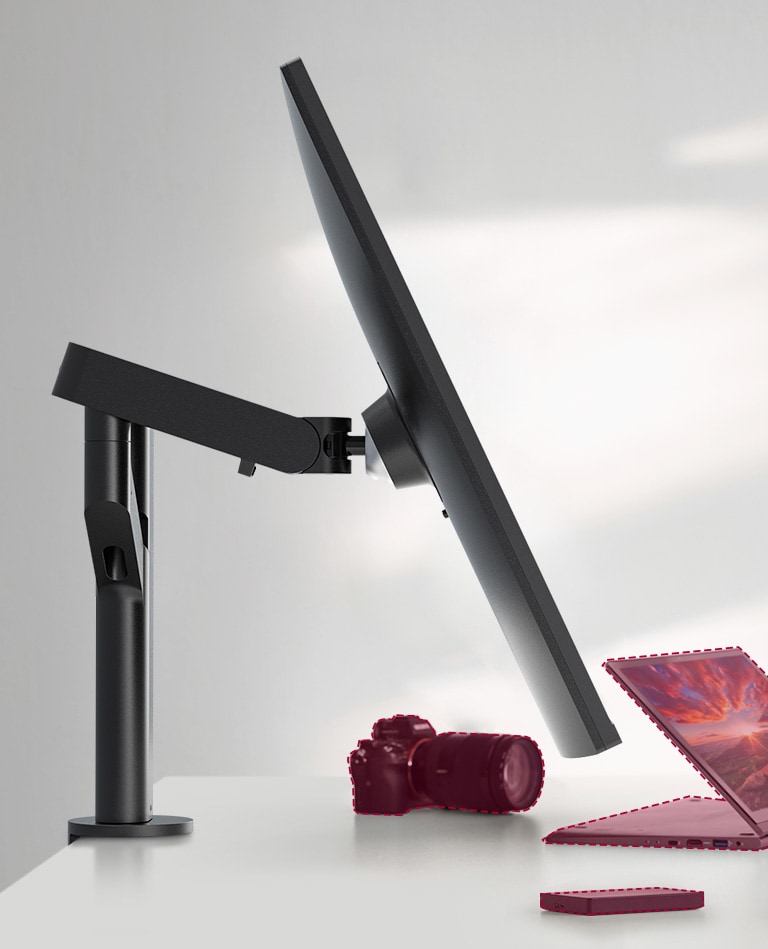

Space-saving and Flexible Workstation Setup

The compact design takes up very little desk surface and also contributes to easier installation.

Easy Workstation Setup

Fully Use Your Desk

Basically, for the dual monitor set-up without DualUp monitor but conventional monitors, more than 2-times are required compared to the existing space. DualUp monitor helps users to set workspace comfortably in their current space. Also, C-Clamp & Grommet and One Click Mount make it to install easily without other equipment.

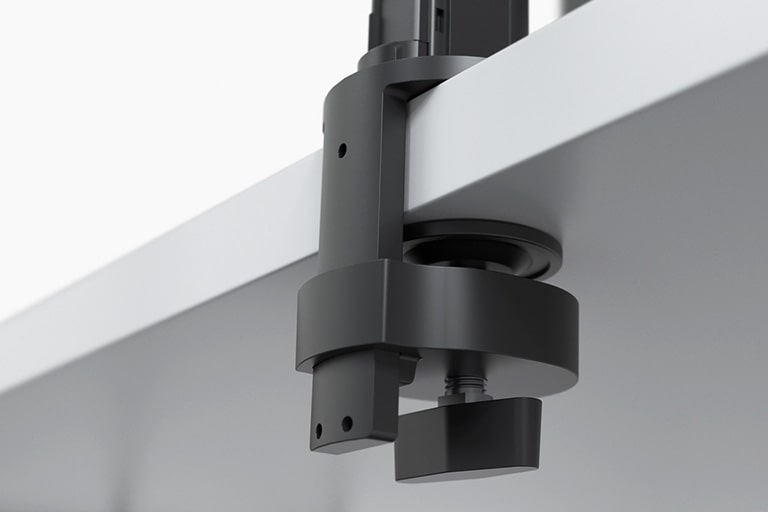

C-Clamp & Grommet

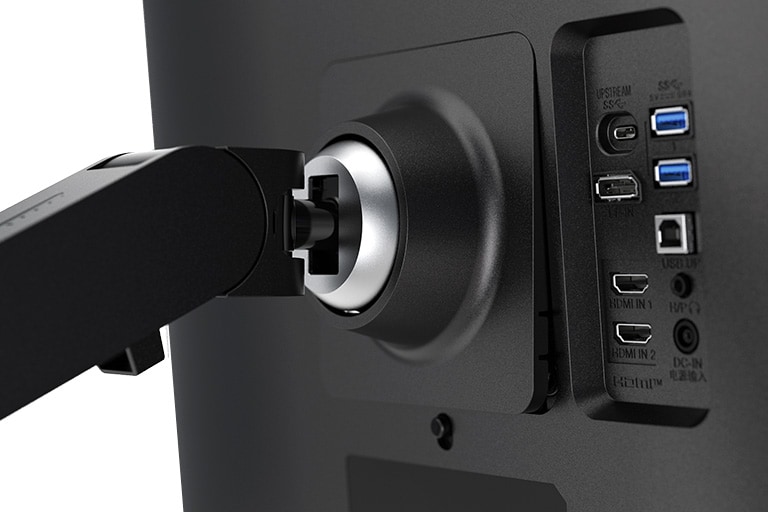

One Click Mount

*For detailed installation instructions, see the product manual at LG.com Support page.
*The product images in the video are for illustrational purposes only and might differ from the real product.

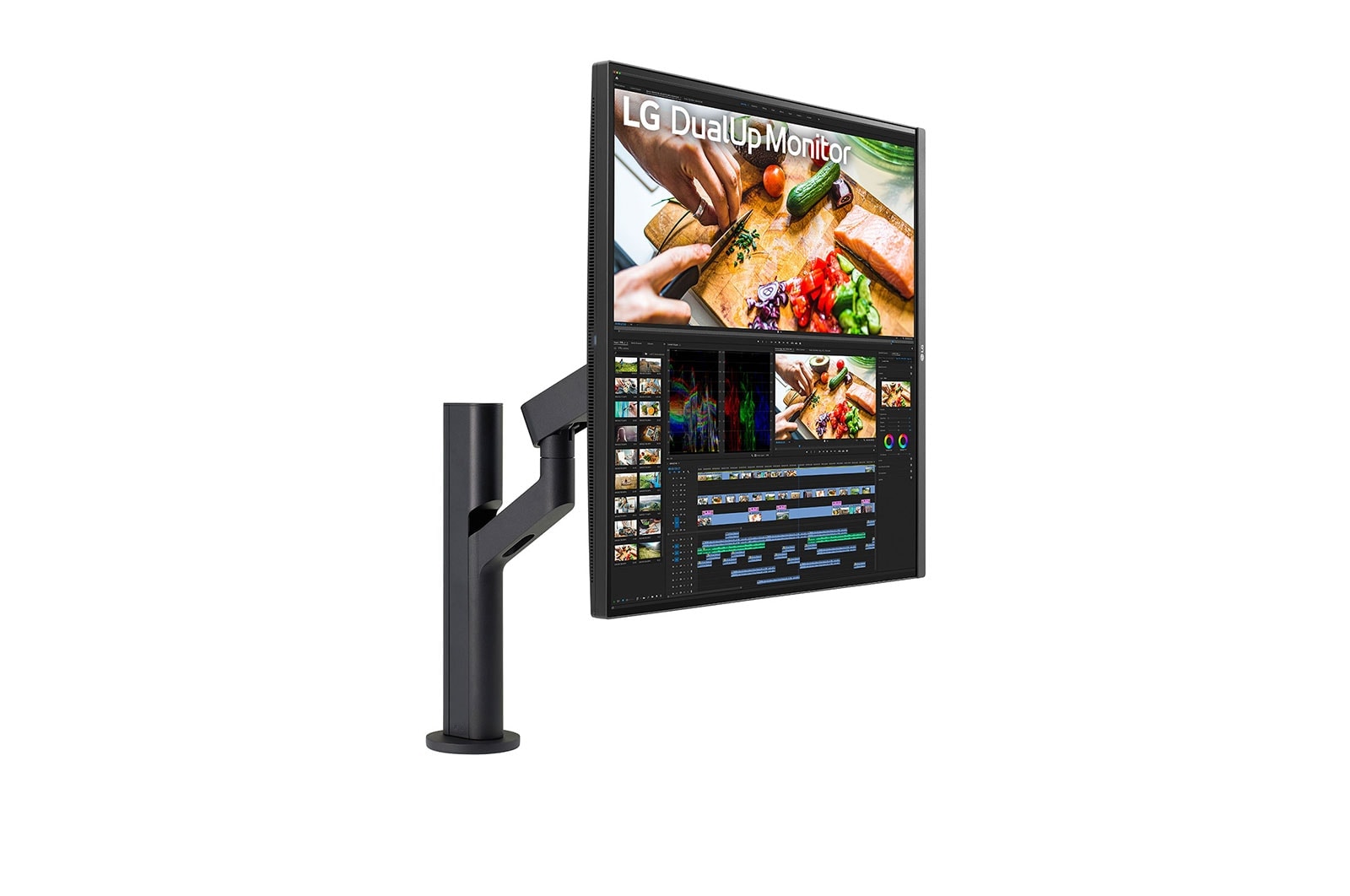

LG 27.6-inch 16:18 DualUp Monitor with Ergo Stand and USB Type-C™, 28MQ780-B

Key Spec

Size [Inch]: 27.6

Resolution: 2560 x 2880

Panel Type: IPS

Aspect Ratio: 16:18

Color Gamut (Typ.): DCI-P3 98% (CIE1976)

Brightness (Typ.) [cd/m²]: 300

Refresh Rate (Max.) [Hz]: 60

Response Time: 5ms (GtG at Faster)

Display Position Adjustments: Tilt/Height/Swivel/Pivot/Extend/Retract

All Spec

INFO

Product name: DualUp

Year: 2022

POWER

AC Input: 100~240V (50/60Hz)

Power Consumption (DC Off): Less than 0.3W

Power Consumption (Max.): 190W

Type: External Power(Adapter)

Power Consumption (Sleep Mode): Less than 0.5W

Power Consumption (Typ.): 40W

Power Consumption (Energy Star): 28.31W

SW APPLICATION

Dual Controller: YES

OnScreen Control (LG Screen Manager): YES

DIMENSIONS/WEIGHTS

Weight in Shipping [kg]: 13.2

Weight without Stand [kg]: 4.3

Weight with Stand [kg]: 9

Dimension in Shiping (W x H x D) [mm]: 745 x 240 x 557

Dimension without Stand (W x H x D) [mm]: 481.5 x 549.5 x 44.9

Dimension with Stand (W x H x D) [mm]: 481.5 x 843.2 x 461.3

DISPLAY

Aspect Ratio: 16:18

Brightness (Typ.) [cd/m²]: 300

Color Gamut (Typ.): DCI-P3 98% (CIE1976)

Contrast Ratio (Typ.): 1000:1

Pixel Pitch [mm]: 0.18195 x 0.18195

Resolution: 2560 x 2880

Response Time: 5ms (GtG at Faster)

Size [Inch]: 27.6

Viewing Angle (CR≥10): 178º(R/L), 178º(U/D)

Brightness (Min.) [cd/m²]: 240

Color Depth (Number of Colors): 1.07B

Contrast Ratio (Min.): 700:1

Panel Type: IPS

Refresh Rate (Max.) [Hz]: 60

Size [cm]: 70.1

Color Gamut (Min.): DCI-P3 90% (CIE1976)

SOUND

Maxx Audio: YES

Speaker: 7W x 2

CONNECTIVITY

DisplayPort: YES(1ea)

HDMI: YES(2ea)

Headphone out: 3-pole (Sound Only)

USB Downstream Port: YES(2ea/ver3.0)

USB Upstream Port: YES(1ea/ver2.0)

DP Version: 1.4

USB-C: YES(1ea)

USB-C (Data Transsmission): YES

USB-C (Max. Resolution at Hz): 2560x2880 at 60Hz

USB-C (Power Delivery): 90W

Built-in KVM: YES

FEATURES

Black Stabilizer: YES

Flicker Safe: YES

HDR 10: YES

HDR Effect: YES

PBP: 2PBP

Reader Mode: YES

Super Resolution+: YES

Color Weakness: YES

Dynamic Action Sync: YES

Color Calibrated in Factory: YES

Auto Brightness: YES

Auto Input Switch: YES

Nano IPS™ Technology: YES

User Defined Key: YES

Others (Features): Low Blue Light

MECHANICAL

Display Position Adjustments: Tilt/Height/Swivel/Pivot/Extend/Retract

Wall Mountable [mm]: 100 x 100

STANDARD

RoHS: YES

ACCESSORY

HDMI: YES

USB-C: YES

Others (Accessory): DC Extension cable 1.4m Black, Ergo+ stand, Body cable cover, Body top cover, Wrench

USB A to B: YES
