SP11RA

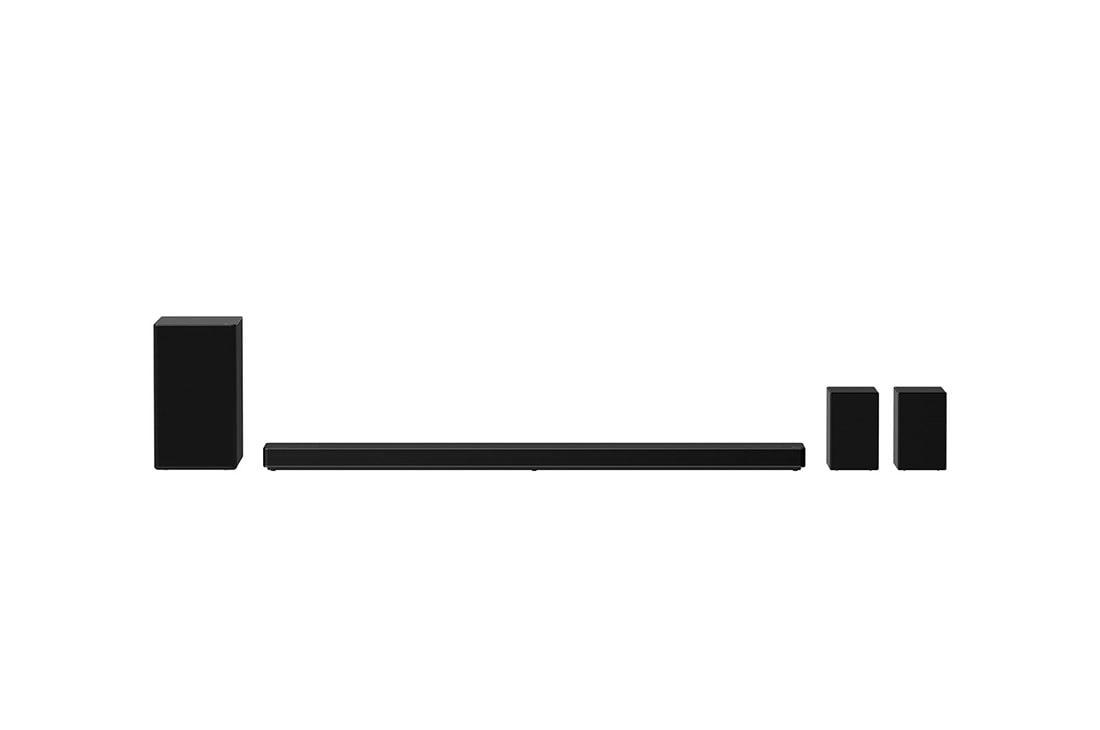

LG SP11RA Powerful Sound 770W, 7.1.4ch with Meridian, Dolby Atmos, DTS: X, Dolby Vision / HDR 10, eARC, HDMI In / Out, BT, Optical, AI Calibration, Alexa (Controlled) and AirPlay 2, LG Sound bar App.
-
Shipping options may vary by region.
-
Shipping delays may occur due to the delivery company's circumstance.
All Spec
MODEL INFORMATION
-
Model Name
-
SP11RA
-
Mainset / Subwoofer Color
-
Black / Black
SIZE(W X H X D, MM)
-
Main (w/ Foot )
-
1443 x 63 x 146
-
Matching TV size (`20 New)
-
139.7 ~ 165.1cm (55 ~ 65)
-
Rear Speaker
-
130 x 211.5 x 191.2
-
Subwoofer
-
221.0 x 390.0 x 312.8
MATERIAL
-
Main - Front / Top / Bottom
-
Metal Grille / Mold / Mold
-
Wireless Speaker - Front / Body
-
Metal (+Top) / Mold
-
Subwoofer - Front / Body
-
Jersey / Wood
WEIGHT(KG)
-
Main
-
7.2Kg
-
Rear Speaker (2EA)
-
5.2Kg
-
Subwoofer
-
7.8Kg
-
Gross Weight
-
29.4Kg
CARTON BOX
-
Size (W x H x D) mm
-
1546 x 483 x 284
NUMBER OF CHANNELS
-
Number of channels
-
7.1.4ch
OUTPUT POWER(THD 10%)
-
Total
-
770W
-
Front
-
50W x 2
-
Center
-
50W
-
Surround (Side)
-
50W x 2
-
Top
-
50W x 2
-
Rear
-
50W x 2
-
Rear Top
-
50W x 2
-
Subwoofer
-
220W (Wireless)
SPEAKER UNIT_FRONT(L/R)
-
SPL
-
82dB
-
System
-
Closed
-
Tweeter Unit
-
20mm Silk Dome
-
Woofer Unit
-
40 x 100mm
-
Impedance
-
4ohm
SPEAKER UNIT_CENTER
-
SPL
-
82dB
-
System
-
Closed
-
Tweeter Unit
-
20mm Silk Dome
-
Woofer Unit
-
40 x 100mm
-
Impedance
-
4ohm
SPEAKER UNIT_SURROUND(SIDE)(L/R)
-
SPL
-
82dB
-
System
-
Closed
-
Woofer Unit
-
40 x 100mm
-
Impedance
-
4ohm
SPEAKER UNIT_TOP(L/R)
-
SPL
-
83dB
-
System
-
Closed
-
Woofer Unit
-
6.35cm (2.5)
-
Impedance
-
4ohm
SPEAKER UNIT_REAR(L/R)
-
SPL
-
82dB
-
System
-
Closed
-
Woofer Unit
-
7.62cm (3) (Paper, Black)
-
Impedance
-
3ohm
SPEAKER UNIT_REAR TOP(L/R)
-
SPL
-
83dB
-
System
-
Closed
-
Woofer Unit
-
6.35cm (2.5)
-
Impedance
-
3ohm
SPEAKER UNIT_SUBWOOFER
-
SPL
-
85dB
-
System
-
Bass Reflex
-
Woofer Unit
-
17.78cm (7)
-
Impedance
-
3ohm
NO. OF SPEAKER UNIT
-
Number of speakers
-
15EA
CONNECTIVITY_GENERAL
-
Optical
-
Yes (1)
-
HDMI 2.1 (HDCP 2.3) - In / Out
-
Yes (2) / Yes (1)
-
HDR10 / HDR10+
-
Yes/No
-
Dolby Vision
-
Yes
-
USB
-
Yes
CONNECTIVITY_WIRELESS
-
Bluetooth Version
-
5.0
-
Bluetooth Codec - SBC / AAC
-
Yes/Yes
-
Wi-Fi (2.4G / 5G)
-
Yes
-
Wireless Rear ready
-
YES (1:1)
DISPLAY INFORMATION
-
Display Type
-
LCD (5 char.)
HI-RESOLUTION AUDIO
-
Sampling - "24bit/192kHz" / "24bit/96kHz"
-
Yes/Yes
-
Upbit/upsampling - "24bit/192kHz" / "24bit/96kHz"
-
Yes/No
SOUND EFFECT
-
AI Sound Pro
-
Yes
-
Standard
-
Yes
-
Music
-
Yes (w/ Meridian)
-
Cinema
-
Yes
-
Clear Voice
-
Yes
-
Sports
-
Yes
-
Game
-
Yes
-
Bass Blast / Bass Blast +
-
Yes
-
Dolby ATMOS
-
Yes
-
DTS:X
-
Yes
SOUND CONTROL
-
User EQ - RCU / App
-
Yes/Yes
-
Night Time On/Off - RCU / App
-
Yes/Yes
-
Dynamic Rage On/Off - RCU / App
-
No/Yes
-
Auto Volume Leveler On/Off - RCU / App
-
No/Yes
-
Surround On/Off - RCU / App
-
Yes/Yes
-
AI Room Calibration (2 MIC In) - App
-
Yes
-
Soundbar Mode Control - Sound mode change through TV GUI
-
Yes
-
TV Sound Share - TV "AI Sound Pro"
-
Yes
ALEXA SUPPORTED
-
Works with Alexa (Controllee)
-
Yes
SPOTIFY SUPPORTED
-
Spotify Connect
-
Yes
APPLE SUPPORTED
-
AirPlay 2
-
Yes
GOOGLE SUPPORTED
-
Works with the Google Assistant (Controllee)
-
Yes
-
Chromecast
-
Yes
-
Google Multi Zone (One Source → Multi Speaker)
-
Yes
CONVENIENCE
-
Remote App - iOS / Android OS
-
Yes/Yes
-
Smart Phone File Playback
-
Yes
-
EZ Setup (BLE)
-
Yes
-
NSU / FOTA
-
Yes/No
-
Control with your TV Remote (Vol+/-, Mute)
-
Yes/Yes
-
Sound Sync - Bluetooth(LG TV) / Optical
-
No/Yes
-
Auto Power On/Off - Bluetooth (LGTV) / Optical
-
No/Yes
-
Auto Power On/Off - RCU / APP
-
Yes/Yes
-
A/V Sunc (0~300ms) - RCU / APP
-
No/Yes
-
HDMI SIMPLINK
-
Yes
-
HDMI Audio Return Channel (ARC)
-
Yes
-
HDMI Audio Return Channel (e-ARC)
-
Yes
-
Woofer Level (-15 ~ 6dB, 1dB/Step)
-
Yes
-
Channel Level (-6 ~ 6dB, 1dB/Step) - Top / Center / Surround / Rear / Rear Top
-
Yes/Yes/Yes
-
Mute
-
Yes
-
Auto Dimmer
-
Yes
-
USB Host / Charge
-
Yes/No
-
Built-in Music
-
Yes (2)
AUDIO FORMAT(BITSTREAM)
-
LPCM
-
Yes
-
Dolby Atmos
-
Yes
-
Dolby TrueHD
-
Yes
-
Dolby Digital Plus
-
Yes
-
Dolby Digital
-
Yes
-
DTS:X
-
Yes
-
DTS-HD Master Audio
-
Yes
-
DTS-HD High Resolution
-
Yes
-
DTS Digital Surround
-
Yes
-
AAC / AAC+
-
Yes
FILE FORMAT
-
FLAC - C4A / USB
-
Yes/Yes
-
OGG - C4A / USB
-
Yes/Yes
-
WAV - C4A / USB
-
Yes/Yes
-
MP3 - C4A / USB
-
Yes/Yes
-
AAC - C4A / USB
-
Yes/Yes
POWER_MAIN
-
SMPS
-
100~240V, 50/60Hz
-
Power Off Consumption
-
0.5W↓
-
Power Consumption
-
75W
POWER_REAR SPEAKER/WIRELESS BOX
-
Type (SMPS)
-
100~240V, 50/60Hz
-
Power Off Consumption
-
0.5W↓
-
Power Consumption
-
20W (L, R)
-
Wireless Frequency
-
5GHz
POWER_SUBWOOFER
-
Type (SMPS)
-
100~240V, 50/60Hz
-
Power Off Consumption
-
0.5W↓
-
Power Consumption
-
38W
-
Wireless Frequency
-
5GHz
ACCESSORY_MANUAL
-
Web Manual (File)
-
Yes (Full)
-
Built-in Manual (Book) (Simple or Full)
-
Yes (Simple)
-
Wall Mount Guide
-
Yes
-
Wireless Speaker Reset Guide
-
Yes
-
Open Source - Yes (Full or Simple) / No
-
Yes (Full)
-
Warranty Card
-
Yes
ACCESSORY_REMOTE CONTROL
-
Battery (Size)
-
AA x 2
-
Battery Built-in
-
Yes
ACCESSORY_OTHERS
-
Optical Cable
-
Yes
-
Wall Mount Bracket
-
Yes
PRODUCT DETAILS
-
Net Quantity
-
1 N
-
Country of Origin
-
China
-
Manufactured By
-
LG ELECTRONICS(HUIZHOU)INC. HUI TAI FACTORY NO.1 XINDA ROAD, HUI TAI INDUSTRIAL PARK OF ZHONGKAI DEVELOPMENT ZONE,HUIZHOU CITY, GUANGDONG, CHINA .
-
Imported By
-
LG ELECTRONICS INDIA PVT. LTD. PLOT NO – 4, TECHZONE – 2, GREATER NOIDA, UTTAR PRADESH , INDIA -201308
