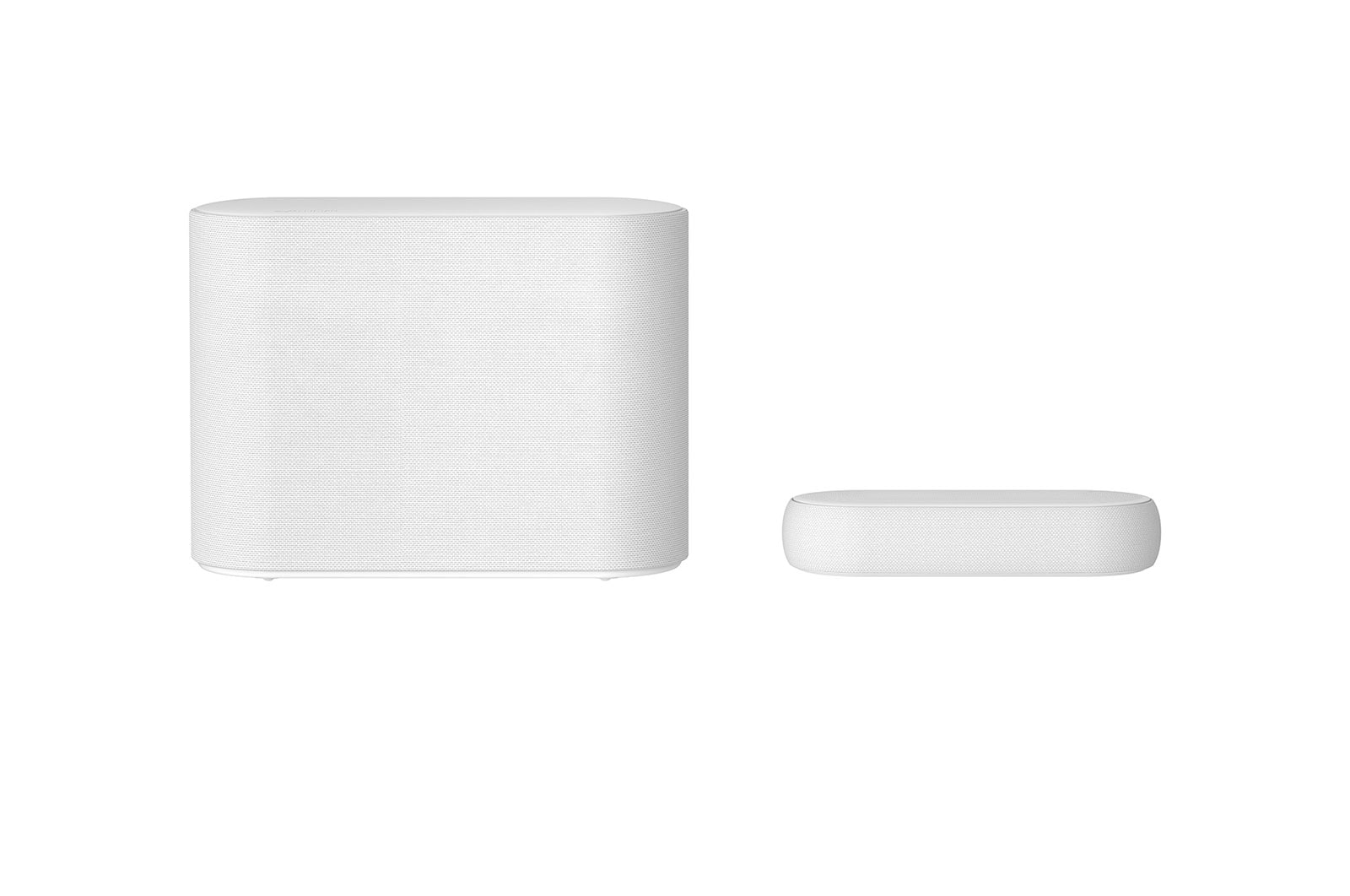

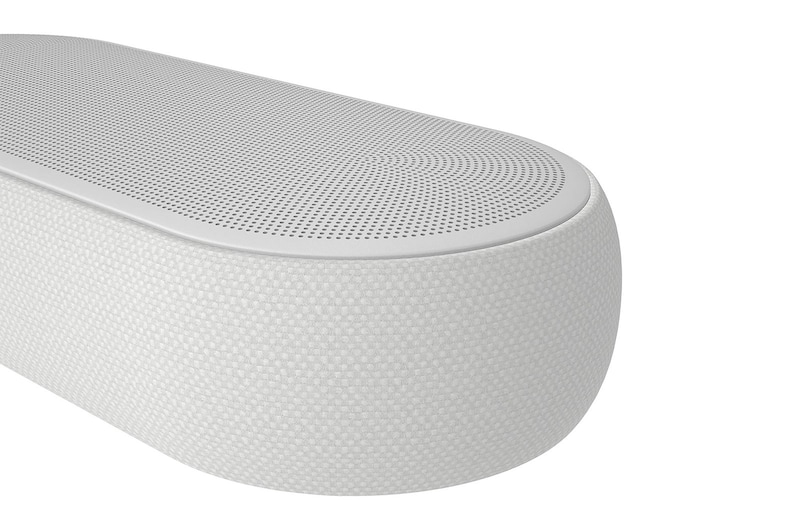

LG Soundbar Éclair QP5W
All Spec
SALES/SUB REGION
-
Sales Region
EU
-
Sub Region
ES,FS,IS,UK,CZ, HS MK,PL,RO,LA
MODEL INFORMATION
-
Brand Information
LG Soundbar
-
Model Name
QP5W
-
Subwoofer Model Name
SPQP5-W
-
System (Main Chip)
MT8531
-
Mainset / Subwoofer Colour
Black / Black
SIZE (W × H × D) MM
-
Main (w/ Foot)
296 x 59.9 x 126
-
Matching TV Size (`20 New)
40 inch ↑
-
Subwoofer
388 x 291 x 185
MATERIAL
-
Main - Front / Top / Bottom
Jersey / Metal / Mold
-
Subwoofer - Front / Body
Jersey / Wood
WEIGHT(KG)
-
Main
1.55Kg
-
Subwoofer
7.7Kg
-
Gross Weight
12.0Kg
CARTON BOX
-
Size (W x H x D) MM
456 x 435 x 266
-
Type
Flexo
-
Colour
Yellow
CONTAINER Q
-
20ft
480
-
40ft
960
-
40ft (HC)
960
NUMBER OF CHANNELS
-
Number of Channels
3.1.2ch
OUTPUT POWER(THD 10%)
-
Total
320W
-
Front
20W*2
-
Center
20W
-
Top
20W*2
-
Subwoofer
220W(Wireless)
SPEAKER UNIT FRONT(L/R)
-
SPL
82dB
-
System
Closed
-
Tweeter Unit
X
-
Woofer Unit
2 Inch
-
Impedance
4 Ohm
SPEAKER UNIT CENTER
-
SPL
82dB
-
System
Closed
-
Woofer Unit
2 Inch
-
Impedance
4 ohm
SPEAKER UNIT TOP(L/R)
-
SPL
82dB
-
System
Closed
-
Woofer Unit
2 Inch
-
Impedance
4 ohm

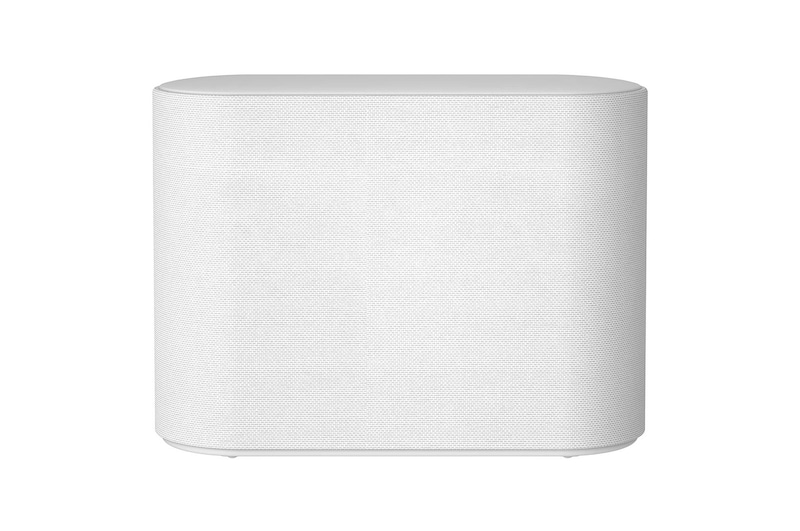

SPEAKER UNIT SUBWOOFER
-
SPL
85dB
-
System
Closed
-
Woofer Unit
5.25 inch (2EA)
-
Impedance
3 ohm
NO OF SPEAKER UNIT
-
Number Of Speakers
7 EA

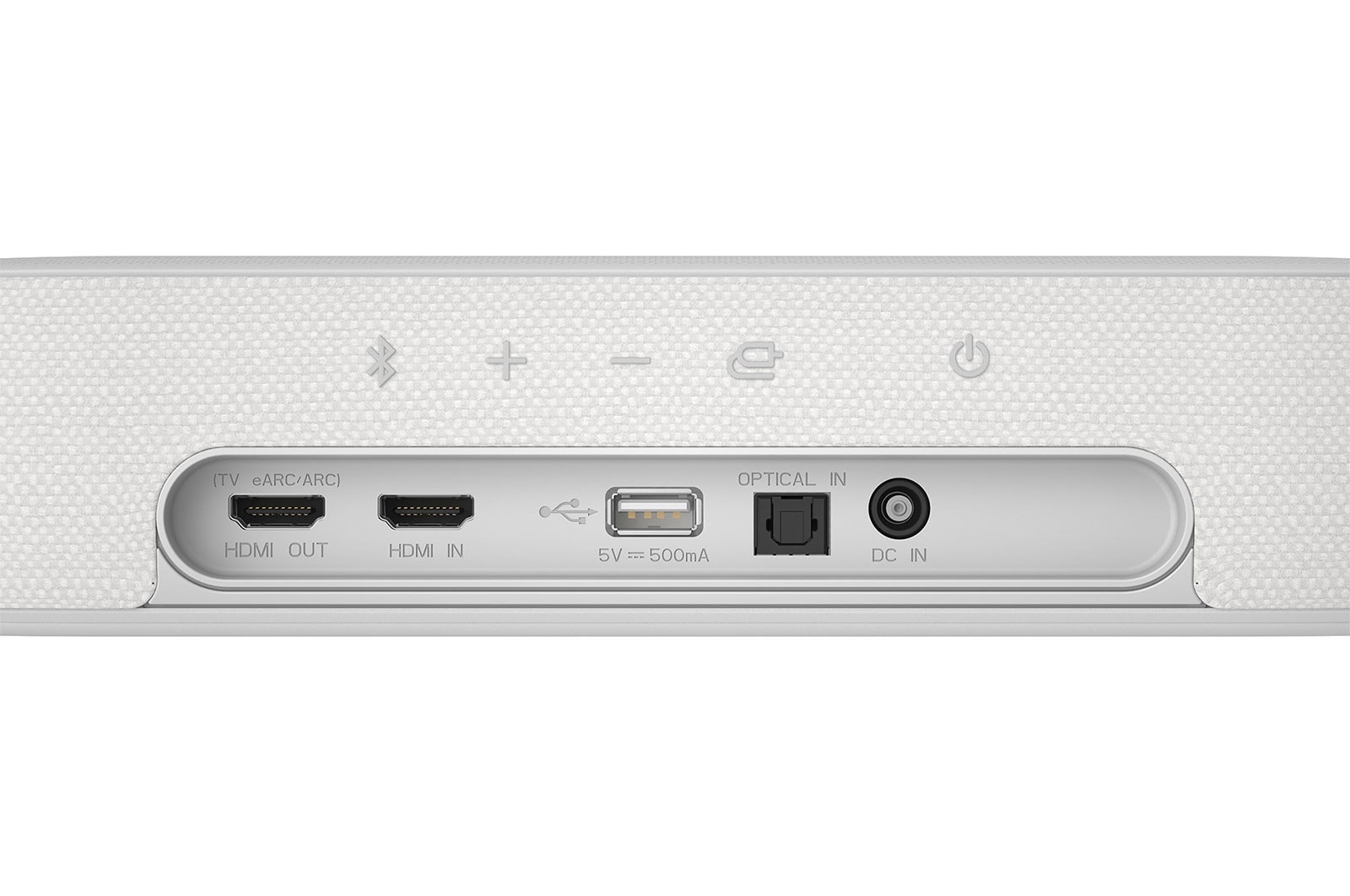

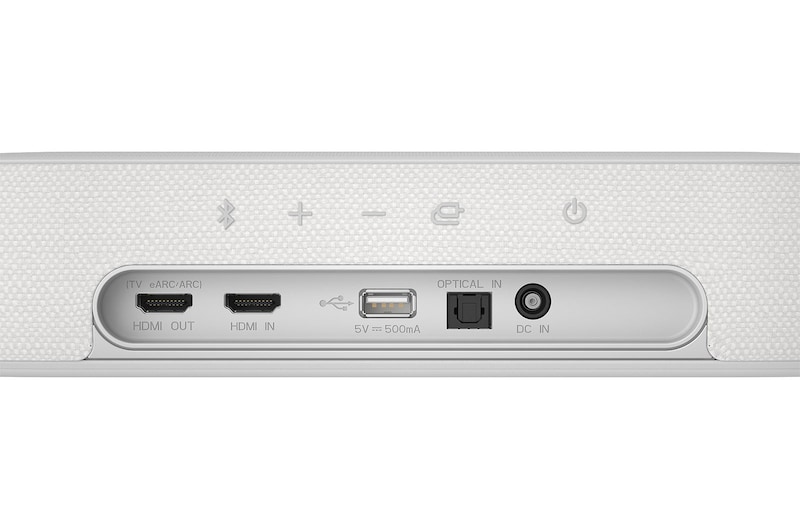

CONNECTIVITY GENERAL
-
Optical
Yes (1)
-
HDMI 2.1 (HDCP 2.3) - In / Out
Yes (1) / Yes (1)
-
HDR10 / HDR10+
Yes / -
-
Dolby Vision
Yes
-
USB
Yes
CONNECTIVITY WIRELESS
-
Bluetooth Version
4.0
-
Bluetooth Codec - SBC / AAC
Yes / Yes
DISPLAY INFORMATION
-
LED Indicator Colour
Yes (3 Color, 3 EA)
SOUND EFFECT
-
AI Sound Pro
Yes
-
Standard
Yes (w/ Meridian)
-
Cinema
Yes
-
Game
Yes
-
Dolby Atmos
Yes
-
DTS:X
Yes
SOUND CONTROL
-
User EQ - RCU / App
X / Yes
-
Night Time On/Off - RCU / App
X / Yes
-
Dynamic Rage On/Off - RCU / App
X / Yes
-
Auto Volume Leveler On/Off - RCU / App
X / Yes
-
SFX (Default)
Yes
-
TV Sound Share - TV "AI Sound Pro"
Yes
CONVENIENCE
-
Remote App - iOS / Android OS
Yes / Yes
-
Smart Phone File Playback (Bluetooth)
Yes
-
NSU / FOTA
X / Yes
-
Control with your TV Remotebr (Vol+/-, Mute)
Yes / Yes
-
Sound Sync - Bluetooth (LG TV) / Optical
Yes / Yes
-
Auto Power On/Off br Bluetooth (LGTV) / Optical
Yes / Yes
-
Auto Power On/Off - RCU / APP
X / Yes
-
A/V Sunc (0~300ms) - RCU / APP
X / Yes
-
HDMI SIMPLINK
Yes
-
HDMI Audio Return Channel (ARC)
Yes
-
HDMI Audio Return Channel (e-ARC)
Yes
-
Woofer Level (-15 ~ 6dB, 1dB/Step)
Yes
-
Channel Level (-6 ~ 6dB, 1dB/Step) br Top / Center / Surround / Rear / Rear Top
Yes / Yes / X / X / X
-
Mute
Yes
-
Auto Dimmer
Yes
-
USB Host / Charge
Yes / X
-
Built-in Music
Yes (1 song)
-
Bluetooth Stand-By
Yes
AUDIO FORMAT(BITSTREAM)
-
LPCM
Yes
-
Dolby Atmos
Yes
-
Dolby TrueHD
Yes
-
Dolby Digital Plus
Yes
-
Dolby Digital
Yes
-
DTS:X
Yes
-
DTS-HD Master Audio
Yes
-
DTS-HD High Resolution
Yes
-
DTS Digital Surround
Yes
-
AAC / AAC+
Yes
FILE FORMAT
-
FLAC - C4A / USB
X / Yes
-
OGG - C4A / USB
X / Yes
-
WAV - C4A / USB
X / Yes
-
MP3 - C4A / USB
X / Yes
-
WMA - C4A / USB
X / Yes
-
AAC - C4A / USB
X / Yes
POWER MAIN
-
Adapter
19V, 3.42A
-
Power Off Consumption
0.5W ↓
-
Power Consumption
36W
POWER SUBWOOFER
-
Type (SMPS)
100~240V, 50/60Hz
-
Power Off Consumption
0.5W ↓
-
Power Consumption
38W
-
Wireless Frequency
5GHz
ACCESSORY MANUAL
-
Web Manual (File)
Yes (Full)
-
Built-in Manual (Book) (Simple or Full)
Yes (Simple)
-
Open Source - Yes (Full or Simple) / X
Yes (Full)
-
Warranty Card
Yes

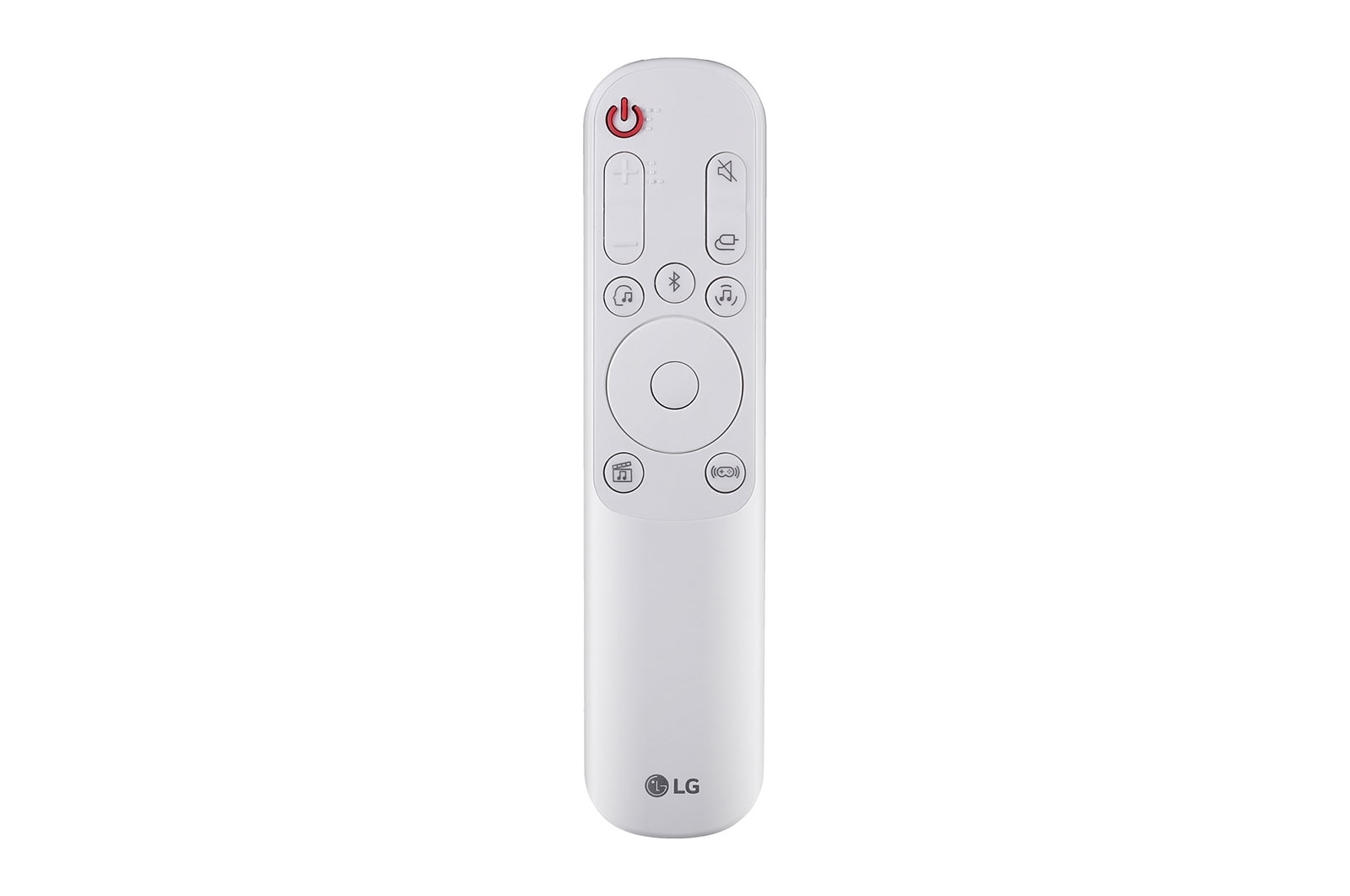

ACCESSORY REMOTE CONTROL
-
Model Name
RAV21
-
Battery (Size)
AA x 2
-
Battery Built-in
Yes
COMPLIANCE INFORMATION
-
