65UN570H (NA)

65UN570H (NA)

Share This Content.

You Can Share The Items You Like With Your Friends

65UN570H (NA)

65UN570H0UD

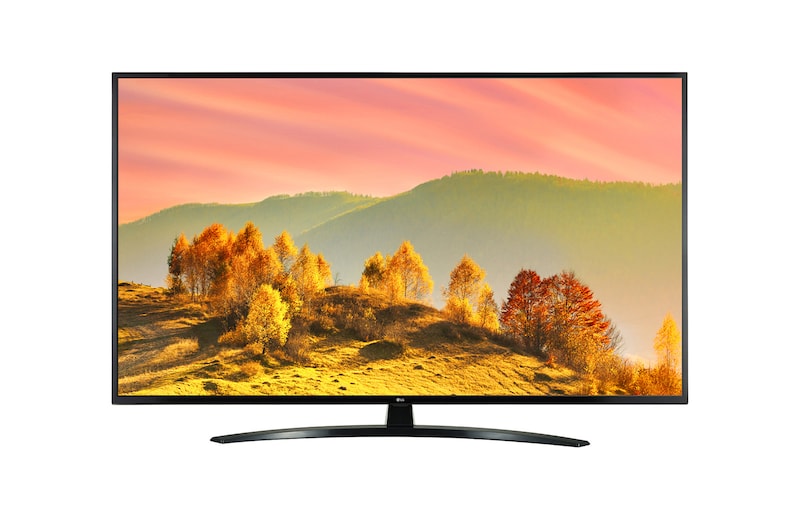

Front view of 65UN570H (NA) 65UN570H0UD

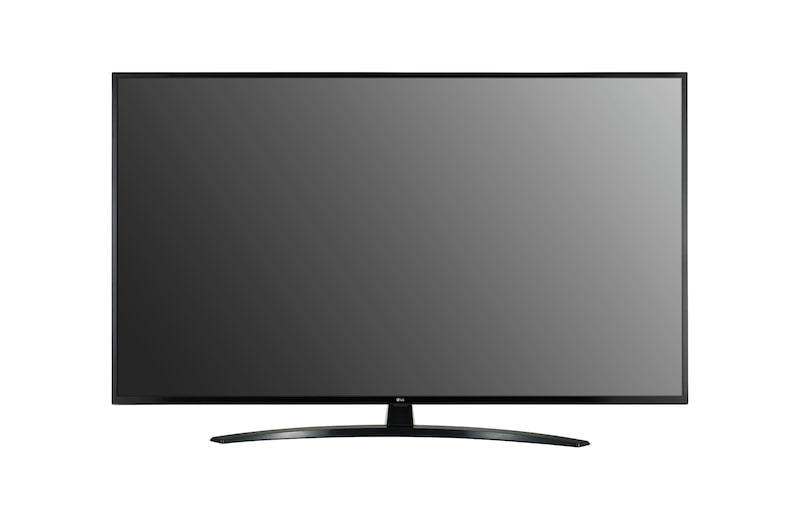

Front View
Right angled View

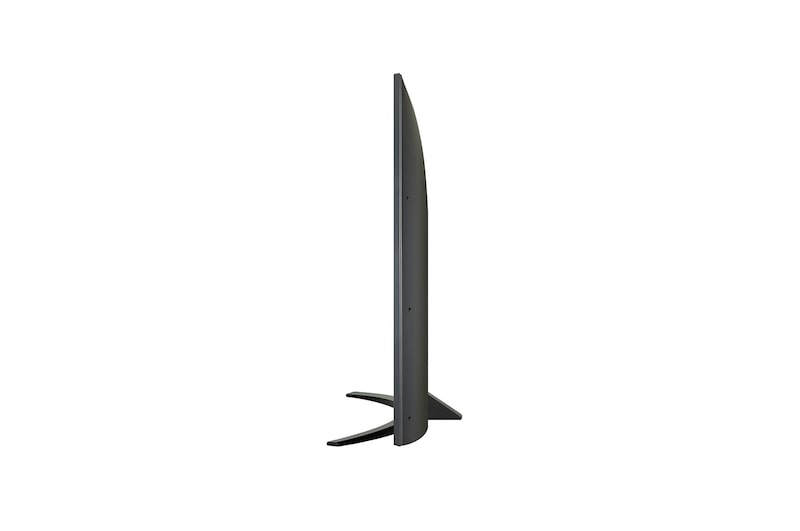

Right Side View

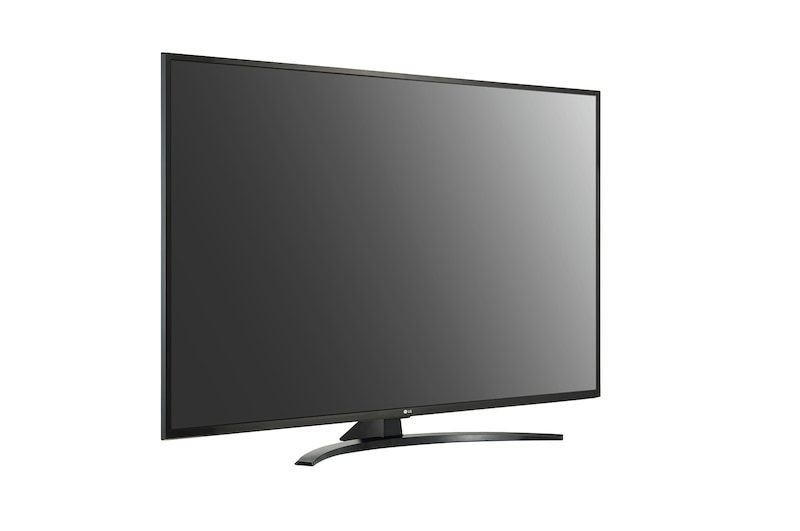

Left Angled View

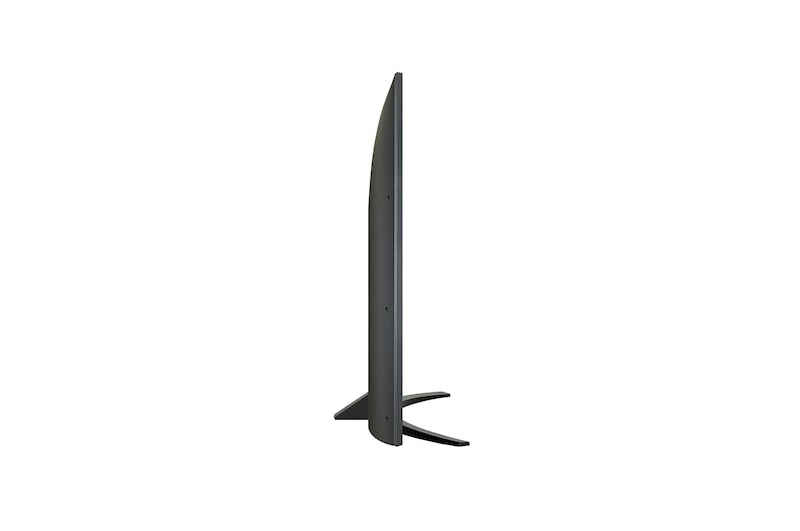

Left Side View

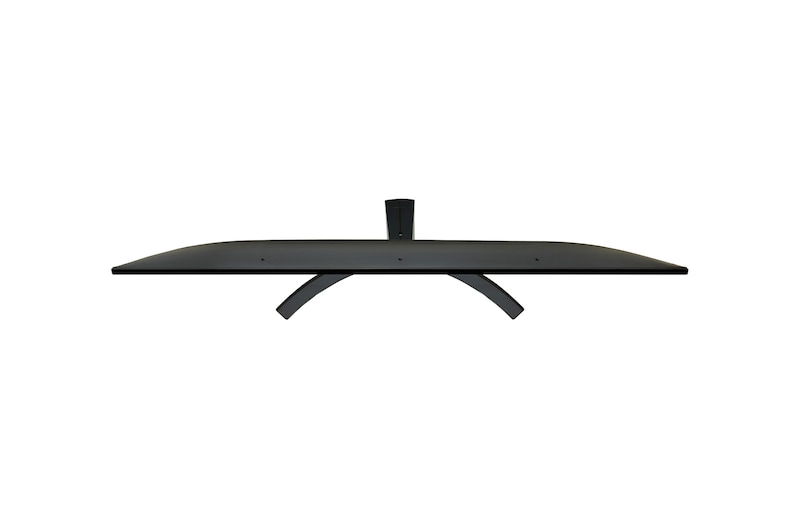

Top View
Front view of 65UN570H (NA) 65UN570H0UD
Front View
Right angled View
Right Side View
Left Angled View
Left Side View
Top View

Key Features

  • 4K UHD
  • Pro:Idiom
  • Pro:Centric Direct
Print

All Spec

DISPLAY

  • Inch

    65"

  • Resolution

    3,840 x 2,160 (UHD)

VIDEO

  • HDR 10 Pro / HDR HLG

    Yes / Yes

  • Game Optimizer

    Yes

AUDIO

  • Speaker System

    2.0 ch

  • Speaker (Sound Output)

    10W + 10W

JACK INTERFACE

  • Set Side

    HDMI In 2 (2.0), USB (2.0)

  • Set Rear / Bottom

    HDMI In (2.0), RF In (Single b-LAN), AV In (Phone Jack Type), Digital Audio Out (Optical), TV link Configuration (Phone Jack Type) (b_LAN Service), RJ45 (Usage Purpose) (Pro:Centric)

HOSPITALITY SOLUTION

  • Solution Type

    Pro:Centric (Direct 5.5, PCA 3.8)

  • Pro:Idiom (Mobile, Lite)

    Yes

DIMENSION

  • VESA Compatible

    300 × 300 mm

  • W × H × D / Weight (with Stand)

    1,454 × 909 × 340 mm / 22.9 kg

  • W × H × D / Weight (without Stand)

    1,454 × 838 × 57.7 mm / 21.5 kg

  • W × H × D / Weight (Shipping)

    1,600 × 970 × 228 mm / 28.9 kg

  • On Bezel Width (L/R/U/B)

    12.8 / 12.8 / 12.8 / 19.9 mm

  • Off Bezel Width (L/R/U/B)

    6.8 / 6.8 / 6.8 / 18.4 mm

POWER

  • Power Supply

    AC 100-240 V, 50/60 Hz

HOSPITALITY FEATURE

  • Hospitality Feature

    Port Block, Insert Image, Instant ON, Auto Off / Sleep Timer, Energy Saving Mode, b-LAN Embedded

DESIGN

  • Front Colour

    Ashed Blue

  • Stand Type

    1 pole (Fixed)

CATEGORY

  • Category

    Pro:Centric Enhanced

BROADCASTING<BR/>SYSTEM

  • Digital (Terrestrial, Cable, Satellite)

    ATSC, Clear QAM

SMART FEATURE

  • Smart Feature

    Smart Home (Launcher Bar), Quick Access, HDMI-ARC (HDMI 2), Wake on RF, Diagnostics (RF Remote), Simplink (HDMI-CEC) (1.4), Anti-theft System (Kensington Lock, Credenza/Security Screw Hole (Except 65"), Lock Down Plate (for Easy Installing) (Except 65"))

REQUIRED LISTING<B/>(CERTIFICATION)

  • EMC

    FCC

White Paper

extension : pdf
Quest for Genius.pdf
Download

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
