Window Facing Display

55XS4P-B

Key Features

UL Verified Display Anti-discoloration Characteristics
Resolution : 1,920 × 1,080 (FHD)
Brightness : 4,000 nit (Typ.), 3,200 nit (Min.)
Portrait / Landscape
Space Efficiency

UL Solutions

Display Anti-Discoloration Characterstics verified

Attract Passing Customers with a Bright Display Presented Through a Window

A large LED display is installed on the window inside the convenience store, vividly and brightly showcasing advertisements through the glass.

*All images are for illustrative purposes only.

*Please follow the installation guide to get warranty.

*UV-Film is recommended depending on installation site.

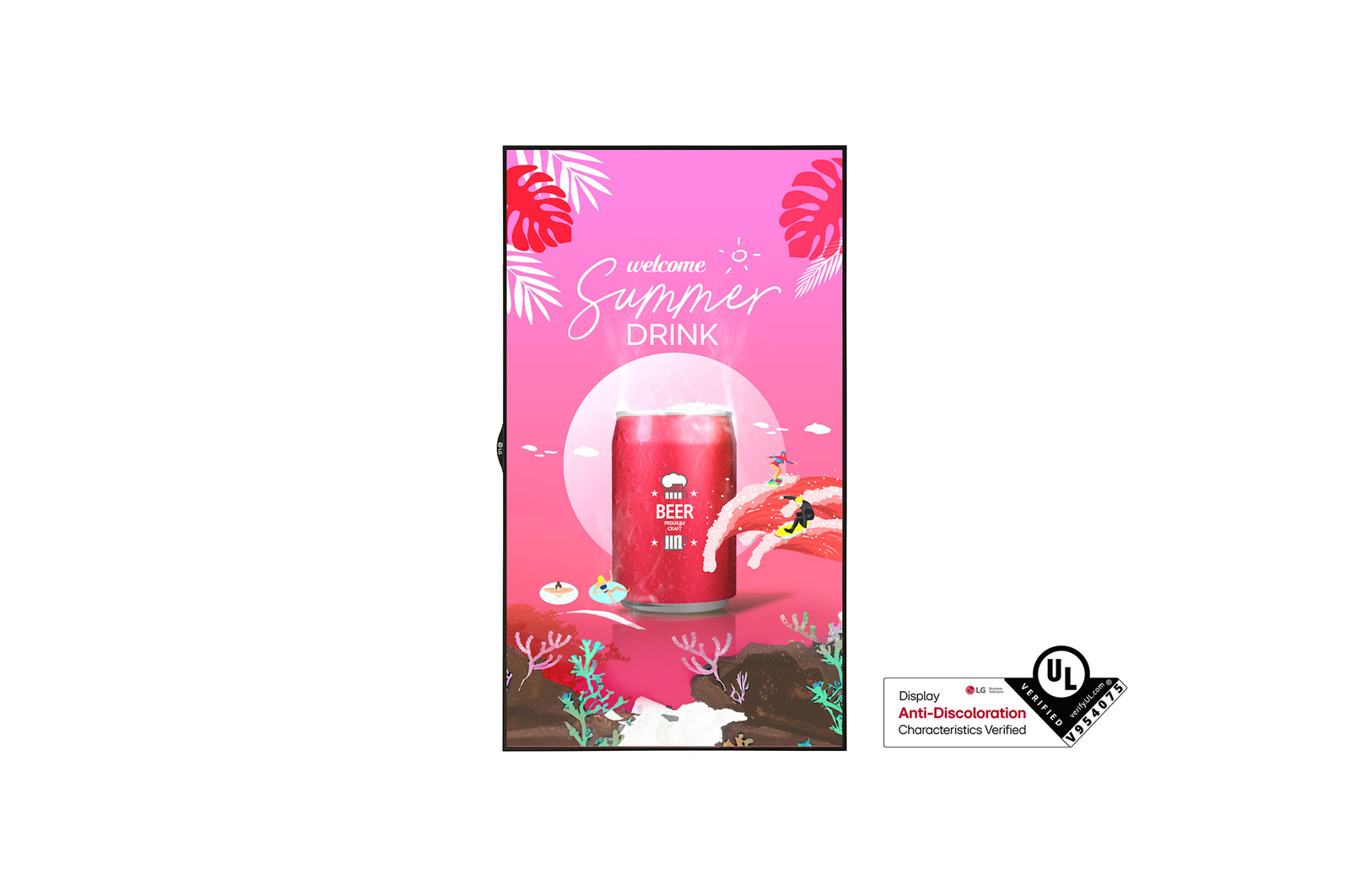

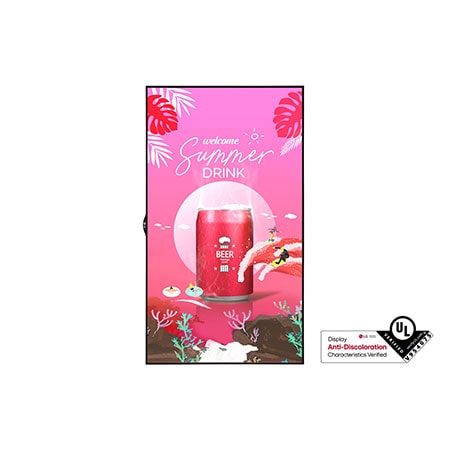

World’s First UL Verification for Display Anti-Discoloration Characteristics

By focusing on the pain points of our customers, we obtained the world’s first UL Verification for Display Anti-Discoloration Characteristics. Our new technology helps prevent ‘screen-yellowing’, while safeguarding display quality and performance stability.

The left side of the screen has yellowing, degrading its quality, but with XS4P, which acquired the UL Verification for Display Anti-Discoloration Features, the screen is clear, safeguarding display quality.

*For more details about UL Verification, please visit https://verify.ul.com/verifications/1382.

*World's first UL Verification in the manufacturing industry.

Window-facing Display

LG offers advanced technical solutions for cost-effective operations. The XS4P can maintain an astonishing brightness of 4,000 nits, yet has lower power consumption compared to RGB panels at the same brightness level.

Three different sizes of XS4P are installed on the window inside the cafe. The content plays clearly and vividly through the glass, even in the bright atmosphere.

Brightness Beyond the Window

A window-facing display requires higher nits, as it is exposed to direct sunlight through a window. The XS4P is designed especially for window-facing environments, providing brilliant brightness. Vibrant and dynamic content displayed through the window will attract customers to your business, despite the viewers wearing polarized sunglasses.

Three different sizes of XS4P are installed on the window inside the phone store. The content plays vividly through the glass, allowing passersby to see it clearly, even in the bright atmosphere.

High-performance with
webOS 6.0

Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 6.0 platform enhances not only user convenience with intuitive UI but also web-app integration with updated Node JS / Chromium version.

It has improved user convenience by utilizing the SoC and webOS.

Remotely Managed, Real-time Mastery (Content Manager)

A significant advantage of window-facing displays over temporary displays is their ability to effortlessly manage frequently changing promotional content and pricing information. LG’s web-based content solution is intuitive and user-friendly, providing users with complete access to current and historical data anytime, anywhere, through their mobile devices. This allows users to monitor, adjust, and control the unit remotely in real-time.

Users can monitor and control their displays through a mobile phone and a laptop.

*Feature accessible through wired LAN connectivity.

Wide Range of Operating Temperature

The XS4P can be used under a wide range of operating temperature from 0℃ to 40℃.

A display is working well in an environment of 0~40°C.

*Confirmed by LG internal testing, Operating temperature: 0℃~40℃ (without direct sunlight; with direct sunlight in cooling system), 0℃~30℃ (with direct sunlight).

Conformal Coating

The conformal coating with dust protection shields the circuit and power boards from dust, metal particles, moisture, and other contaminants, providing solid durability and long-term reliability.

*Confirmed by LG internal testing.

Upgraded Quite Mode

The XS4P addresses concerns about display noise. It features an Upgraded Quiet Mode that operates at 2,500 nits with minimal fan noise.

The real estate office has two displays installed inside the window. The XS4P model's low fan noise enables smooth communication and conversation even when sitting close to the display.

Professional Content Partners

Pairing the XS4P Series with LG SW solutions would enhance its utilization.

* Sold separately.

Partner content is being utilized to compose the content intended for playback on the signage.

Convenient Installation with Calculated Precision

The XS4P is equipped with a Leveler Tool that shows users the tilt of the device, allowing for precise display installation. Additionally, the Horizontal Sensor Tool assists users in verifying the correct installation direction. The XS4P even provides warning messages for proper installation if it is installed incorrectly.

"A display is installed without tilting using the Leveler Tool. With the equipped Horizontal Sensor Tool, the display can be reinstalled in the correct direction if it is incorrectly installed."

*The rotation direction differs for 49/55 and 75.

UL Verified Display Anti-discoloration Characteristics
Resolution : 1,920 × 1,080 (FHD)
Brightness : 4,000 nit (Typ.), 3,200 nit (Min.)
Portrait / Landscape
Space Efficiency

All Spec

PANEL

Aspect Ratio
16:9
Back Light Type
Direct
Brightness
4,000nit (Typ), 3,200nit(Min)
Color Depth (Number of Colors)
8bit, 16.7Million colors
Color Gamut
NTSC 72%
Contrast Ratio
1,000:1
Dynamic CR
500,000:1
Life time
50,000 Hrs (Typ)
Native Resolution
1920x1080 (FHD)
Operation Hours (Hours/Day)
24/7
Panel Technology
IPS, M+
Portait / Landscape
Yes/Yes
QWP (Quarter Wave Plate)
Yes
Refresh Rate
60Hz
Response Time
9ms (G to G)
Screen Size (Inch)
55"
Surface Treatment (Haze)
3%
Viewing Angle (H x V)
178 x 178

ACCESSORY

Basic
Remote Controller(including battery 2ea), Power Cord, HDMI Cable,Manual (EIG, IG), IR Receiver(w/ Ambient Light Sensor), RS-232C Gender
Optional
WM-L640V(Landscape wall mount),
WM-P640V(Portrait wall mount)
** Stand is not available

CERTIFICATION

EMC
FCC Class "B" / CE / KC / VCCI
ERP / Energy Star
Yes/ No
Safety
CB / NRTL

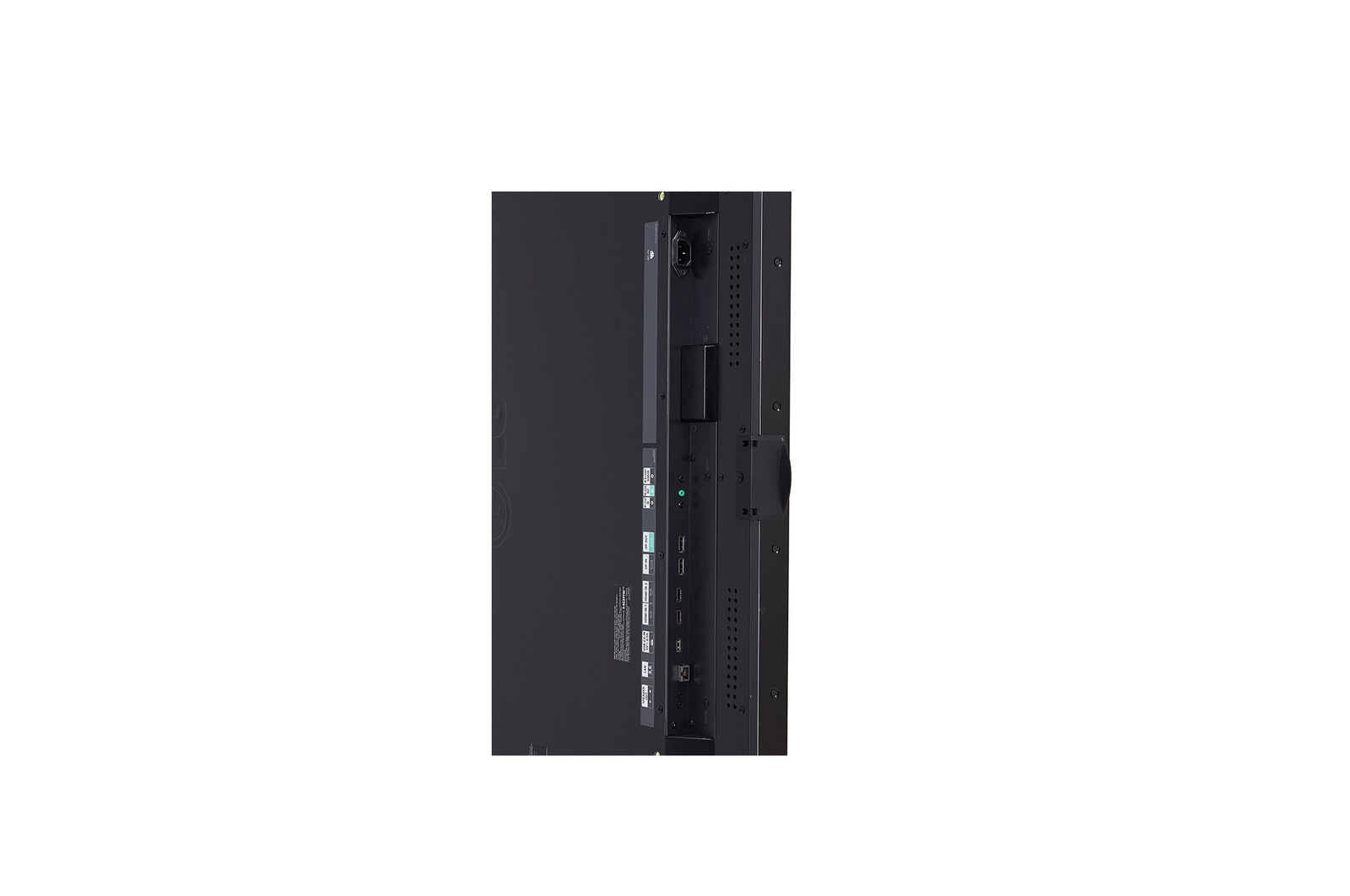

CONNECTIVITY

DP In
Yes(1), HDCP1.3
DP Out
Yes(1), Input DP/HDMI
External Speaker Out
O(1, L/R, 10W+10W) , (4pin phone jack)
HDMI In
Yes(2), HDCP1.4
IR In
Yes(1)
IR Out
Sharing RS232C Out
RJ45(LAN) In
Yes(1)
RS232C In
Yes(1) (4pin phone jack)
RS232C Out
Yes(1)
USB In
USB2.0 Type A (1)

ENVIRONMENT CONDITIONS

Operation Humidity
10 % to 80 %
Operation Temperature
0 °C to 40°C (w/o Direct Sunlight)
0 °C to 30°C (Direct Sunlight)

FEATURE - HARDWARE

Acceleration(Gyro) Sensor
Yes
Auto Brightness Sensor
Yes
FAN (Built-in)
Yes
Internal Memory (eMMC)
16GB
Local Key Operation
Yes
Temperature Sensor
Yes
Wi-Fi/BT (Built-in)
Yes

FEATURE - SOFTWARE

Auto Set ID
Yes
Backlight Sync
Yes
Beacon
Yes
Booting Logo Image
Yes
Control Manager
Yes
External Input Rotation
Yes
Fail over
Yes
Gapless Playback
Yes
Group Manager
Yes
HDMI-CEC
Yes
ISM Method
Yes
Local Contents Scheduling
Yes
Local Network Sync
Yes
Network Ready
Yes
No Signal Image
Yes
OS Ver. (webOS)
webOS6.0
PBP
Yes(2)
PIP
Yes
Play via URL
Yes
PM mode
Yes
Pro:Idiom
Yes
RS232C Sync
Yes
Screen Rotation
Yes
Setting Data Cloning
Yes
SI Server Setting
Yes
Smart Energy Saving
Yes
SNMP
Yes
Status Mailing
Yes
Tile Mode Setting
Yes(Max. 15x15)
USB Plug & Play
Yes
Video Tag
Yes(4 | Ext. Source (x2), Video (x4))
Wake on LAN
Yes
webRTC
Yes

LANGUAGE

OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arab, Türkçe, polski (Polska)
