UHD TV Signage

UHD TV Signage

Share This Content.

You Can Share The Items You Like With Your Friends

UHD TV Signage

43UR640S9UD

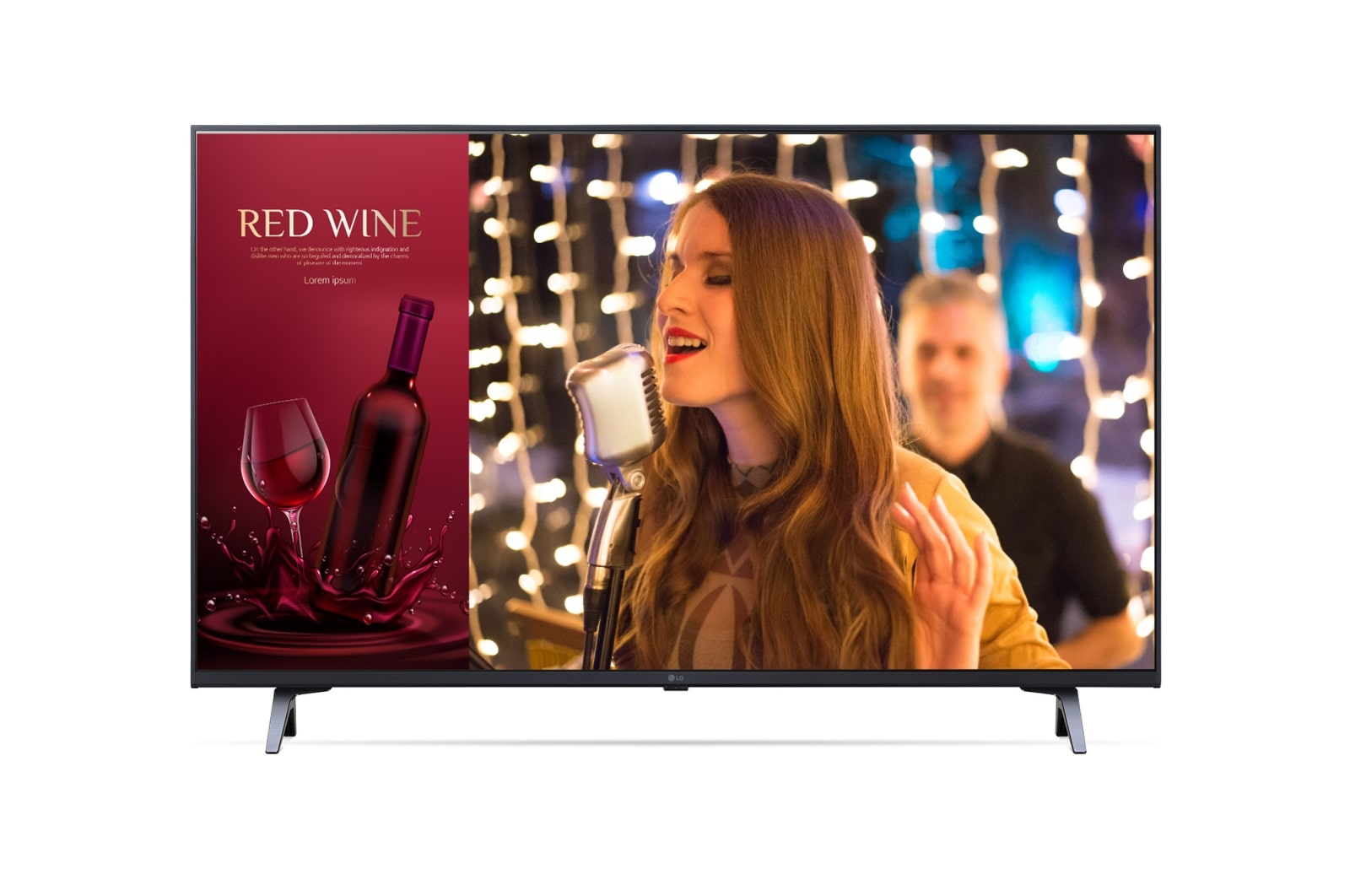

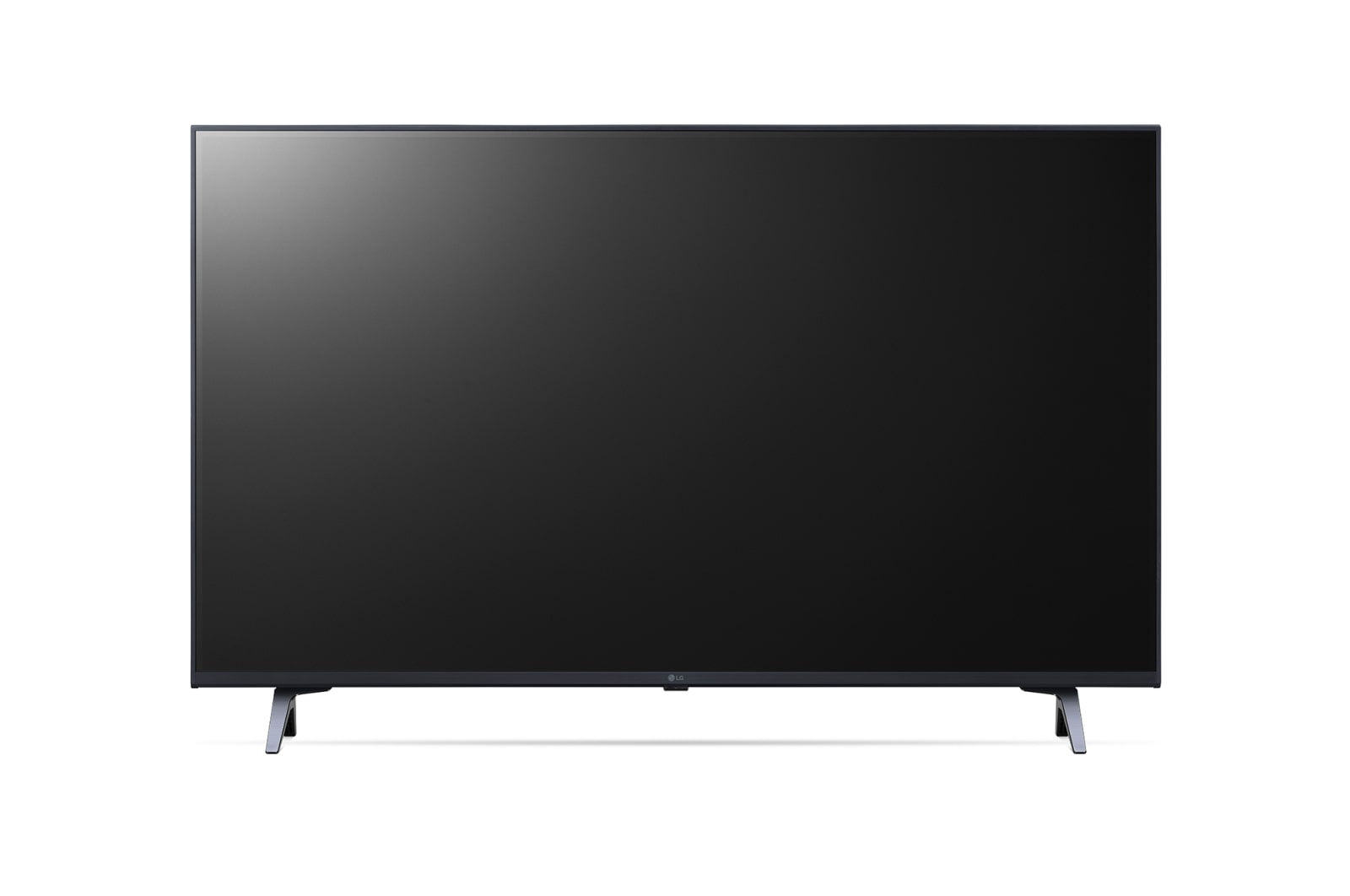

Front view of UHD TV Signage 43UR640S9UD

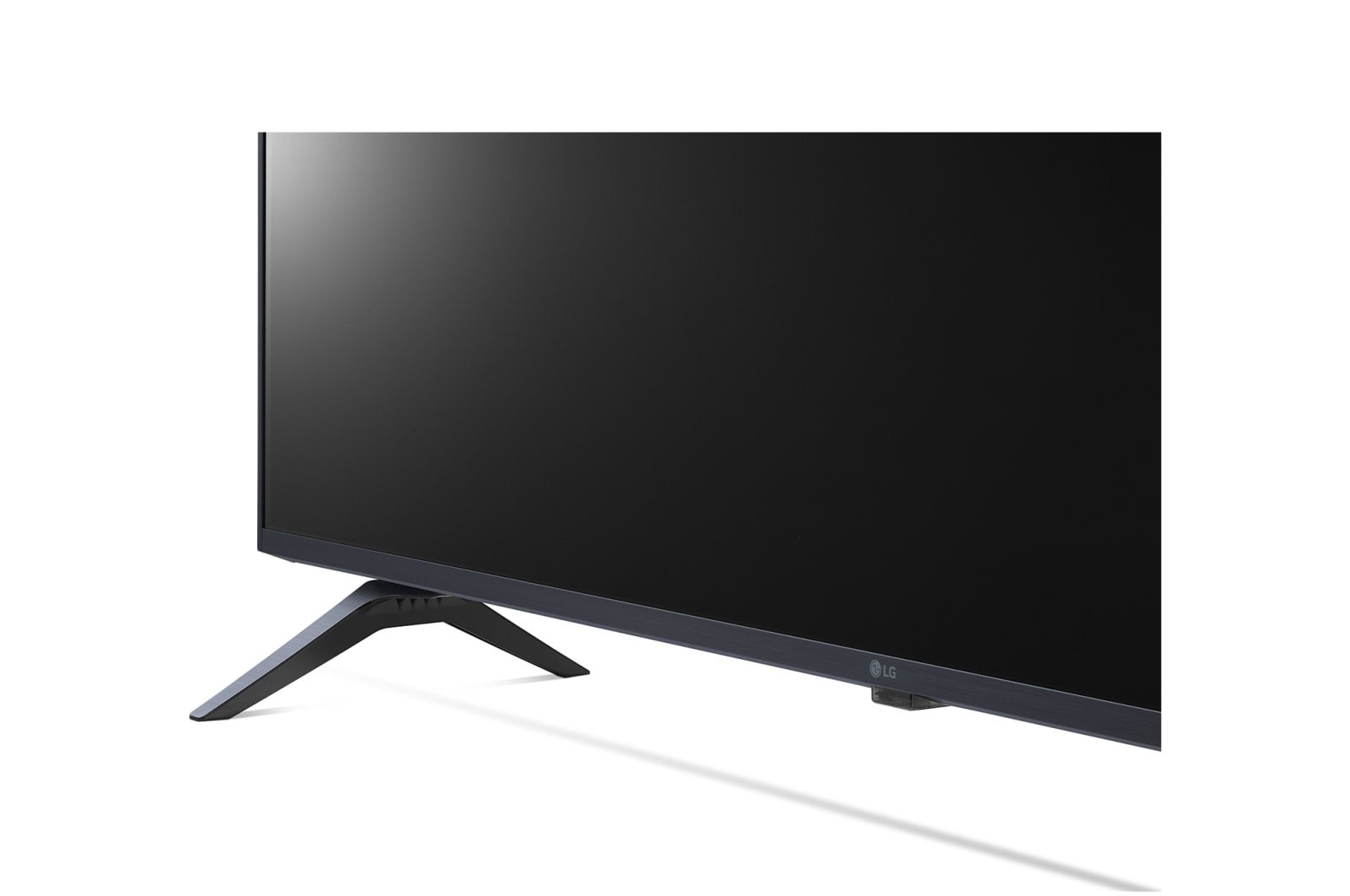

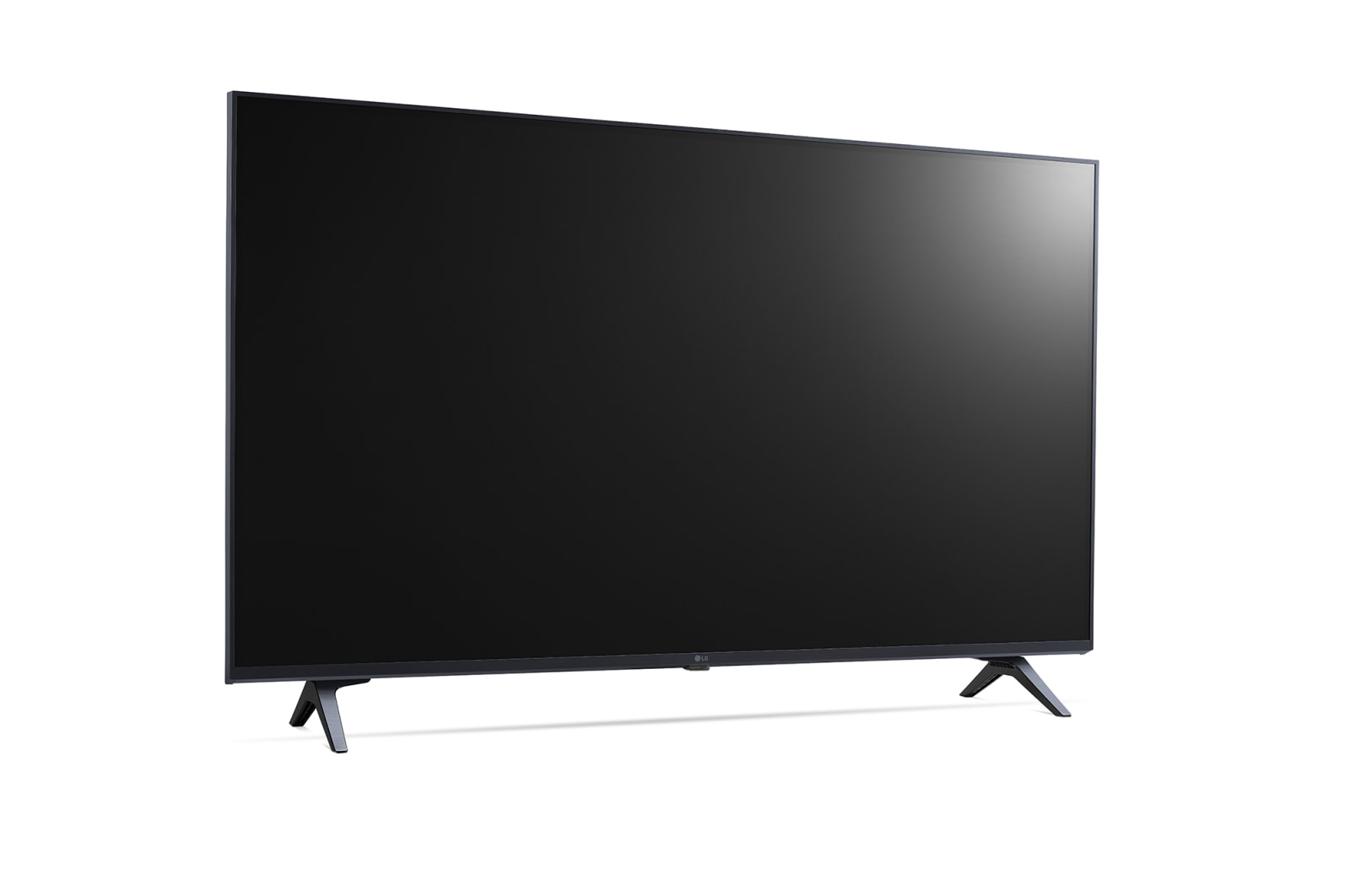

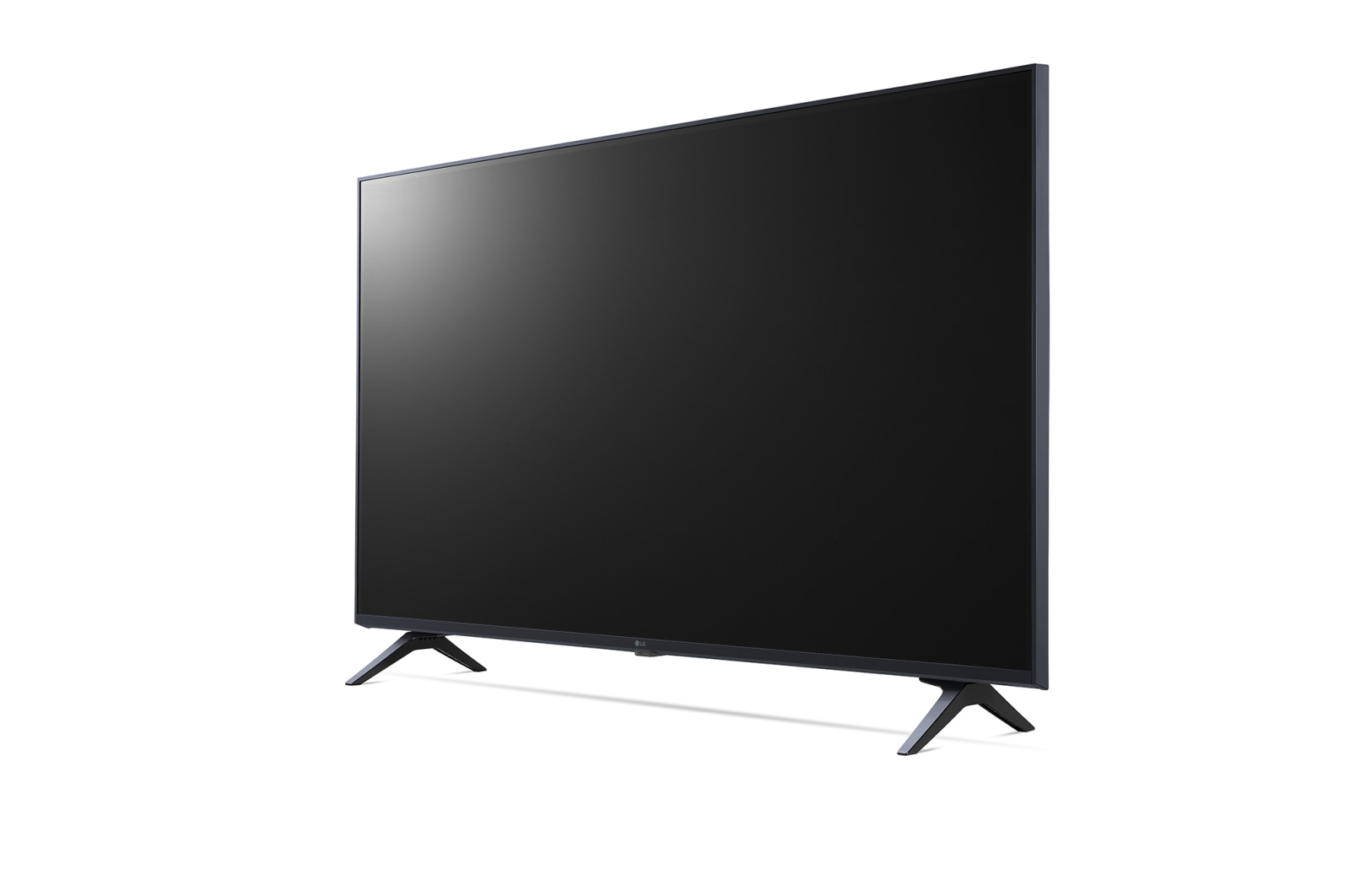

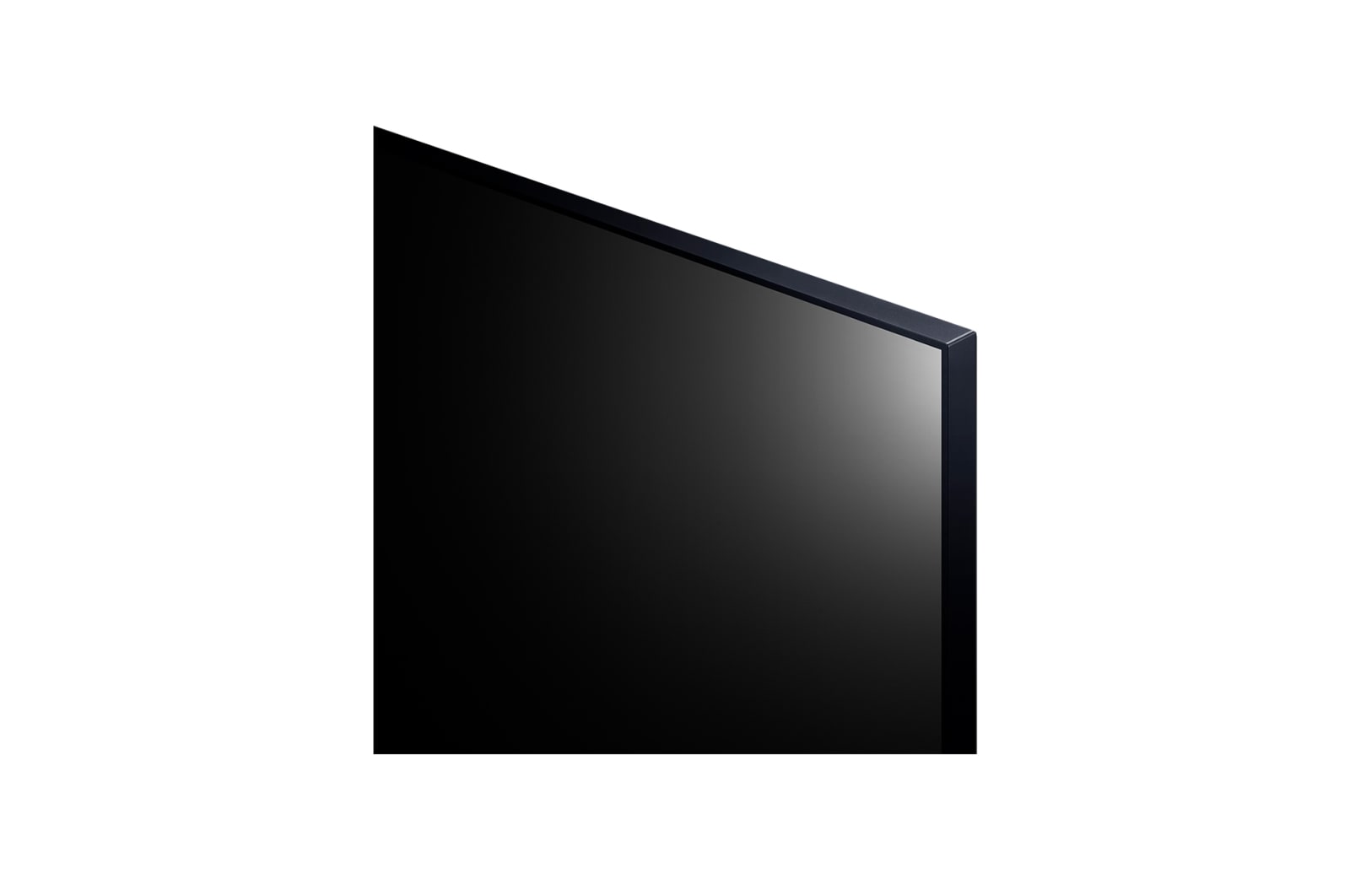

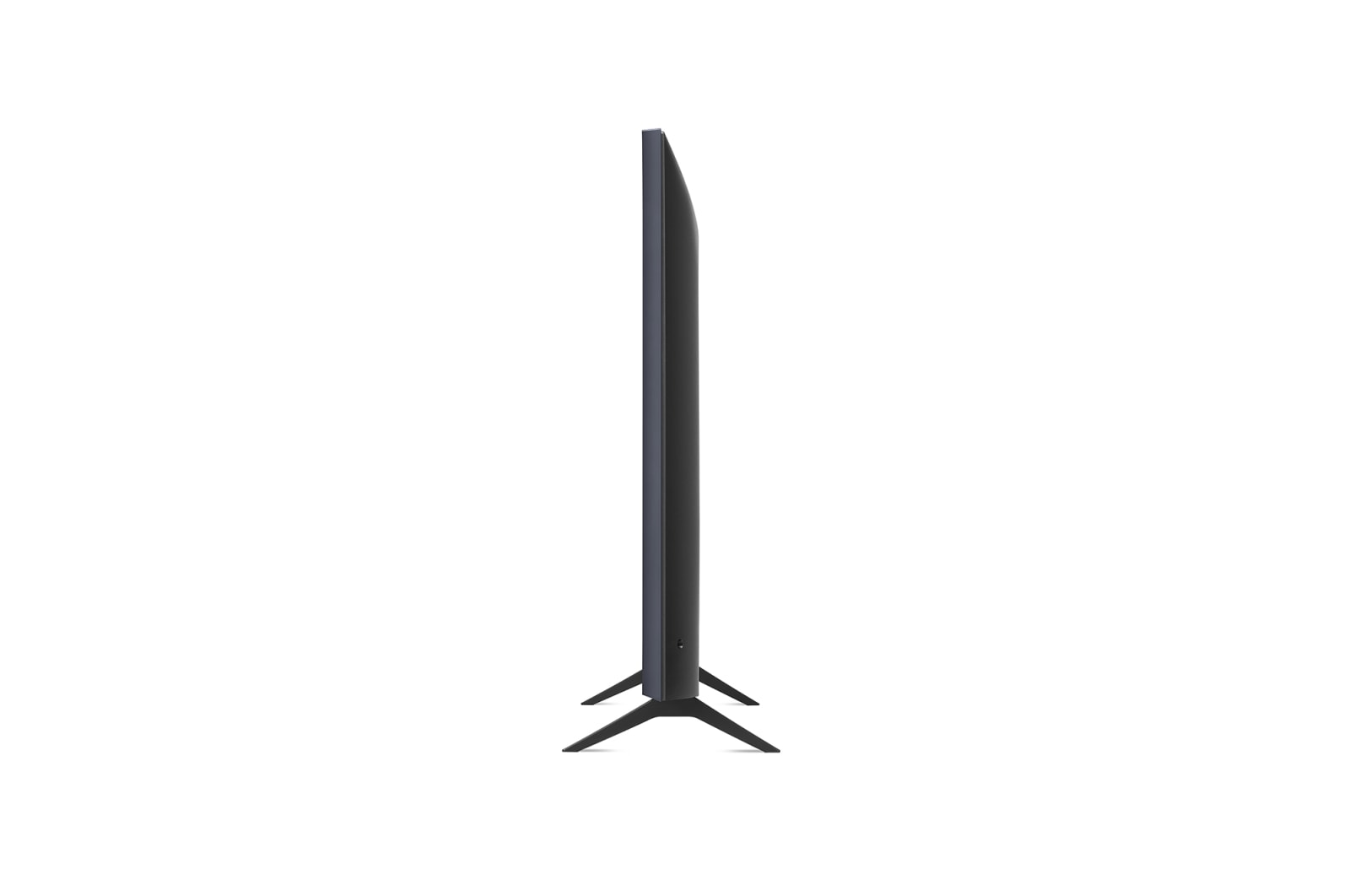

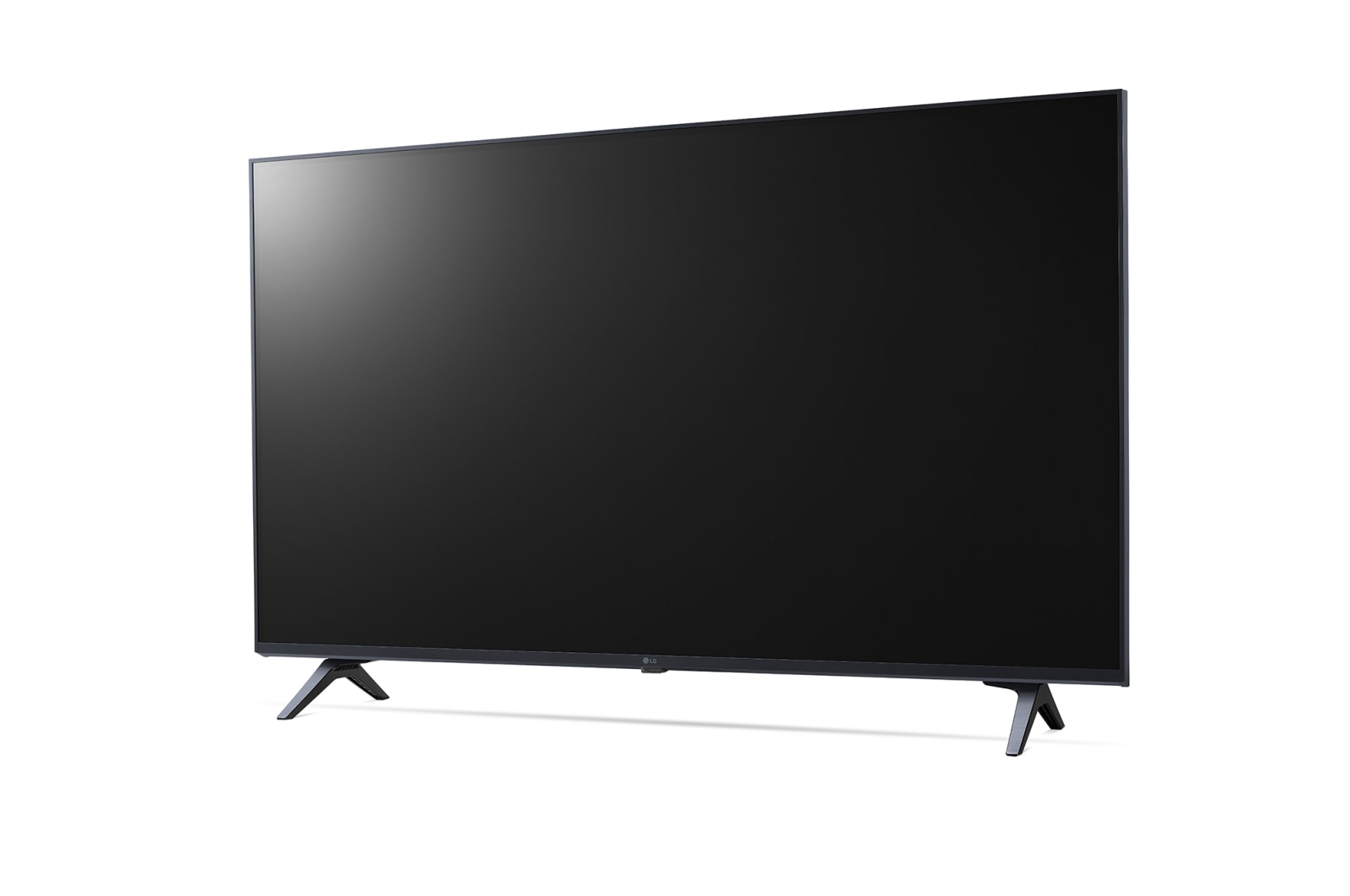

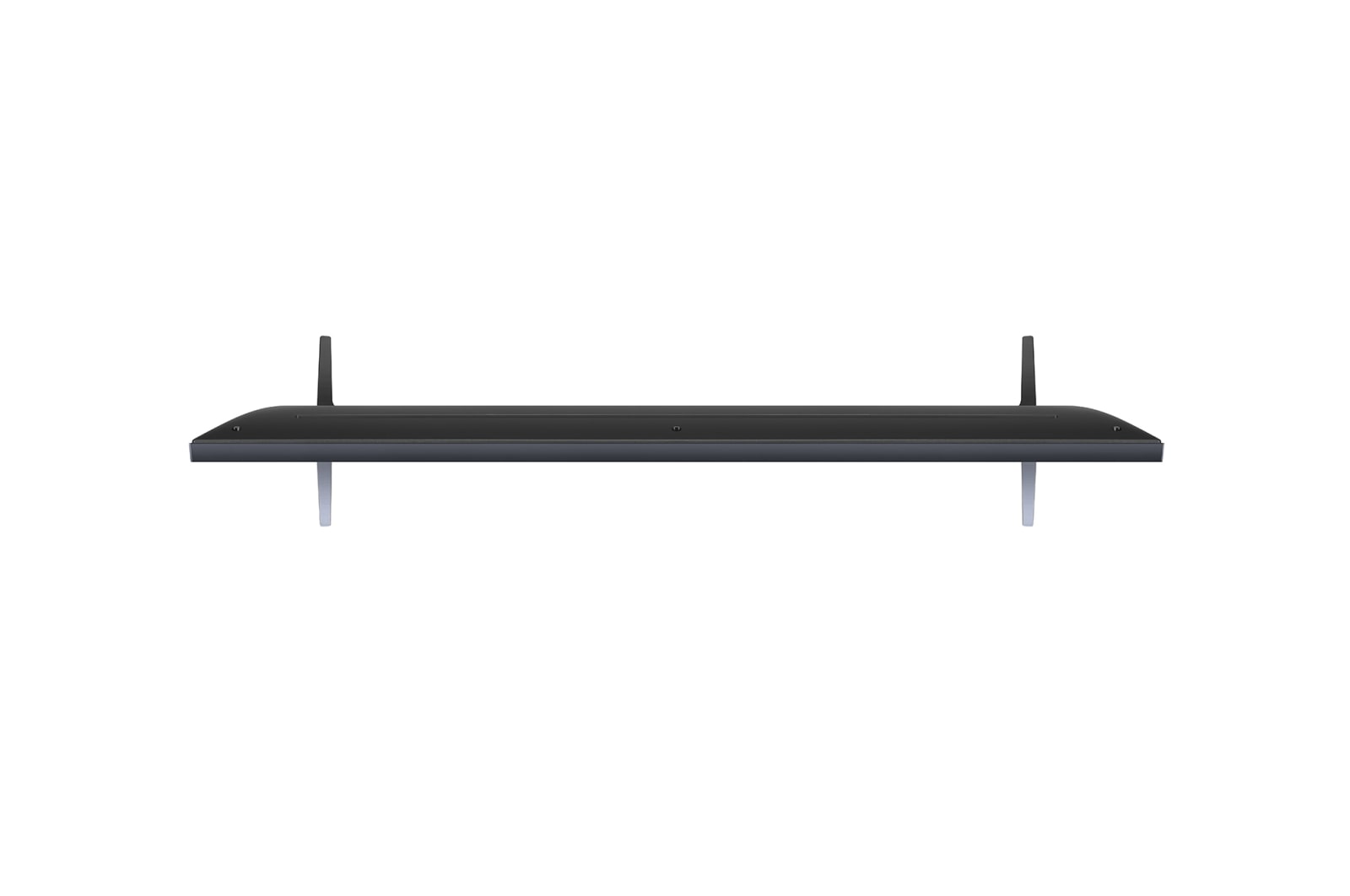

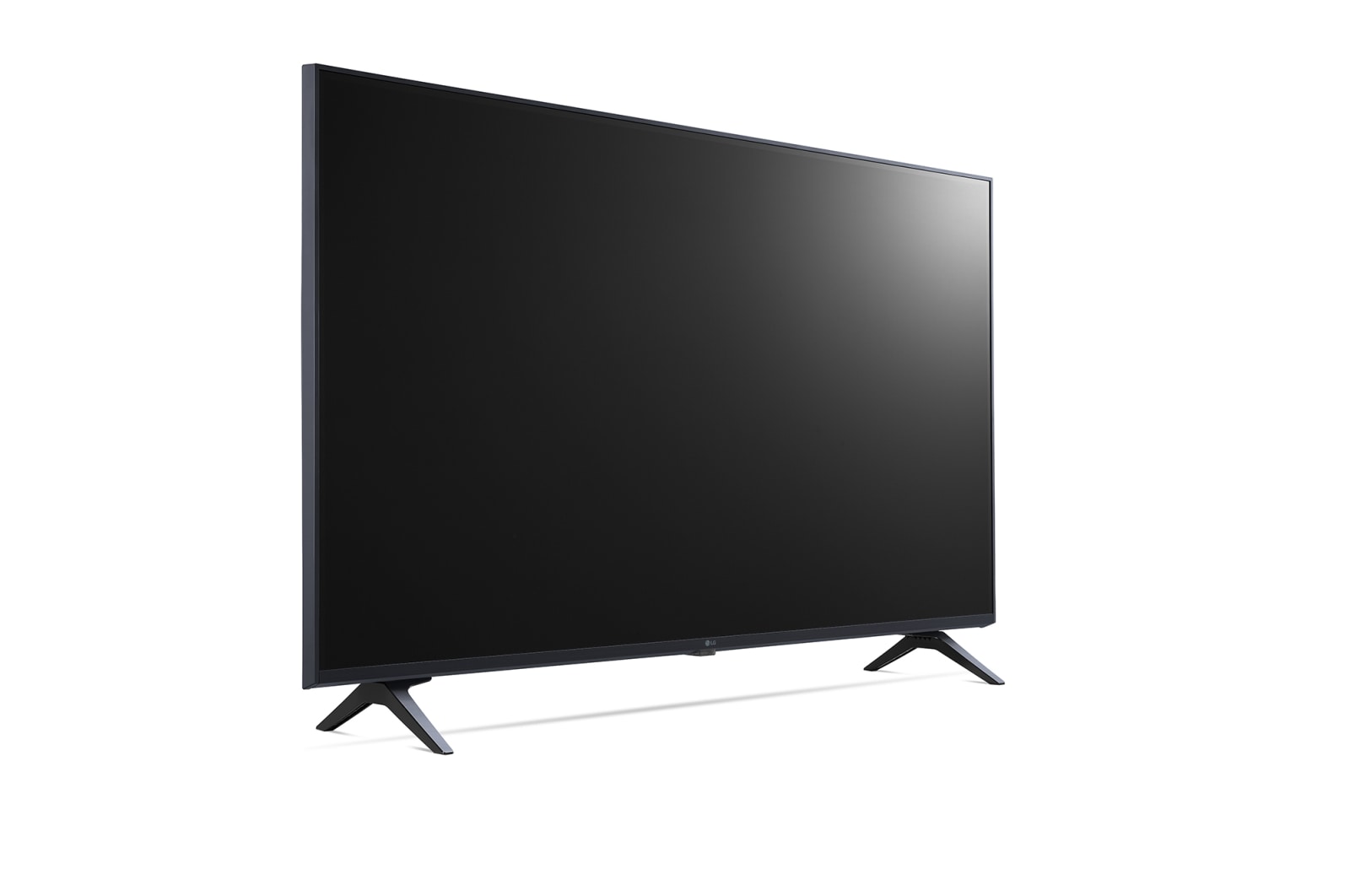

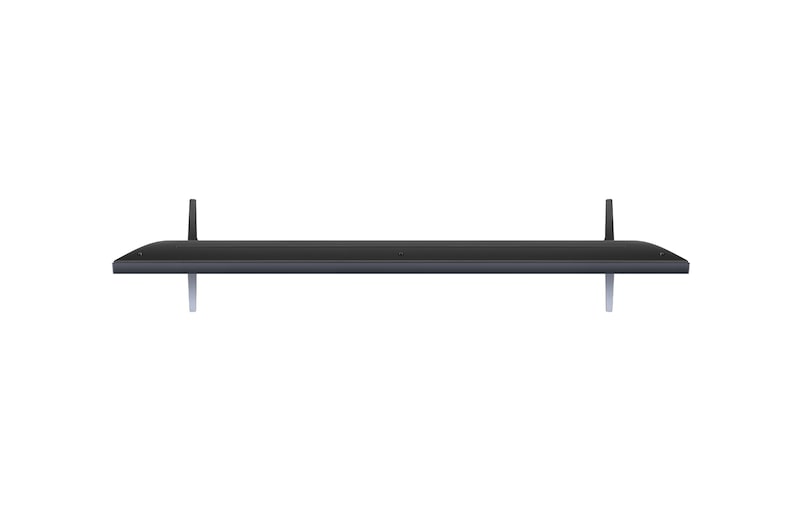

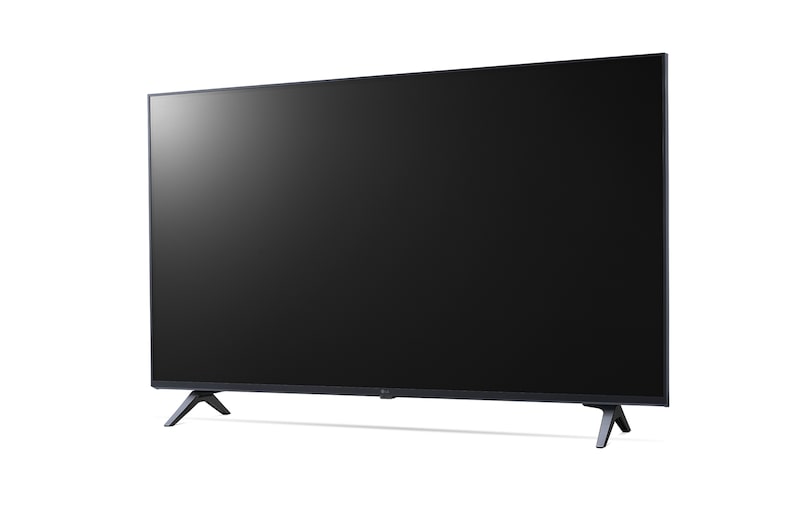

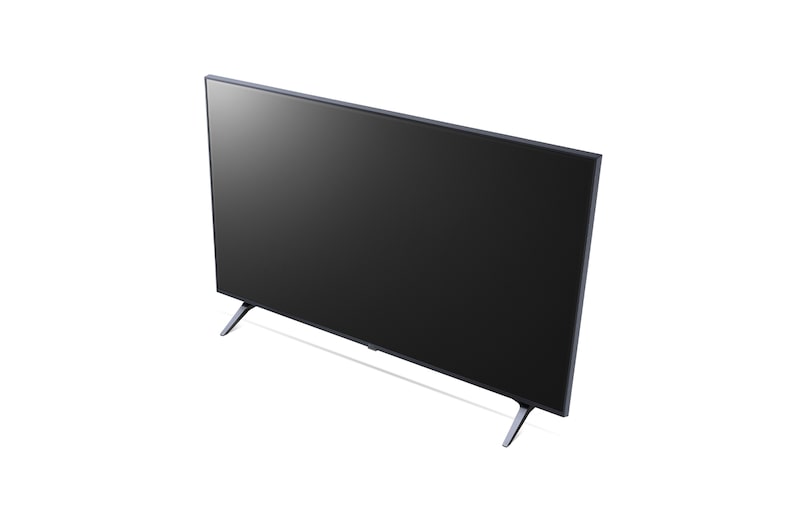

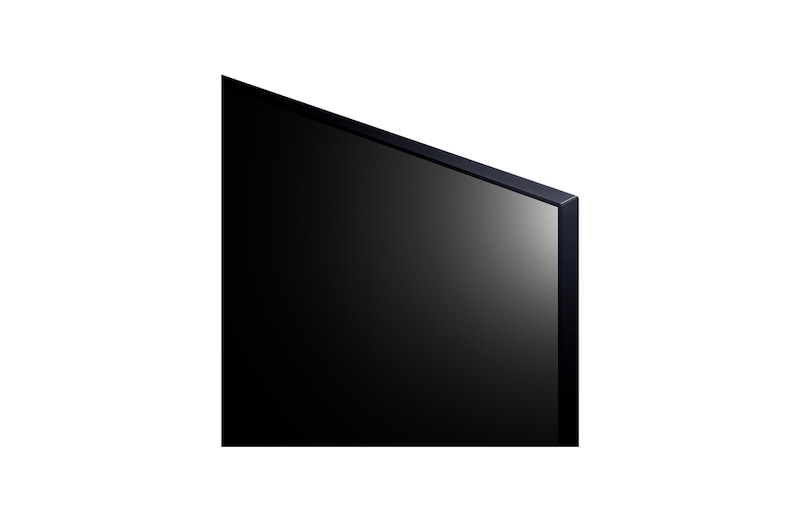

LG UHD TV Signage, 43UR640S9UD
LG UHD TV Signage, 43UR640S9UD
LG UHD TV Signage, 43UR640S9UD
LG UHD TV Signage, 43UR640S9UD
LG UHD TV Signage, 43UR640S9UD
LG UHD TV Signage, 43UR640S9UD
LG UHD TV Signage, 43UR640S9UD
LG UHD TV Signage, 43UR640S9UD
LG UHD TV Signage, 43UR640S9UD
LG UHD TV Signage, 43UR640S9UD
Front view of UHD TV Signage 43UR640S9UD
LG UHD TV Signage, 43UR640S9UD
LG UHD TV Signage, 43UR640S9UD
LG UHD TV Signage, 43UR640S9UD
LG UHD TV Signage, 43UR640S9UD
LG UHD TV Signage, 43UR640S9UD
LG UHD TV Signage, 43UR640S9UD
LG UHD TV Signage, 43UR640S9UD
LG UHD TV Signage, 43UR640S9UD
LG UHD TV Signage, 43UR640S9UD
LG UHD TV Signage, 43UR640S9UD

Key Features

  • Brightness(Typ.) : 300 nits
  • Resolution : ULTRA HD (3,840 x 2,160)
  • Improved Design with Slim Depth
  • webOS-based High Performance
  • Easy Content Management / Group Management
  • SuperSign Control / CMS Compatibility
More
Print

All Spec

ACCESSORIES

  • Power Cable

    YES (1.8M, Straight Type)

  • Remote type

    L-Con

AUDIO (SOUND)

  • LG Sound Sync

    YES

  • Speaker (Audio Output)

    20W

BROADCASTING SYSTEM

  • Analog (NTSC / SECAM / PAL)

    NTSC

  • Digital

    ATSC / Clear QAM

CONNECTIVITIES

  • Audio Line Out(3.5mm Phone jack)

    YES

  • Digital Audio Out (Optical)

    YES

  • HDMI In

    YES (3ea)

  • LG SVC only (Phone jack type)

    YES

  • RF In

    YES (1ea)

  • RJ45 (Usage Purpose)

    YES (LAN)

  • RS-232C (D-Sub 9pin / Phone jack)

    YES (Phone jack)

  • USB (Ver.)

    YES (1ea / 2.0)

DESIGN

  • Front Color

    Ashed Blue

  • Stand Type

    2 Pole

  • Tool Name

    UP8000

DIMENSIONS/WEIGHT

  • Bezel Width (L/R/U/B, Off Bezel)

    6.9/6.9/6.9/18.4mm

  • Bezel Width (L/R/U/B, On Bezel)

    12.8/12.8/12.8/19.9mm

  • Dimension in Shipping (W x H x D)

    1055 x 660 x 142mm

  • Dimension without Stand (W x H x D)

    967 x 564 x 57.1mm

  • Dimension with Stand (W x H x D)

    967 x 622 x 216mm

  • Weight in Shipping

    11.0kg

  • Weight without Stand

    8.8kg

  • Weight with Stand

    8.9kg

DISPLAY

  • Brightness (Typ.)

    300 nit

  • Resolution

    4K Ultra HD (3,840 x 2,160)

  • Size (Inch)

    43

HOSPITALITY FEATURE

  • Diagnostics

    YES (Self Diagnostics(USB))

  • Energy Saving mode

    YES

  • External Speaker Out / Line Out

    YES (Line Out)

  • Hotel Mode / PDM / Installer Menu

    YES

  • HTNG-CEC (Version)

    YES

  • Insert Image

    YES

  • IR Out

    YES (RS-232C)

  • Lock mode

    YES (Limited)

  • Multi IR Code

    YES

  • Port Block

    YES

  • RJP (Remote Jack Pack) Compatibility

    YES

  • Simplink(HDMI-CEC) (Version)

    YES (1.4)

  • SNMP

    YES

  • USB Cloning

    YES

  • Welcome Screen (Splash Image)

    YES

  • WOL

    YES

INFO

  • Category

    Smart TV Signage

MECHANICAL

  • Kensington Lock

    YES

  • VESA Compatible

    200 x 200mm

POWER SPEC.

  • Power Consumption(Max)

    119.6W

  • Power Consumption(Typ)

    97.2W

  • Power Supply (Voltage, Hz)

    AC 120V, 50/60Hz

  • Standby Power Consumption

    Under 0.5W

SMART FUNCTION

  • webOS version

    webOS 6.0

  • Bluetooth

    YES

  • Bluetooth Audio Playback

    YES

  • DIAL

    YES

  • HDMI-ARC

    YES (HDMI2)

  • Mood Display

    YES

  • Screen Share

    YES

  • Soft AP

    YES

  • Web Browser

    YES

  • Wi-Fi

    YES

STANDARD

  • EMC

    FCC

  • Others

    EPEAT, ISTA6

  • Safety

    UL

SUPERSIGN SW COMPATIBILITY

  • Control / Control Plus

    YES

  • CMS(Premium)

    YES

  • LG Connected Care

    YES

  • Simple Editor

    YES

VERTICAL FUNCTION (CORPORATE/RETAIL)

  • Crestron Certi. Compatibility

    YES

  • BEACON

    YES

  • CISCO Certi. Compatibility

    YES

  • DPM (Digital Power Management)

    YES

  • Embedded CM (Contents Manager)

    YES

  • Embedded GM (Group Manager)

    YES

  • Fail Over

    YES

  • NTP Server Setting

    YES

  • NTP sync timer

    YES

  • Play Via URL

    YES

  • Promota / Mobile CMS

    YES

  • RTC (Real Time Clock)

    YES

  • Time scheduler

    YES

  • Vertical Setup

    YES

VIDEO

  • HDR_HDR 10 Pro

    YES

  • HDR_HLG (Hybrid Log Gamma)

    YES

White Paper

extension : pdf
Quest for Genius.pdf
Download

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
