Fine-pitch Essential Series

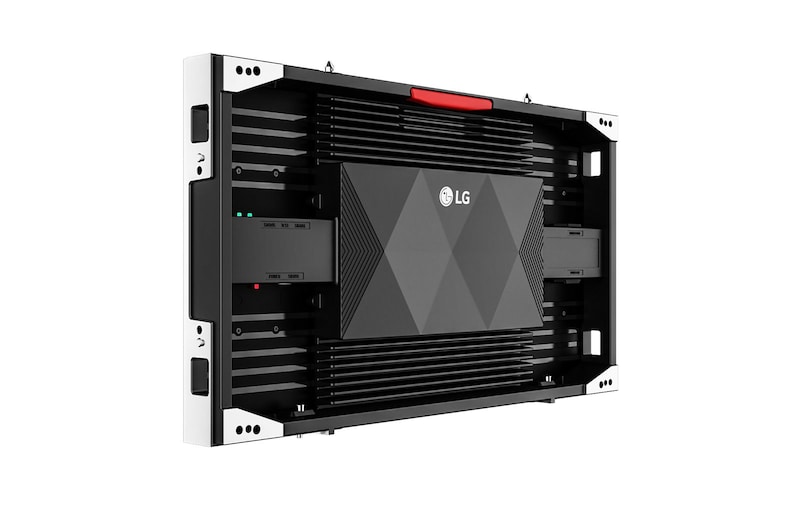

LSBB015-GD

Key Features

Pixel Pitch: 1.56 mm
Brightness: 600 nit
Status Indicator of Signal Detection
Front Serviceability
Easy-handling Lightweight Cabinet
Compatibility with LG Software Solutions

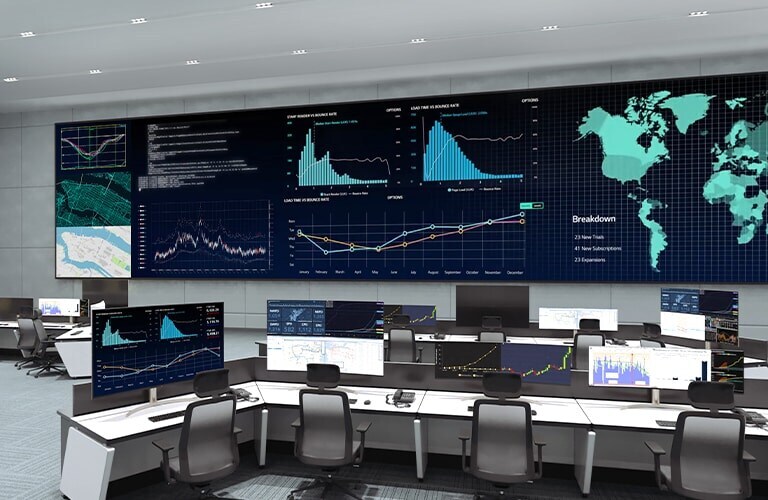

Monitors the graphs on the LED screens installed on the wall of the control room.

*All images in this web page are for illustrative purposes only.

Shows Status Indicators and a button for the LED State Check.

Status Indicator of Signal Detection

Status indicators and button are in the main frame of the cabinet structure, and can be accessed from both front and back.

* Visit LSBB user manual for more details of the status indicators and button.

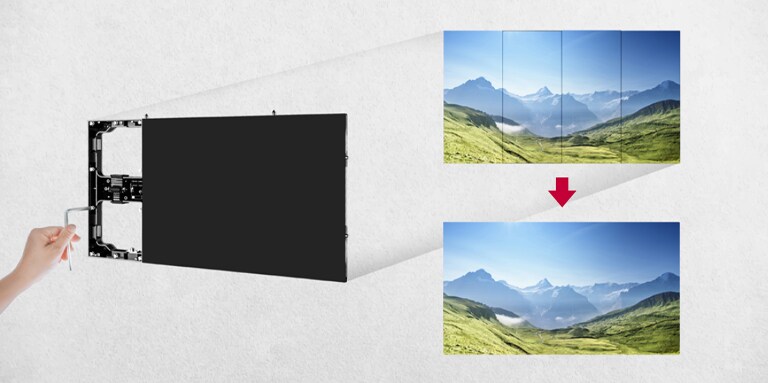

Controlling the X/Y/Z 6-axis between panels with a uniform tool.

Easy Alignment in Z-direction

A uniform tool can be used for X/Y/Z 6-axis adjustment between panels. Module can be easily adjusted in Z-direction, and flatness can be optimized again.

LSBB series is demonstrating its convenient installation from the front side.

Front Serviceability

The product offers front access, freeing customers from needing rear access space.

Shows that the cabinet is light with a balloon.

Easy-handling Lightweight Cabinet

It’s lightweight and easy to install, effectively reducing the risk of damage during installation. A full set of LED screens is still light, reducing strain on the structure holding the screens.

In the case of “Without Redundancy” even more than the error is blacked out, but in the case of “With Redundancy” only the error is blacked out and displayed.

Signal / Power Redundancy

With an additional controller and power unit, a back-up controller activates if a signal transmission error occurs, preventing a screen blackout error (Signal Redundancy). The product also offers Power Redundancy as an option.* Two power units are provided in single LED cabinet one activates to provide power when the other fails.

* In the case of Power Redundancy, additional options are available as add-ons while ordering and will incur additional costs.

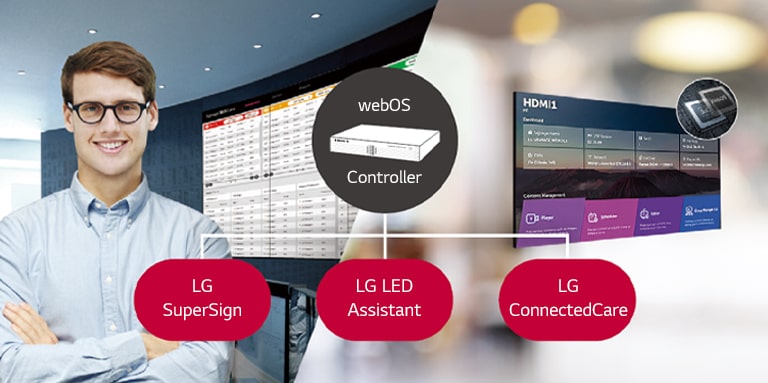

The LG employee is remotely monitoring the LSBB series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables LSBB series to be compatible with LG software solutions.

Compatibility with LG Software Solutions

Powered by LG’s high performance system controller, the LSBB series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
