Transparent OLED Signage

55EW5G-A

Transparent OLED Signage

See the unseen,
LG Transparent OLED

LG Transparent OLED Signage offers new ways to communicate visually and opens up a whole new level of creativity that even conventional digital signage cannot offer.

A man is doing his job by looking at the data displayed on the Transparent OLED screen.

*All images are for illustrative purposes only.

A New Level of See-through View

LG Transparent OLED Signage illuminates spaces that once were hidden away behind the display, completely harmonizing with its surroundings.
Boasting vivid and clear colors with high transparency, this display provides visual enhancements to objects placed behind it, giving viewers an impressive "wow" factor.

LG Transparent OLED Signage vividly shows the fireworks, making the screen look more colorful in harmony with the actual night view behind it.

Information about the Colosseum is shown on the Transparent OLED screen set up in front of the Colosseum model.

High Transparency

LG’s OLED technology makes the Transparent OLED Signage have slimmer structure without backlight unit nor a liquid crystal layer, achieving high transparency of 38% much higher than conventional LCD transparent displays (10%*). While clearly showing objects behind the screen, it overlays the relevant information right before them.

*Based on LG’s WFB series

A woman understands her work by looking at the transparent display installed in the office's windows.

Accurate and Vivid Colors

Featuring self-lighting pixels, the display maintains vivid colors and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.

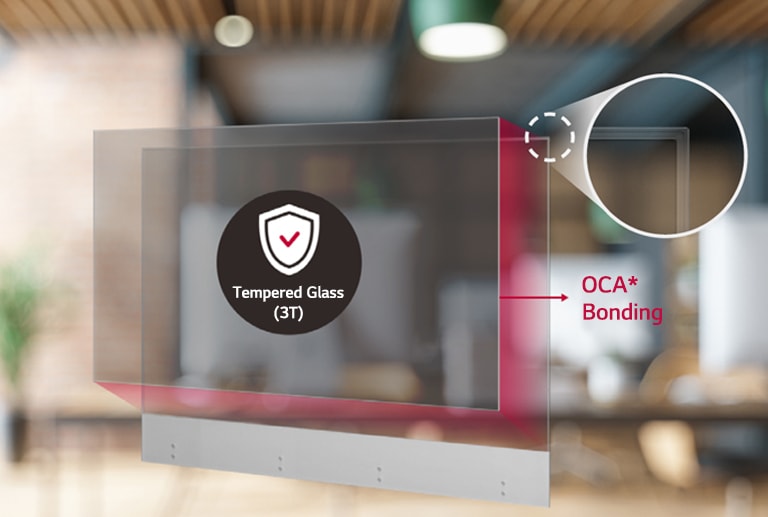

Attach thin and transparent tempered glass to the screen to maximize product protection and user safety.

Protective Tempered Glass

Touching a display directly can cause damage or scratches. The tempered front glass protects product from such external impacts and its anti-shatter glass is designed to minimize customers’ injuries.

* Optically Clear Adhesive

A woman understands her work by looking at the transparent display installed in the office's windows.

Expandable Design

LG Transparent OLED Signage is designed as a semi-assembled display, meaning you can install it in various ways to fit into existing structures and spaces. With a variety of forms of installation*, it can complement any venue in which it is installed.

*Installation accessories are not supplied by LG.

Print

All Spec

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, MCX/Harness Cables(3000mmx4ea/3000mmx2ea for connection between panel and Signage Box), DP Cable(2M), LAN Cable(1.5M), RS232 Cable(4P-4P,1.5M), LC Cable(VLC,3M), Screw(M4xL22,12ea / M4 Nut,12ea / M3xL5.5,8ea / M3xL3.5,20ea), Shield Cover Assy', Rubber Damper 4ea, MCX cable Holder 4ea

  • Optional

    Stand (ACC-S-EW5F, 2 Pole)

CERTIFICATION

  • EMC

    FCC Class "A" / CE / KC

  • ePEAT(US only)

    NO

  • ERP / Energy Star

    YES / NO

  • Safety

    CB / NRTL

CONNECTIVITY

  • Audio In

    NO

  • Audio Out

    YES

  • Daisy Chain

    Input : HDMI, DP / Output : DP

  • DP In

    YES (HDCP 1.3)

  • DP Out

    YES

  • DVI-D In

    NO

  • External Speaker Out

    NO

  • HDMI In

    YES (1ea)

  • HDMI In (HDCP Ver.)

    1.4

  • HDMI Out

    NO

  • IR In

    YES

  • IR Out

    YES (Sharing RS232C Out)

  • RGB In

    NO

  • RJ45(LAN) In

    YES (1ea)

  • RJ45(LAN) Out

    YES

  • RS232C In

    YES

  • RS232C Out

    YES

  • Touch USB

    NO

  • USB In

    USB2.0 Type A (2ea)

DEDICATED FEATURE - TOUCH

  • Accuracy (Typ.)

    N/A

  • Available Object Size for Touch

    N/A

  • Interface

    N/A

  • Multi Touch Point

    N/A

  • Operating System Support

    N/A

  • Protection Glass Thickness

    N/A

  • Protection Glass Transmission

    N/A

  • Response Time ('Paint' app on Windows 10 PC)

    N/A

ENVIRONMENT CONDITIONS

  • Operation Humidity

    10 % to 80 %

  • Operation Temperature

    0 °C to 40 °C

FEATURE - HARDWARE

  • Acceleration(Gyro) Sensor

    NO

  • Auto Brightness Sensor

    NO

  • BLU Sensor

    NO

  • Current Sensor

    NO

  • FAN (Built-in)

    NO

  • Humidity Sensor

    NO

  • Internal Memory (eMMC)

    16GB

  • Local Key Operation

    NO

  • Pixel Sensor

    NO

  • Power Indicator

    NO

  • Proximity Sensor

    NO

  • Temperature Sensor

    YES

  • Wi-Fi/BT (Built-in)

    NO

FEATURE - SOFTWARE

  • Auto Set ID

    YES

  • Backlight Sync

    NO

  • Beacon

    NO

  • Booting Logo Image

    NO

  • Brightness Compensation

    NO

  • Cisco Certification

    NO

  • Control Manager

    YES

  • Crestron Connected

    YES

  • External Input Rotation

    YES

  • Fail over

    YES

  • Gapless Playback

    YES

  • Group Manager

    YES

  • HDMI-CEC

    YES

  • ISM Method

    YES

  • Local Contents Scheduling

    YES

  • Local Network Sync

    YES

  • Network Ready

    NO

  • No Signal Image

    NO

  • OS Ver. (webOS)

    webOS 4.0

  • PBP

    NO

  • PIP

    NO

  • Play via URL

    NO

  • PM mode

    YES

  • Pro:Idiom

    YES

  • RS232C Sync

    YES

  • Scan Inversion

    NO

  • Screen Rotation

    YES

  • Screen Share

    NO

  • Setting Data Cloning

    YES

  • SI Server Setting

    YES

  • Smart Energy Saving

    NO

  • SNMP

    YES

  • Status Mailing

    YES

  • Tile Mode Setting

    YES

  • USB Plug & Play

    YES

  • Video Tag

    YES (4 Video Tag)

  • Wake on LAN

    YES

  • webRTC

    NO

  • W/B Setting by Grey scale

    NO

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic

MECHANICAL SPECIFICATION

  • Bezel Color

    Transparent

  • Bezel Width

    T/R/L/B : 7.9/7.9/7.9/121.7mm

  • Carton Dimensions (W x H x D)

    1345 x 920 x 207mm

  • Handle

    NO

  • Monitor Dimensions (W x H x D)

    1225.5 x 810.1 x 4.9mm (Head) 782.8 x 238.4 x 34.7mm (Signage Box)

  • Monitor Dimension with Stand (W x H x D)

    N/A

  • Packed Weight

    23.1Kg

  • VESA Standard Mount Interface

    N/A

  • Weight (Head)

    11.6Kg (Head) 3.4Kg (Signage Box)

  • Weight (Head+Stand)

    N/A

OPS COMPATIBILITY

  • OPS Power Built-in

    N/A

  • OPS Type compatible

    N/A

PANEL

  • Aspect Ratio

    16:9

  • Back Light Type

    OLED

  • Brightness

    150/400nit (APL 100%/25%, without Glass)

  • Color Depth (Number of Colors)

    1.07 Billion colors

  • Color Gamut

    BT709 120%

  • Contrast Ratio

    150,000:1

  • Dynamic CR

    NO

  • Life time

    30,000Hrs (Typ.)

  • Native Resolution

    1920 x 1080 (FHD)

  • Operation Hours (Hours/Day)

    18/7 (Moving Content Only)

  • Panel Technology

    OLED

  • Portait / Landscape

    YES / YES

  • QWP (Quarter Wave Plate)

    N/A

  • Refresh Rate

    120Hz

  • Response Time

    1ms (G to G), 8ms (MPRT)

  • Screen Size (Inch)

    55

  • Surface Treatment (Haze)

    Haze 3% (SET)

  • Transparency

    38% (SET)

  • Viewing Angle (H x V)

    178º x 178º

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-in Power

POWER CONSUMPTION

  • BTU (British Thermal Unit)

    853.03 BTU/Hr(Typ.), 955.39 BTU/Hr(Max.)

  • DPM

    0.5W

  • Max.

    280W

  • Power off

    0.5W

  • Smart Energy Saving (70%)

    N/A

  • Typ.

    171W (IEC 62087)

PROTECTION GLASS

  • Anti-Reflective

    YES

  • Degree of Protection

    N/A

  • Infrared - Resistance (IR)

    N/A

  • Shatter-Proof

    YES

  • Tempered / Chemical strengthening

    Chemical strengthening

  • Thickness

    3mm

SOFTWARE COMPATIBILITY

  • Connected Care

    YES

  • Mobile CMS

    YES

  • Promota

    NO

  • SuperSign Cloud

    NO

  • SuperSign CMS

    YES

  • SuperSign Control+

    YES

  • SuperSign WB

    YES

SOUND

  • Speaker (Built-in)

    NO

SPECIAL FEATURE

  • Conformal Coating (Power Board)

    N/A

  • Direct Sunlight

    N/A

  • IP Rating

    N/A

  • Overlay Touch Compatibility

    N/A

  • Power Protection

    N/A

  • Smart Calibration

    N/A

  • Tilt (Face down)

    N/A

  • Tilt (Face up)

    N/A
