Transparent OLED Touch Signage

55EW5TF-A

Transparent OLED Touch Signage

A New Level of See-through View

A New Level of See-through View

LG Transparent OLED Touch Signage illuminates spaces that once were hidden away behind the display, completely harmonizing with its surroundings. It can respond according to viewers’ touch, which has great potential for various applications where customer interactions are required.
High Transparency
UNRIVALED PICTURE QUALITY

High Transparency

LG’s OLED technology makes the Transparent Touch OLED Signage have slimmer structure without backlight unit nor a liquid crystal layer, achieving high transparency of 33% even with P-Cap touch film much higher than conventional LCD transparent displays (10*).

* Based on LG’s WFB series

Accurate and Vivid Colors

UNRIVALED PICTURE QUALITY

Accurate and Vivid Colours

Featuring self-lighting pixels, the display maintains vivid colours and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.

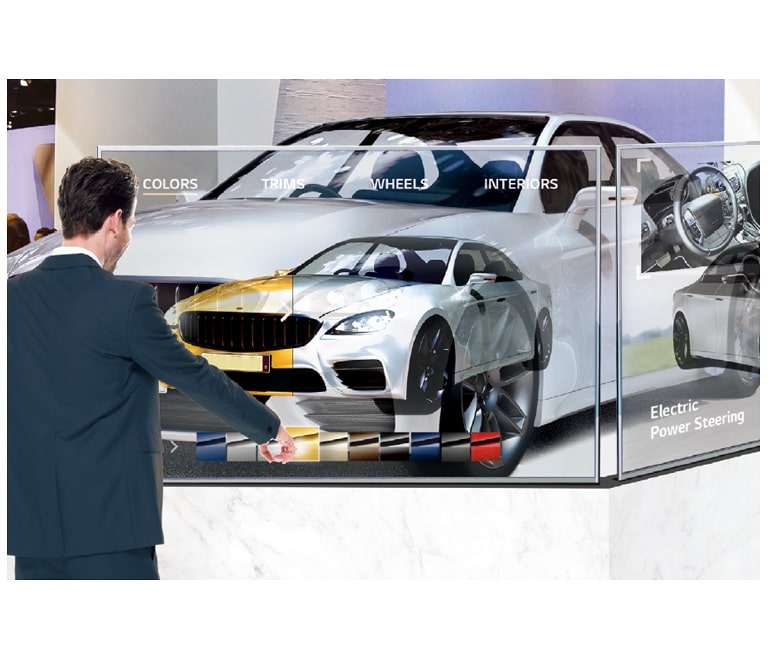

Intuitive P-Cap Touch

VERSATILE SOLUTION

Intuitive P-Cap Touch

By adding P-Cap touch sensor film to the display, the utilization possibilities expand to various industries where customer interaction services are demanding. P-Cap touch type is much better in accurate and fast touch responses than IR type, so users can fully enjoy its fascinating content using their fingertips with no lag.

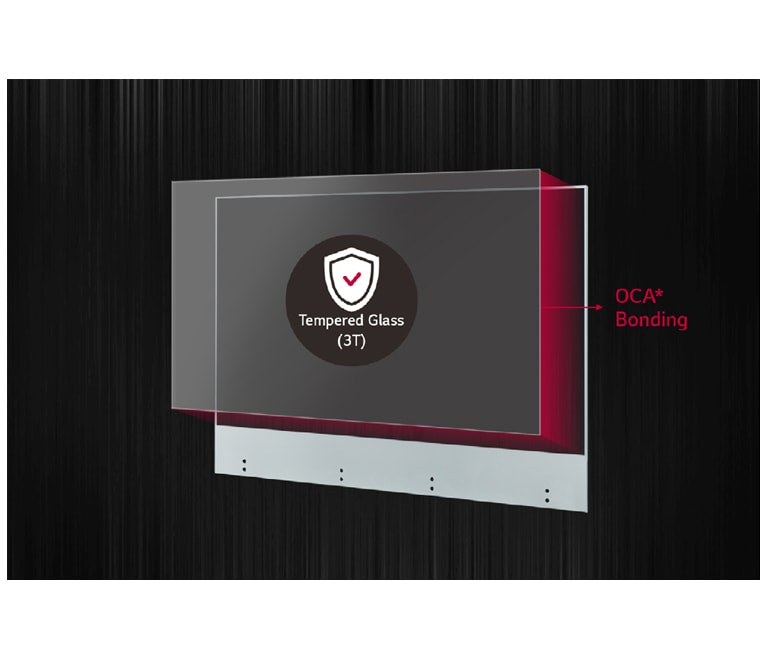

Protective Tempered Glass
VERSATILE SOLUTION

Accurate and Vivid Colours

Touching a display directly can cause damage or scratches. The tempered front glass protects product from such external impacts and its anti-shatter glass is designed to minimize customers’ injuries.

* Optically Clear Adhesive

Expandable Design
SPATIAL HARMONY

Expandable Design

LG Transparent OLED Touch Signage is designed as a semi-assembled display, meaning you can install it in various ways to fit into existing structures and spaces. With a variety of forms of installation*, it can complement any venue in which it is installed.

* Installation accessories are not supplied by LG.



Print

All Spec

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, FFC Cables(1600mmx4ea for connection between panel and Signage Box), HDMI Cable(3M), Micro to A type USB cable(1.8M for connection between Touch and Signage box), A to B type USB cable(Touch out), Tape(10ea for Cabling / 10ea EMI gasket tape), Screw(M4xL22,12ea / M4 Nut,12ea / M3xL5.5,8ea / M3xL3.5,20ea), Shield Cover Assy', Rubber Damper 4ea, Touch Cable Holder 2ea

  • Optional

    NO

CERTIFICATION

  • EMC

    FCC Class "A" / CE / KC

  • ePEAT(US only)

    NO

  • ERP / Energy Star

    YES / NO

  • Safety

    CB / NRTL

CONNECTIVITY

  • Audio In

    NO

  • Audio Out

    YES

  • Daisy Chain

    NO

  • DP In

    YES (HDCP 1.3)

  • DP Out

    YES

  • DVI-D In

    NO

  • External Speaker Out

    NO

  • HDMI In

    YES (1ea)

  • HDMI In (HDCP Ver.)

    1.4

  • HDMI Out

    NO

  • IR In

    YES

  • IR Out

    YES (Sharing RS232C Out)

  • RGB In

    NO

  • RJ45(LAN) In

    YES (1ea)

  • RJ45(LAN) Out

    YES

  • RS232C In

    YES

  • RS232C Out

    YES

  • Touch USB

    USB2.0 Type B (1ea)

  • USB In

    USB2.0 Type A (2ea)

DEDICATED FEATURE - TOUCH

  • Accuracy (Typ.)

    3.5mm

  • Available Object Size for Touch

    Ø12mm ↑

  • Interface

    USB2.0

  • Multi Touch Point

    Max. 10 Points

  • Operating System Support

    Windows 7 Professional, Windows 8.1, Windows 10

  • Protection Glass Thickness

    3mm (Anti-Reflective / Anti-Finger print)

  • Protection Glass Transmission

    84% (Typ.)

  • Response Time ('Paint' app on Windows 10 PC)

    120ms ↓

ENVIRONMENT CONDITIONS

  • Operation Humidity

    10 % to 80 %

  • Operation Temperature

    0 °C to 40 °C

FEATURE - HARDWARE

  • Acceleration(Gyro) Sensor

    NO

  • Auto Brightness Sensor

    NO

  • BLU Sensor

    NO

  • Current Sensor

    NO

  • FAN (Built-in)

    YES

  • Humidity Sensor

    NO

  • Internal Memory (eMMC)

    16GB

  • Local Key Operation

    NO

  • Pixel Sensor

    NO

  • Power Indicator

    NO

  • Proximity Sensor

    NO

  • Temperature Sensor

    YES

  • Wi-Fi/BT (Built-in)

    NO

FEATURE - SOFTWARE

  • Auto Set ID

    YES

  • Backlight Sync

    NO

  • Beacon

    NO

  • Booting Logo Image

    NO

  • Brightness Compensation

    NO

  • Cisco Certification

    NO

  • Control Manager

    YES

  • Crestron Connected

    YES

  • External Input Rotation

    NO

  • Fail over

    YES

  • Gapless Playback

    YES

  • Group Manager

    YES

  • HDMI-CEC

    YES

  • ISM Method

    YES

  • Local Contents Scheduling

    YES

  • Local Network Sync

    NO

  • Network Ready

    NO

  • No Signal Image

    NO

  • OS Ver. (webOS)

    webOS 4.0

  • PBP

    NO

  • PIP

    NO

  • Play via URL

    NO

  • PM mode

    YES

  • Pro:Idiom

    YES

  • RS232C Sync

    NO

  • Scan Inversion

    NO

  • Screen Rotation

    YES

  • Screen Share

    NO

  • Setting Data Cloning

    YES

  • SI Server Setting

    YES

  • Smart Energy Saving

    NO

  • SNMP

    YES

  • Status Mailing

    YES

  • Tile Mode Setting

    NO

  • USB Plug & Play

    YES

  • Video Tag

    YES (4 Video Tag)

  • Wake on LAN

    YES

  • webRTC

    NO

  • W/B Setting by Grey scale

    NO

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic

MECHANICAL SPECIFICATION

  • Bezel Color

    Matt Silver

  • Bezel Width

    T/R/L/B : 7.9/7.9/7.9/144.5mm

  • Carton Dimensions (W x H x D)

    1345 x 945 x 207mm

  • Handle

    NO

  • Monitor Dimensions (W x H x D)

    1225.5 x 832.9 x 7.0mm (Head) 782.8 x 238.4 x 34.7mm (Signage Box)

  • Monitor Dimension with Stand (W x H x D)

    N/A

  • Packed Weight

    23.1Kg

  • VESA Standard Mount Interface

    N/A

  • Weight (Head)

    14.6Kg (Head) 3.4Kg (Signage Box)

  • Weight (Head+Stand)

    N/A

OPS COMPATIBILITY

  • OPS Power Built-in

    N/A

  • OPS Type compatible

    N/A

PANEL

  • Aspect Ratio

    16:9

  • Back Light Type

    OLED

  • Brightness

    150/400nit (APL 100%/25%, without Glass)

  • Color Depth (Number of Colors)

    1.07 Billion colors

  • Color Gamut

    BT709 120%

  • Contrast Ratio

    150,000:1

  • Dynamic CR

    NO

  • Life time

    30,000Hrs (Typ.)

  • Native Resolution

    1920 x 1080 (FHD)

  • Operation Hours (Hours/Day)

    18/7 (Moving Content Only)

  • Panel Technology

    OLED

  • Portait / Landscape

    YES / YES

  • QWP (Quarter Wave Plate)

    N/A

  • Refresh Rate

    120Hz

  • Response Time

    1ms (G to G), 8ms (MPRT)

  • Screen Size (Inch)

    55

  • Surface Treatment (Haze)

    Haze 3% (SET)

  • Transparency

    33% (SET)

  • Viewing Angle (H x V)

    178º x 178º

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-in Power

POWER CONSUMPTION

  • BTU (British Thermal Unit)

    853.03 BTU/Hr(Typ.), 955.39 BTU/Hr(Max.)

  • DPM

    0.5W

  • Max.

    280W

  • Power off

    0.5W

  • Smart Energy Saving (70%)

    N/A

  • Typ.

    171W (IEC 62087)

PROTECTION GLASS

  • Anti-Reflective

    YES

  • Degree of Protection

    N/A

  • Infrared - Resistance (IR)

    N/A

  • Shatter-Proof

    YES

  • Tempered / Chemical strengthening

    Chemical strengthening

  • Thickness

    3mm

SOFTWARE COMPATIBILITY

  • Connected Care

    YES

  • Mobile CMS

    YES

  • Promota

    NO

  • SuperSign Cloud

    NO

  • SuperSign CMS

    YES

  • SuperSign Control+

    YES

  • SuperSign WB

    NO

SOUND

  • Speaker (Built-in)

    NO

SPECIAL FEATURE

  • Conformal Coating (Power Board)

    N/A

  • Direct Sunlight

    N/A

  • IP Rating

    N/A

  • Overlay Touch Compatibility

    N/A

  • Power Protection

    N/A

  • Smart Calibration

    N/A

  • Tilt (Face down)

    N/A

  • Tilt (Face up)

    N/A
