LG CordZero™ A9 Vacuum Cleaner Power Drive Mop

Features

Gallery

Specs

Reviews

Support

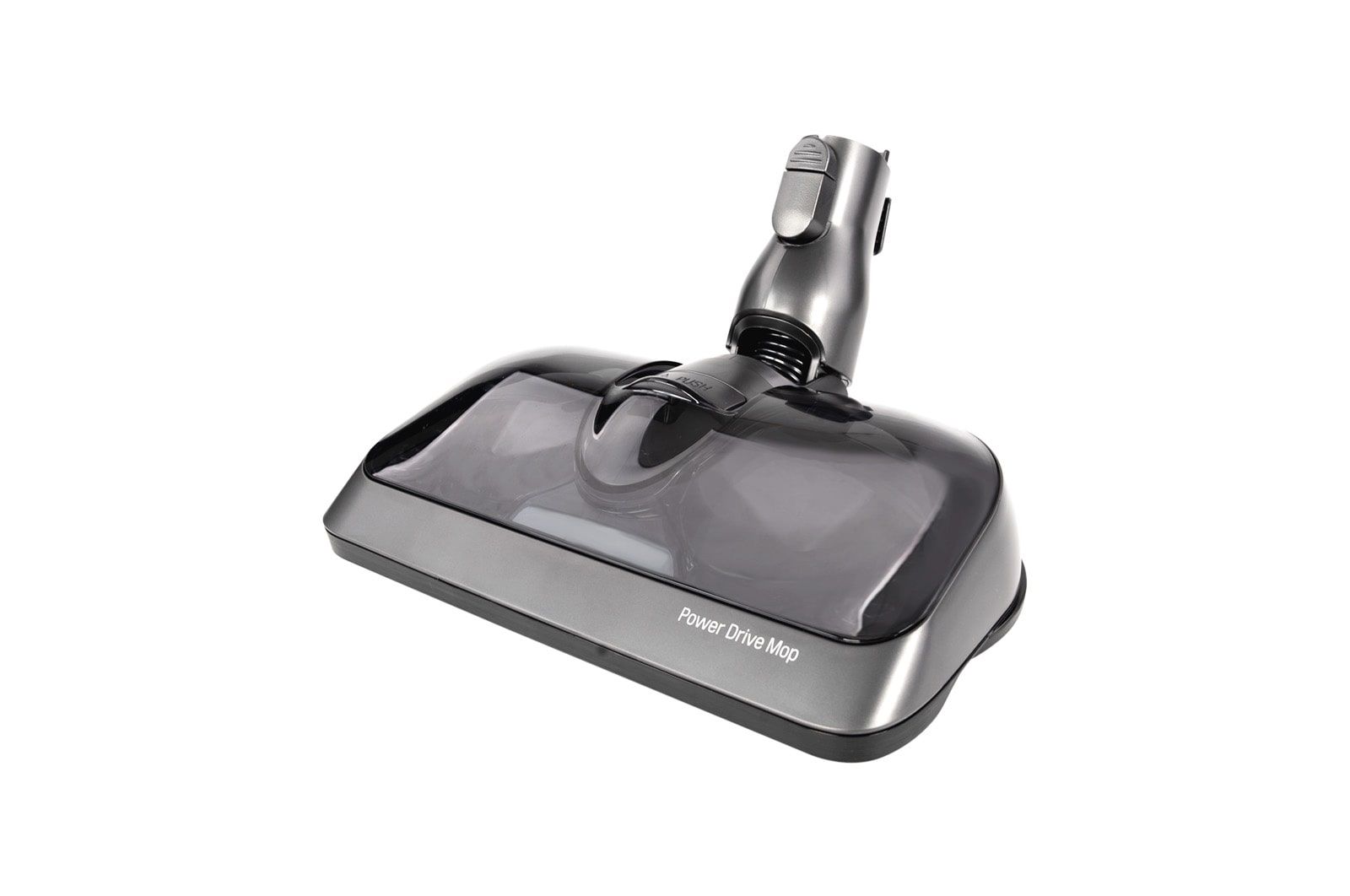

LG CordZero™ A9 Vacuum Cleaner Power Drive Mop

LG CordZero™ A9 Vacuum Cleaner Power Drive Mop

AGB74392425
()
  • 15 degree view
  • top view

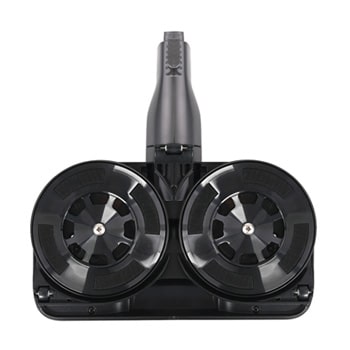

  • Bottom view

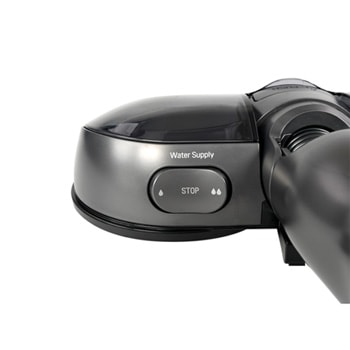

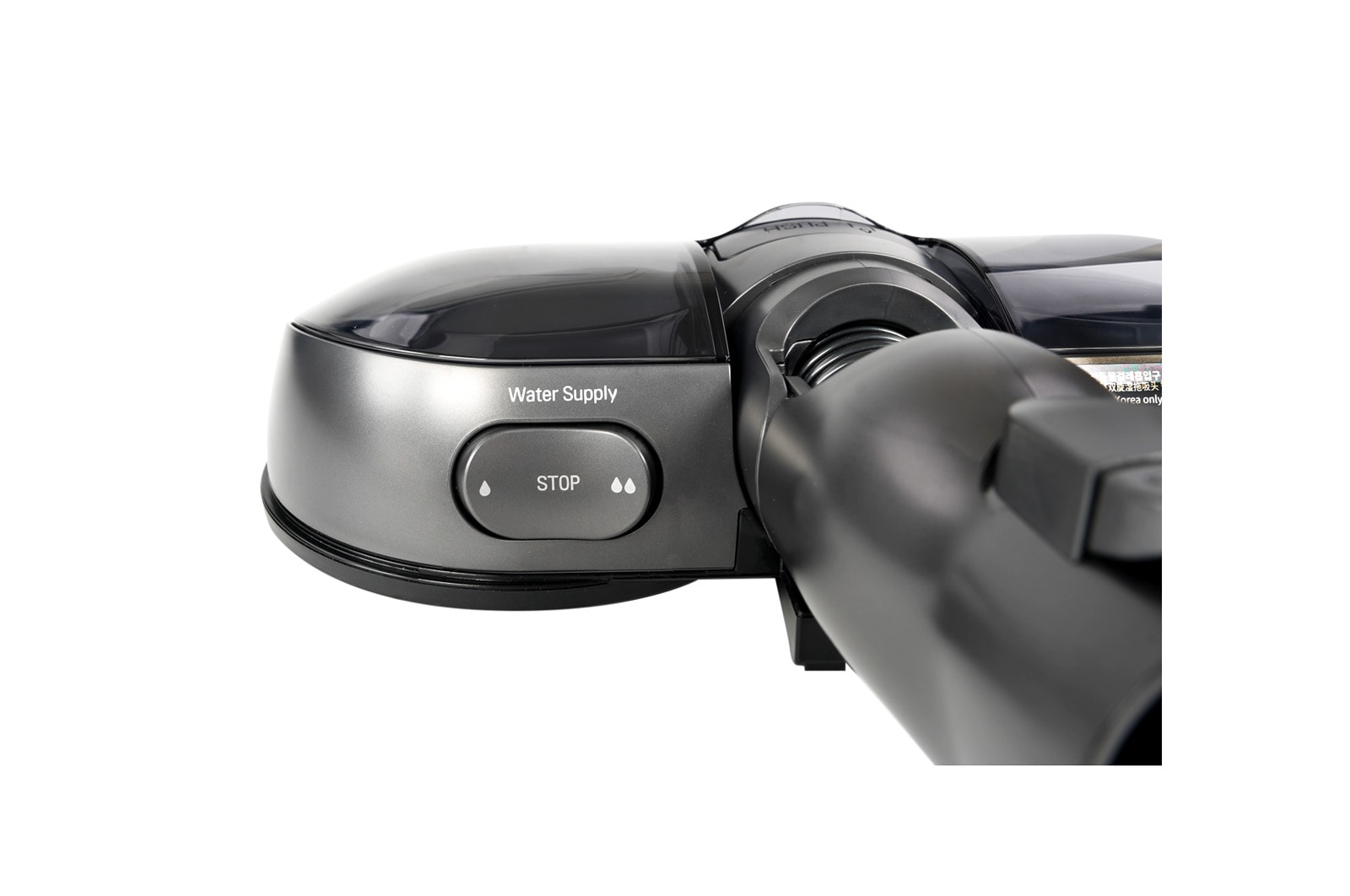

  • close-up view

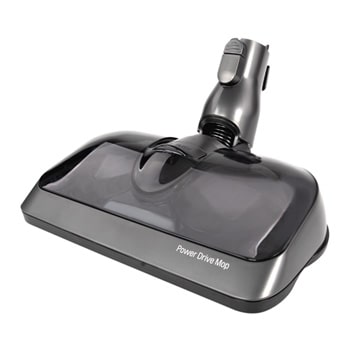

15 degree view

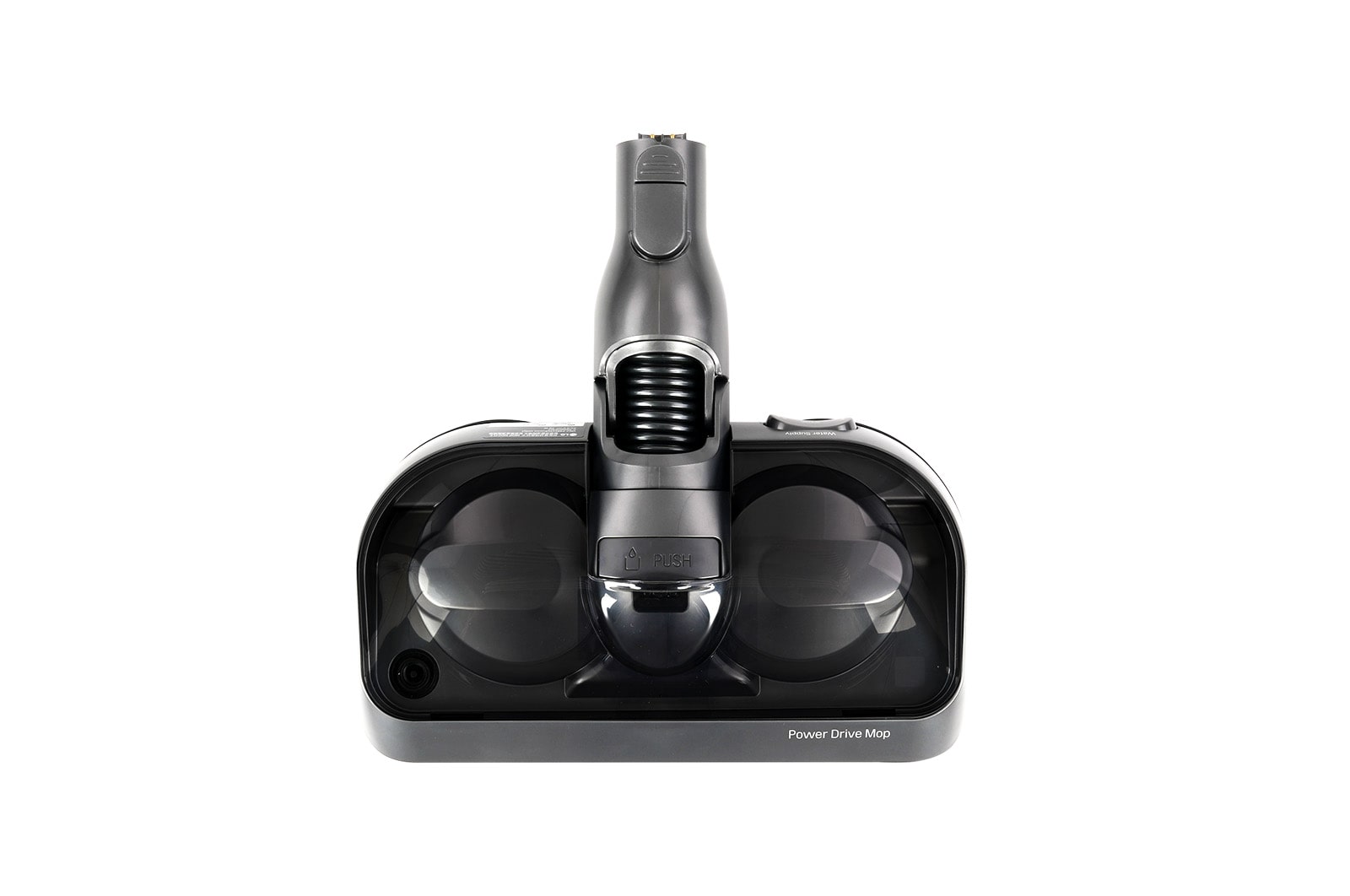

top view

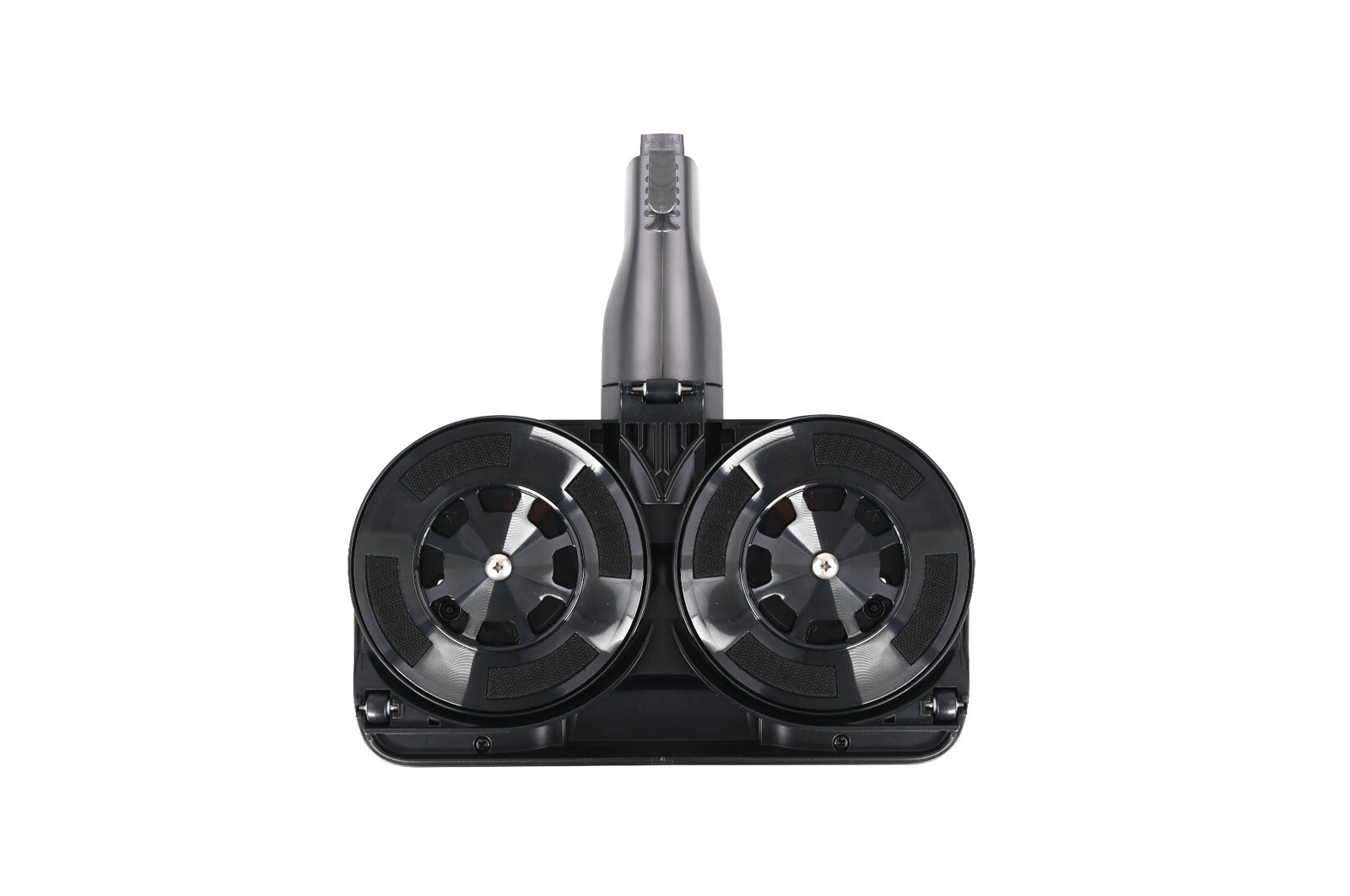

Bottom view
close-up view

Key Features

  • LG Vacuum Cleaner Genuine Mop Nozzle

How to Use

For more detailed information, please refer to the product manual for your model.

STEP 1

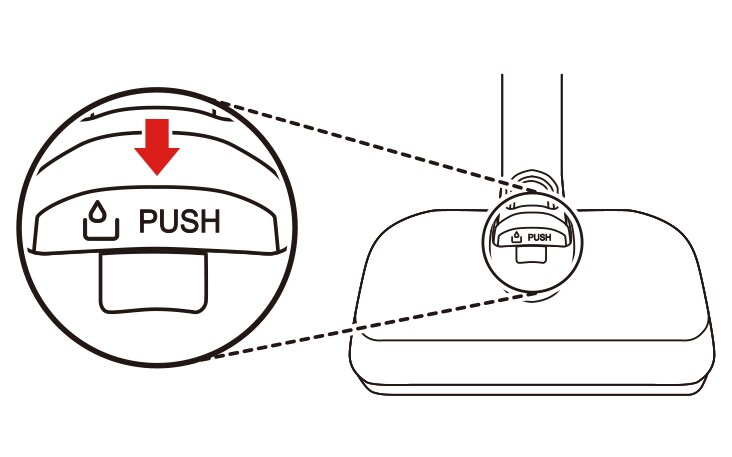

Press the PUSH button to remove the water tank from the mop nozzle.

Press the PUSH button to remove the water tank from the mop nozzle

STEP 2

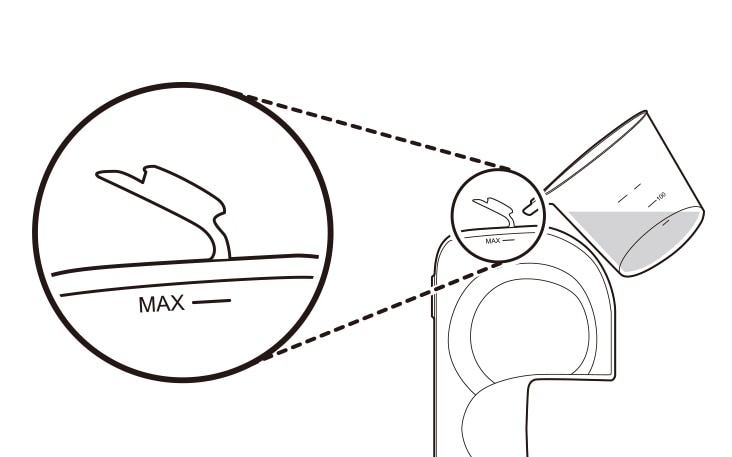

Open the water inlet cap on the side of the water tank and fill the tank with water using the measuring cup.

- Open only one water inlet cap to fill the water.

Opening both caps may cause the water to flush.

- Do not fill the tank over the MAX line.

- Do not put liquid other than water and hot water in the water tank.

Open the water inlet cap on the side of the water tank and fill the tank with water using the measuring cup Open only one water inlet cap to fill the water Opening both caps may cause the water to flush Do not fill the tank over the MAX line Do not put liquid other than water and hot water in the water tank

STEP 3

Close the water inlet cap tightly.

- If the water inlet cap is not closed properly, water may leak.

Close the water inlet cap tightly If the water inlet cap is not closed properly water may leak

STEP 4

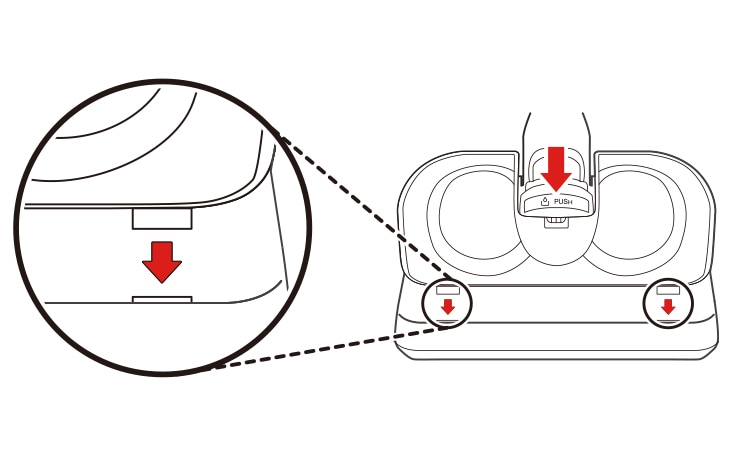

Attach the water tank to the mop nozzle again.

- Insert the 2 tabs at the front of the water tank into the slots on the top of the mop nozzle.

Press down at the centre to lock the tank in place.

Attach the water tank to the mop nozzle again Insert the 2 tabs at the front of the water tank into the slots on the top of the mop nozzle Press down at the centre to lock the tank in place

STEP 5

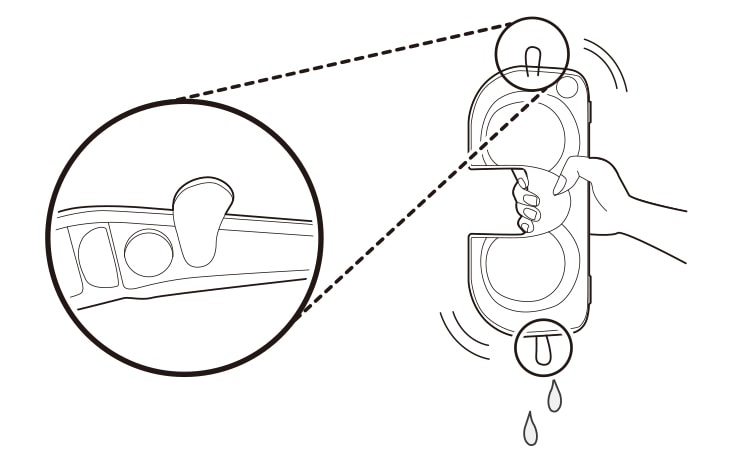

Open the 2 water inlet caps on the side of the water tank and empty the water tank.

Shake the water tank to remove the remaining water.

Open the 2 water inlet caps on the side of the water tank and empty the water tank Shake the water tank to remove the remaining water

STEP 6

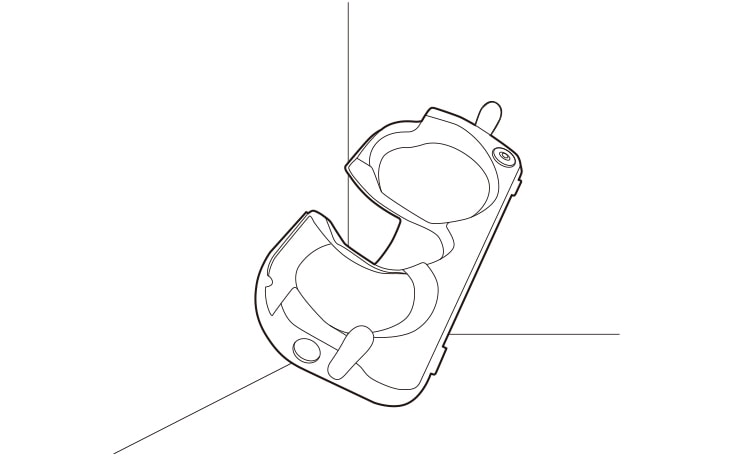

Leave the 2 water inlet caps open and allow the water tank to dry in a well-ventilated area out of direct sunlight for at least 24 hours.

- Keep the water tank after water is completely empty and dry.

Moisture or residual water in the tank may cause odour.

Leave the 2 water inlet caps open and allow the water tank to dry in a well ventilated area out of direct sunlight for at least 24 hours Keep the water tank after water is completely empty and dry Moisture or residual water in the tank may cause odour

How to Clean

For more detailed information, please refer to the product manual for your model.

Cleaning the Mop Nozzle

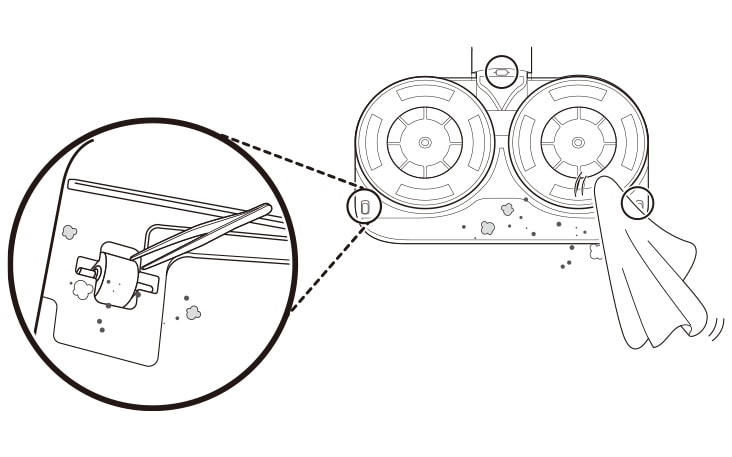

Press the nozzle release button to remove the mop nozzle from the extension pipe and turn the nozzle upside down.

Use a damp towel or cloth to remove any remaining foreign objects and dust from the bottom of the mop nozzle.

Remove foreign objects, debris and hair from all Rollers of the nozzles using tweezers.

Press the nozzle release button to remove the mop nozzle from the extension pipe and turn the nozzle upside down Use a damp towel or cloth to remove any remaining foreign objects and dust from the bottom of the mop nozzle Remove foreign objects debris and hair from all Rollers of the nozzles using tweezers

After Cleaning the Mop Nozzle

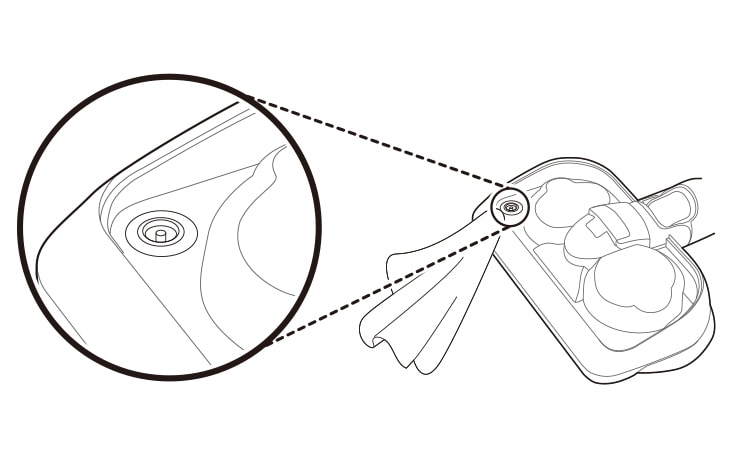

After cleaning, wipe off any remaining water on the water supply inlet on the mop nozzle with a soft cloth.

The water could drip onto the floor and damage it.

Do not pull or stretch the rubber gasket on the water supply inlet.

Doing so may tear or damage it.

After cleaning wipe off any remaining water on the water supply inlet on the mop nozzle with a soft cloth The water could drip onto the floor and damage it Do not pull or stretch the rubber gasket on the water supply inlet Doing so may tear or damage it

* Product images and features may contain advertising expressions and may differ from the actual product. Product appearance, specifications, etc. may change without prior notice for product improvement.

* All product images are photo cuts and may differ from the actual product. Product color may vary depending on monitor resolution, brightness settings, and computer specifications.

* The performance of the product may vary depending on the usage environment, and availability may vary by store.

SUMMARY

Print

DIMENSIONS

All Spec

GENERAL

  • Part Number

    AGB74392425

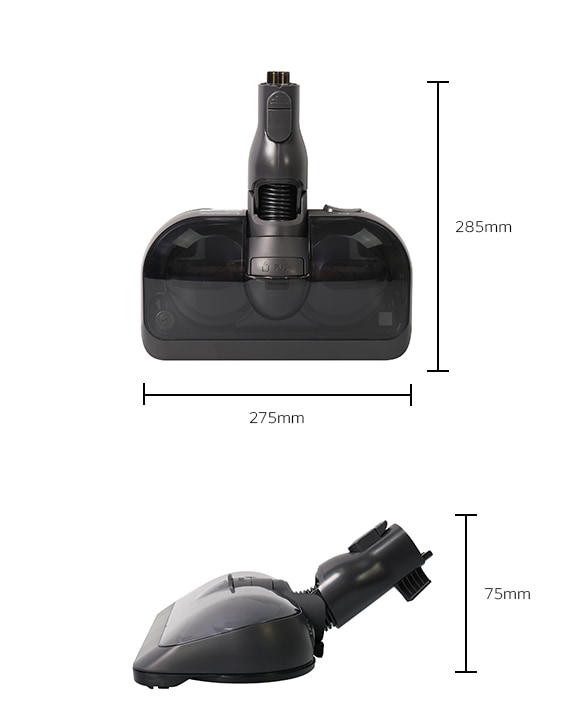

DIMENSIONS & WEIGHTS

  • Product Dimension (W x H x D, mm)

    275 x 75 x 285

  • Net Weight (g)

    1180
