All Spec
DISPLAY MODULE
-
Screen Size (Inch)
23.8"
-
Panel
IPS
-
Color Gamut (CIE1976)
72%
-
Color Depth (Number of Colors)
16.7M
-
Pixel pitch (mm)
0.2745*0.2745
-
Aspect Ratio
16:9
-
Resolution
1920x1080
-
Brightness (cd/m2)
250
-
Contrast Ratio (DFC)
5M:1
-
Response Time (GTG)
5ms
-
Viewing Angle Degree
178/178
-
Surface Treatment
non Glare

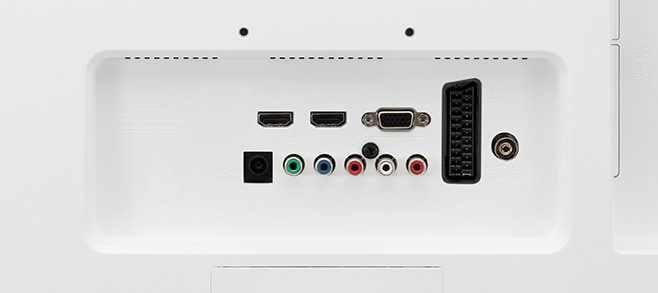

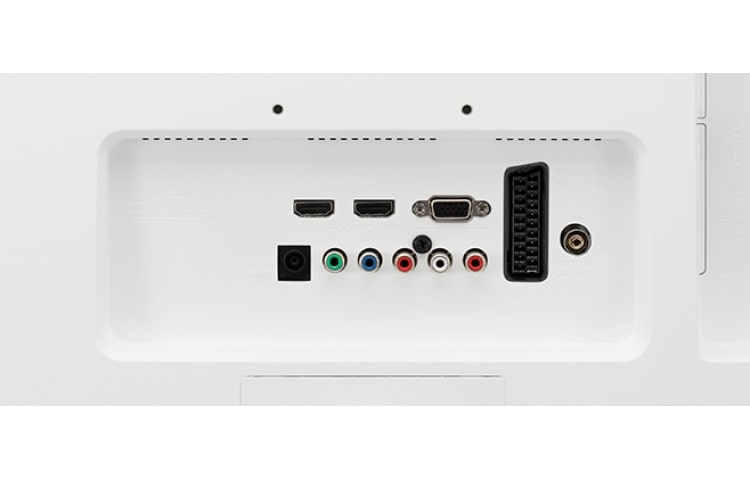

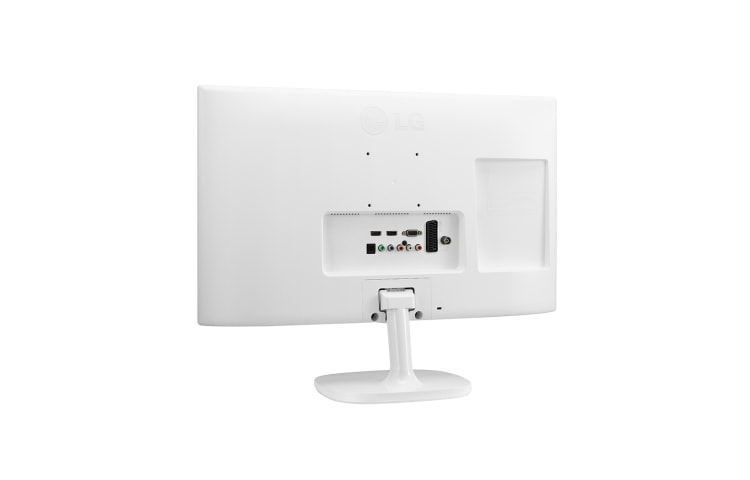

JACK PACKS (INPUT & OUTPUT)
-

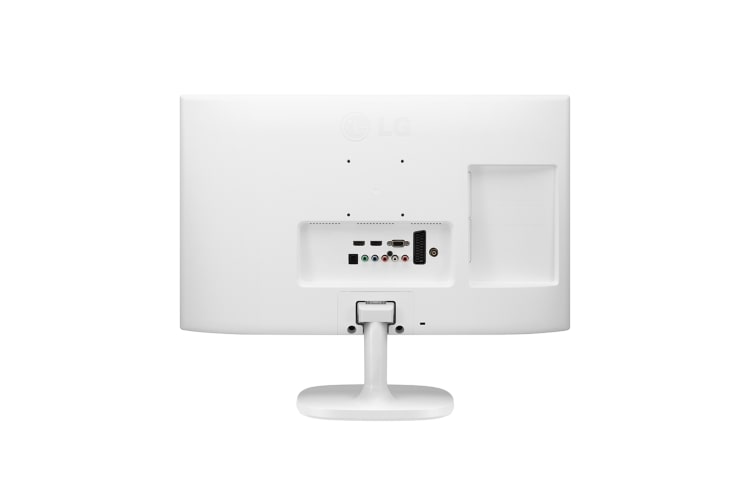

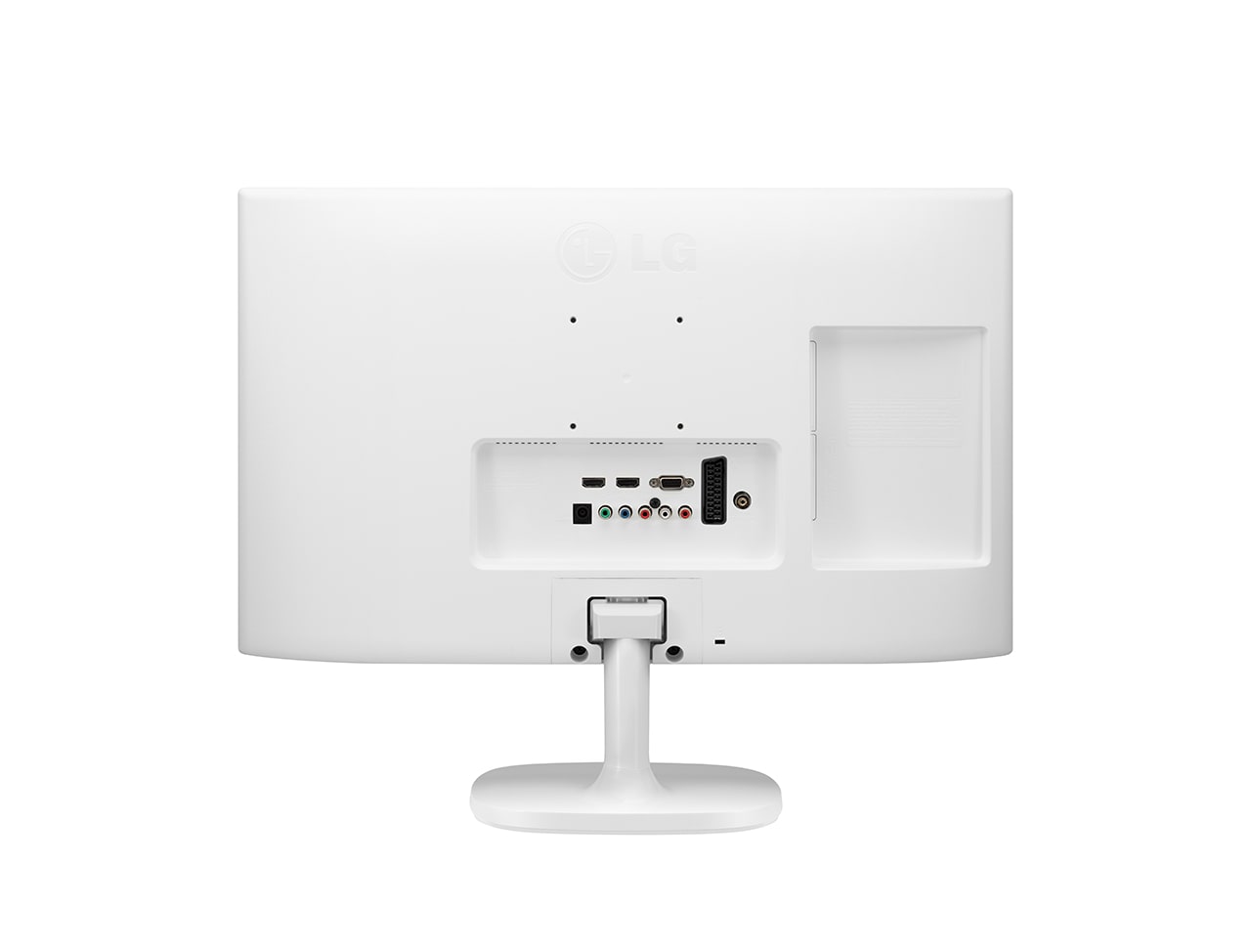

Signal Input [Jack location]
Rear/Side(USB,Audio IN)
-
- D-Sub
Yes
-
- Component
Yes
-
- Composite
Yes
-
- HDMI (Ver.)
Yes (2EA, HDMI 1.3)
-
- USB (Ver.)
Yes (USB 2.0)
-
Audio Input (Jack location)
Rear/Side (PC Audio in)
-
- RCA
Yes
-
- PC Audio In
Yes
-
Audio Output (Jack location)
Rear
-
- Headphone Out
Yes
-
Tuner Input (Jack location)
Rear
-
- Digital
DTMB
-
- Analog
PAL Multi
SPEAKER
-
Type
Internal
-
Audio output
5W x 2
ACCESSORIES
-
Remote Control
Yes
POWER
-
Type (w/ Watt)
Adapter (40W)
-
Input
100-240V
-
Normal On (Typ.)
28W
-
Power Save/Sleep Mode (Max)
1W
-
DC Of f(Max)
0.4W
FREQUENCY
-
D-Sub: H-Frequency
30kHz~83kHz
-
D-Sub: V-Frequency
56Hz~75Hz
-
HDMI: H-Frequency
30kHz~83kHz
-
HDMI: V-Frequency
56Hz~75Hz
RESOLUTION
-
PC: D-Sub
1920x1080
-
PC: HDMI
1920x1080
-
Video: HDMI
480p, 576p 720p, 1080i, 1080p
-
Video: Component
480i, 576i, 480p, 576p 720p, 1080i, 1080p
-
Video: Composit
480i, 576i
CONTROL KEY
-
Key Number (Power Key Included)
1 Key
-
Key Type
Joystick (4 direction-center push)
-
LED Color (On mode)
Off
-
LED Color (Power save mode)
Amber
-
LED Color (Standby)
Red
-
Key Location
Bottom (Center)
OSD
-
Country
Hong Kong
-
Number of Language
2 Language(English/Traditional Chinese)
SPECIAL FEATURE
-
HDCP
Yes
-
Intelligent Auto (Auto Resolution)
Yes
-
Remote Control
Yes
-
Key Lock
Yes
-
Plug & Play
Yes
-
EPG
Yes
-
Flicker Safe
Yes
-
Gaming Mode
Yes (DAS, Black Stabilizer)
-
Divx HD player (USB Media Player)Acessibility
Yes (Video, Music, Picture)
-
PIP
Yes
-
Time Machine Ready
Ready(External device) / Recording: Yes, Time Shift: Yes
-
Motion Eye Care
Yes
-
Smart Energy Saving
Yes
-
Picture Mode
Vivid/Standard/Eco/Cinema/Sport/Game/Expert1/Expert2
-
Triple XD engine
Yes
-
ARC-PC
16:9, 4:3
-
ARC-Video
16:9 - DTV, ATV, AV, Component, RGB, HDMI1/2 Just Scan – DTV, Component, HDMI1/2 (720p↑) Original - DTV, ATV, AV, HDMI1/2 Full Wide - DTV 4:3 - DTV, ATV, AV, Component, RGB, HDMI1/2 14:9 - DTV, ATV, AV, Component, HDMI1/2 Zoom - DTV, ATV, AV, Component, HDMI1/2 Cinema Zoom - DTV, ATV, AV, Component, HDMI1/2
-
Virtual surround
Yes
-
AVL (Auto Volume)
Yes
-
Equalizer
Yes
-
Hotel Mode
Yes
-
RS232C
Yes
-
USB Cloning
Yes
COLOR
-
Front
Black Glossy
-
B/Cover
Black texture
-
Stand
Black Glossy
-
Base
Black Glossy
-
Others
Black Glossy
STAND
-
Base Detachable
Detachable
-
Tilt (Angle)
-5-20 degree
DIMENSION(W*D*H)(MM)
-
Set (with Stand)
554.9*198.2*437.2
-
Set (without Stand)
554.9*74.8*343.3
-
Wall Mount
75*75
WEIGHT(KG)
-
Set (with Stand)
3.8
-
Set (without Stand)
3.6
