LG CineBeam.
LG CineBeam.

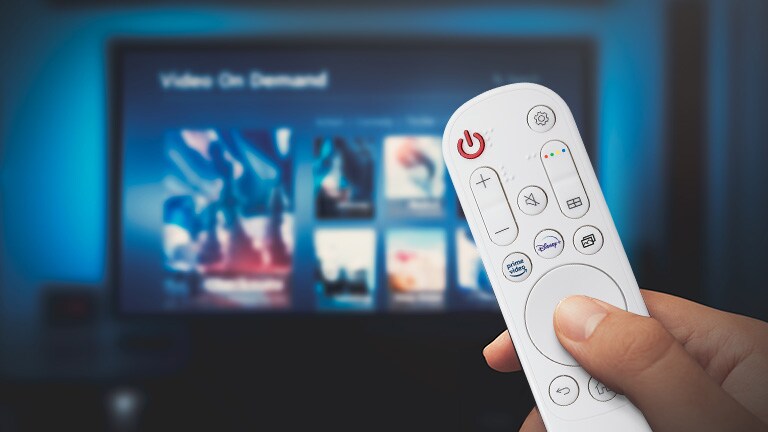

*The remote control is included in the package.
*Internet connection and subscription to streaming services are required.
*Supported services may differ by region.
1. Find the video that you want to stream.
2. Tap AirPlay icon.
3. Choose your LG CineBeam projector.
4. If an AirPlay passcode appears on your projector screen, enter the passcode on your Apple device.
1. Open Control Center.
2. Tap Screen Mirroring.
3. Select your LG CineBeam from the list.
4. If an AirPlay passcode appears on your projector screen, enter the passcode on your Apple device.

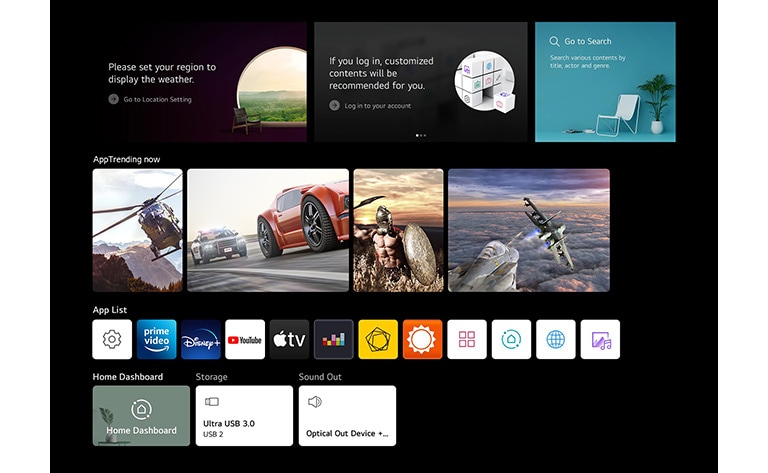

1. On 2nd depth Launcher of webOS22, click AirPlay.
2. Click Open Settings and Select 'Set up HomeKit’.
3. Scan the QR Code on LG CineBeam using your Apple device.
4. Complete HomeKit Setting on LG CineBeam.
*Your Apple device must be connected to the same Wi-Fi network as your projector.
*Apple, Apple Home, AirPlay, iPad, iPhone, and Mac are trademarks of Apple Inc., registered in the U.S. and other countries and regions.
*This LG CineBeam supports AirPlay 2 and requires iOS 12.3 or later or macOS 10.14.5 or later.
*Supported on Android or Window 8.1 and above.
*Supported on BT 5.0 and above. The sound between the two connected devices may not match.
Up to 120-inch of Full HD Resolution
With FHD (1920 x 1080) resolution and compact size to fit anywhere, you can create your own immersive theater at home or at outdoors on a flexible screen from 30-inch up to 120-inch.
Watching a movie in a narrow room.
Watching a movie with children.
Outdoor movies on the large screen in the backyard or rooftop.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The connection of the power cord is required for operation.
Native Resolution
Full HD (1920x1080)
Brightness (ANSI Lumen)
450
Type
4Ch(RGBB) LED
Contrast Ratio
150,000:1
Digital Keystone Correction
YES (Vertical)
Output
5W Mono
Airplay 2 (iOS/Mac Video Casting, Mirroring, Audio Streaming)
YES (up to 4K/30Hz)
Screen Share (Wireless Mirroring with MiraCast supporting device)
YES
Zoom
Fixed
Aspect Ratio Control
16:9/Original/4:3/Vertical Zoom/4-Way Zoom
Brightness (ANSI Lumen)
450
Contrast Ratio
150,000:1
Cabinet Color
White
Leg-Stand
YES (4 Leg)
Local Key
Joystick
Tripod hole (for Tripod, Ceiling mount)
YES
Black Level Control
YES
Bluetooth AV Sync Control
YES
Bluetooth Sound out
YES
Color gamut setting (Expert control)
YES
Color Management System (Expert control)
YES
Color Temperature Adjustment
YES
Contents Sharing (with DLNA supporting device)
YES
Contents Suggestion
YES
Digital Keystone Correction
YES (Vertical)
Dynamic Color (Expert control)
YES
Dynamic Contrast (Expert control)
YES
Eco Function - Auto Off / Auto Sleep
YES
Eco Function - Automatic Standby / Auto Power Off
YES
Eco Function - Energy Saving Mode
YES (Min/Med/Max)
Eco Function - Sleep Timer
YES
Eco Function - Time Power On/Off
YES (On / Off)
Gamma Correction (Expert control)
YES
HDMI ARC(Audio Return Channel)
YES (eARC)
HDMI simplink(CEC)
YES
HID (Keyboard/Mouse/GamePad Connection Thru USB)
YES
Image Flip
YES (Horizontal/Vertical)
Internet Browser
YES
LG Sound Sync(with Sound Bar)
YES
Noise Reduction
YES
Platform (OS, UI)
webOS 4.0 (Smart)
Plug & Play(RGB/DVI/HDMI Auto Source Detection)
YES
Processor
Quad Core
Quick(Instant) Power on/off
YES (on 12 Sec ↓ / off 2 Sec)
Screen Share (Wireless Mirroring with MiraCast supporting device)
YES
Self Diagnosis
YES
Setting Guide
YES (Bean Bird)
Store Mode
YES
Super Resolution (Expert Control)
YES (Full HD)
Upscaler
YES (Full HD)
USB Host (Movie, Music, Photo)
YES
White balance setting (Expert control)
YES
Wireless Contents Share (with Android, iOS)
YES
Home Dashboard (Input, IoT with OFC device)
YES (OCF/UEI IoT not supported)
Background Image
YES
AI Speaker Compatibility
Apple Homekit works-with
Airplay 2 (iOS/Mac Video Casting, Mirroring, Audio Streaming)
YES (up to 4K/30Hz)
HDCP
HDCP 2.2
HDR
HDR
HDR Tone Mapping
YES
Real Cinema
YES
Auto Keystone
YES (Vertical)
Smooth Gradation
YES

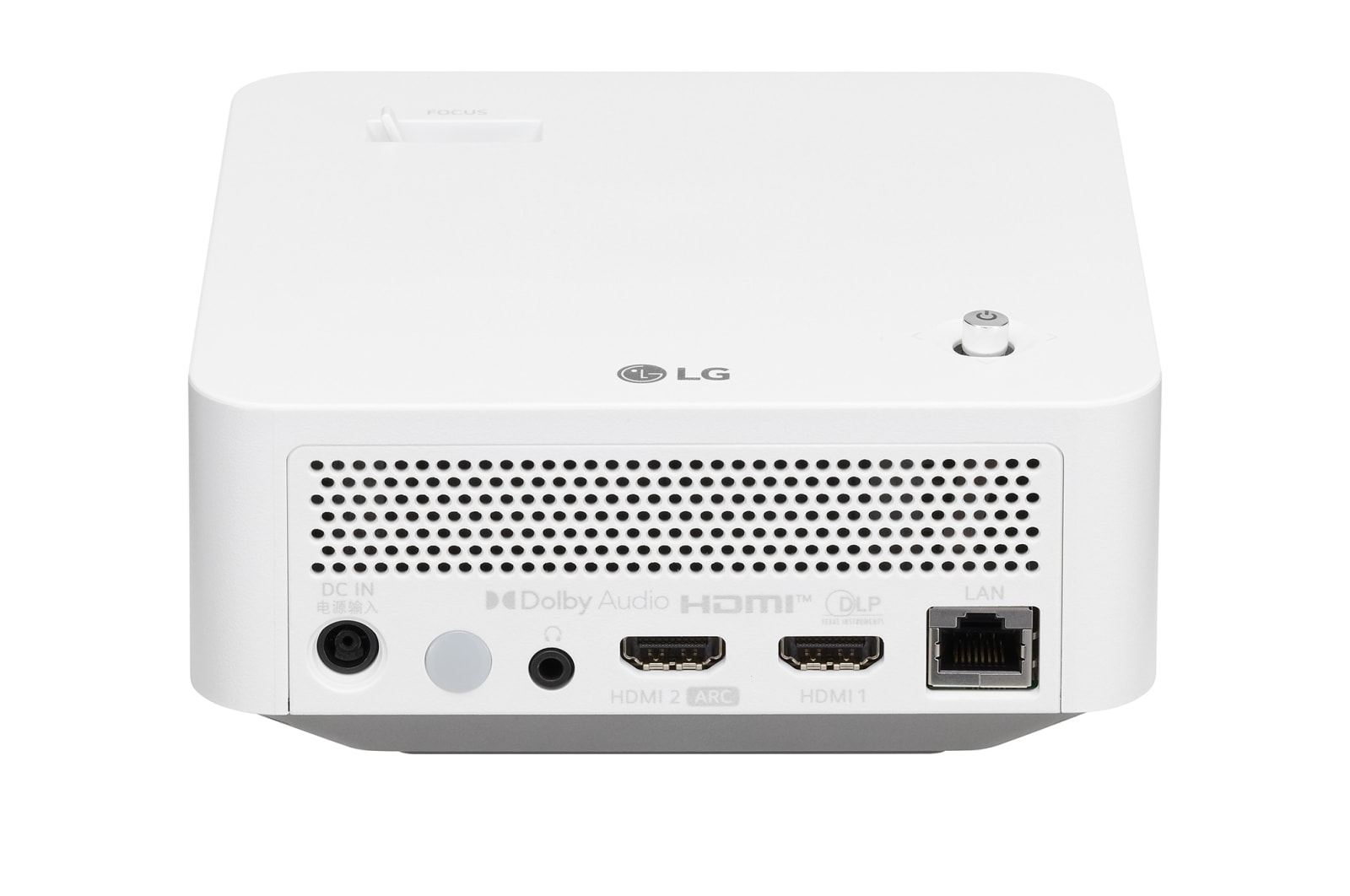

Digital(HDMI)
Up to 1080p (60Hz, 50Hz, 24Hz)
Audio out
1 (Φ3.5)

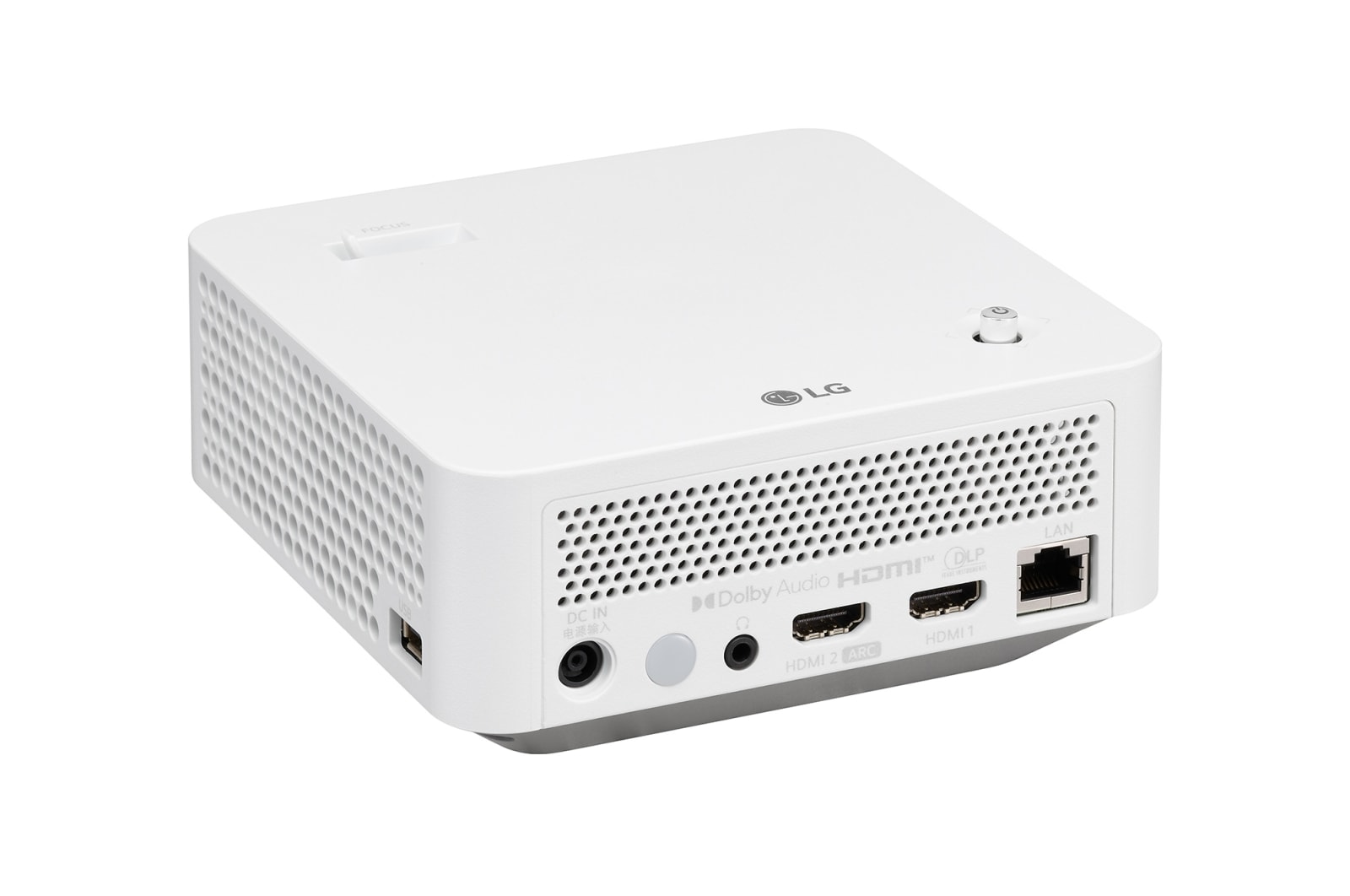

HDMI
2
RJ45
1
USB Type-A
1 (USB2.0)
Life Hours
30,000 Hrs
Type
4Ch(RGBB) LED
Net Weight (kg or g)
1
Native Resolution
Full HD (1920x1080)
Energy Saving Max. (Eco)
24dB(A)
Energy Saving Min. (Bright)
29dB(A)
Energy Saving Med.
26dB(A)
Screen Size
30" ~ 120"
Standard (lens to wall)
60"@1.59m, 100"@2.65m
Throw Ratio
1.2
Focus (Auto / Manual)
Manual
Zoom
Fixed
Projection Offset
1
Projection System
DLP
Net Size (mm) (W x D x H)
148 x 148 x 66.5
Manual (Full or Simple Book)
Simple Book
Quick User Guide (Quick Set-up Guide)
YES
Warranty Card
YES
Remote Control - Normal
YES
Conformances(Regulation)
KC, FCC, ETL, CE/CB, PSE
Clear Voice
YES (Clear Voice Pro)
Output
5W Mono
Dolby Atmos compatible
YES (Pass through)
Operation Temperature
0 ~ 40℃
Uniformity (JBMMA 9 Point)
85%↑
Power Consumption (Max.)
62W
Power Supply
Adapter 65W
Stand-by Power
<0.5W
