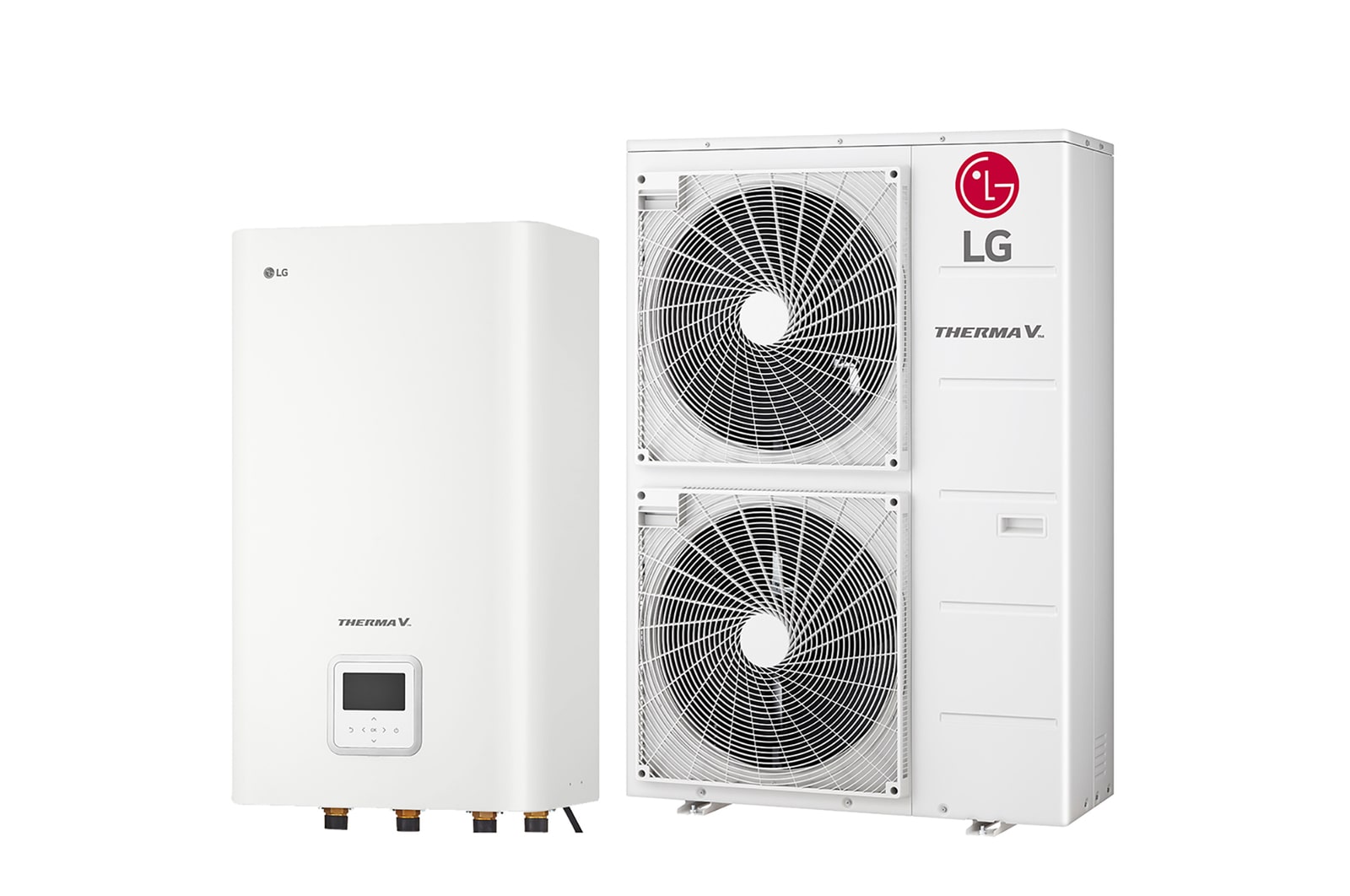

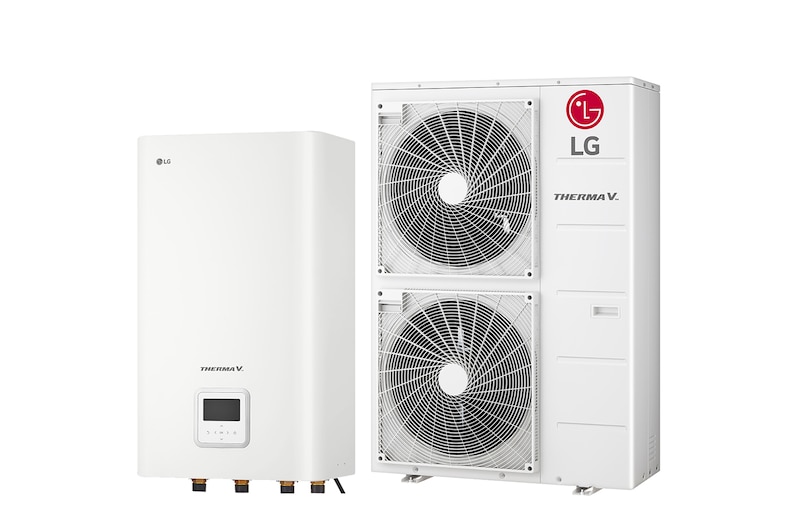

R32 Hydrosplit Hydro Box, 1Ø, 16kW
R32 Hydrosplit Hydro Box, 1Ø, 16kW
Key Features
- Free of potential risk of refrigerant leakage / No refrigerant piping work
- Reliable operation of hydronic parts and convenient wiring work thanks to the Hydro Box located in the indoor unit
- ErP energy label class LWT A+++/A++ (35°C/55°C)
- High leaving water temperature up to 65°C and wide operating range down to -25°C ambient temperature
- Connectivity with Wi-Fi control (ThinQ), smart grid and PV/ESS
Gallery
All Spec
SEASONAL EFFICIENCY DATA (HEATING)
-
Seasonal space heating eff. class (35℃ / 55℃)
A+++/A++
-
Seasonal space heating efficiency (ηS) (35℃ / 55℃)
179 / 135
-
SCOP (35℃ / 55℃)
4.55 / 3.45
NOMINAL CAPACITY AND COP (A+7/W+35)
-
Heating capacity (kW)
16.00
-
COP
4.80
NOMINAL CAPACITY AND COP (A+2/W+35)
-
Heating capacity (kW)
13.80
-
COP
3.60
NOMINAL CAPACITY AND COP (A+7/W+55)
-
Heating capacity (kW)
12.00
-
COP
2.80
NOMINAL CAPACITY AND EER (A+35/W+18)
-
Cooling capacity (kW)
16.00
-
EER
4.00
NOMINAL CAPACITY AND EER (A+35/W+7)
-
Cooling capacity (kW)
16.00
-
EER
2.50
OPERATION RANGE (OUTDOOR AIR TEMPERATURE)
-
Heating & DHW (Min. ~ Max.) (℃)
-25 ~ 35
-
Cooling (Min. ~ Max.) (℃)
5 ~ 48
OPERATION RANGE (LEAVING WATER TEMPERATURE)
-
Heating (Min. ~ Max.) (℃)
15 ~ 65
-
Cooling (Min. ~ Max.) (℃)
5 ~ 27
-
DHW (Min. ~ Max.) (℃)
15 ~ 80
REFRIGERANT
-
Type
R32
-
GWP
675
-
Precharged amount (g)
2,100
PIPING CONNECTIONS (WATER/OUTDOOR UNIT)
-
Inlet diameter (inch)
Male PT 1"
-
Outlet diameter (inch)
Male PT 1"
PIPING CONNECTIONS (WATER/INDOOR UNIT)
-
Inlet/outlet diameter for ODU connection (inch)
Male PT 1"
-
Inlet/outlet diameter for space heating (inch)
Male PT 1"
SOUND POWER LEVEL (OUTDOOR UNIT)
-
Rated / low noise mode (dB(A))
63 / 60
SOUND POWER LEVEL (INDOOR UNIT)
-
Rated (dB(A))
44
SOUND PRESSURE LEVEL AT 5M (OUTDOOR UNIT, CONVERT USING SWL)
-
Rated / low noise mode (dB(A))
41 / 38
SOUND PRESSURE LEVEL AT 1M (INDOOR UNIT, CONVERT USING SWL)
-
Rated (dB(A))
36
DIMENSION
-
Outdoor unit (W × H × D) (mm)
950 × 1,380 × 330
-
Indoor unit (W × H × D) (mm)
490 × 850 × 315
WEIGHT
-
Outdoor unit (Empty) (kg)
91.7
-
Indoor unit (Empty) (kg)
30.5
EXTERIOR
-
Outdoor unit (Color / RAL code)
Warm gray / RAL 7044
-
Indoor unit (Color / RAL code)
Noble white / RAL 9016
POWER SUPPLY
-
Voltage, phase, frequency (V, Ø, Hz)
220-240, 1, 50
