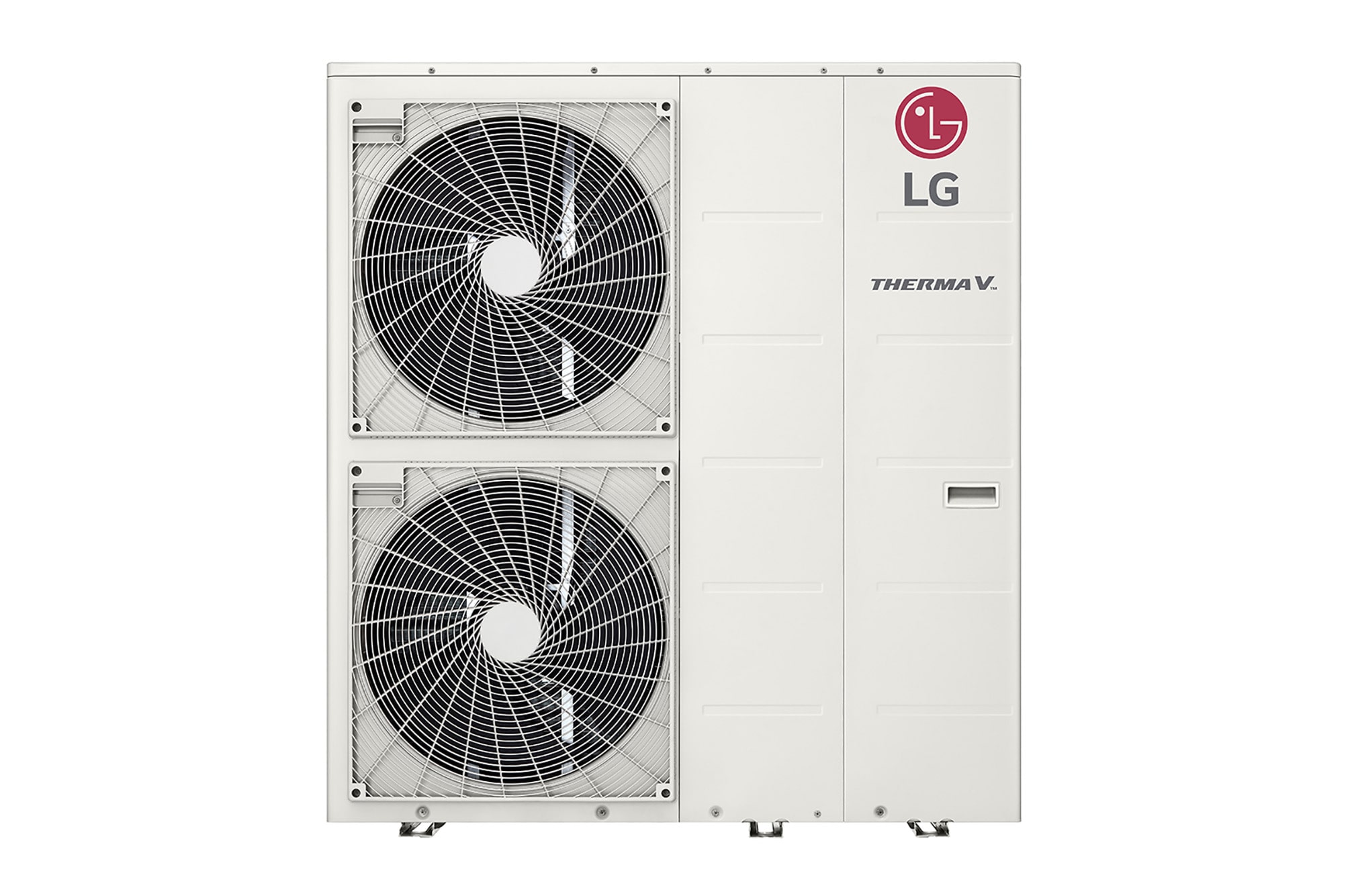

R32 Monobloc S, 3Ø, 12kW
Key Features
All-in-one outdoor unit includes all hydronic components in a package, ensuring space-efficiency and simplified installation.
Wide operation range ensures remarkable heating performance even in an extremely cold weather.
Noise reduction technology provides quieter and more comfortable experience, increasing installation flexibility in urban areas.
Rated / low noise mode (dB(A))
38 / 34
Cooling capacity (kW)
12.00
EER
4.75
Cooling capacity (kW)
12.00
EER
3.30
Inlet diameter (inch)
Male PT 1"
Outlet diameter (inch)
Male PT 1"
Rated / low noise mode (dB(A))
60 / 56
Rated / low noise mode (dB(A))
52 / 48
Cooling (Min. ~ Max.) (℃)
5 ~ 27
Heating (Min. ~ Max.) (℃)
15 ~ 65
DHW (Min. ~ Max.) (℃)
15 ~ 80
GWP
675
Type
R32
Precharged amount (g)
2,000
COP
4.90
Heating capacity (kW)
12.00
COP
3.65
Heating capacity (kW)
11.00
COP
2.90
Heating capacity (kW)
11.00
Cooling (Min. ~ Max.) (℃)
5 ~ 48
Heating & DHW (Min. ~ Max.) (℃)
-25 ~ 35
Voltage, phase, frequency (V, Ø, Hz)
380-415, 3, 50
SCOP (35℃ / 55℃)
4.67 / 3.47
Seasonal space heating eff. class (35℃ / 55℃)
A+++/A++
Seasonal space heating efficiency (ηS) (35℃ / 55℃)
184 / 136
Color
Warm gray
RAL code
RAL 7044
