PCS400R
Pro:Centric® Server
  • Simple Installation
  • Minimal Head-End Rack-Space
  • High Reliability
  • Remote Support

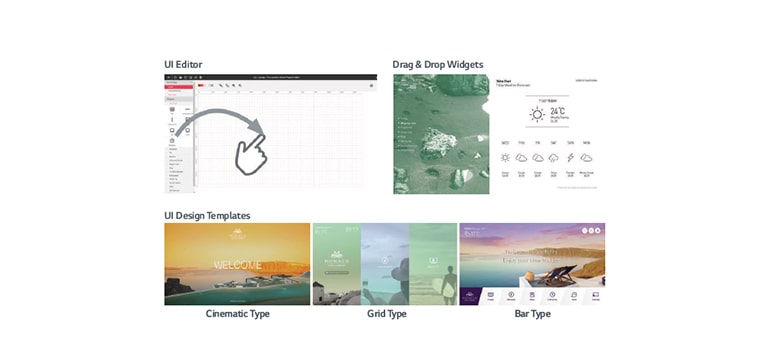

  • (New) Supports Pro:Centric Direct (PCD)
Pro:Centric® Server
MSRP $

GENERAL

  • Processor
    Atom quad core 1.9GHz (2.56GHz burst)
    OS
    Commercial off-the-self Linux
  • RAM
    8GB
    SSD
    SATA 6G b/s 250GB
  • Ethernet (Control)
    1G/100M/10M
    Ethernet (Feature)
    1G/100M
  • Output
    RF (QAM-B, DVB-C, ISDB-T), IP, ASI
    RF Output Details
    8 x 6/7/8MHz QAM (Expandable), 2 x 6MHz ISDB-T (Expandable)
  • Video spooling channels
    Up to 21 RF or IP channels

CONNECTIVITY

  • RF
    2 (RF-TAP, RF-OUT)
    Ethernet Port
    2 (Feature Port, Control Port)
  • Service Port
    1
    ASI-OUT
    1
  • POWER
    1 (19VDC)

DIMENSION (UNIT :MM)

  • Set size (W x H x D)
    482.6 x 43.0 x 230.0
    Packing size (W x H x D)
    560.0 x 165.0 x 420.0

SOLUTION

  • Compatible Pro:Centric
    Pro:Centric® V : Non-interactive Service (JAVA based) or Pro:Centric® Direct : Interactive Service (HTML based)
