Open Frame
Enquire To Buy
High Brightness1 High Brightness2
Outstanding Visibility

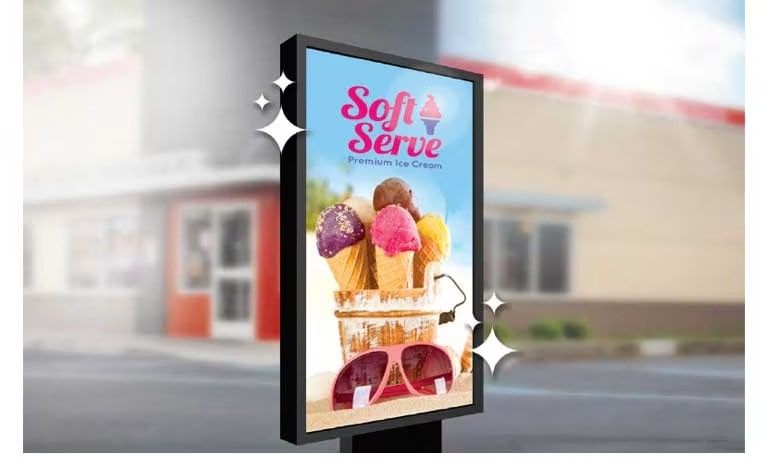

High Brightness

The high brightness outdoor display maintains high picture quality and image readability in an outdoor environment even when used for continuous business use (24/7).
Visible with Polarised Sunglasses1 Visible with Polarised Sunglasses2
Outstanding Visibility

Visible with Polarised Sunglasses

QWP* enables clear visibility even when the viewer is wearing polarised sunglasses.
*Quarter Wave Plate
Reduced Blackening<br>1 Reduced Blackening<br>2
Outstanding Visibility

Reduced Blackening

Even under direct sunlight exposure, this LG display is resistant to blackening effects and provides quality images for outdoor usage.
Smart Brightness Control1 Smart Brightness Control2
Outstanding Visibility

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.
High Operating Temperature1 High Operating Temperature2
Product Reliability

High Operating Temperature

Even under high operating temperatures of up to 50°C, it presents clearer images without hot spots.
Conformal Coating1 Conformal Coating2
Product Reliability

Conformal Coating

The XF3C signage have been designed with the LG Conformal Coating to provide additional protection to circuit boards in harsh environments such as dust and humidity.
High-Performance with webOS Smart Platform1 High-Performance with webOS Smart Platform2
Easy Maintenance

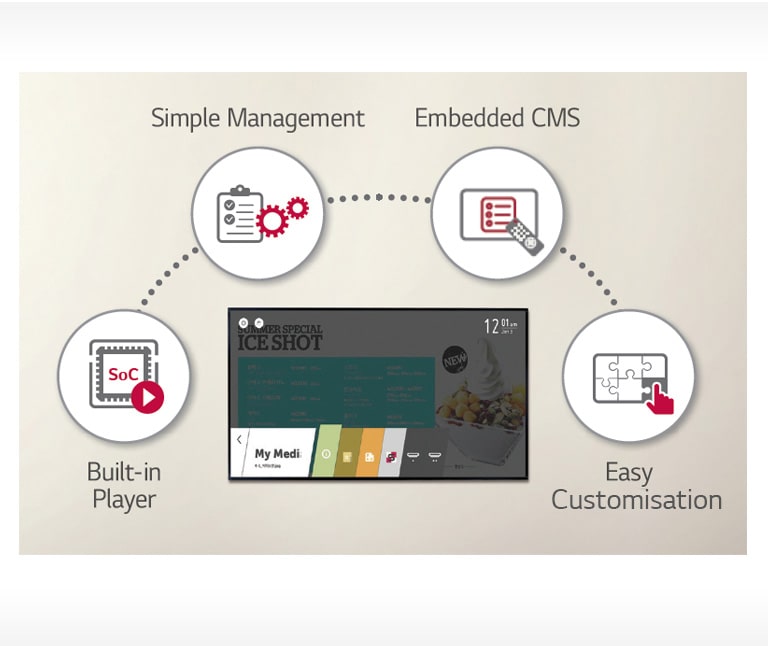

High-Performance with webOS Smart Platform

Quad Core SoC* can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app develoment tools.

*SoC = System on Chip
Slim Design1 Slim Design2
Easy Maintenance

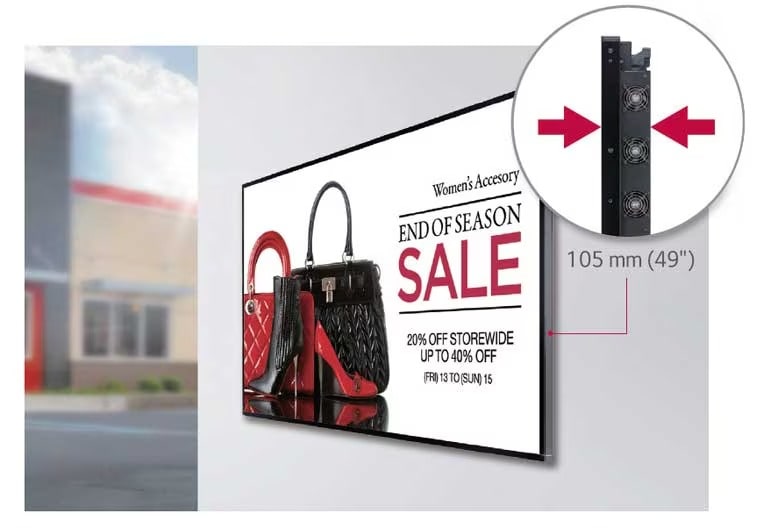

Slim Design

Thanks to its thin depth, the XF series takes up less space and leads to ease of installation for various applications.
Close
PANEL
  • Screen Size
    49" (48.50" Measured Diagonal)
    Panel Technology
    IPS, M+ (WRGB)
  • Aspect Ratio
    16 : 9
    Native Resolution
    1,920 x 1,080 (FHD)
  • Brightness
    3,000 cd/m2 (Typ.), 2,400 cd/m2 (Min.)
    Contrast Ratio (Typ.)
    1,300 : 1
  • Viewing Angle (H x V)
    178 x 178
    Surface Treatment
    AGLR (Haze 3%), QWP
  • Lifetime
    50,000 Hrs
    Operation Hours
    24 Hrs
  • Orientation
    Landscape & Portrait
CONNECTIVITY
  • Input
    HDMI (2), DP, DVI-D, Audio, USB
    Output
    DP, External Speaker
  • External Control
    RS232C In/Out, RJ45 In, IR Receiver In, Pixel Sensor In
PHYSICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    9 mm (T/B), 6.5 mm (L/R)
  • Monitor Dimension (W x H x D)
    1,092.7 x 626.4 x 105 mm
    Weight (Head)
    21.5 kg
  • Carton Dimensions (W x H x D)
    1,195 x 196 x 760 mm
    Packed Weight
    26.2 kg
  • VESATM Standard Mount Interface
    600 x 400 mm
ENVIRONMENT CONDITIONS
  • Operation Temperature*
    0°C to 50°C
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    Built-In Power
    Power Type
    100-240 V~, 50/60 Hz
  • Power Consumption - Typ.
    250W (Full White)
    222W (IEC 62087)
    Power Consumption - Max
    290W
STANDARD(CERTIFICATION)
  • Safety
    AS/NZS 60950
    EMC
    AS/NZS CISPR32,RCM(Class A)
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control/Control+
ACCESSORIES
  • Basic
    Remote Controller (2 Batteries Included), Power Cord, IR Extension Kit, HDMI Cable, Manual (ESG&EIG)
    Optional
    Wi-Fi Dongle (AN-WF500) * Stand is not available
  • White Paper
    • Crestron_White_Paper.pdf

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
