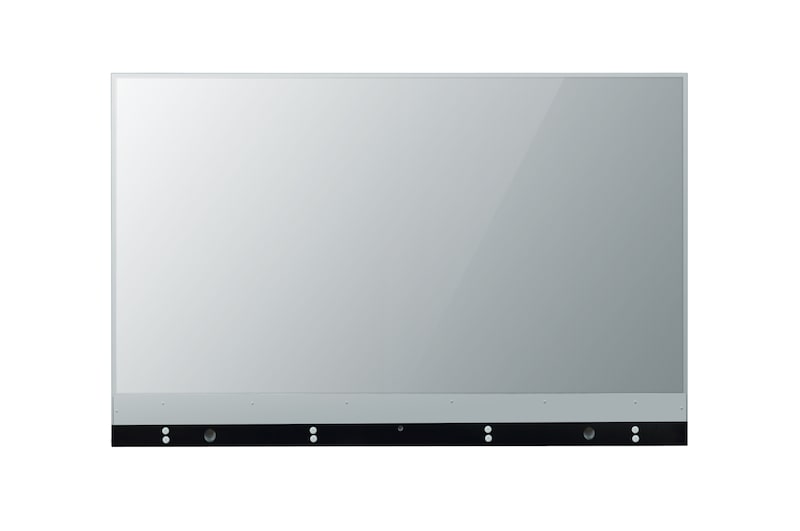

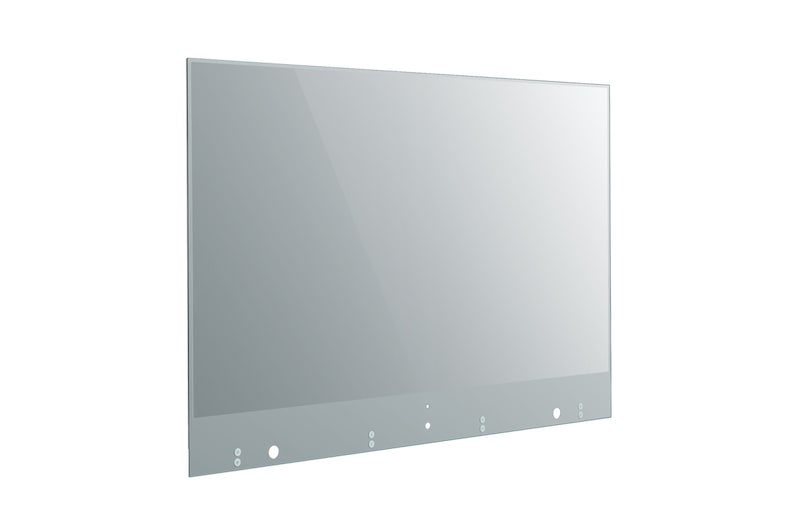

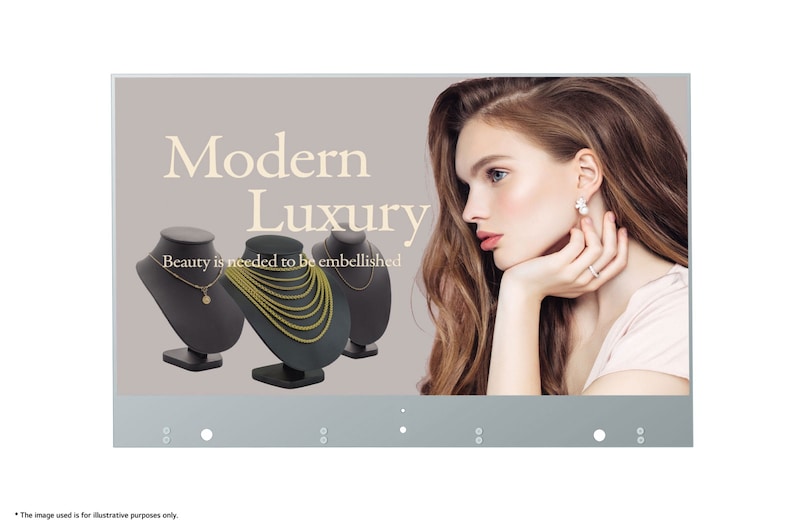

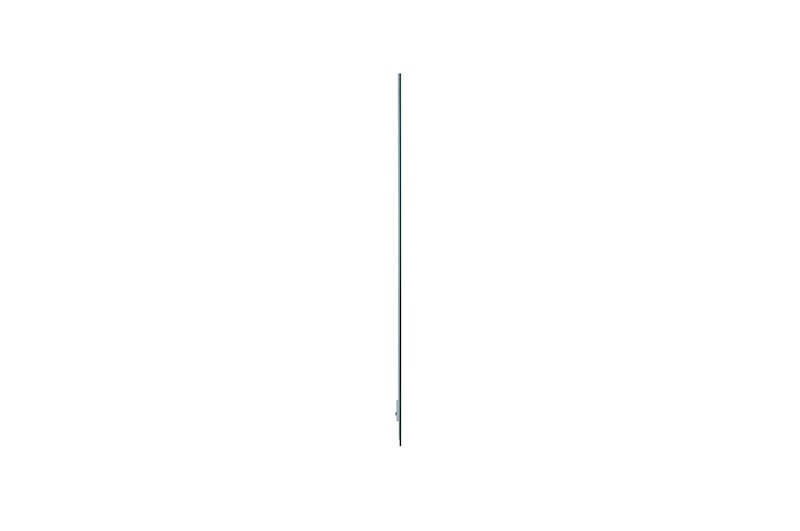

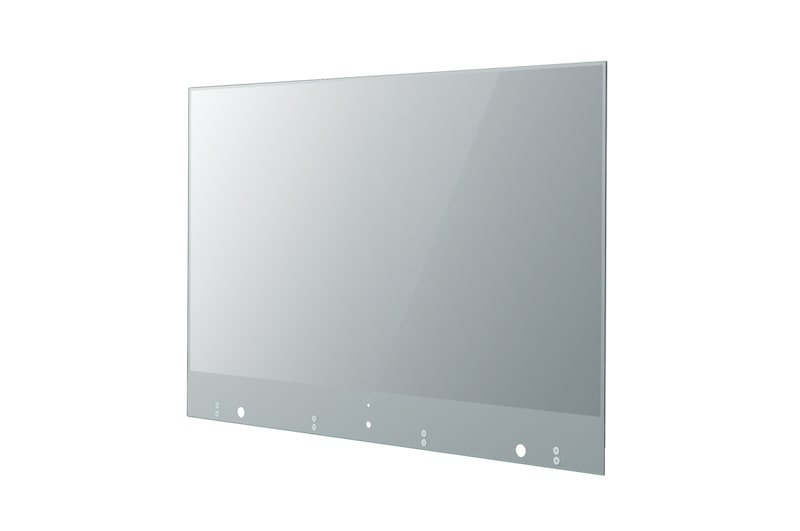

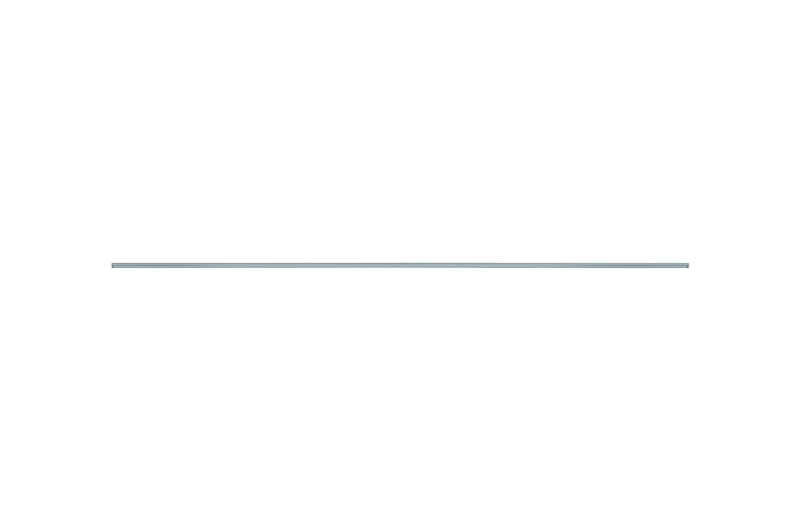

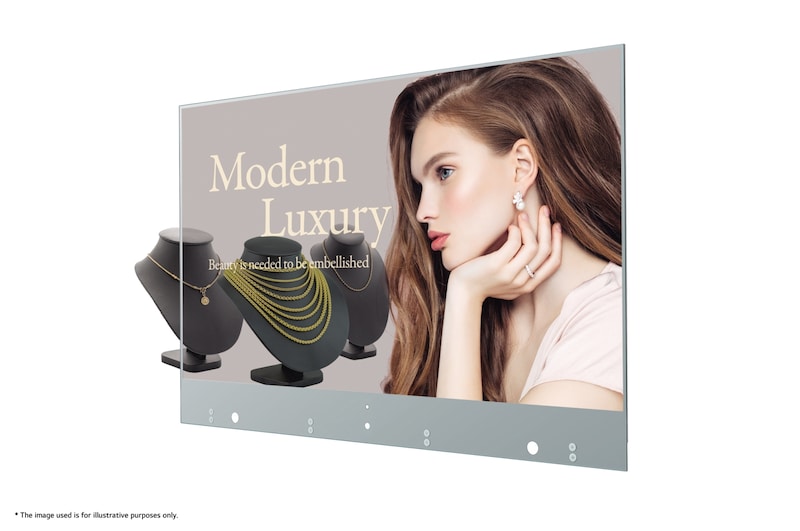

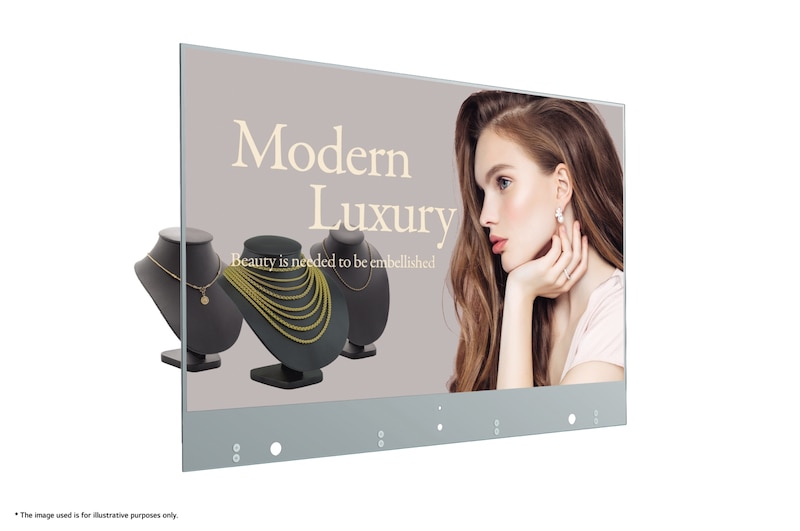

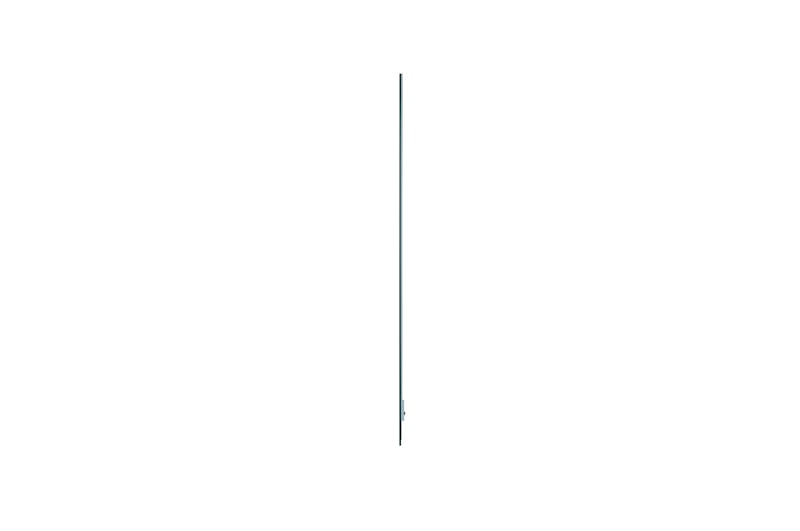

Transparent OLED Signage
All Spec
CONNECTIVITY
Input
HDMI, DP, USB (2)
Output
DP, Audio
External Control
RS232C In/out, RJ45 (LAN) In/out, IR In
ENVIRONMENT CONDITIONS
Operation Temperature
0°C to 40°C
Operation Humidity
10% to 80%
MEDIA PLAYER COMPATIBILITY
OPS Type Compatible
No
PANEL
Screen Size
55”
Panel Technology
OLED
Aspect Ratio
16 : 9
Brightness (Typ.)
400 cd/m²
Native Resolution
1,920 x 1,080 (FHD)
Transparency (Typ.)
38% (Panel)
Viewing Angle (H × V)
178 × 178
Surface Treatment
Hard Coating (2H), Anti-reflection Treatment of the Front Polariser (Reflectance Typ. 14%)
Lifetime (Typ.)
30,000 Hrs
Operation Hours
18 Hrs / 7 Days *Moving Video Only
Orientation
Landscape & Portrait
PHYSICAL SPECIFICATION
Bezel Colour
Silver (Mirror)
Bezel Width
7.9 / 7.9 / 7.9 / 121.7 mm (T/B/L/R)
Dimension (W × H × D)
(Head) 1,225.53 x 810.1 x 6.6 mm (Signage Box) 782.8 x 238.4 x 34.7 mm
Weight
(Head) 13.9 kg (Signage Box) 3.4 kg
POWER
Power Supply
100-240V~, 50/60Hz
Power Type
Built-In Power
Power Consumption - Typ.
309 W *8 Colour Bar
STANDARD(CERTIFICATION)
Safety
CB / NRTL
EMC
AS/NZS CISPR32,RCM(Class A)
ErP / Energy Star
Yes (EU Only) / No
