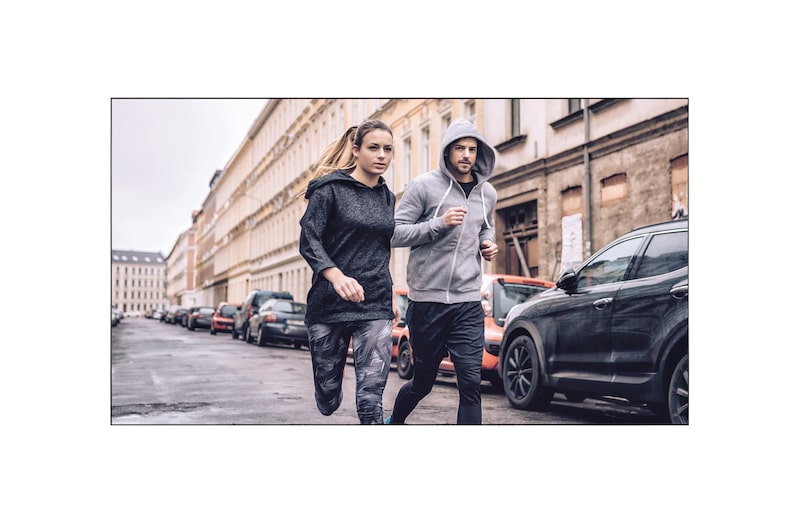

55" 500 nits FHD Slim Bezel Video Wall
Enquire To Buy
Impressive Immersion with Narrow Bezel1 Impressive Immersion with Narrow Bezel2

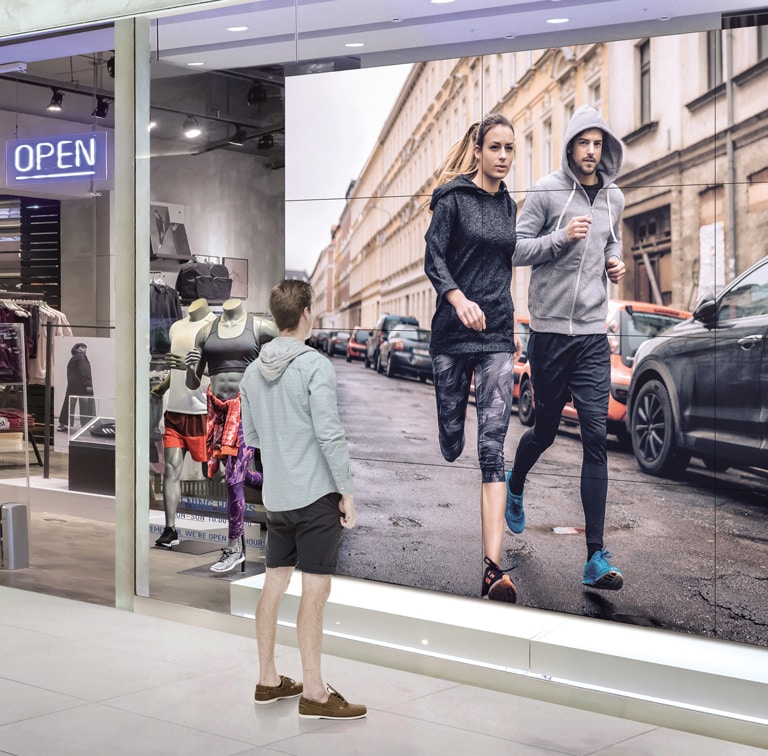

Impressive Immersion with Narrow Bezel

The 55VL5F provides impressive immersion thanks to its narrow 3.5 mm bezel-to-bezel image gap, while its outstanding IPS panel delivers minimal colour temperature variation from wide viewing angles. With its eye-catching and functional design, it can be used to deliver advertising and information in a variety of business environments.
Narrow Bezels1 Narrow Bezels2

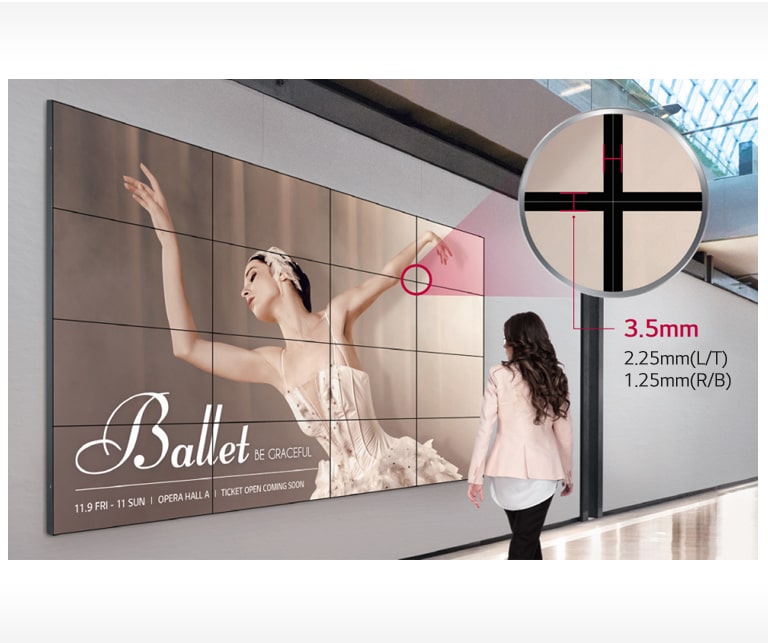

Narrow Bezels

The 3.5mm narrow bezel size creates immersive and near seamless viewing experiences on assembled video wall screens.
Image Gap Reduction1 Image Gap Reduction2
Immersive Viewing Experience

Image Gap Reduction

The 55VL5F series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a near seamless viewing experience.
Wide Viewing Angle1 Wide Viewing Angle2

Wide Viewing Angle

LG IPS panels allow you to enjoy lifelike picture quality with minimal variation from wide viewing angles. Featuring excellent consistency in colour temperature and less change in contrast, LG IPS panels boast excellent image reproduction.
Easy Colour Adjustment1 Easy Colour Adjustment2
User Convenience

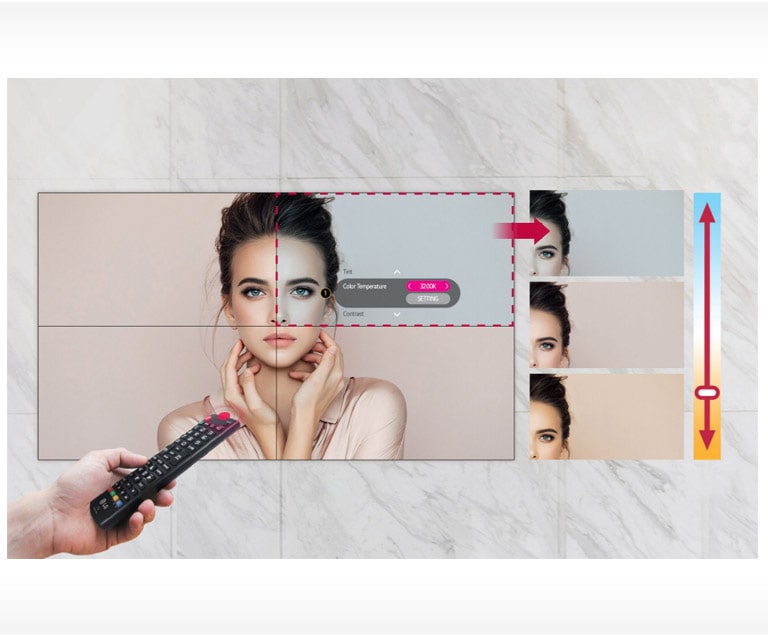

Easy Colour Adjustment

Depending on the content, the colour temperature of the screen can be easily adjusted by users with a remote control.
Simple White Balance Adjustment<br>1 Simple White Balance Adjustment<br>2
User Convenience

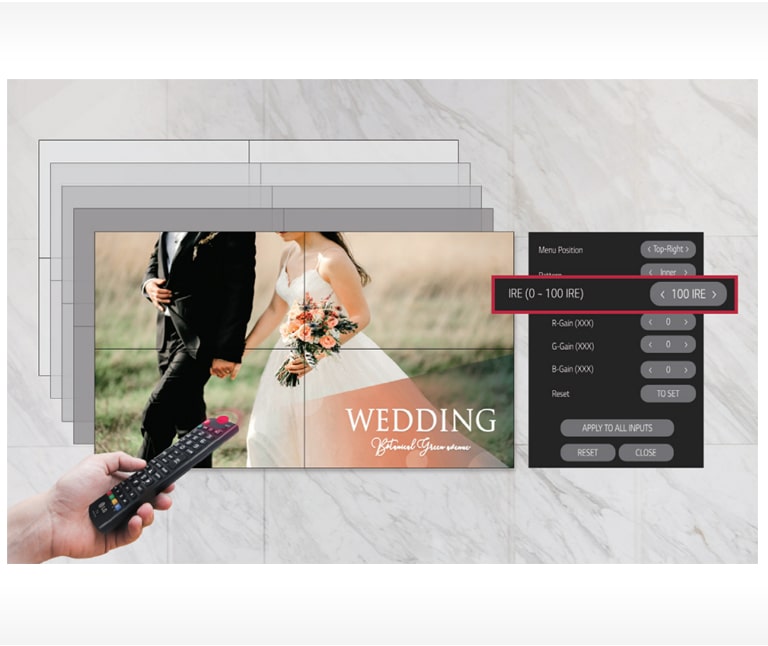

Simple White Balance Adjustment

In previous LG video walls, white balance was adjustable only in “full-white” mode, but the 55VL5F series allows you to modify the grey scale steps to achieve more detailed and precise white balance adjustment.

Intuitive Menu Structure1 Intuitive Menu Structure2
User-Friendly Smart Signage UX

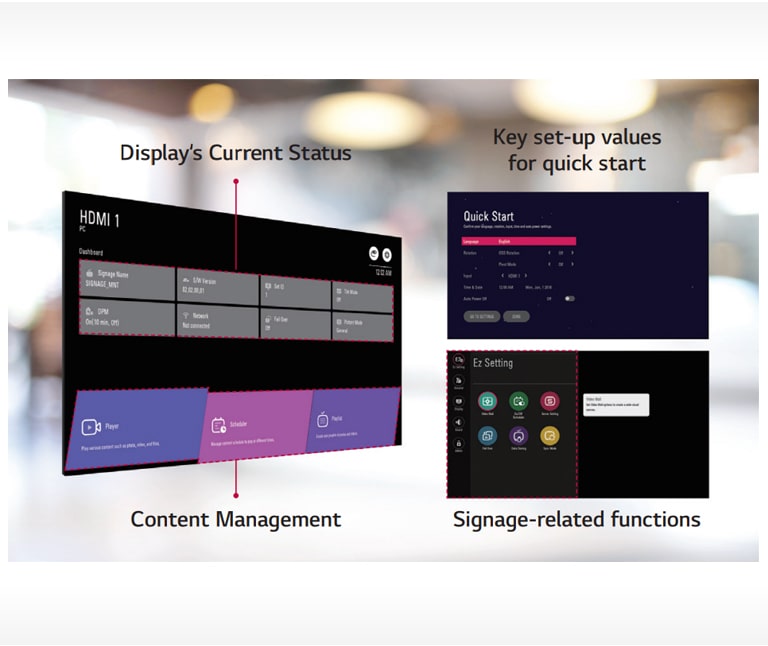

Intuitive Menu Structure

The menu structure has been optimised for commercial use. It simplifies the user experience and groups similar functions together, allowing for a more intuitive GUI.
Intuitive GUI<br>1 Intuitive GUI<br>2
User Convenience

Intuitive GUI

The GUI(Graphic User Interface) is carefully designed with a four-way navigation remote control that lets users easily switch to other settings. The GUI also adopts a larger font for better visibility,which is necessary when users want to control displays from relatively far distances.
Close
PANEL
  • Screen Size
    55" (139cm)
    Panel Technology
    IPS
  • Aspect Ratio
    16 : 9
    Native Resolution
    1,920 x 1,080 (FHD)
  • Dynamic CR
    500,000:1 (The luminosity ratio of Full Black/Full White color on video input condition.)
    Brightness (Typ.)
    500 cd/m2
  • Contrast Ratio
    1,200:1
    Viewing Angle (H x V)
    178 x 178
  • Response Time
    8ms (G to G)
    Surface Treatment
    3%
  • Life Time (Typ.)
    60,000 Hrs
    Operation Hours
    24 Hrs
  • Orientation
    Landscape & Portrait
CONNECTIVITY
  • Input
    HDMI (2), DP, DVI-D, Audio, USB
    Output
    DP, Audio
  • External Control
    RS232C In/out, RJ45 (LAN) In, IR In

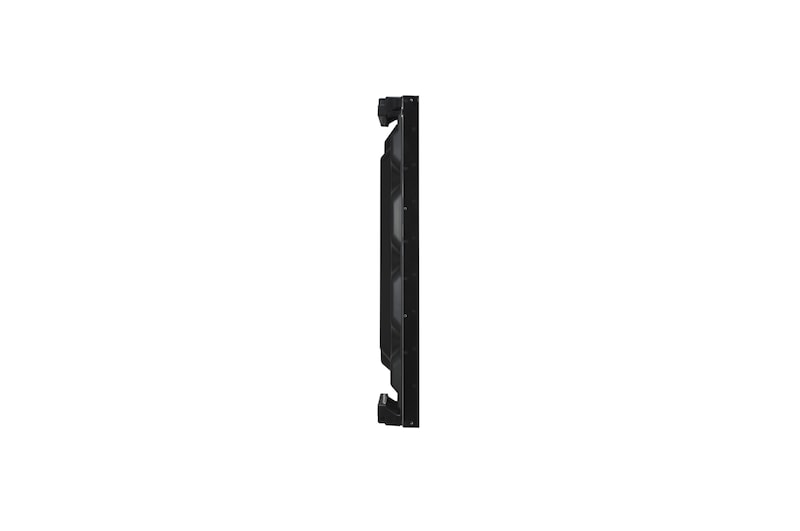

MECHANICAL SPECIFICATION
  • Bezel Colour
    Black
    Bezel Width
    2.25mm (T/L)/1.25mm (B/R)
  • Monitor Dimension (W x H x D)
    1,213.4 x 684.2 x 93.1 mm
    Weight (Head)
    20.3 kg
  • Carton Dimensions (W x H x D)
    1,353 x 980 x 263mm
    Packed Weight
    33 kg
  • Handle
    Yes
    VESA™ Standard Mount Interface
    600 x 400 mm
KEY FEATURE
  • Key Feature
    Temperature Sensor, Tile Mode (Up to 15x15), Natural Mode @Tile Mode, ISM Method, DPM Wake Up, Smart Energy Saving, File Play with USB, USB Cloning, Contents Scheduling (USB), Calibration Mode, PM Mode, Firamware Update (LAN), HDMI-CEC1), No Signal Image (Up to 5MB), Wake on LAN, Failover, OPS Power Control, Scan Inversion (with Pivot Mode)
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
  • Power Consumption-Typ./Max.
    130W/150W
    Power Consumption-Smart Energy Saving
    62W
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    AS/NZS CISPR32,RCM(Class A)
  • Energy Star
    Yes(EU Only) / Energy Star 8.0
MEDIA PLAYER COMPATIBILITY
  • OPS Type Compatible
    No
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control/Control+
ACCESSORIES
  • Basic
    Remote Controller, Power Cord, RS232C Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual
    Optional
    Wall Mount (Landscape: WM-L640V, Portrait: WM-P640V)
  • White Paper
    • Crestron_White_Paper.pdf

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
