55XE4F-B
XE4F Series
  • Brightness(Typ.) : 4,000 cd/m²

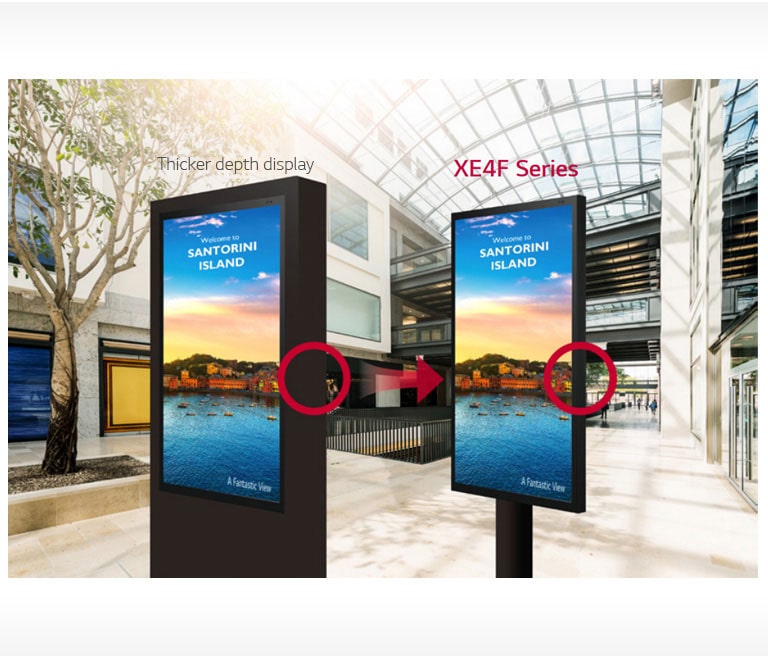

  • Bezel : 38.4 mm (T/B), 26.0 mm (L/R)
  • Interface : HDMI/ DP/HDBaseT/USB/ Audio/ RS232C/ RJ45
  • Anti-Reflection Coating

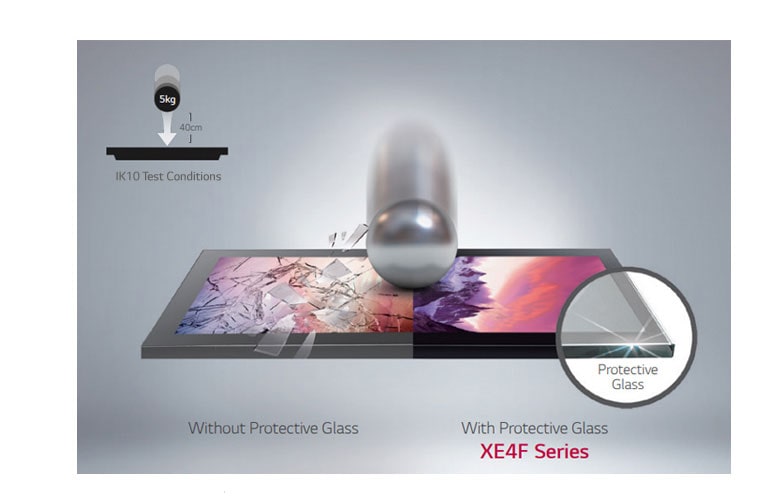

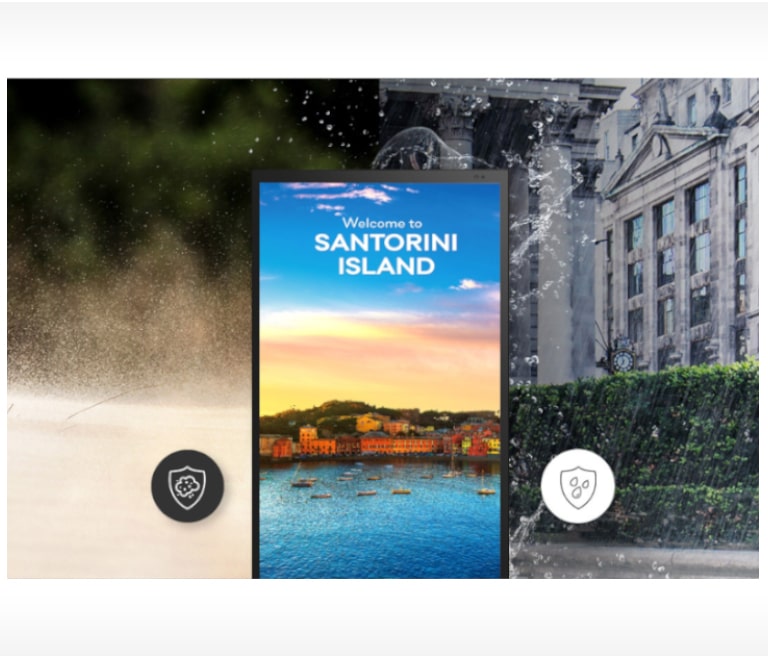

  • IP56 Design, IK10 Protective Glass
XE4F Series
MSRP $

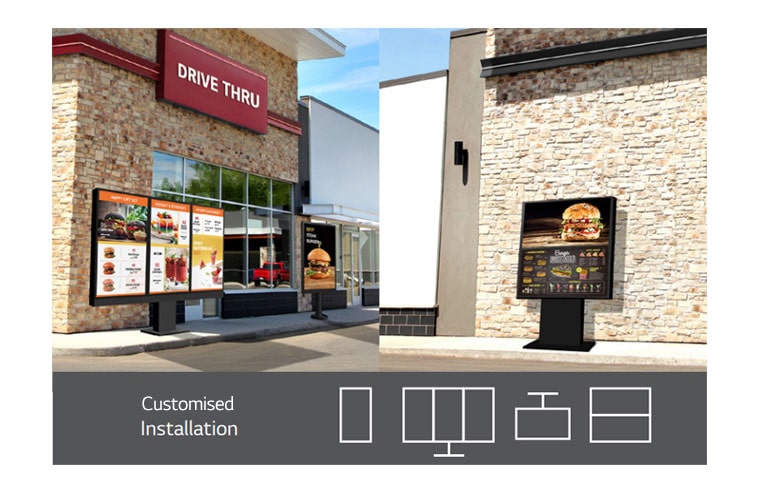

*Mounting hardware not supplied by LG.

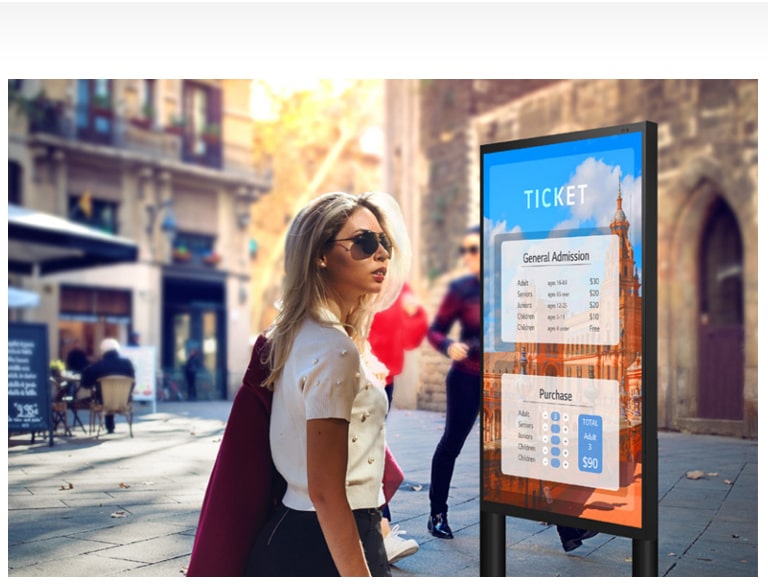

*Quarter Wave Plate.
*The image is for illustrative purposes only
*XE4F Series don't support the power supply.

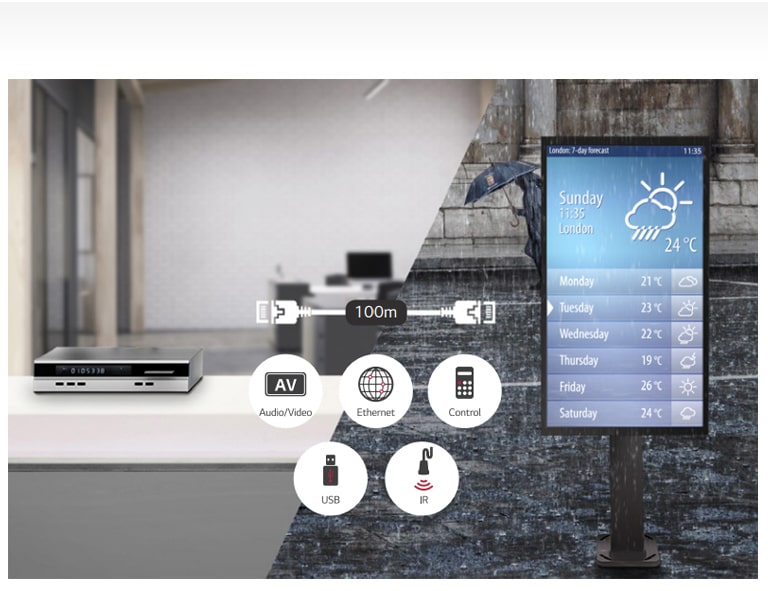

*HDBaseT™ transmitter not supplied by LG.
*The image is for illustrative purposes only.
*Internet connection is required for web-based monitoring.
*Images simulated for illustrative purposes only.
*Mounting hardware not supplied by LG.

PANEL

  • Screen Size
    55
    Panel Technology
    IPS, M+(WRGB)
  • Backlight Type
    Direct
    Aspect Ratio
    16 : 9
  • Native Resolution
    1,920 x 1,080 (FHD, WRGB)
    Brightness
    4,000 cd/m² (Typ.), 3,200 cd/m² (Min.)
  • Contrast Ratio
    1,000:1
    Dynamic CR
    500,000:1

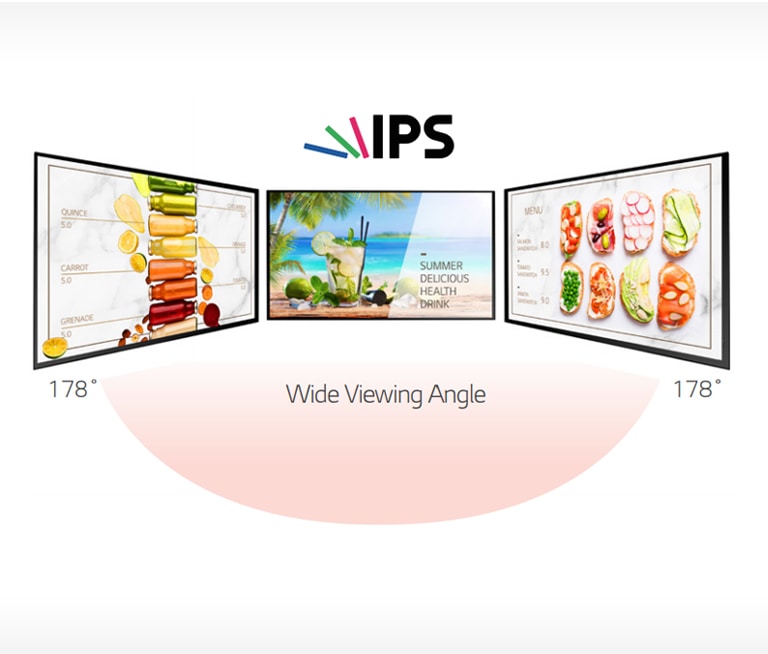

  • Viewing Angle (H x V)
    178 x 178
    Response Time
    Typ. 8ms (G to G BW)
  • Surface Treatment (Haze, Quarter Wave Plate)
    Haze 3%, QWP
    Local dimming
    48 Blocks
  • Life Time (Typ.)
    50,000 Hrs
    Operation Hours
    24 Hrs
  • Orientation
    Portrait & Landscape

CONNECTIVITY

  • Input
    HDMI(2), DP, HDBaseT, USB(2)
    Output
    External Speaker Out(L/R)
  • External Control
    RS232C In/Out, RJ45(LAN) In/Out

PHYSICAL SPECIFICATION

  • Protection Glass
    5mm(IK 10, Chemical Strengthening,Anti-Reflective)
    Bezel Colour
    Black
  • Bezel Width
    38.4mm(T/B), 26.0mm(L/R)
    Monitor Dimension (W x H x D)
    1,292.5 x 737.4 x 88.0mm
  • Weight (Head)
    42kg
    Packing Dimensions (W x H x D)
    1,446 x 890 x 207 mm
  • Packed Weight
    45kg
    Handle
    X

KEY FEATURE

  • Key Feature
    webOS4.0 Platform, Internal Memory(16G, System 4GB+ Available 12GB) Temperature Sensor, Auto Brightness sensor, BLU Sensor, Pixel sensor, Gyro Sensor, Humidity Sensor Outdoor API control, HDbaseT, WOL, webRTC, Control Manager, DPM, Smart Energy Saving

ENVIRONMENT CONDITIONS

  • Operation Temperature
    -30°C to 50°C
    Operation Humidity
    5% to 100%

POWER

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power

POWER CONSUMPTION

  • Typ. / Max.
    310/390W
    Smart Energy Saving
    170W

CERTIFICATION

  • Safety
    CB / NRTL
    EMC
    AS/NZS CISPR32,RCM(Class A)
  • ErP / Energy Star
    No / NA

SOFTWARE COMPATIBILITY

  • SuperSign
    Yes(CMS, Control)
    Signage365Care
    Yes

ACCESSORY

  • Basic
    Remote Controller, Manual(EIG, IG , OM), Regulation Book, Phone to RS232C Gender, HDMI Cable, POWER CABLE, Battery
