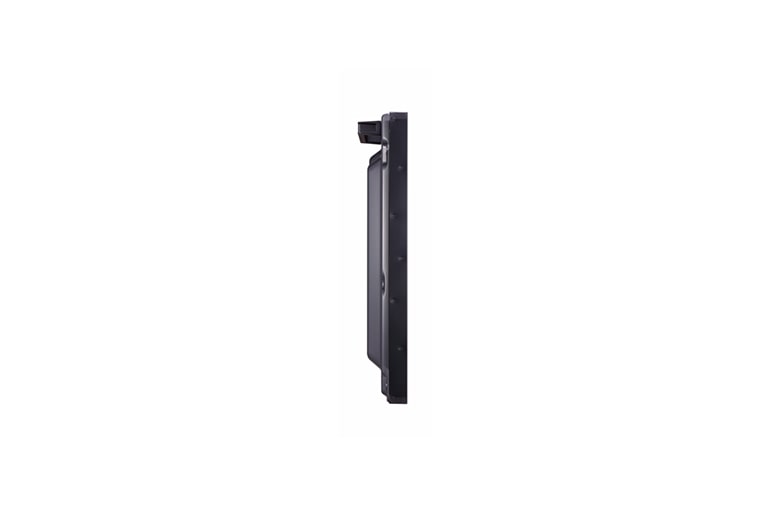

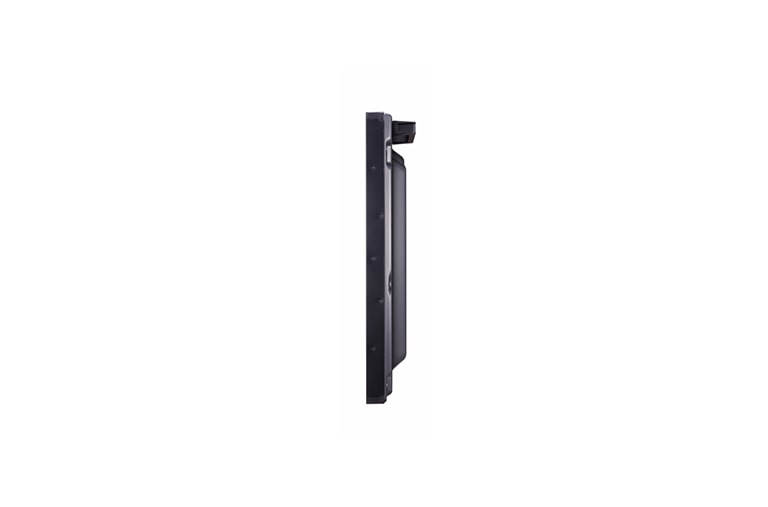

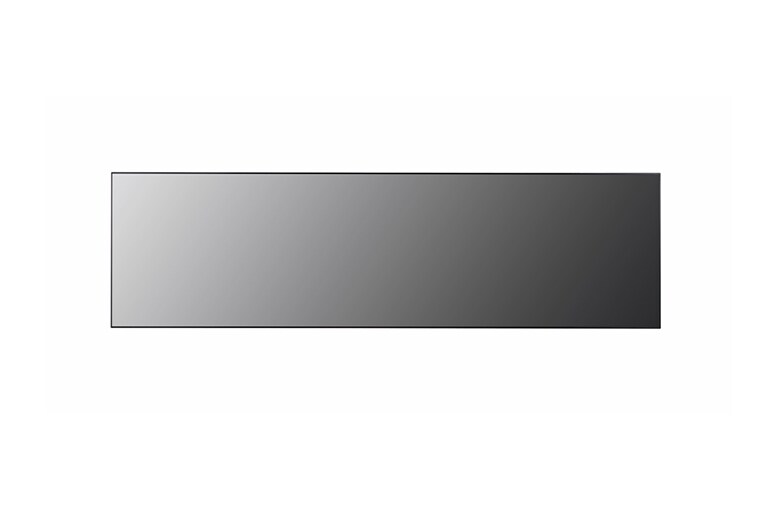

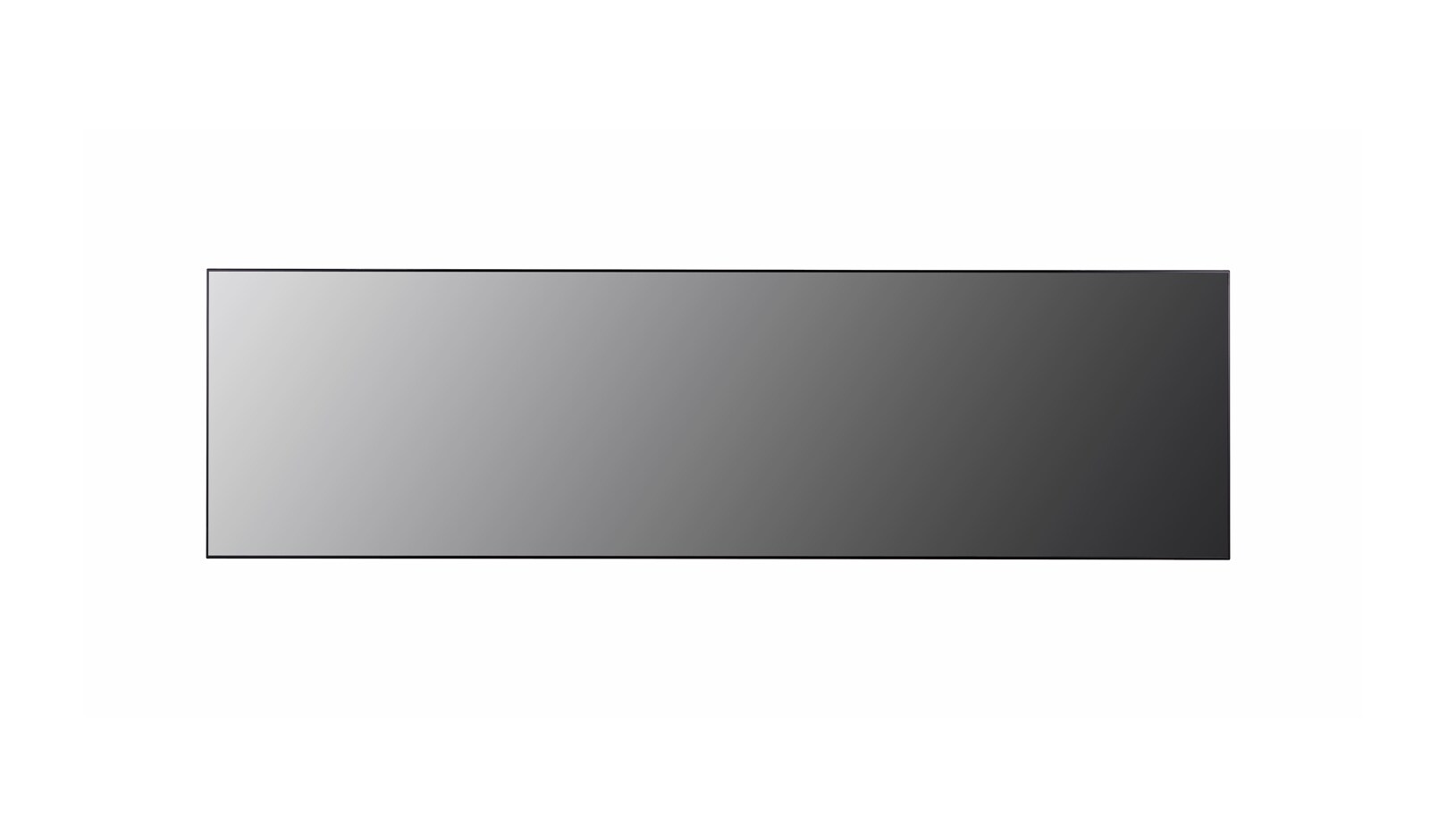

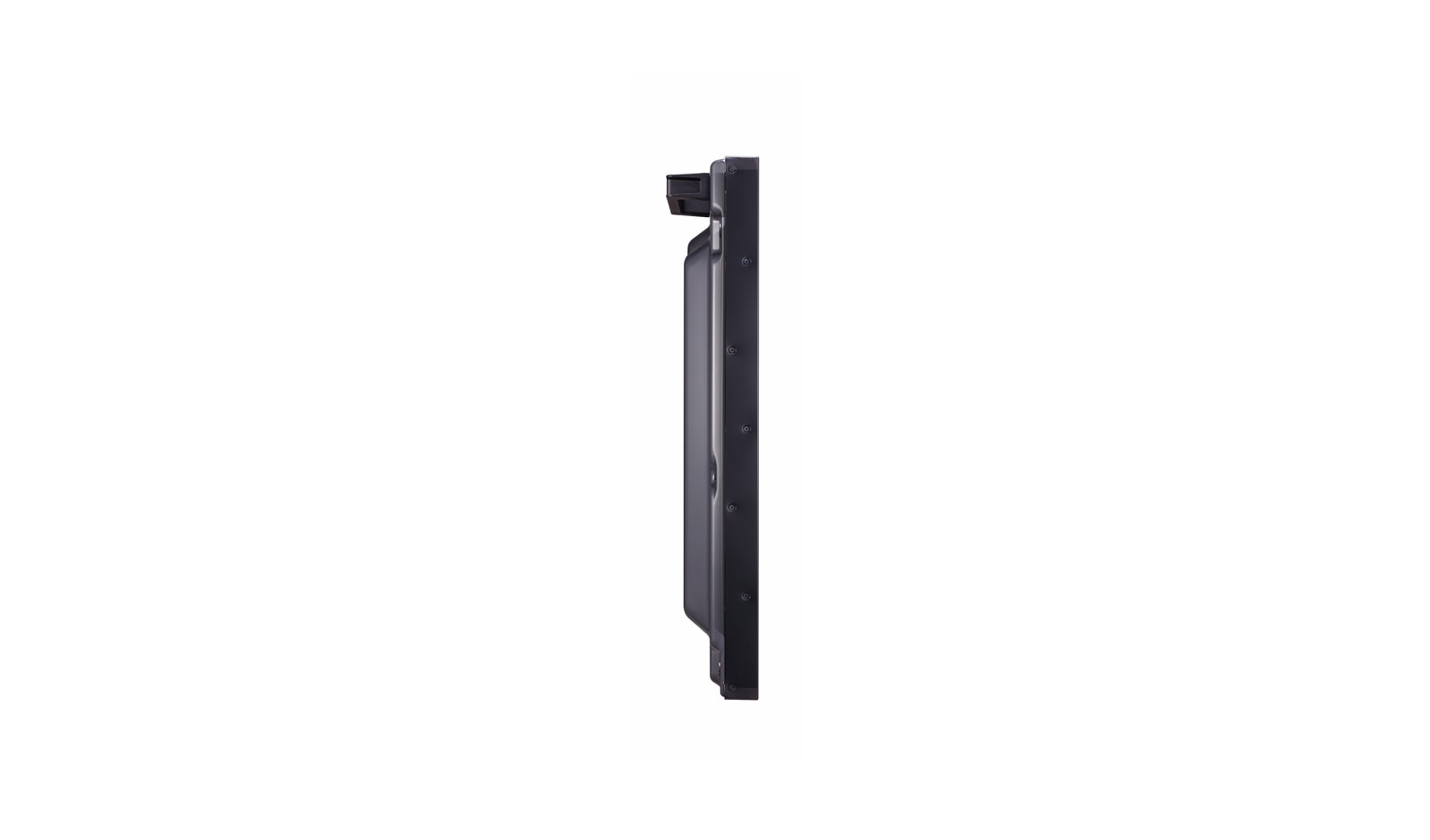

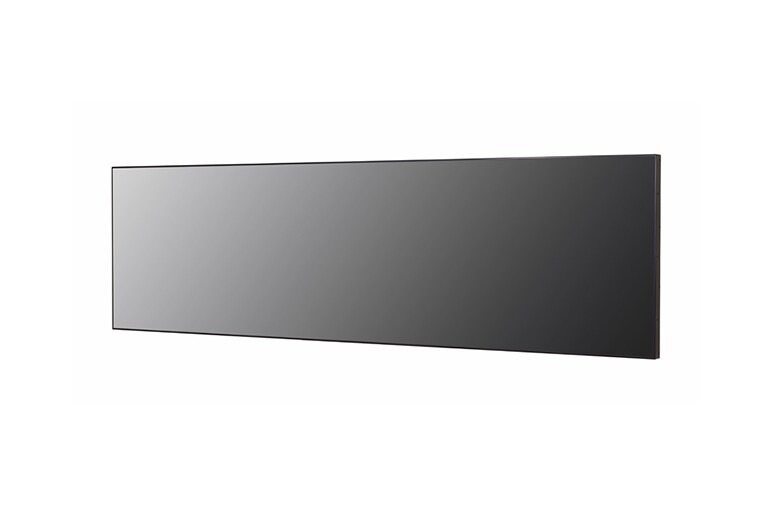

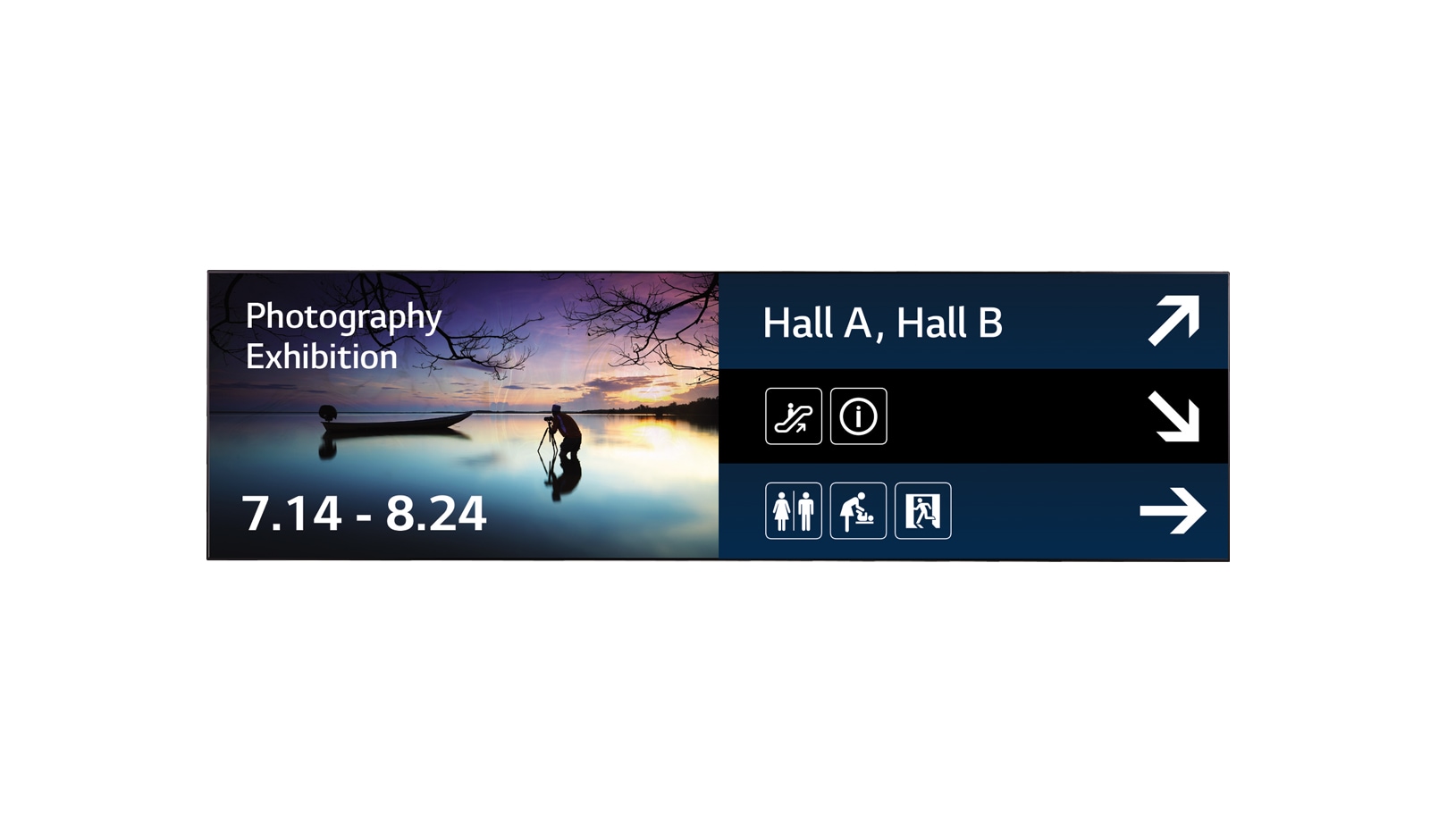

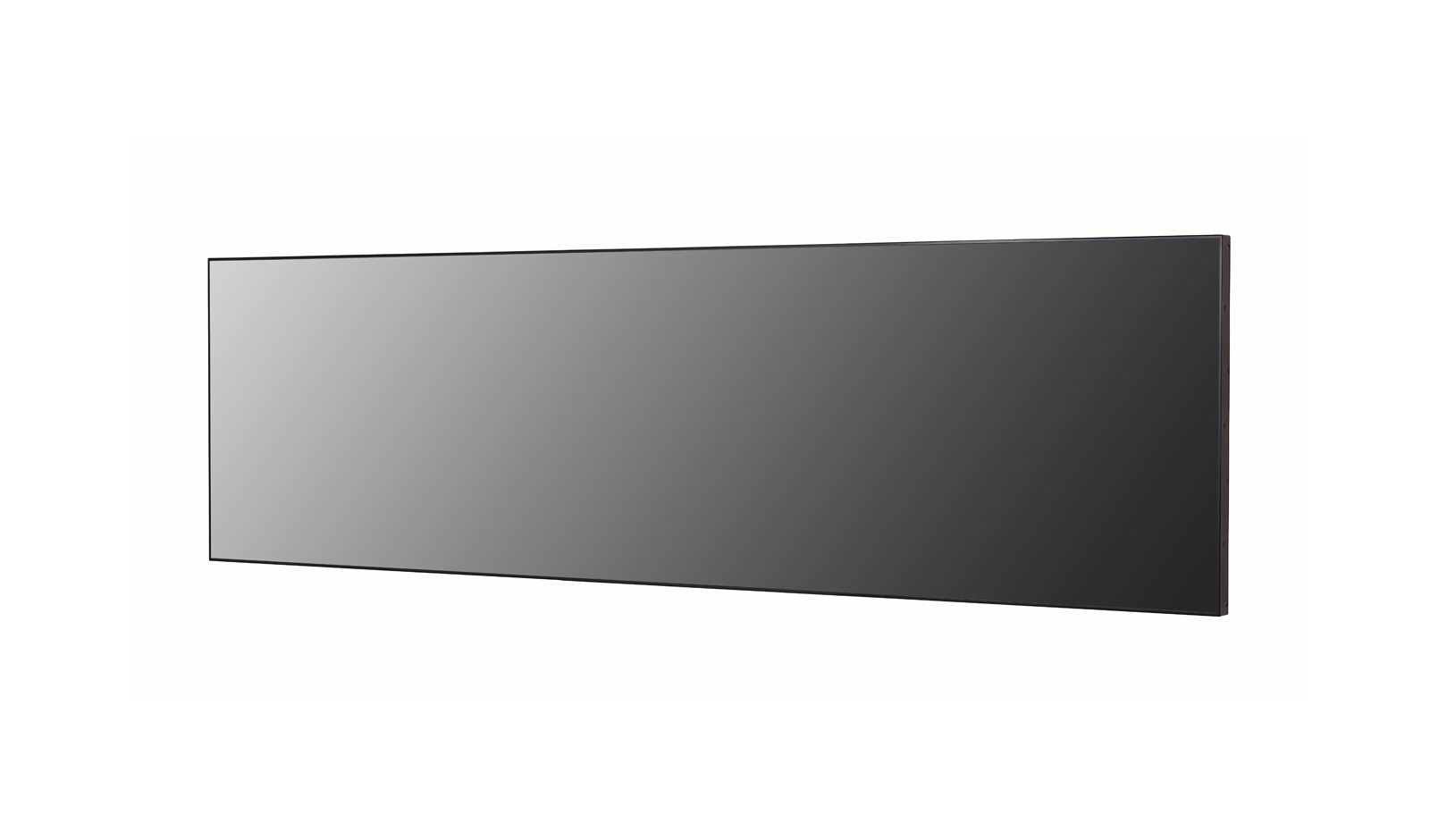

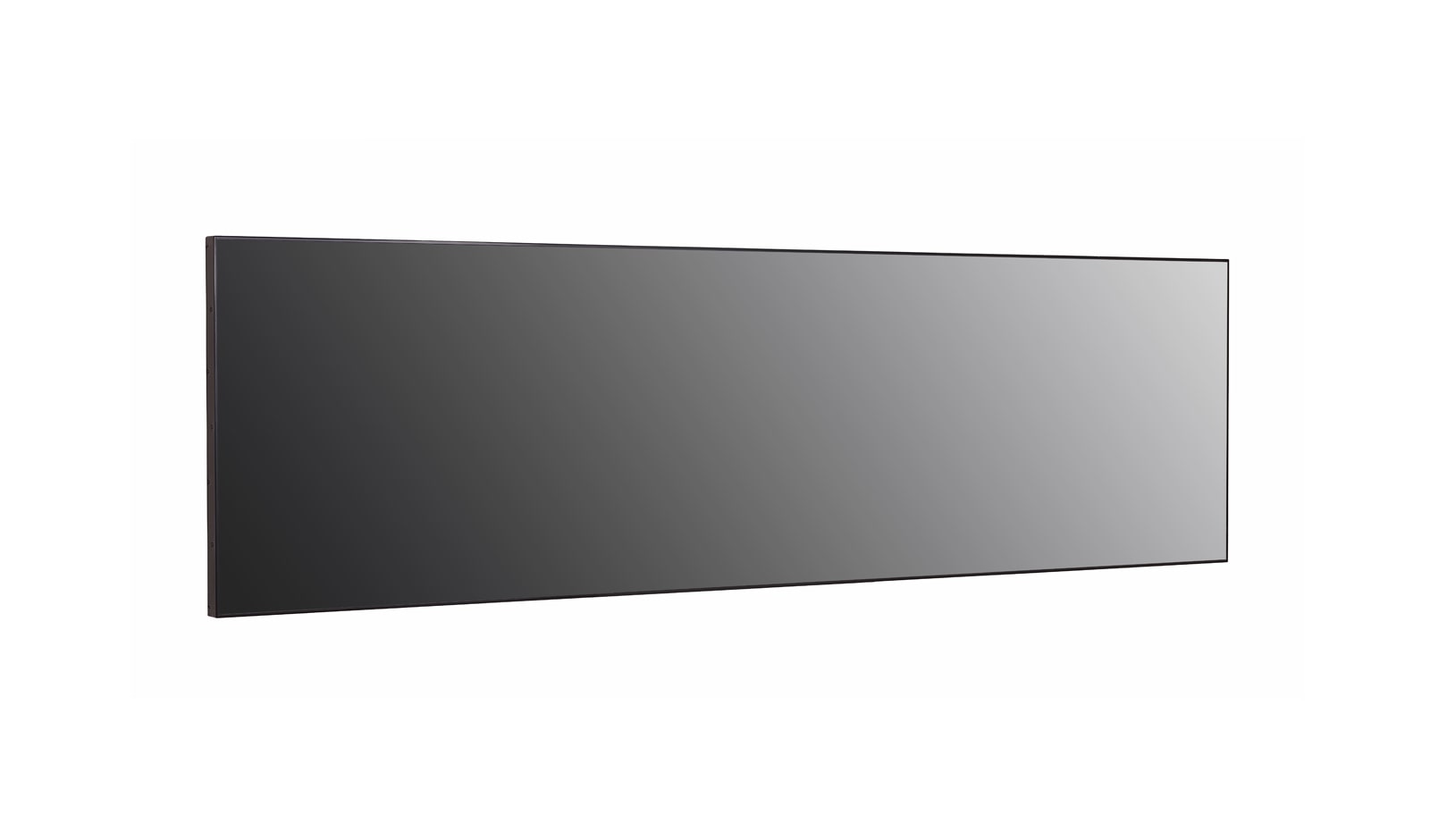

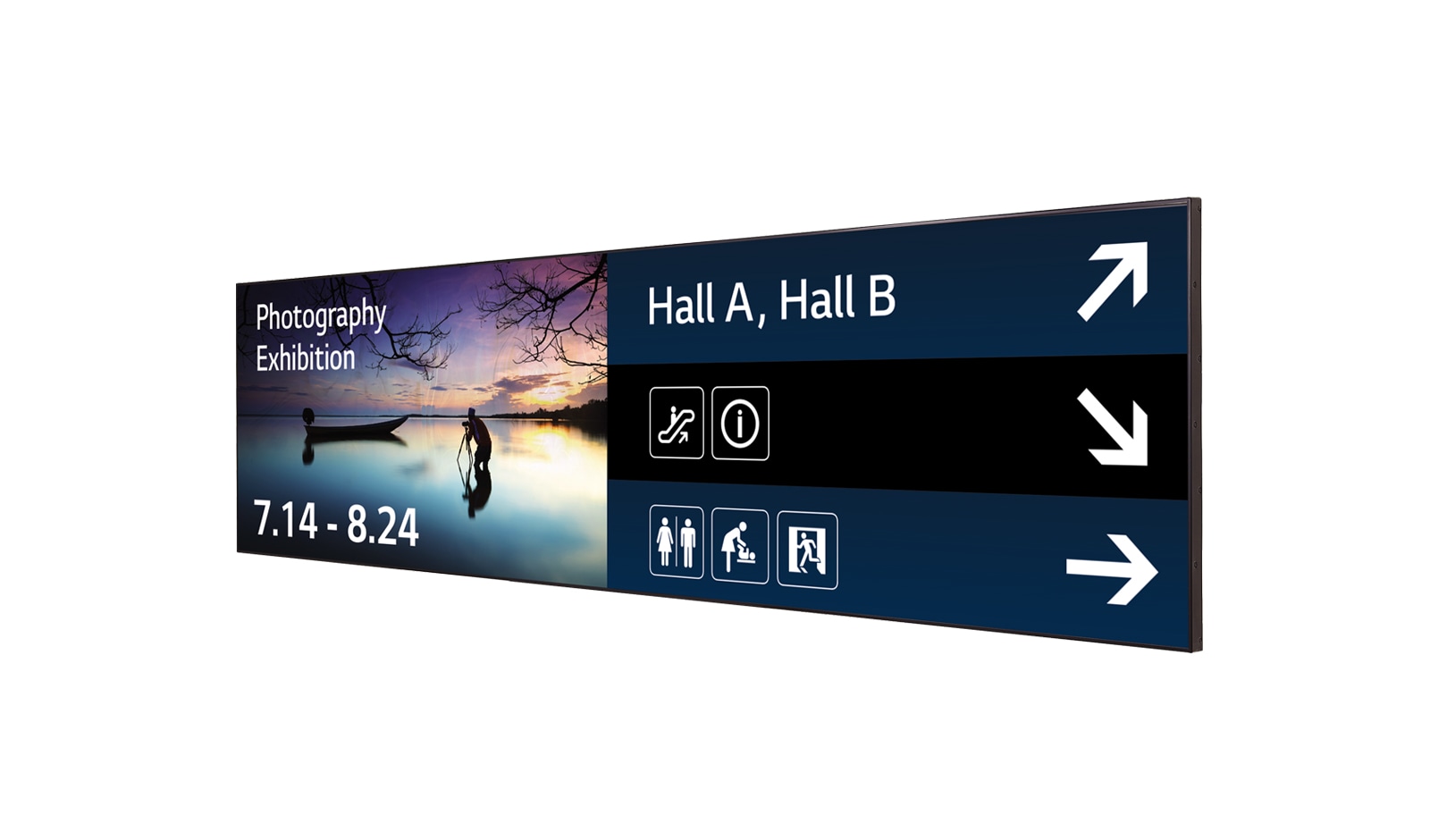

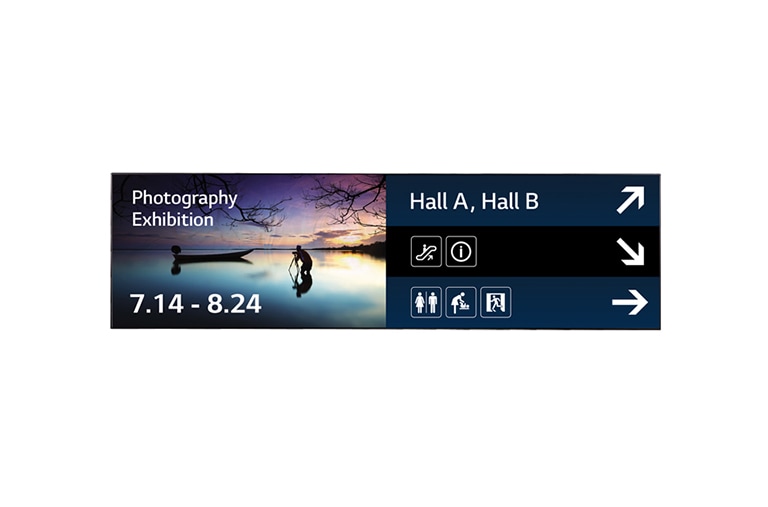

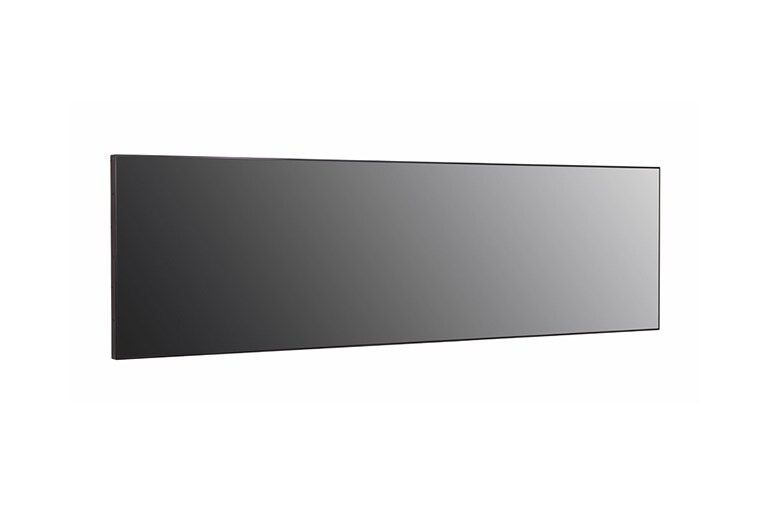

88BH7D-B
Ultra Stretch Signage
  • Brightness: 700 cd/m2
  • Bezel: 4.4mm (L/R), 5.9mm (T/B)
  • Depth: 103.9mm
  • Interface: HDMI (3), DP, RJ45, IR, USB (2), SD Card, RS232C

component-OBScountrySelectDesc

Ultra Stretch Signage

PANEL

  • Screen Size
    88” (223cm)
    Panel Technology
    IPS
  • Aspect Ratio
    32:9
    Native Resolution
    3,850 x 1,080 (FHD)
  • Brightness
    700 cd/m2 (Typ)
    Contrast Ratio
    1,100:1 (Typ)
  • Viewing Angle (H x V)
    178 ° x 178 °
    Guaranteed Operating Hour
    24 hrs / 7 days

CONNECTIVITY

  • Input
    HDMI(3), DP, OPS, DVI-D,USB 2.0, USB 3.0, SD Card
    Output
    DP, Anologue Audio (Line out), LAN Out
  • External Control
    RS232C, RJ45, IR+B Receiver,Pixel Sensor

PHYSICAL SPECIFICATION

  • Bezel Width
    4.4 mm (L/R), 5.9 mm (U/D)
    Monitor Dimension(W x H x D)
    2,158.3 x 611.2 x 103.9 mm
  • Weight (head)
    38 kg
    Carton Dimensions(W × H × D)
    2,274 x 717 x 212 mm
  • Packed Weight
    51 kg
    VESA™ Standard Mount Interface
    600 x 400 mm

ENVIRONMENT CONDITION

  • Operation Temperature
    0˚C to 40˚C
    Operation Humidity
    10 % to 80 %

POWER

  • Power Supply
    100-240V~, 50/60Hz
    Power Consumption (Typical)
    400W
  • Power Consumption (Smart Energy Saving)
    120W

STANDARD(CERTIFICATION)

  • Safety
    AS/NZS 60950, CB Scheme
    EMC
    AS/NZS CISPR32, RCM (Class A)

MEDIA PLAYER COMPATIBILITY

  • OPS Type Compatible
    Yes
    External Media Player Attatchable
    No

SOFTWARE COMPATIBILITY

  • SuperSign Premium
    Yes
    SuperSign C
    Yes

ACCESSORIES

  • Basic
    Remote Controller (including battery 2 ea), Power Cord, DP (2.6 M), RS- 232C Cable (3 M), Owner's Manual (Website upload)
    Optional
    AN-WF500 (Wi-Fi USB Dongle), MP700, KT-OPSA (OPS KIT), KT-SP0 (RGB Sensor)
  • White Paper
    • Crestron_White_Paper.pdf

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
