55" 500 nits FHD 0.44mm Even Bezel Video Wall
0.44mm Even Bezel Video Wall

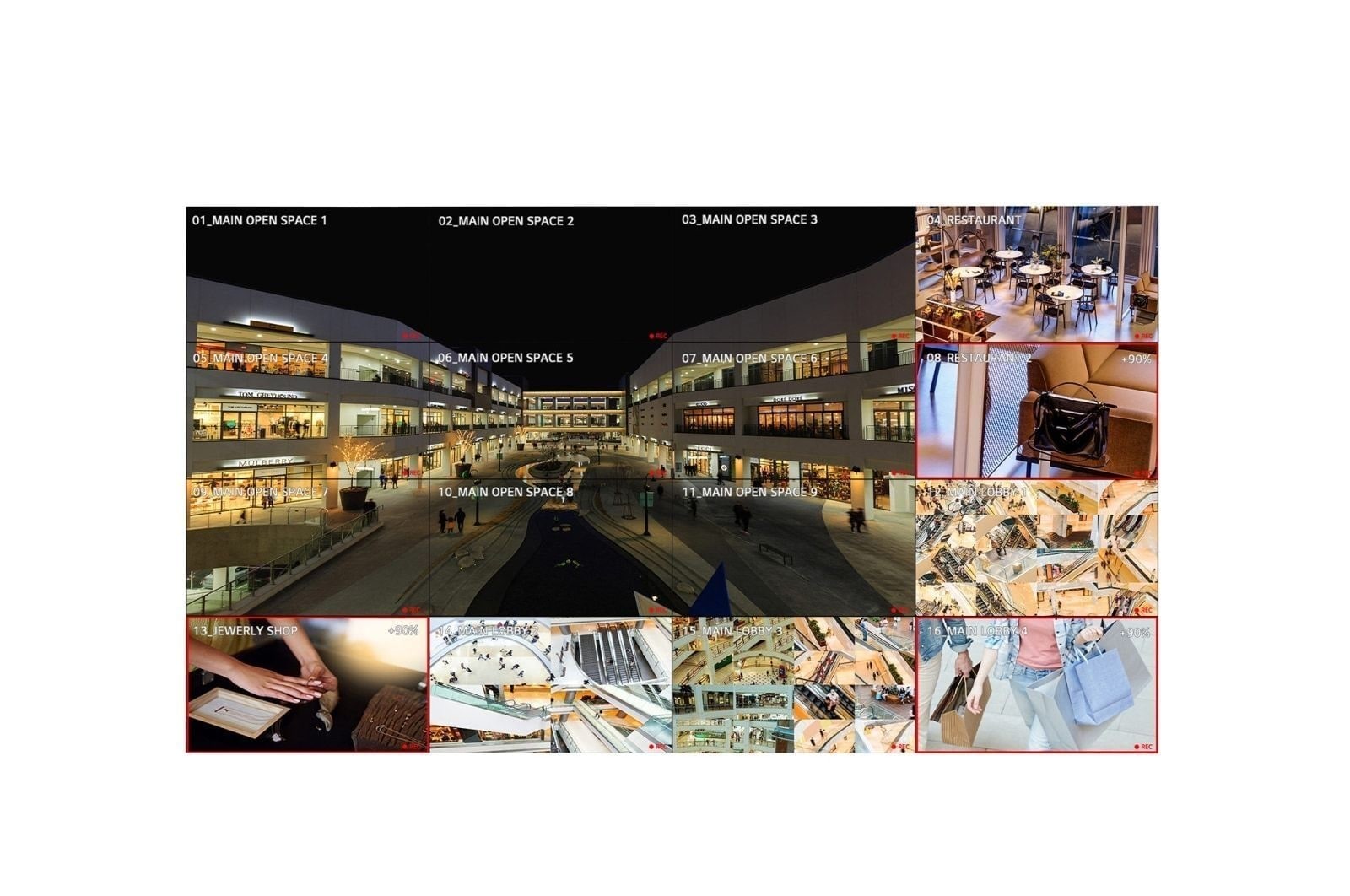

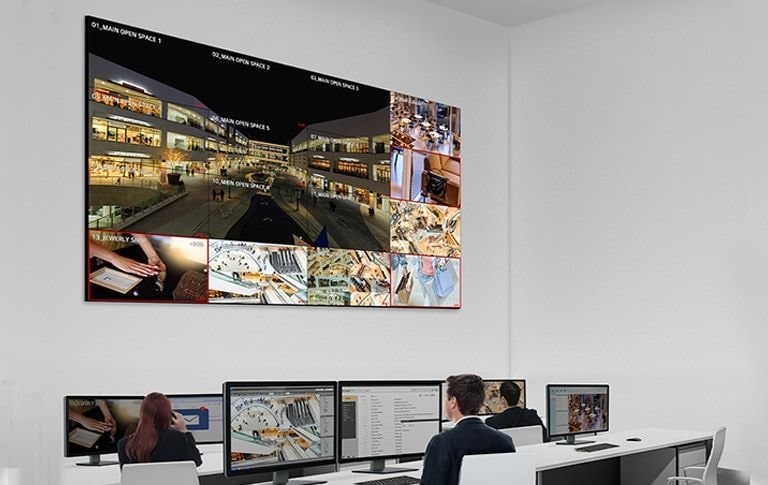

Both the external and internal premises of the shopping center are monitored in the CCTV control room through a large video
* All images in this web page are for illustrative purposes only.
* Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.
*Images are illustrated to enhance feature understanding
*Actual results may differ depending on environment and measuring equipment.
* The "55SVM5F series" refers to displays which do not include an image improvement algorithm.
Smart Calibration
On the left, there is a person using sensor calibration to adjust the colours of the video wall through the connected laptop
* Depending on the user, the difference in colour can be seen after smart calibration. In this case, adjusting the colour manually is recommended.
*Image dramatised for illustrative purposes.
Increased Haze for a Clear View
The 55VM5F series is affected by bright lights, giving it the layer of white cast over the image. The 55VSM5J series screen
* SDK can be downloaded with the link below. (https://webossignage.developer.lge.com)
* Supported protocols : RTSP, RTP, HLS, UDP Multicast
* Panel itself supports 4K UHD.
*LG ConnectedCare is available separately at additional cost.
All Spec
LANGUAGE
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic
SOUND
Speaker (Built-in)
NO
FEATURE - HARDWARE
Internal Memory (eMMC)
8GB
Wi-Fi/BT (Built-in)
NO
Temperature Sensor
YES
Auto Brightness Sensor
NO
Pixel Sensor
NO
Proximity Sensor
NO
Current Sensor
NO
BLU Sensor
YES
Humidity Sensor
NO
Acceleration(Gyro) Sensor
YES
Power Indicator
NO
Local Key Operation
YES
FAN (Built-in)
NO
OPS COMPATIBILITY
OPS Power Built-in
NO
OPS Type compatible
YES (Piggyback)
POWER
Power Type
Built-In Power
Power Supply
AC 100-240V~, 50/60Hz
ACCESSORY
Optional
OPS Kit(KT-OPSF)
Basic
Remote Controller(include battery 2ea), Power Cord, RS232C cable, Lan cable, DP cable, IR Receiver, Guide Bracket, Screws, Manual
CERTIFICATION
EMC
FCC Class "B" / CE / KC
Safety
CB / NRTL
ERP / Energy Star
YES(EU Only) / Energy Star 8.0
ePEAT(US only)
NO
ENVIRONMENT CONDITIONS
Operation Humidity
10 % to 80 %
Operation Temperature
0 °C to 40 °C
PANEL
Back Light Type
Direct
Screen Size (Inch)
55
Panel Technology
IPS
Aspect Ratio
16:9
Native Resolution
1920 x 1080 (FHD)
Refresh Rate
60Hz
Brightness
500nit (Typ.)
Contrast Ratio
1,100:1
Dynamic CR
500,000:1
Colour Gamut
NTSC 72%
Viewing Angle (H x V)
178º x 178º
Colour Depth (Number of Colours)
1.07 Billion colors
Response Time
8ms (G to G)
Surface Treatment (Haze)
Haze 28%
Life time
60,000Hrs (Typ.)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
YES / YES
Transparency
N/A
QWP (Quarter Wave Plate)
N/A

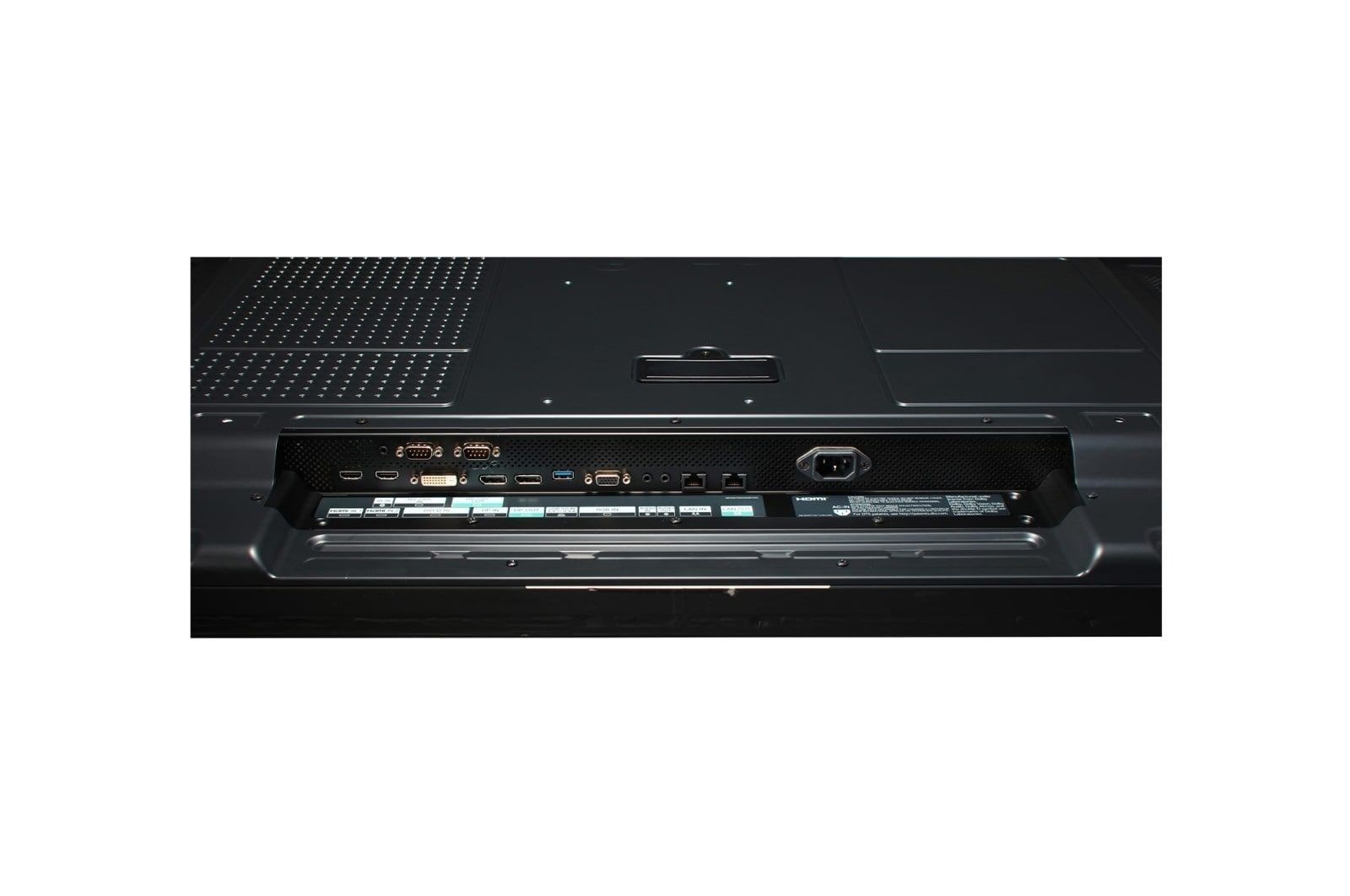

CONNECTIVITY
DP In
YES (HDCP 2.2)
HDMI In
YES (2ea)
HDMI In (HDCP Ver.)
2.2
DVI-D In
YES (HDCP 1.4)
RGB In
NO
Audio In
YES
RS232C In
YES
RJ45(LAN) In
YES (1ea)
IR In
YES
USB In
USB2.0 Type A (1ea)
HDMI Out
NO
DP Out
YES
Audio Out
YES
Touch USB
NO
External Speaker Out
NO
RS232C Out
YES
RJ45(LAN) Out
YES
IR Out
NO
Daisy Chain
YES
SPECIAL FEATURE
Tilt (Face down)
N/A
Overlay Touch Compatibility
N/A
Smart Calibration
YES
Tilt (Face up)
N/A
IP Rating
IP5X tested
Conformal Coating (Power Board)
N/A
Power Protection
N/A
Direct Sunlight
N/A
POWER CONSUMPTION
DPM
0.5W
Typ.
200W
Max.
250W
BTU (British Thermal Unit)
682 BTU/Hr(Typ.), 853 BTU/Hr(Max.)
Smart Energy Saving (70%)
105W
Power off
0.5W
MECHANICAL SPECIFICATION
Monitor Dimensions (W x H x D)
1210.51 x 681.22 x 86.5mm
Bezel Colour
Black
Bezel Width
Even bezel : 0.44mm
Weight (Head)
18.4Kg
Weight (Head+Stand)
N/A
Packed Weight
23.6Kg
Monitor Dimension with Stand (W x H x D)
N/A
Carton Dimensions (W x H x D)
1353 x 855 x 263mm
Handle
YES
VESA Standard Mount Interface
600 x 400 mm
SOFTWARE COMPATIBILITY
Mobile CMS
NO
SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
YES
SuperSign Cloud
YES
Promota
NO
Connected Care
YES
FEATURE - SOFTWARE
Local Network Sync
YES
OS Ver. (webOS)
webOS 4.1
Local Contents Scheduling
YES
Group Manager
YES
USB Plug & Play
YES
Fail over
YES
Booting Logo Image
NO
No Signal Image
YES
RS232C Sync
YES
Backlight Sync
NO
PIP
NO
PBP
NO
Screen Share
NO
Video Tag
YES (4 Video Tag)
Play via URL
YES
Screen Rotation
YES
External Input Rotation
YES
Gapless Playback
YES
Tile Mode Setting
YES
Setting Data Cloning
YES
SNMP
YES
ISM Method
YES
Auto Set ID
YES
Status Mailing
YES
Control Manager
YES
Cisco Certification
NO
Crestron Connected
YES
Smart Energy Saving
YES
PM mode
YES
Wake on LAN
YES
Network Ready
YES
Beacon
NO
HDMI-CEC
YES
SI Server Setting
YES
webRTC
YES
Pro:Idiom
YES
Brightness Compensation
NO
W/B Setting by Grey scale
YES
Scan Inversion
YES
COMPLIANCE INFORMATION
