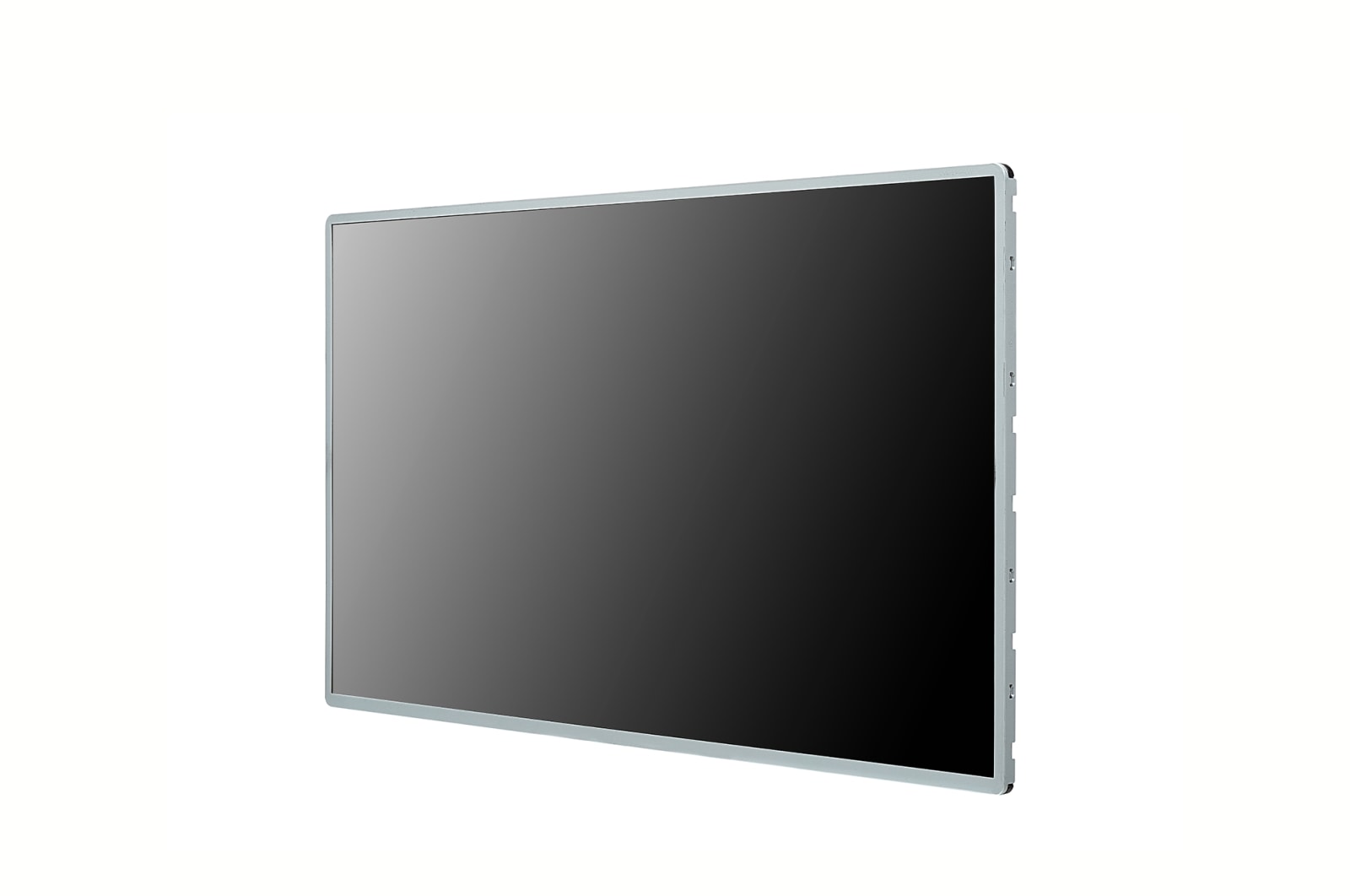

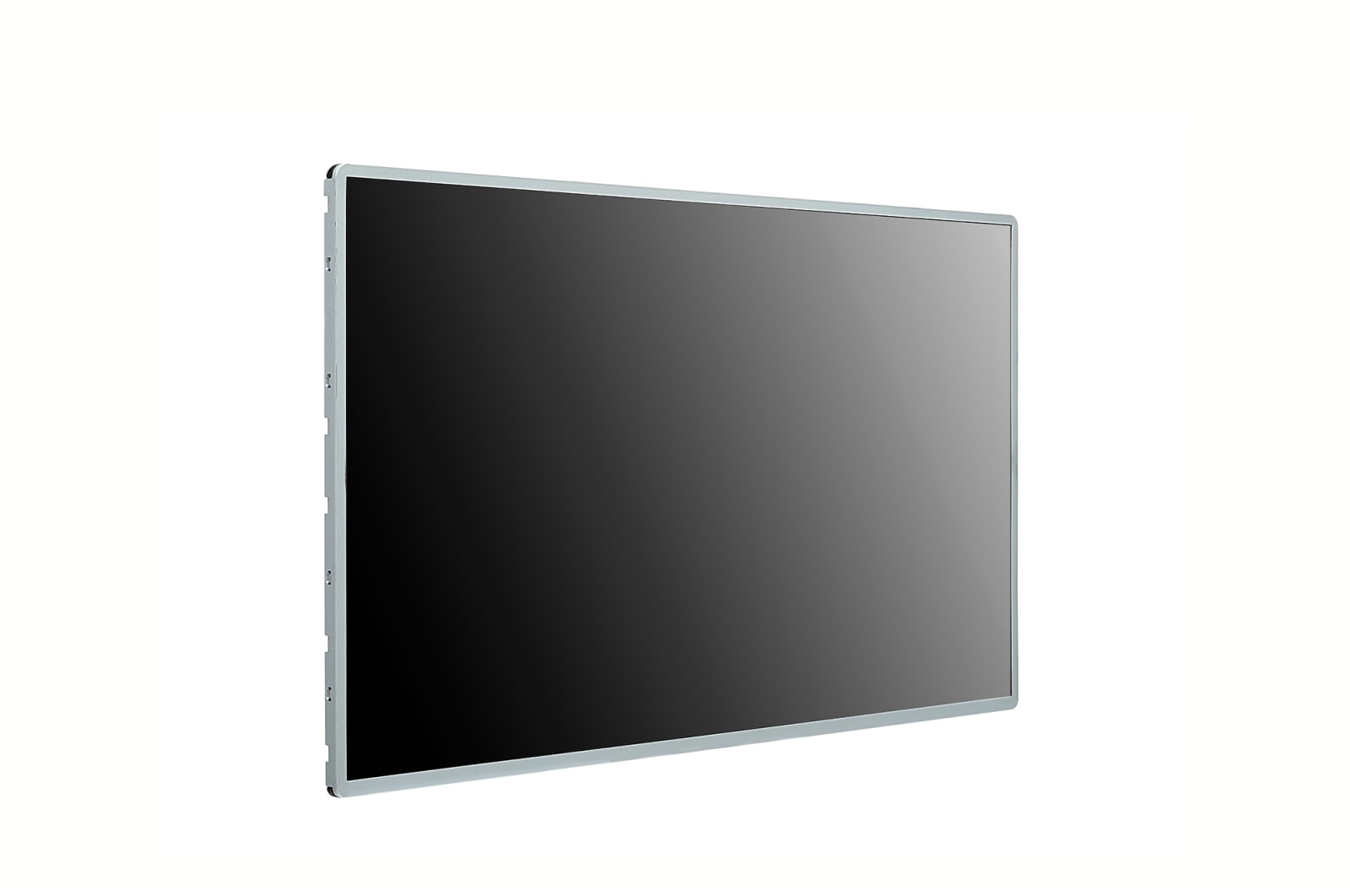

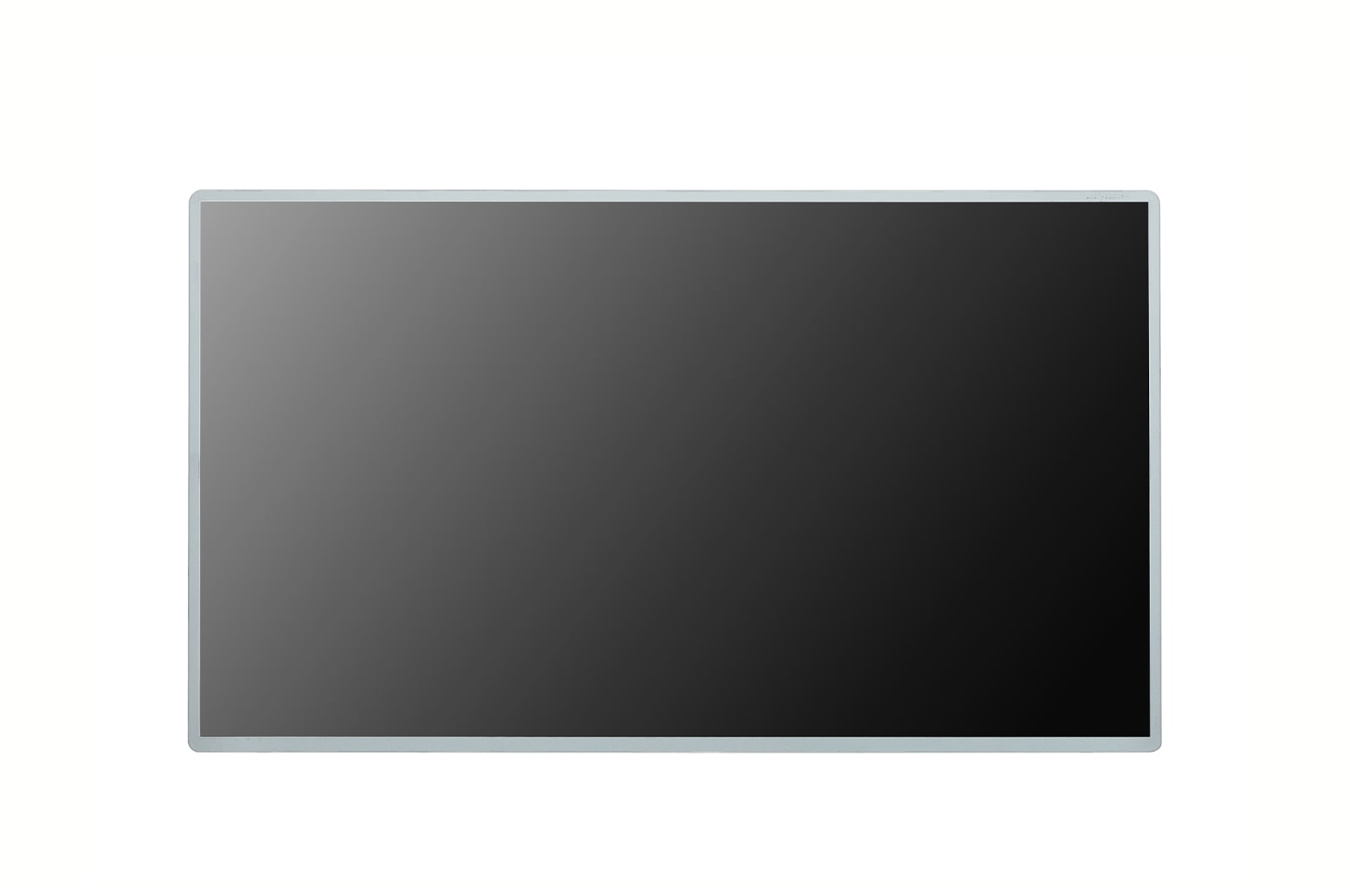

27" FHD Touch Open Frame Digital Board

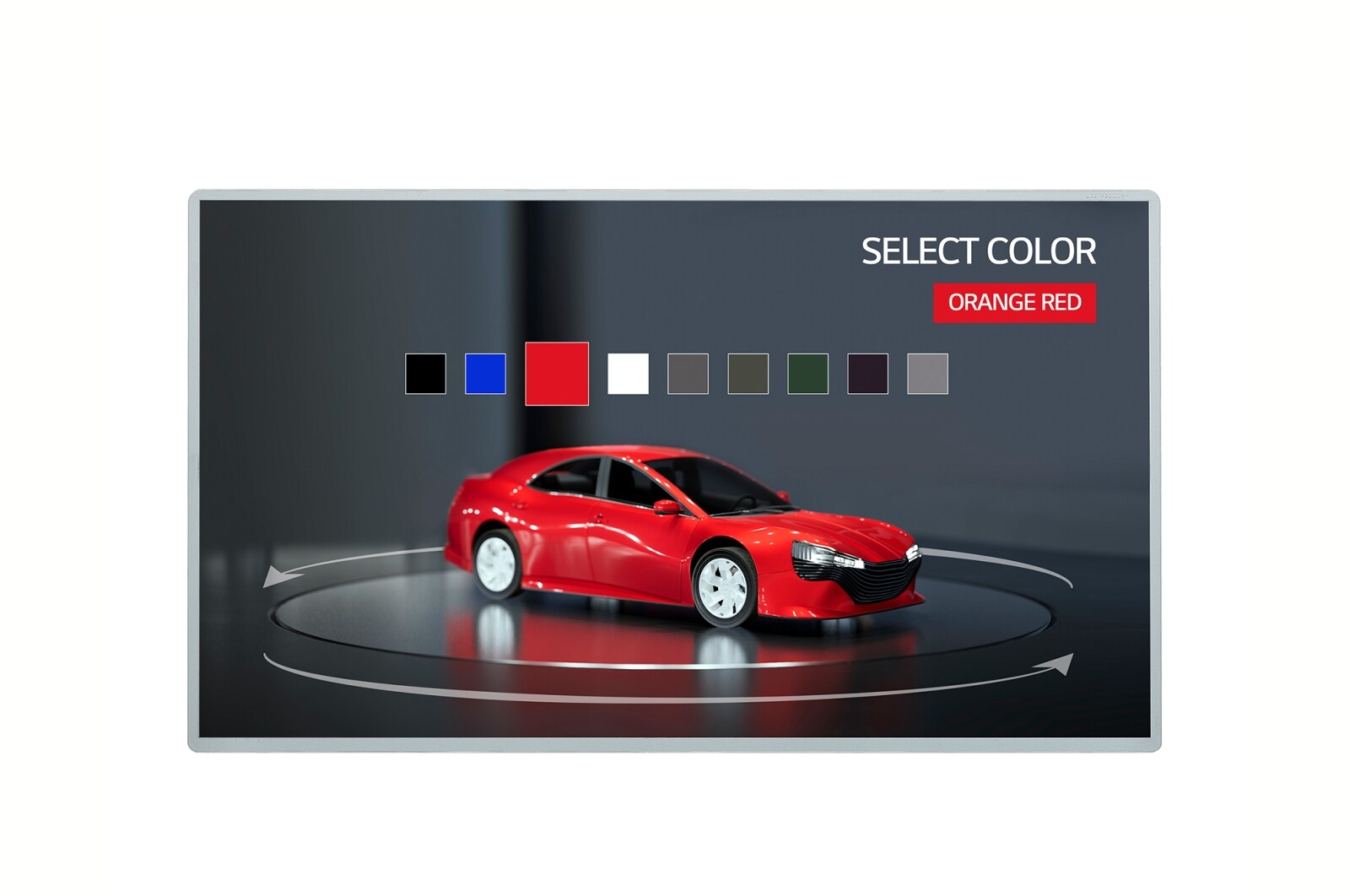

In a car dealership, a man is touching TNF3K to change the color of a car on the display.
* All images are for illustrative purposes only.

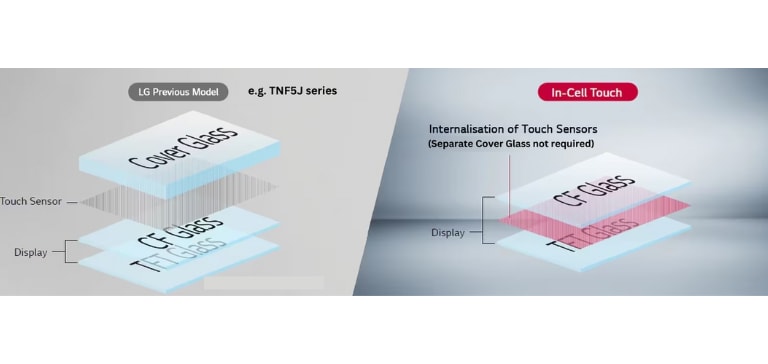

The conventional display has a touch sensor between the cover glass layer and the CF glass and TFT glass layers, whereas In-cell Touch has a touch sensor between the CF glass layer and the TFT glass layer without a cover glass layer.
While scenery on the conventional display looks blurry, the image on the In-cell Touch is clear.
*Images are for illustrative purpose only.
Various types of displays using TNF3K such as kiosk displays and publicity displays are placed.
#Standard commercial webOS (LG webOS is a web-based multipurpose platform in which a variety of solutions are easily applicable.)
*The images are simulated to enhance feature understanding.
With a 178-degree wide viewing angle, the display content is visible from any angle.
A number of tasks that can be done simultaneously are easily arranged through the webOS platform.
*SCAP Libraries: Signage Common Application Platform Libraries
Screen Size (Inch)
27
Panel Technology
IPS
Back Light Type
Edge
Aspect Ratio
16:9
Native Resolution
1920 x 1080 (FHD)
Refresh Rate
60Hz
Brightness
300nit (Typ.)
Contrast Ratio
1,000:1
Dynamic CR
NO
Color Gamut
BT709 95%
Viewing Angle (H x V)
178º x 178º
Color Depth (Number of Colors)
16.7 Million colors
Response Time
9ms (G to G)
Surface Treatment (Haze)
Haze 25%
Life time
31,000Hrs (Min.)
Operation Hours (Hours/Day)
16/7
Portait / Landscape
YES / YES
Transparency
N/A
QWP (Quarter Wave Plate)
N/A

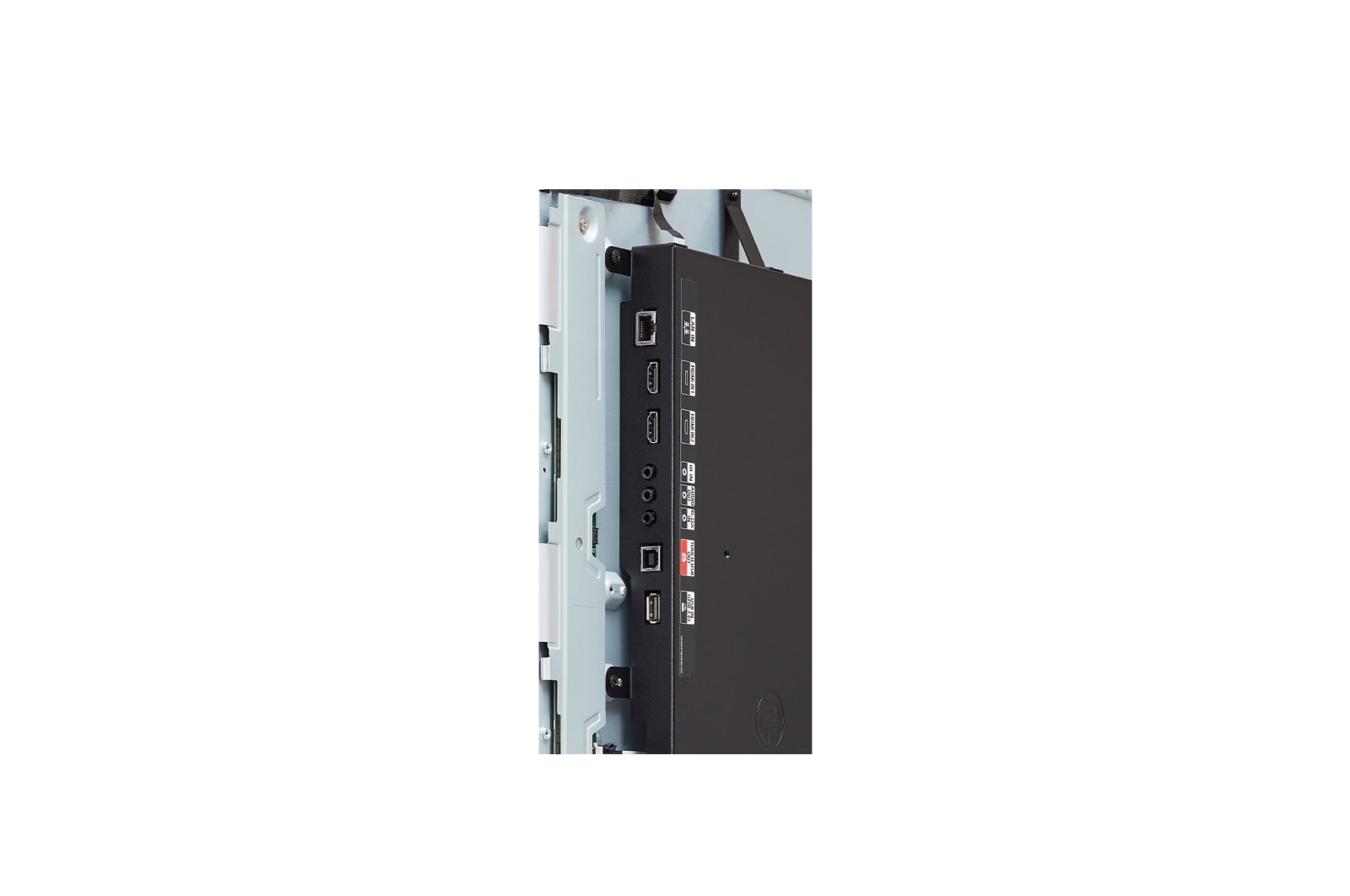

HDMI In
YES (2ea)
HDMI In (HDCP Ver.)
1.4
DP In
NO
DVI-D In
NO
RGB In
NO
Audio In
NO
RS232C In
YES
RJ45(LAN) In
YES (1ea)
IR In
YES
USB In
USB2.0 Type A (1ea)
HDMI Out
NO
DP Out
NO
Audio Out
YES
Touch USB
USB2.0 Type B (1ea)
External Speaker Out
NO
RS232C Out
NO
RJ45(LAN) Out
NO
IR Out
NO
Daisy Chain
NO
Bezel Color
Silver
Bezel Width
T/R/L/B : 7.7/7.7/7.7/9.7mm
Weight (Head)
4.2Kg
Weight (Head+Stand)
N/A
Packed Weight
6.2Kg
Monitor Dimensions (W x H x D)
614.9 x 355.3 x 15.1mm
Monitor Dimension with Stand (W x H x D)
N/A
Carton Dimensions (W x H x D)
707 x 451 x 171mm
Handle
NO
VESA Standard Mount Interface
200 x 100 mm
Internal Memory (eMMC)
8GB
Wi-Fi/BT (Built-in)
NO
Temperature Sensor
YES
Auto Brightness Sensor
NO
Pixel Sensor
NO
Proximity Sensor
NO
Current Sensor
NO
BLU Sensor
NO
Humidity Sensor
NO
Acceleration(Gyro) Sensor
YES
Power Indicator
NO
Local Key Operation
NO
FAN (Built-in)
NO
OS Ver. (webOS)
webOS 6.0
Local Contents Scheduling
YES
Group Manager
YES
USB Plug & Play
YES
Fail over
YES
Booting Logo Image
YES
No Signal Image
YES
RS232C Sync
NO
Local Network Sync
NO
Backlight Sync
NO
PIP
NO
PBP
NO
Screen Share
NO
Video Tag
YES (4 Video Tag)
Play via URL
YES
Screen Rotation
YES
External Input Rotation
NO
Gapless Playback
YES
Tile Mode Setting
NO
Setting Data Cloning
YES
SNMP
YES
ISM Method
YES
Auto Set ID
NO
Status Mailing
YES
Control Manager
YES
Cisco Certification
YES
Crestron Connected
YES
Smart Energy Saving
YES
PM mode
YES
Wake on LAN
YES
Network Ready
YES
Beacon
NO
HDMI-CEC
YES
SI Server Setting
YES
webRTC
YES
Pro:Idiom
YES
Brightness Compensation
NO
W/B Setting by Grey scale
NO
Scan Inversion
NO
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Typ.
30W
Max.
35W
BTU (British Thermal Unit)
102 BTU/Hr(Typ.), 119 BTU/Hr(Max.)
Smart Energy Saving (70%)
21W
DPM
0.5W
Power off
0.5W
Speaker (Built-in)
NO
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ERP / Energy Star
N/A / NO
ePEAT(US only)
NO
OPS Type compatible
NO
OPS Power Built-in
NO
SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
NO
SuperSign Cloud
YES
Promota
NO
Mobile CMS
YES
Connected Care
YES
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, Polski
Basic
Power Cord 1.55m, USB Cable(Type A-Type B) 1.8m, User Manual, QSG, Remote Controller(include battery 2ea), RS232C Gender, IR Receiver
Optional
NO
Overlay Touch Compatibility
N/A
Smart Calibration
N/A
Tilt (Face up)
Max. 45 degree
Tilt (Face down)
N/A
IP Rating
N/A
Conformal Coating (Power Board)
YES
Power Protection
N/A
Direct Sunlight
N/A
Available Object Size for Touch
Ø6 mm ↑
Response Time ('Paint' app on Windows 10 PC)
90ms ↓
Accuracy (Typ.)
3.5mm
Interface
USB2.0
Protection Glass Thickness
N/A
Protection Glass Transmission
N/A
Operating System Support
Windows 10
Multi Touch Point
Max. 10 Points
To access more technical documentation and resources, please visit the LG B2B partner portal.
