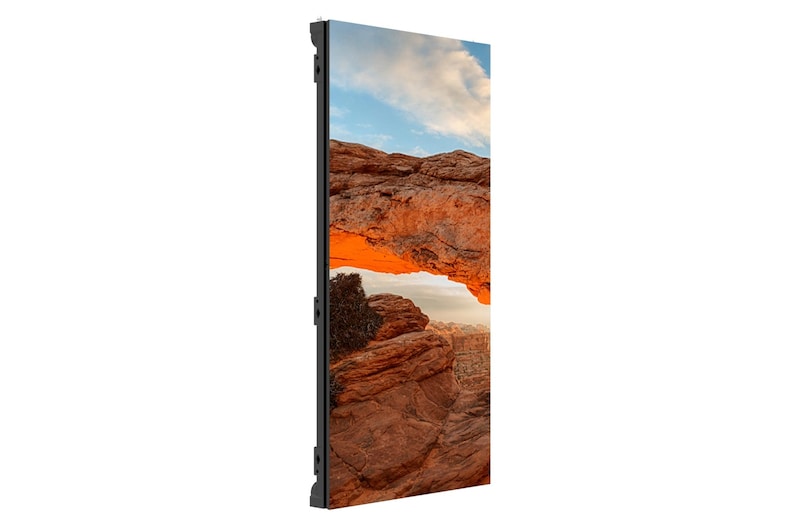

GSCA Versatile Series

Key Features

Choose your Pitch

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • VIP Price
    (GSCA039-GN)
    $
    $
    Save $
    LG Members Exclusive
Total

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • VIP Price
    (GSCA039-GN)
    $
    $
    Save $
    LG Members Exclusive
Total
GSCA Versatile Series

Fast Installation

Various factors including magnets on the top and bottom, positioning pins, handles and fast locks help installers easily set up and dismantle the LED screens without additional tools.
Fast Installation Fast Installation

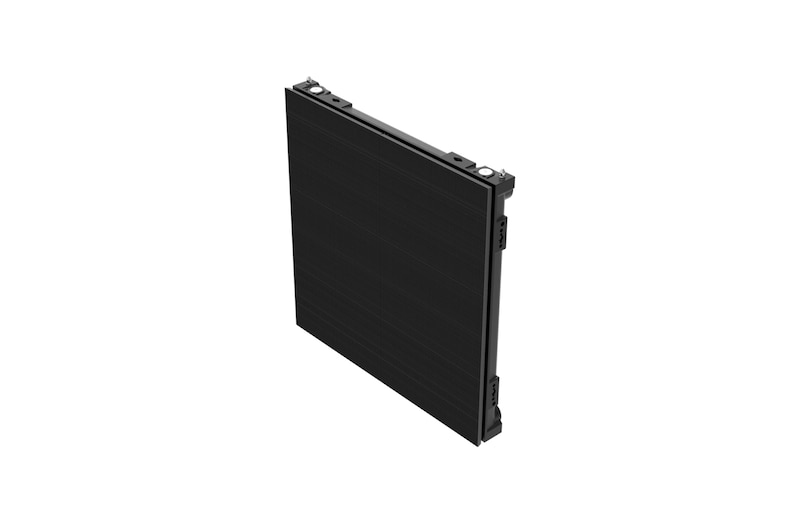

Two Cabinet Options

The GSCA series offers two sizes of cabinets enabling a screen size configuration that fits perfectly with the installation requirements.
Two Cabinet Options Two Cabinet Options

IP Rated Weatherproof
& 90° Corner Design

The cabinet is IP65 certified, allowing stable operation unaffected by weather and harsh outdoor environments. Also, if you add a 90° corner option, the GSCA series can deliver content seamlessly even when installed on the corners.
IP Rated Weatherproof<br>& 90° Corner Design IP Rated Weatherproof<br>& 90° Corner Design
PHYSICAL PARAMETERS
  • Pixel Configuration
    3in1 SMD
    Pixel Pitch
    3.91
  • Module Resolution(WxH)
    64x128
    Module Dimensions(WxH,mm)
    250x500
  • Weight per Module(Kg)
    1.4
    No. of Modules per Unit Case(WxH)
    2x2
  • Unit Case Resolution(WxH)
    128x256
    Unit Case Dimensions(WxHxD, mm)
    500x1000x68
  • Unit Case Surface Area(m²)
    0.5
    Weight per Unit Case(kg/unit)
    12
  • Weight per Square Meter(Kg/m²)
    25
    Physical Pixel Density(Pixels/m²)
    65,536
  • Unit Case material
    Die Casting Aluminum Alloy
    Service Access
    Front or Rear (Select one Only)
OPTICAL SPECIFICATIONS
  • Min. Brightness(After Calibration)
    5000 cd/m²
    Colour Temperature
    6500
  • Visual Viewing Angle(Horizontal)
    160
    Visual View Angel(Vertical)
    155
  • Brightness Uniformity
    97%
    Colour Uniformity
    ±0.003CxCy
  • Contrast Ratio
    6,000
    Processing Depth(bit)
    14
ELECTRICAL SPECIFICATIONS
  • Power Consumption(W/Unit, Max)
    300
    Power Consumption(W/Unit, Avg)
    100
  • Power Consumption(W/m²) Max
    600
    Power Supply(V)
    100 to 240
  • Frame Rate(Hz)
    50/60
    Refresh Rate(Hz)
    2,880
OPERATION SPECIFICATION
  • Life time (Half Brightness)
    100,000
    Operating Temperature(℃)
    -20℃ to +45℃
  • Operating Humidity
    10~99%RH
    IP Rating Front
    IP65
  • IP Rating Rear
    IP65
CERTIFICATION
  • Certification
    CE,FCC,ETL
ENVIRONMENT
  • Environment
    RoHS
CONTROLLER
  • Input
    HDMI, Single- link DVI, Audio Input
    Output
    4 x RJ45 ,HDMI- Loop, DVI- Loop
  • Control
    RJ45 , USB In/Out
    Power
    AC-100-240V-50/60HZ
