Compact Series
  • Pixel Pitch: 2.98 mm
  • Brightness: 1,000 nit
  • Vivid Colour Expression Powered by HDR
  • 90° Corner Installation Design Available

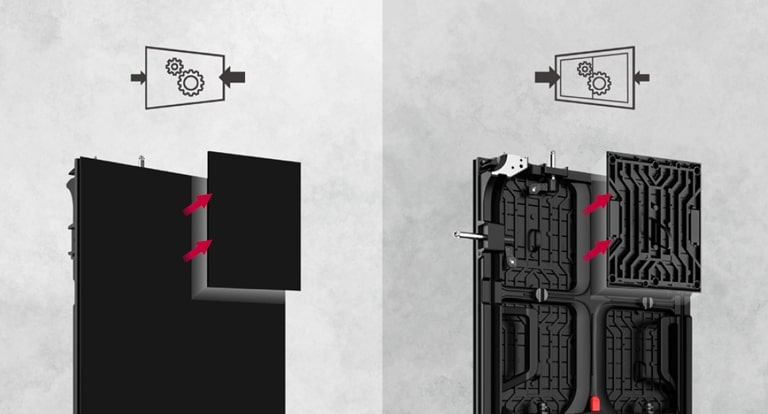

  • Front or Rear Serviceability
  • Compatibility with LG Software Solutions

component-OBScountrySelectDesc

Compact Series

LSBC Compact Series

Large LEDs inside an airport show passengers’ departure schedules and advertisements. Large LEDs inside an airport show passengers’ departure schedules and advertisements.
* All images in this web page are for illustrative purposes only.
* HDR10 Pro is LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping.
Images provided for illustrative purposes only. Actual results may vary.

Compatibility with LG Software Solutions

Powered by LG’s high performance system controller, the LSBC series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare.
The LG employee is remotely monitoring the LSBC series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables LSBC series to be compatible with LG software solutions. The LG employee is remotely monitoring the LSBC series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables LSBC series to be compatible with LG software solutions.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.
PHYSICAL PARAMETERS
  • Pixel Configuration
    3 in 1 SMD
    Pixel Pitch (mm)
    2.976
  • Module Resolution (W x H)
    84 x 84
    Module Dimensions (W x H, mm)
    250 x 250
  • Weight per Module (kg)
    0.70
    No. of Modules per Cabinet (WxH)
    2 x 4
  • Cabinet Resolution (WxH)
    168 x 336
    Cabinet Dimensions (W x H x D, mm)
    500 x 1000 x 68
  • Cabinet Surface Area (m²)
    0.5
    Weight per Cabinet (kg/Cabinet)
    12
  • Weight per Square Meter (kg/m² )
    24
    Physical Pixel Density (pixels/m² )
    112896
  • Flatness of Cabinet (mm)
    ±0.5
    Cabinet Material
    Die Casting Aluminum
  • Service Access
    Front or Rear
OPTICAL SPECIFICATIONS
  • Max. Brightness (After Calibration)
    1000
    Colour Temperature (K)
    3,200 ~ 9,300
  • Visual Viewing Angle (H × V)
    160 x 140
    Brightness Uniformity
    97%
  • Colour Uniformity
    ±0.003 Cx,Cy
    Contrast Ratio
    5000:1
  • Processing Depth (bit)
    16 (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Cabinet, Max.)
    300
    Power Consumption (W/Cabinet, Avg.)
    100
  • Power Consumption (W/m², Max.)
    600
    Power Supply (V)
    100 to 240
  • Frame Rate (Hz)
    50 / 60
    Refresh Rate (Hz)
    3,840
OPERATION SPECIFICATIONS
  • Lifetime (Hours to Half Brightness)
    100,000
    Operating Temperature (°C)
    -20°C to +40°C
  • Operating Humidity
    10-90% RH
CONTROLLER(LG CVCB)
  • Input
    HDMI, DisplayPort, USB
    Output
    16 x RJ45, RS-232C In/Out (4 pin phone-jack)
  • Control
    RJ45
    Power
    AC 100-240V 50/60Hz

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
