LT560H Series

Features

Gallery

Specs

Support

Resource

Find a Dealer
Contact Us

LT560H Series

Share This Content.

You Can Share The Items You Like With Your Friends

LT560H Series

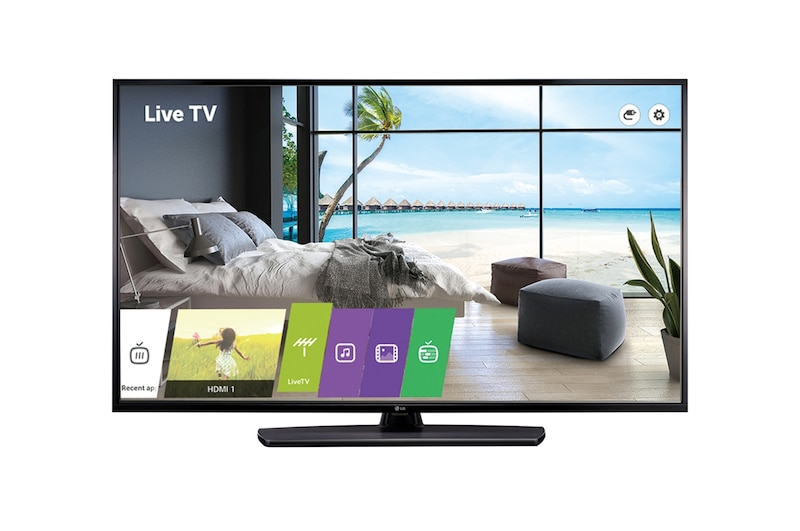

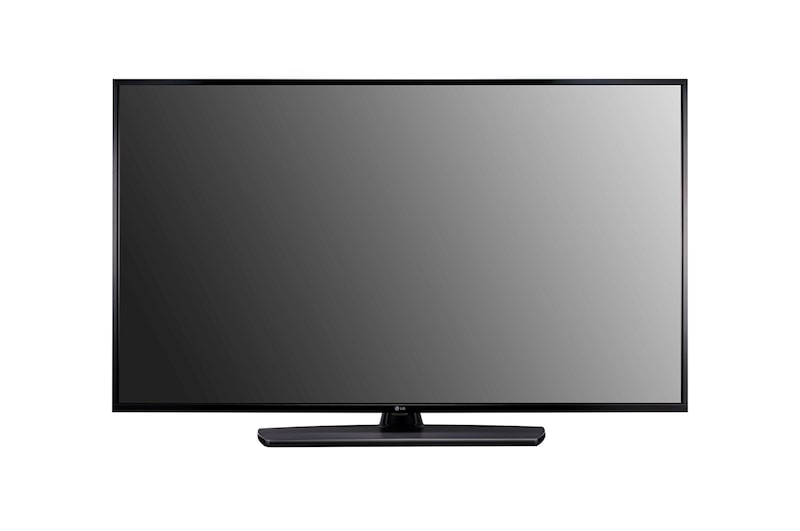

32LT570H9UA
  • Front view with infill image
  • LG LT560H Series, 32LT570H9UA
  • LG LT560H Series, 32LT570H9UA
  • LG LT560H Series, 32LT570H9UA
  • LG LT560H Series, 32LT570H9UA
  • LG LT560H Series, 32LT570H9UA
Front view with infill image
LG LT560H Series, 32LT570H9UA
LG LT560H Series, 32LT570H9UA
LG LT560H Series, 32LT570H9UA
LG LT560H Series, 32LT570H9UA
LG LT560H Series, 32LT570H9UA

Key Features

  • Pro:Centric Hotel Management Solution(V)
  • b-LAN embedded
  • Commercial Swivel Stand
  • EzManager
  • USB Closing
More

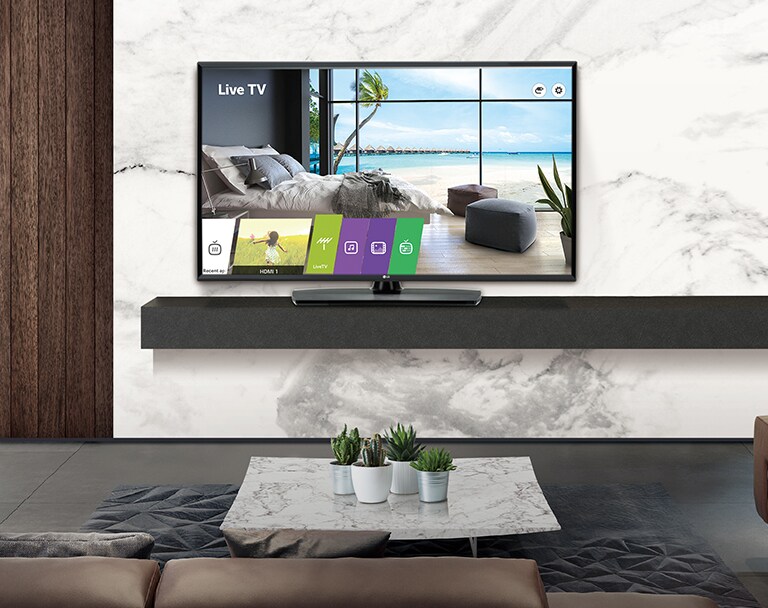

Pro:Centric Hospitality TV with Integrated Pro:Idiom

The LT560H Series features reliable FHD resolution that creates crystal clear pictures. It has LG Pro:Centric technology, which offers easy tools for partners to create interactive applications with increased visual appeal. These features enable delivery of a wide range of unique experiences tailored to both hotel management and guests’ needs.

Pro:Centric Hospitality TV with Integrated Pro:Idiom

*49 inch
*Actual product appearance may differ from the above simulated scene.

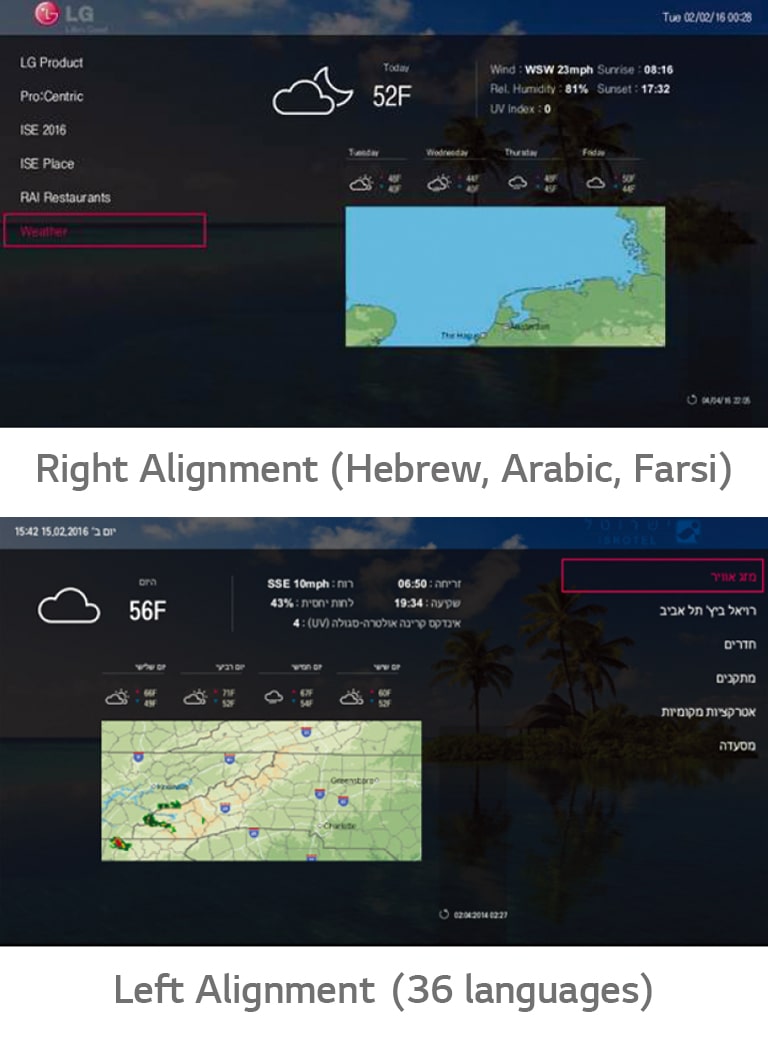

Dozens of Languages

This series supports 39 languages (including Hebrew, Arabic and Farsi) and language alignment, making guests from around the world feel more at home and comfortable.

Dozens of Languages

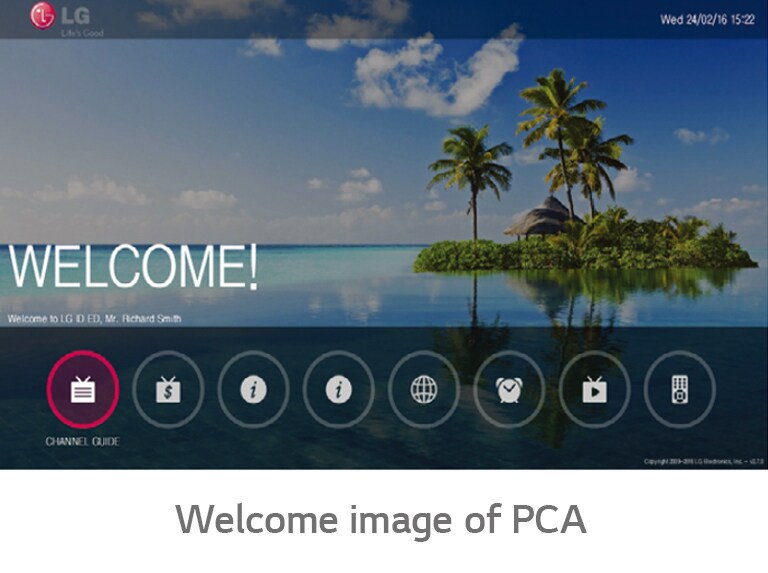

Customizable Template

Basic & Easy Templates

Pro:Centric Application (PCA) provides basic, easy-to-use templates that can be selected based on customer preference.

Customizable Template

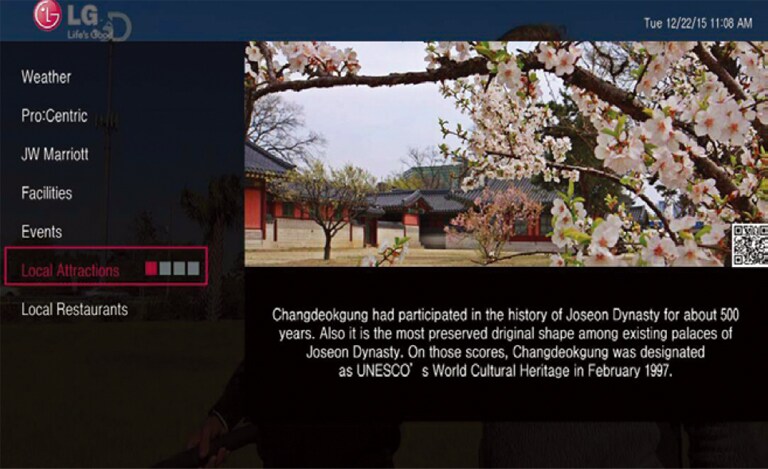

Customizable Template & Page

Choose alternative looks for billboards based on your preferences, and edit multiple sections with up to 40 pages of billboards by yourself with this web-based tool.
Multi-Channel Spooling

Multi-Channel Spooling

Operation of up to eight hotel channels (22 sub-channels) offers programming flexibility, customized content and additional services.
Pro:Idiom

Pro:Idiom

DRM (Digital Right Management) technology unlocks access to premium content to help assure rapid and broad deployment of HDTV and other high value digital contents.
Commercial Swivel Stand

Commercial Swivel Stand

The LT570H commercial grade stand swivels to allow guests to view the TV from virtually any angle and can easily be fastened to a tabletop for security purposes.

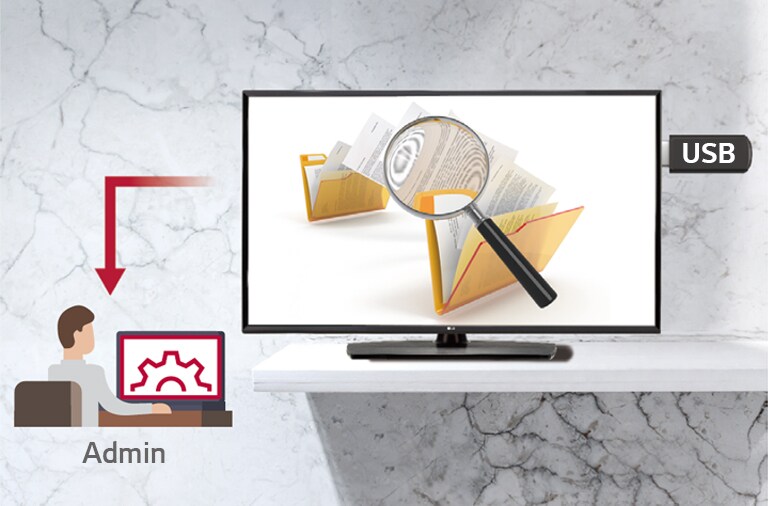

Self Diagnostics via USB

Self Diagnostics via USB

Enables service engineers to recognize technical issues in a TV quickly and easily through a USB. The TV stores any technical issues encountered and can output them to a USB device. Service engineers use this information to analyze technical issues without the actual TV.
USB Data Cloning

USB Data Cloning

USB data cloning makes managing multiple displays more efficient for optimal operation. No need to set up each display one by one, data can be copied to a USB in one display, data will be distributed to other displays through a USB plug-in.

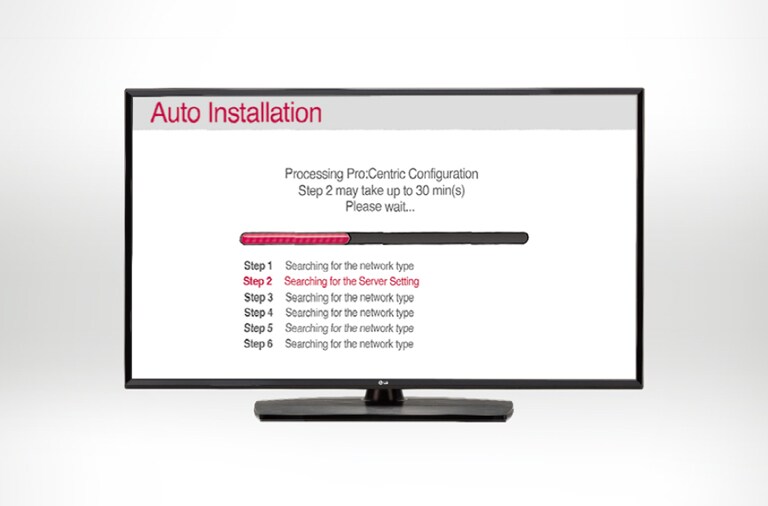

EzManger

EzManger

EzManager provides a convenient installation function to automatically set settings for the Pro:Centric TV without any extra configuration. Auto-installation requires 1~3 minutes, while manual installation requires 3~5 minutes.

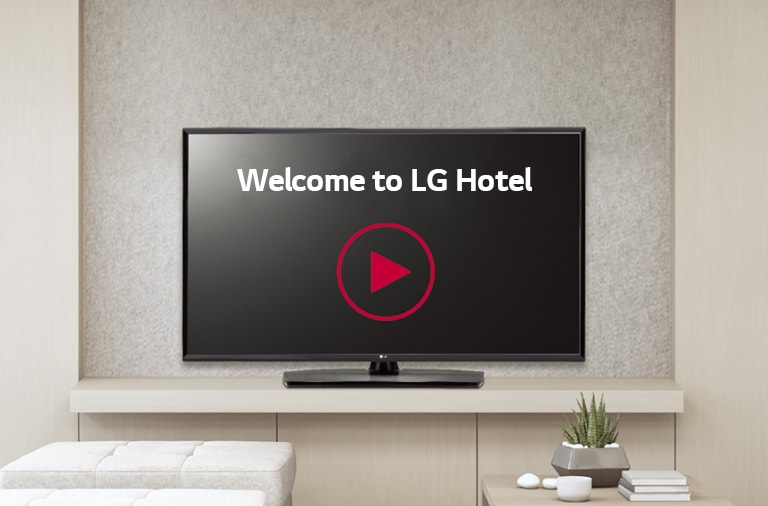

Welcome Screen

Welcome Screen

Display a warm greeting message with your hotel name and logo on the TV when it is turned on. The welcome screen provides an inviting, personalized experience for your guests.

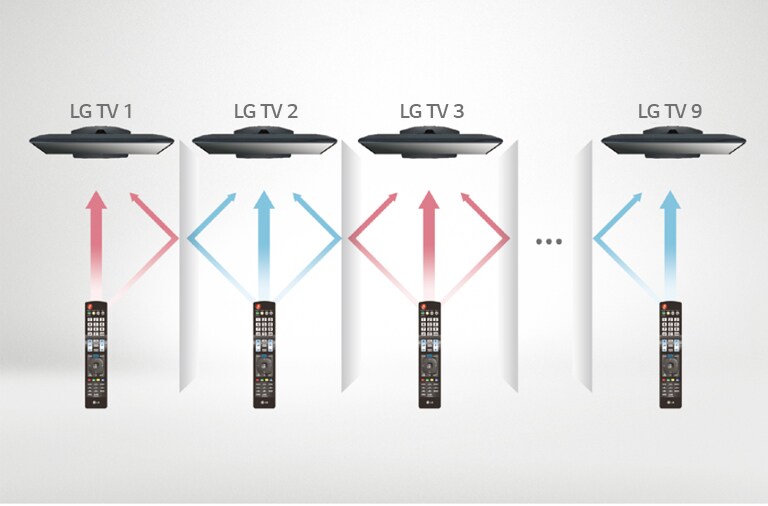

Multi IR

Multi IR

Multi-code IR function eliminates any remote control signal interference between TVs in rooms with multiple TVs installed.

*Only available for LG TV models

External Speaker Out

External Speaker Out

Enhance the entertainment experience with an additional speaker (sold separately). Guests can listen to the TV audio from other rooms within their suite, not only the room where the TV is located.

Key Feature

  • Pro:Centric Hotel Management Solution(V)
  • b-LAN embedded
  • Commercial Swivel Stand
  • EzManager
  • USB Closing
Print

All Spec

POWER SPEC.

  • Power Consumption(Typ)

    36.5W

  • Power Consumption(Max)

    50.6W

  • Power Supply (Voltage, Hz)

    AC 120V, 50/60Hz

  • Standby Power Consumption

    Under 0.5W

ACCESSORIES

  • Power Cable

    YES (1.8M / Angle Type)

  • Remote type

    S-Con

AUDIO (SOUND)

  • Speaker (Audio Output)

    10W

BROADCASTING SYSTEM

  • Analog (NTSC / SECAM / PAL)

    NTSC

  • Digital

    ATSC / Clear QAM

CONNECTIVITIES

  • Audio Line Out(3.5mm Phone jack)

    YES

  • AV In

    YES

  • Digital Audio Out (Optical)

    YES

  • HDMI In

    YES (3ea)

  • LG SVC only (Phone jack type)

    YES

  • MPI Port (RJ12 jack)

    YES

  • RF In

    YES (1ea)

  • RJ45 (Usage Purpose)

    2 ( RJP Interface, Pro:Centric)

  • RS-232C (D-Sub 9pin / Phone jack)

    YES (D-Sub 9pin)

  • TV link Configuration (Phone jack type)

    YES

  • USB (Ver.)

    YES (1ea / 2.0)

DESIGN

  • Front Color

    Ceramic Black

  • Stand Type

    1 Pole (Swivel)

  • Tool Name

    LJ61

DIMENSIONS/WEIGHT

  • Bezel Width (L/R/U/B, Off Bezel)

    18.8/18.8/18.8/21.6mm

  • Bezel Width (L/R/U/B, On Bezel)

    20.7/20.7/20.6/23.4mm

  • Dimension in Shipping (W x H x D)

    905 x 530 x 162mm

  • Dimension without Stand (W x H x D)

    739 x 441 x 84mm

  • Dimension with Stand (W x H x D)

    739 x 495 x 241mm

  • Weight in Shipping

    7.35kg

  • Weight without Stand

    4.85kg

  • Weight with Stand

    6.05kg

DISPLAY

  • Brightness (Typ.)

    240 nit

  • Resolution

    HD (1,366 x 768)

  • Size (Inch)

    32

HOSPITALITY FEATURE

  • Diagnostics

    YES (Self Diagnostics(USB))

  • b-LAN

    YES

  • External Speaker Out / Line Out

    YES (Line Out)

  • EzManager

    YES

  • Hotel Mode / PDM / Installer Menu

    YES

  • HTNG-CEC (Version)

    YES (1.4)

  • Instant ON

    YES

  • IR Out

    YES (RS-232C, MPI)

  • Multi IR Code

    YES

  • RJP (Remote Jack Pack) Compatibility

    YES

  • Simplink(HDMI-CEC) (Version)

    YES (1.4)

  • SNMP

    YES

  • USB Cloning

    YES

  • Wake on RF

    YES

  • Welcome Screen (Splash Image)

    YES

HOSPITALITY SOLUTION

  • Pro:Centric Server

    YES

  • Pro:Centric V

    YES

  • Pro:Idiom (DRM)

    YES

INFO

  • Category

    Pro:Centric V

MECHANICAL

  • Kensington Lock

    YES

  • Credenza/Security Screw Hole

    YES (Need Stand)

  • Lock Down Plate (for easy installing)

    YES (Need Stand)

  • VESA Compatible

    200 x 200mm

SMART FUNCTION

  • webOS version

    NO (Non-Smart)

STANDARD

  • EMC

    FCC

  • Safety

    UL

White Paper

extension : pdf
Quest for Genius.pdf
Download

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
