NanoCell Hospital TV
Contact Us

NanoCell Hospital TV

Share This Content.

You Can Share The Items You Like With Your Friends

NanoCell Hospital TV

55UR772M0UB

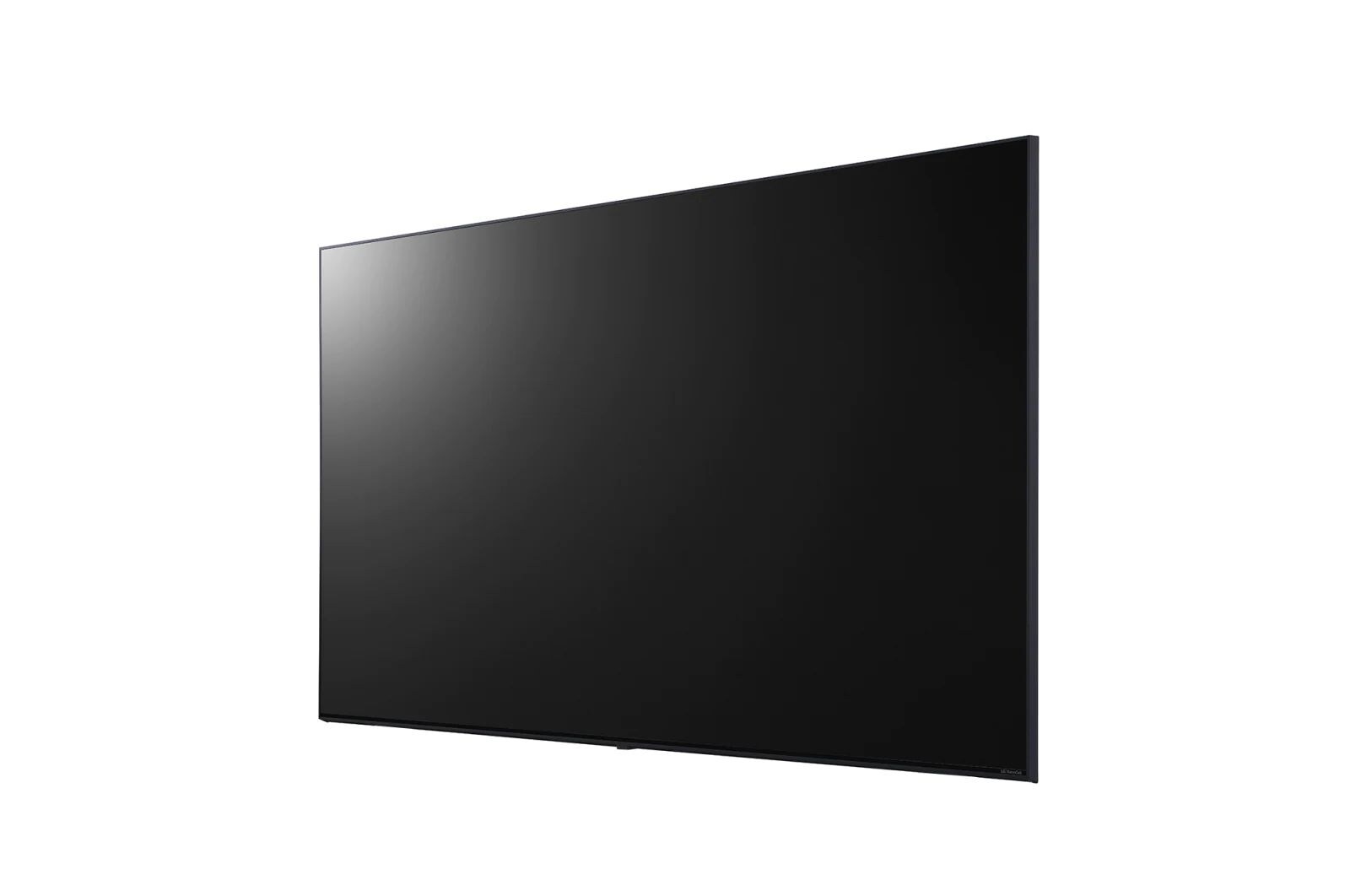

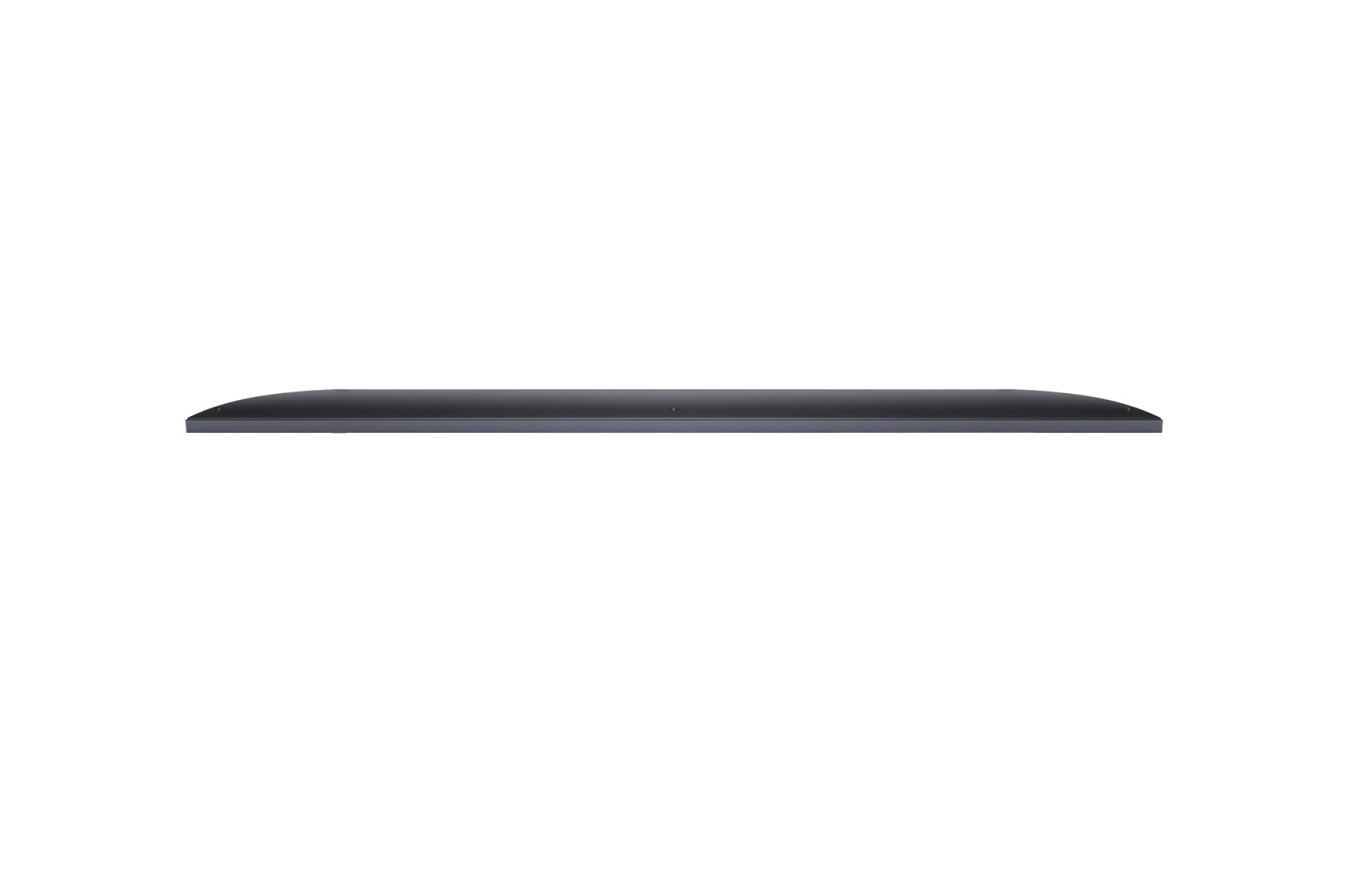

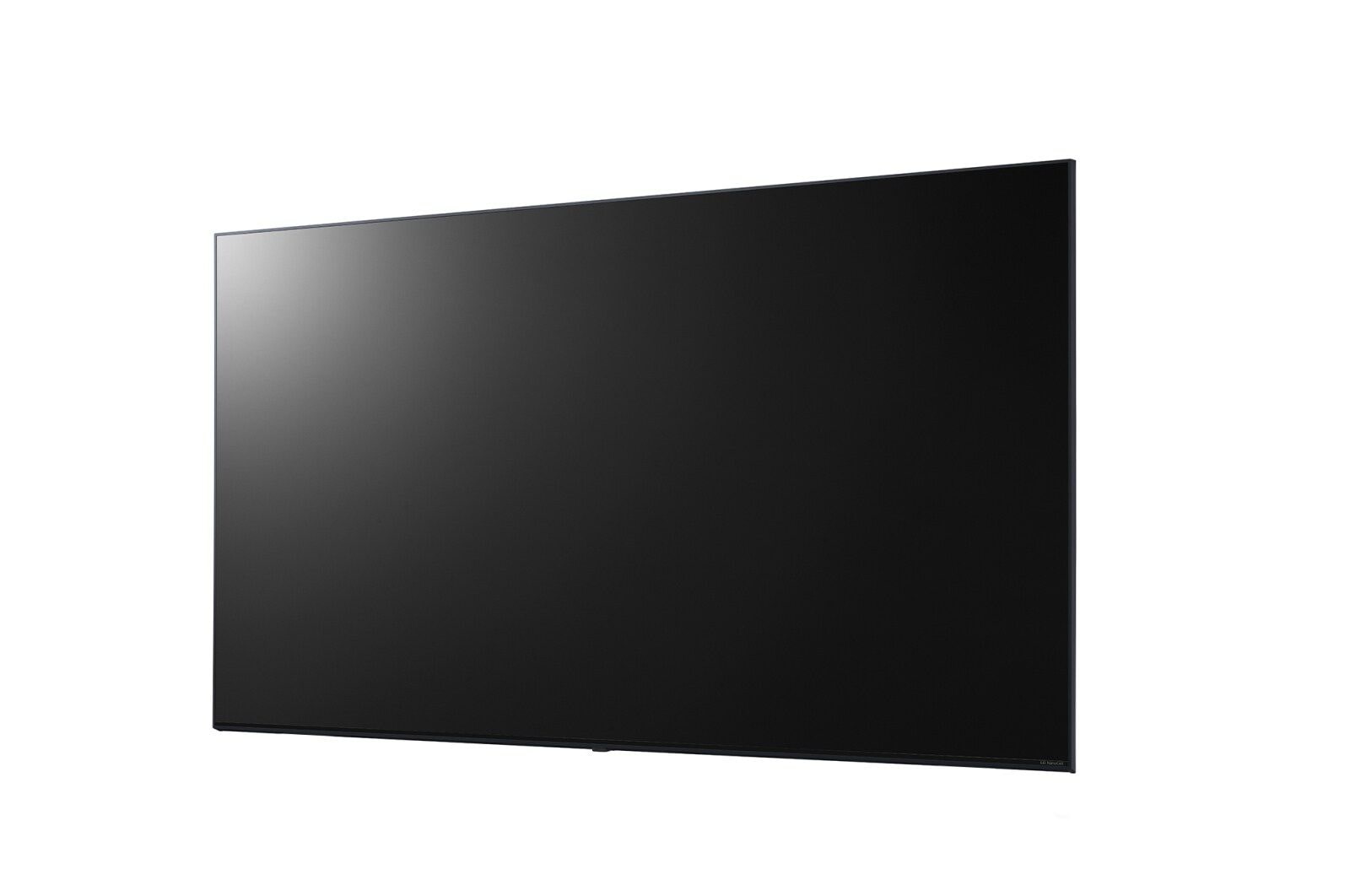

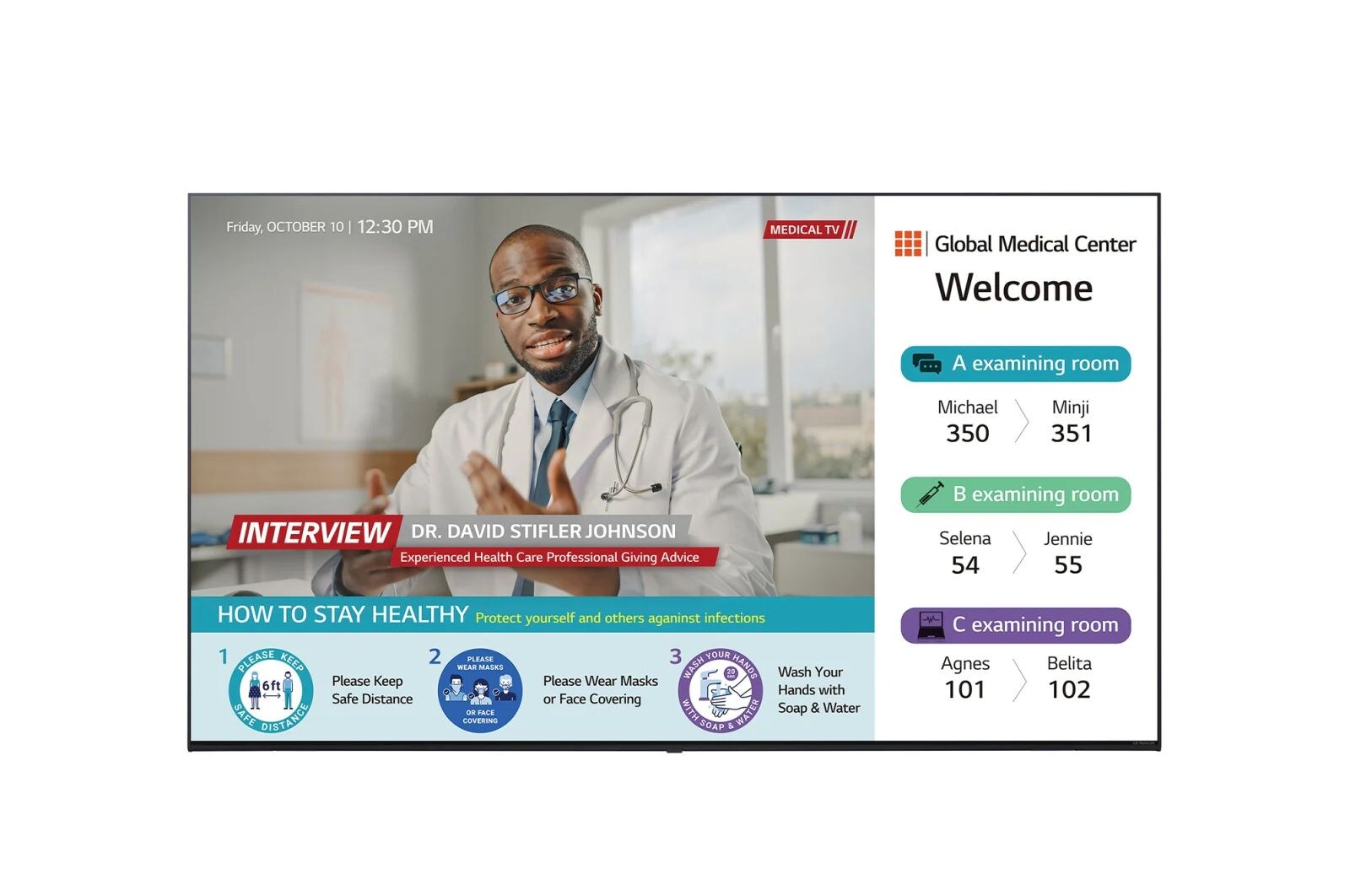

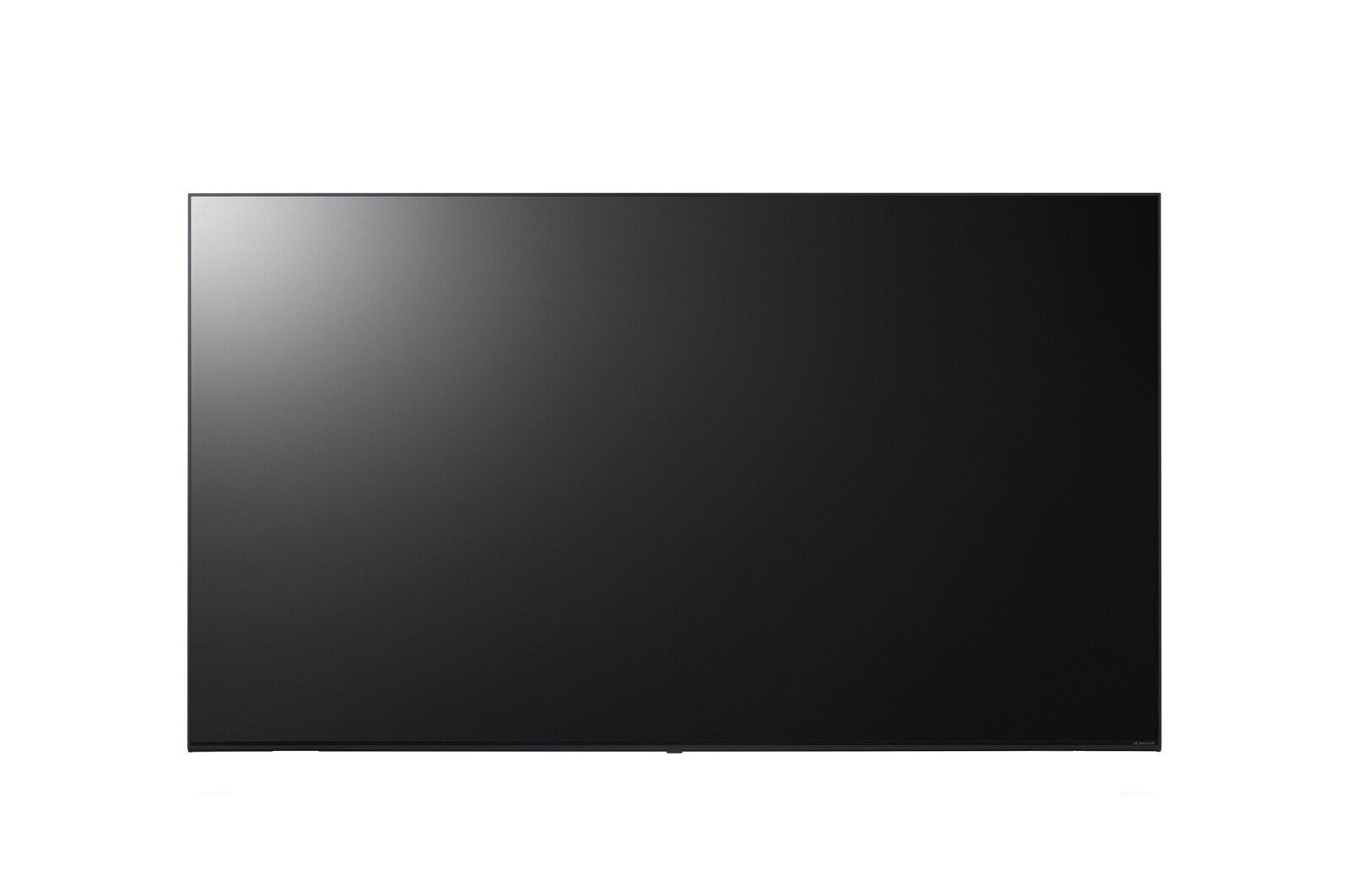

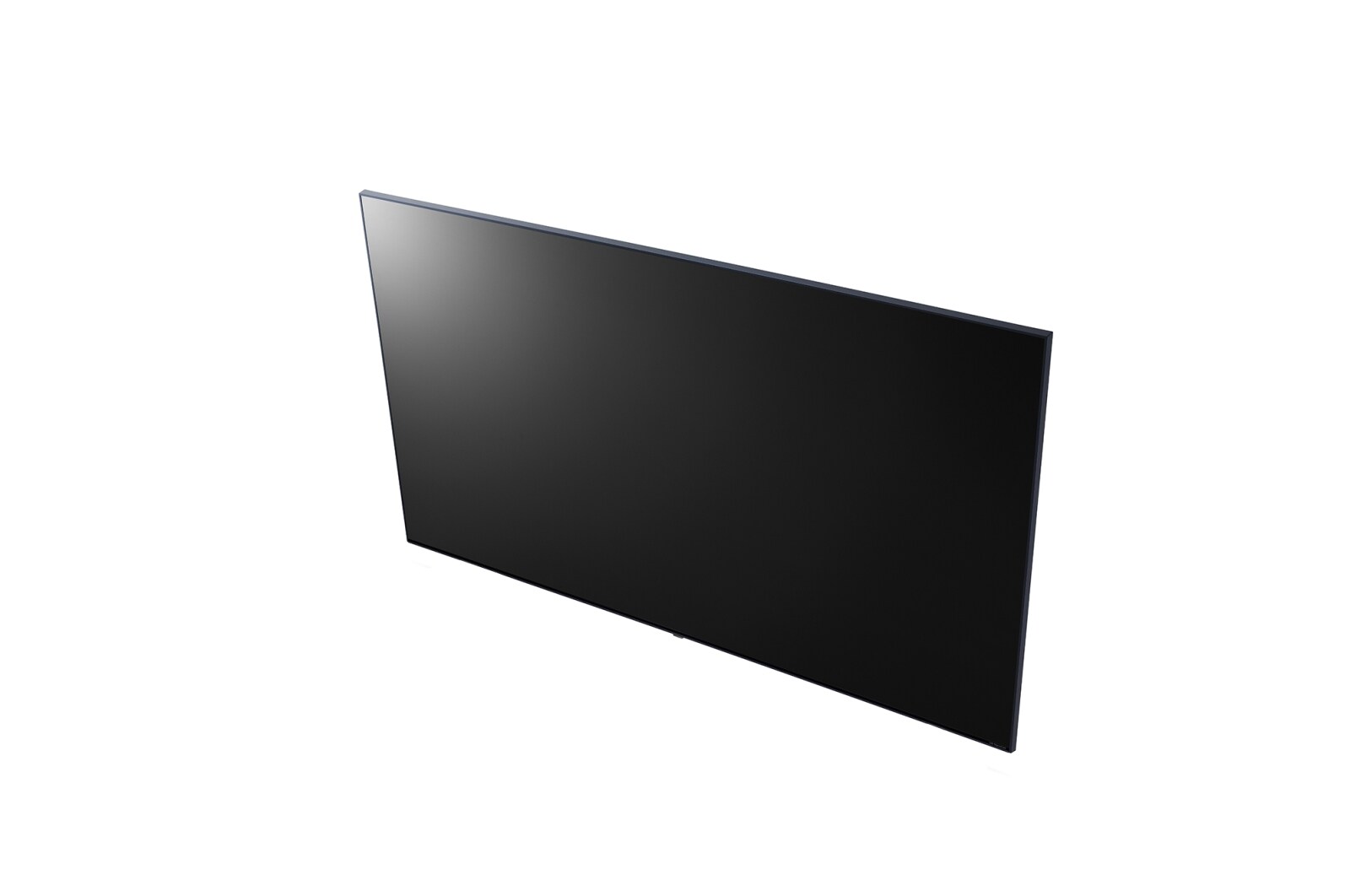

LG NanoCell Hospital TV, 55UR772M0UB
LG NanoCell Hospital TV, 55UR772M0UB
LG NanoCell Hospital TV, 55UR772M0UB
LG NanoCell Hospital TV, 55UR772M0UB
LG NanoCell Hospital TV, 55UR772M0UB
LG NanoCell Hospital TV, 55UR772M0UB
LG NanoCell Hospital TV, 55UR772M0UB
LG NanoCell Hospital TV, 55UR772M0UB
LG NanoCell Hospital TV, 55UR772M0UB
LG NanoCell Hospital TV, 55UR772M0UB
LG NanoCell Hospital TV, 55UR772M0UB
LG NanoCell Hospital TV, 55UR772M0UB
LG NanoCell Hospital TV, 55UR772M0UB
LG NanoCell Hospital TV, 55UR772M0UB
LG NanoCell Hospital TV, 55UR772M0UB
LG NanoCell Hospital TV, 55UR772M0UB
LG NanoCell Hospital TV, 55UR772M0UB
LG NanoCell Hospital TV, 55UR772M0UB
LG NanoCell Hospital TV, 55UR772M0UB
LG NanoCell Hospital TV, 55UR772M0UB

Key Features

  • UL Hospital Grade Listed
  • Pillow Speaker & Nurse Call Ready
  • Web-based Telemedicine Ready
  • Pro:Centric Hospital Management Solution
More

UL-Listed Hospital TVs with NanoCell Technology

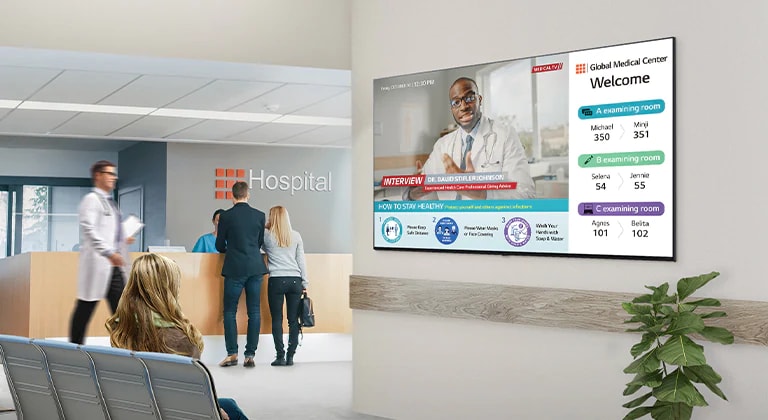

There is a TV set on the wall of the hospital lobby for waiting people.

*All images are for illustrative purposes only.

Real 4K Made by Pure Colours

The NanoCell hospital TV delivers a broad spectrum of colour and lifelike accuracy with advanced NanoCell technology. Providing more brilliant and clear 4K, its visual experience will make viewers captivated.

A TV is screening more realistic and vivid color compared to the background.

*Conventional refers to LG’s UHD TVs without NanoCell technology.
**Image simulated.

Nano Bezel Adds Sophisticated Ambiance

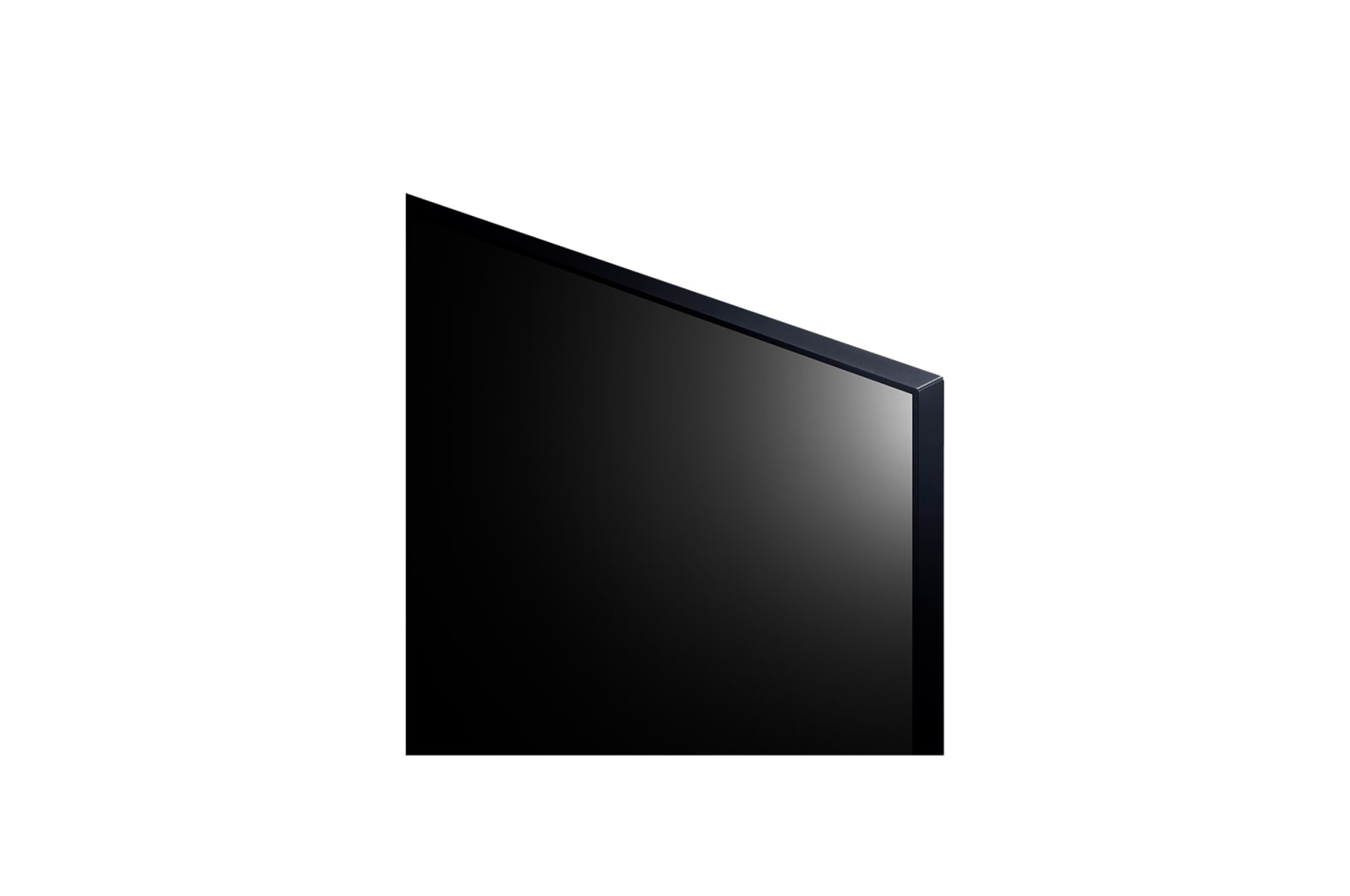

Bigger yet keeping a sleek look. With its minimal Nano Bezel, the UR772M series is designed to blend into any interior while creating a great immersion with a large screen size.

A TV's bezel is so thin that it reduces the difference between the screen and the real thing, so the zebras on the screen look lively.

Hospital-Focused Functions

A patient is lying in bed and listening through a pillow speaker connected to UR772M, and a nurse is taking care of the patient next to them.

Pillow Speaker Ready

The NanoCell hospital TV is equipped with the interface compatible with a pillow speaker* which controls sound and videos on TV directly from a patient’s bedside.
* Pillow speaker is not provided by LG. (sold separately)

Nurse Call System Ready

Through nurse call system provided by a pillow speaker connected to LG hospital TV, staff can be called immediately for emergency.

UL Hospital Grade Listed

The UR772M series is designed for the healthcare and hospital environment, meeting safety requirements by UL.

Group Telemedicine Ready

LG NanoCell Hospital TV is ready for web-based telemedicine. Without an additional video conferencing equipment, SI can develop and deploy their web applications for 1:1 or 2:1 remote meeting. If necessary, controlling of camera* angle and zoom during a meeting is also possible.

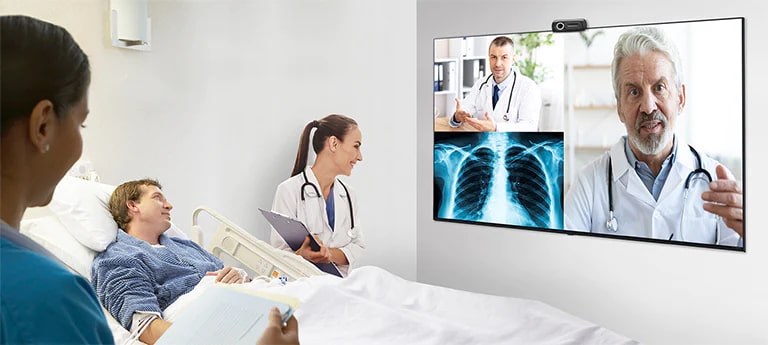

Patients and nurses in the hospital room are communicating remotely with the doctor via TV.

*Supporting camera : Logitech C310, MS lifecamHD-3000.
**The feature above requires a separate web application.

Pro:Centric
Hospital Management Solution

The hospital content management solution Pro:Centric Direct offers easy and simple editing tools, making it easy to perform service and IP network-based remote management. The Pro:Centric Direct solution enables users to edit their interface easily by providing customized interface and efficiently manages all TVs in the hospital.

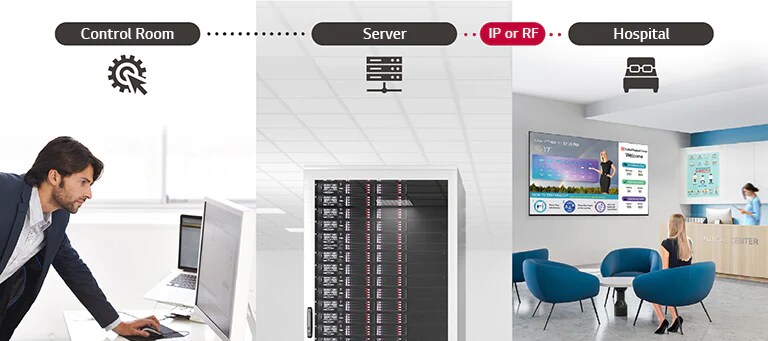

A man is remotely managing some contents and settings of the TVs installed in the hospital using Pro:Centric Direct Solution through the server.

*The actual screen may be slightly different.
**Some features may not be supported based on PCD versions.

A patient in the hospital room is watching VOD on a TV hanging on the wall without a set-top box.

Embedded b-LAN

LG NanoCell Hospital TV supports embedded broadband local area network (b-LAN), enabling PPV (Pay Per View) and VOD service without the need for a set-top box.
Using Pro:Idiom can prevent illegal copying of content.

Pro:Idiom

The UR772M provides embedded Pro:Idiom decryption, unlocking access to high-value digital content with Pro:Idiom DRM (Digital Right Management) which prevents illegal copying of the content.

Soft AP

Software-enabled Access Point (SoftAP) is a "virtual" Wi-Fi feature that uses TV as a wireless hotspot, enabling patients to connect their own devices to the SoftAP.

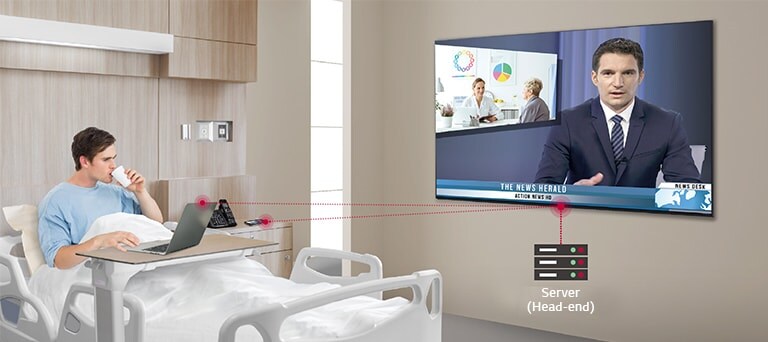

The patient lying on the bed connect his laptop wirelessly to the TV through the "virtual" Wi-Fi feature.

*SoftAP should be set in the installation menu after the TV is turned on.
**Smart Mirroring may not be operated at the same time.

A woman is controlling TV by speaking to a remote control which has voice recognition.

Voice Recognition

Thanks to the embedded Natural Language Processing on webOS 6.0, Voice recognition* allows users to easily control LG hospital TV simply using their voices.

* Magic Motion Remote is required. (sold separately)
Each remote control only controls a designated TV without tangling each other.

Multi IR

Multi IR* function eliminates the signal interference of remote controls that occurs between multiple TVs in one place. LG NanoCell hospital TV supports this, so users can freely control their own TVs without disturbing the others.

* Separately purchased multi-IR remote controller

Key Feature

  • UL Hospital Grade Listed
  • Pillow Speaker & Nurse Call Ready
  • Web-based Telemedicine Ready
  • Pro:Centric Hospital Management Solution
Print

All Spec

POWER SPEC.

  • Power Consumption(Typ)

    81W

  • Power Consumption(Max)

    160W

  • Power Supply (Voltage, Hz)

    AC 120V 50/60Hz

  • Standby Power Consumption

    Under 0.5W

ACCESSORIES

  • Power Cable

    YES (1.8M / Angle type)

AUDIO (SOUND)

  • AI Acoustic Tuning

    YES (Ready,mmR Required)

  • AI Sound

    YES

  • LG Sound Sync

    YES

  • Speaker (Audio Output)

    20W

BROADCASTING SYSTEM

  • Analog (NTSC / SECAM / PAL)

    NTSC

  • Digital

    ATSC / Clear QAM

CONNECTIVITIES

  • Digital Audio Out (Optical)

    YES

  • HDMI In

    YES (3ea)

  • LG SVC only (Phone jack type)

    YES

  • MPI Port (RJ12 jack)

    YES

  • Pillow Speaker interface (6pin)

    YES

  • RF In

    YES (1ea)

  • RJ45 (Usage Purpose)

    1 (Ethernet)

  • RS-232C (D-Sub 9pin / Phone jack)

    YES (Phone jack)

  • TV link Configuration (Phone jack type)

    YES

  • USB (Ver.)

    YES (1ea / 2.0)

DESIGN

  • Front Color

    Ashed Blue

  • Stand Type

    No Stand (Wall Mount Only)

  • Tool Name

    NANO75

DIMENSIONS/WEIGHT

  • Bezel Width (L/R/U/B, Off Bezel)

    6.9/6.9/6.9/18.4mm

  • Bezel Width (L/R/U/B, On Bezel)

    12.8/12.8/12.8/19.9mm

  • Dimension in Shipping (W x H x D)

    1360 x 810 x 162mm

  • Dimension without Stand (W x H x D)

    1235 x 715 x 57.5mm

  • Weight in Shipping

    18.8kg

  • Weight without Stand

    14.0kg

DISPLAY

  • Brightness (Typ.)

    330 nit

  • Resolution

    4K Ultra HD (3,840 x 2,160)

  • Size (Inch)

    55

HOSPITALITY FEATURE

  • Diagnostics

    YES (IP Remote)

  • b-LAN

    YES

  • Energy Saving mode

    YES

  • EzManager

    YES

  • Hotel Mode / PDM / Installer Menu

    YES

  • HTNG-CEC (Version)

    YES (1.4)

  • Insert Image

    YES

  • Instant ON

    YES

  • IR Out

    YES (RS-232C, MPI)

  • Lock mode

    YES (Limited)

  • Mobile Remote

    YES

  • Multi IR Code

    YES

  • One Channel Map

    YES (LCM)

  • Port Block

    YES

  • RJP (Remote Jack Pack) Compatibility

    YES

  • Simplink(HDMI-CEC) (Version)

    YES (1.4)

  • SNMP

    YES

  • USB Cloning

    YES

  • Wake on RF

    YES

  • Welcome Screen (Splash Image)

    YES

  • WOL

    YES

HOSPITALITY SOLUTION

  • Pro:Centric Direct

    YES

  • Pro:Centric Cloud

    YES

  • Pro:Centric Server

    YES

  • Pro:Centric Smart

    YES

  • Pro:Centric V

    YES

  • Pro:Idiom (DRM)

    YES

  • Pro:Idiom Media (DRM)

    YES

  • Quick Menu (Customizable Portal)

    YES

  • webRTC (Real Time Communication)

    YES

INFO

  • Category

    Pro:Centric Smart

MECHANICAL

  • Kensington Lock

    YES

  • VESA Compatible

    300 x 300mm

SMART FUNCTION

  • Bluetooth

    YES

  • Bluetooth Audio Playback

    YES

  • DIAL

    YES

  • Gallery Mode

    YES

  • HDMI-ARC

    YES (HDMI2)

  • IoT

    YES

  • Magic Remote Compatibility

    YES (Ready)

  • Screen Share

    YES

  • Soft AP

    YES

  • Voice Recognition (Standalone/Solution)

    YES

  • webOS version

    webOS 6.0

  • Web Browser

    YES

  • Wi-Fi

    YES

STANDARD

  • EMC

    FCC

  • Safety

    UL Hospital

VERTICAL FUNCTION (CORPORATE/RETAIL)

  • BEACON

    YES

  • NTP sync timer

    YES

  • Video Tag

    YES (2 Video)

VERTICAL FUNCTION (HOSPITAL)

  • Pillow Speaker

    YES

VIDEO

  • HDR_HDR 10 Pro

    YES

  • HDR_HLG (Hybrid Log Gamma)

    YES

White Paper

extension : pdf
Quest for Genius.pdf
Download

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
