75UR770H9UD
4K UHD Hospitality TV with Pro:Centric Direct
  • Pro:Centric Cloud
  • Slim Design
  • Quick Menu
  • Voice Recognition

component-OBScountrySelectDesc

4K UHD Hospitality TV with Pro:Centric Direct

4K UHD Hospitality TV with Pro:Centric Direct

A TV hanging on the hotel wall shows a vivid and bright screen. A TV hanging on the hotel wall shows a vivid and bright screen.
* 65 inch.
* All images in this web page are for illustrative purposes only.

Pro:Centric Cloud

Pro:Centric Cloud improves the usability of enterprise's CMS solution and cloudification of system, reinforcing the service of 3rd party solution. It also offers various design templates, improving data collection and analytics platform with an eye-catching dashboard.
The woman is working through Pro:Centric Cloud. The woman is working through Pro:Centric Cloud.

Easily Accessible to Netflix Application with Pro:Centric Direct

Pro:Centric Direct, the easy and simple management solution for hotel content creates a memorable experience for your clients. Especially, the Netflix App can be activated by anyone with Pro:Centric Direct. Netflix Membership Required.
The hotel content including Netflix App is shown on TV inside the hotel room. The hotel content including Netflix App is shown on TV inside the hotel room.
* webOS 5.0 only.
* PMS required.
* Available with Pro:Centric Cloud.

Pro:Centric Direct

The hotel content management solution Pro:Centric Direct offers easy and simple editing tools, making it easy to perform service and IP network-based remote management with a single click. The Pro:Centric Direct solution enables users to edit their interface easily by providing customized interface and efficiently manages all TVs in the room. The latest PCD version provides IoT-based inroom control as well as voice control function through LG Natural Language Processing (NLP). These IoT and voice-related functions will be your starting point to prepare for the hotel rooms of next generation through artificial intelligence.
The man is managing the contents and settings of TV in the hotel using Pro:Centric Direct solution through a server. The man is managing the contents and settings of TV in the hotel using Pro:Centric Direct solution through a server.
* Some features may not be supported based on PCD versions.

Slim Bezel That Makes TV a Sophisticated Objet

UR770H series with a slim bezel is designed to blend into any interior and delivers an immersive viewing experience without any interruption.
The TV with slim bezel shows the screen with realistic images to enhance viewer experience. The TV with slim bezel shows the screen with realistic images to enhance viewer experience.

SoftAP

Software-enabled Access Point (SoftAP) is a "virtual" Wi-Fi feature that uses TV as a wireless hotspot, enabling guests to connect their own devices to the SoftAP. It supports Bridge Mode, allowing administrators to manage in-room SoftAP information such as signal level, SoftAP passwords, etc.
The TV is featuring SoftAP, which is a "virtual" Wi-Fi feature, to other TVs. The TV is featuring SoftAP, which is a "virtual" Wi-Fi feature, to other TVs.
* SoftAP should be set in the installation menu after the TV is turned on.
* Smart Mirroring may not be operated at the same time.

More Innovative LG webOS 5.0

Explore the latest LG Smart TV features, and discover TVs that deliver innovative technology, remarkable clarity, and true-tolife colours. Newly added Mood Display & Gallery Mode enable you to utilize the TV as a customized clock and an artwork which perfectly harmonizes with your space and life.
A TV is screening an art piece with Gallery Mode based on webOS. A TV is screening an art piece with Gallery Mode based on webOS.
* Support devices for Bluetooth Sound Sync: Android (above v4.4 KitKat) / iOS based mobile device.
DESIGN
  • Tool Name
    UP8000
    Stand Type
    1 pole (Fixed)
  • Front Colour
    Ashed Blue
Display
  • Inch
    75"
    Resolution
    3840 X 2160 (UHD)
  • Backlight Unit Type
    Direct
    Brightness
    330
  • Dynamic Contrast Ratio (Dynamic MCI (Hz))
    1000000:1
    Static (panel) contrast ratio
    1200:1
  • Response Time(G to G, ms)
    8
    Refresh Rate
    60Hz
  • Life span (hrs)
    30000
Video
  • SoC
    K6Hp
    SoC (Marketing Name)
    Quad
  • HDR_HDR 10 Pro
    Yes
    HDR_HLG
    Yes
Audio
  • Speaker (Sound Output)
    10W + 10W
    Speaker System
    2.0 ch
  • AI Sound
    Yes
    One Touch Sound Tuning
    Yes (Ready)
  • LG Sound Sync
    Yes (Required Bluetooth)
Broadcasting System
  • Digital (Terrestrial,Cable,Satellite)
    ATSC, Clear QAM, Analog NTSC
    Analog (NTSC / SECAM / PAL)
    NTSC
  • Global IPTV Support
    Yes
Hospitality Solution
  • Data Streaming ( IP & RF)
    Yes
    HCAP (GEM/FLASH/HTML)
    ※ Service Carousel (TLL/XML)
    GEM/ HTML5
  • IP Return path
    Yes
    Multicast / Unicast ready
    Yes / Yes
  • webRTC (Real Time Communication)
    Yes
    Pro:Centric Cloud (version)
    Yes (1.0)
  • Pro:Centric Direct (version)
    Yes (4.5)
    Pro:Centric Application (version)
    Yes (PCA3.8)
  • PCS500R
    Yes
    PCS400R
    Yes
  • Quick Menu (Version)
    Yes (4.0)
    Pro:Idiom (S/W Type)
    Yes
  • Pro:Idiom (Mobile, Lite)
    Yes
Smart Function
  • webOS version
    Yes (webOS 5.0)
    Smart Home (Launcher Bar)
    Yes
  • Gallery Mode
    Yes
    Web Browser
    Yes
  • Pre-loaded App
    Yes
    SDP Server compatibility
    Yes
  • Magic Remote Compatibility
    Yes (Ready, MR18HA)
    SW Clock (World Clock / Alarm)
    Yes
  • Soft AP
    Yes
    WiFi (version)
    Yes (802.11ac)
  • Screen Share (Miracast)
    Yes
    Smart Share
    Yes
  • LG TV Plus App
    Yes
    DIAL
    Yes
  • Bluetooth Audio Playback
    Yes
    Mobile Connection Overlay
    Yes
  • HDMI-ARC
    Yes (HDMI2)
    Voice Recogion (Standalone/Solution)
    Yes
  • IoT
    Yes
Other Feature
  • EzManager
    Yes
    USB Cloning
    Yes
  • Wake on RF
    Yes
    WOL
    Yes
  • SNMP
    Yes
    Diagnostics
    Yes (IP Remote)
  • SI Compatible
    Yes (MPI, RS232C)
    HTNG-CEC
    Yes (1.4)
  • Simplink(HDMI-CEC)
    Yes (1.4)
    IR Out
    Yes (RS-232C, MPI)
  • Multi IR Code
    Yes
    Hotel Mode / PDM / Installer Menu
    Yes (Installer Menu)
  • Lock mode
    Yes (Limited)
    Port Block
    Yes

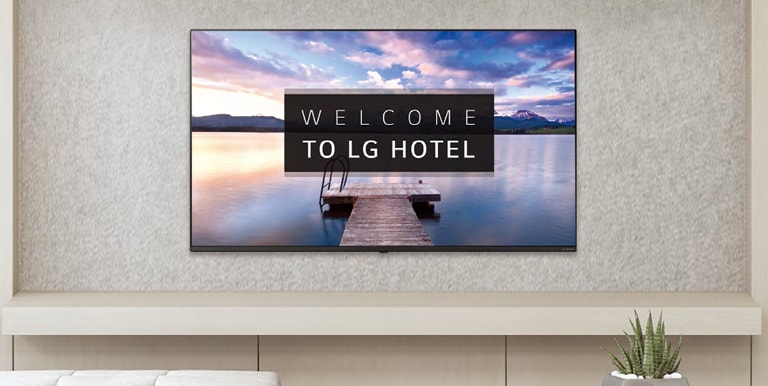

  • Welcome Screen (Splash Image)
    Yes
    One Channel Map
    Yes (LCM)
  • Instant ON
    Yes
    External Power Out
    Yes
  • V-Lan Tag
    Yes
    RJP (remote jack pack) Compatibility
    Yes
    Teleadapt/Guestlink (HDMI CEC)
  • Moving Picture Playback (SD/HD/Plus HD)
    Yes
    Auto Off / Sleep Timer
    Yes/Yes
  • Energy Saving mode
    Yes
    Motion Eye Care
    Yes
  • b-LAN embedded
    Yes
Vertical Function
  • NTP sync timer
    Yes (Clock Setup NTP)
    BEACON
    Yes
  • Video Tag
    Yes (2 supported)
Jack Interface
  • HDMI In
    2 (2.0)
    RS-232C(D-Sub 9pin / Phone jack)
    1 (Phone Jack, 4pin)
  • External Speaker Out(3.5mm phone jack)
    Audio Line Out(3.5mm phone jack)
    1 (Line-out 1 (Stereo, 0.4Vrms))
    TV link Configuration (phone jack type)
    1 (Phone Jack, 4pin)
  • LG SVC only (Phone jack type)
    1 (Phone Jack, 4pin)
    HDMI In (HDCP)
    1 (2.0)
  • USB
    1
    RF In
    1 (Dual b-LAN)
  • Digital Audio Out (Optical)
    1
    RJ45 (Usage Purpose)
    2 (Ethernet, Aux)
  • MPI Port (RJ12 jack)
    1
etc
  • VESA Compatible
    400x400
    Kensington Lock
    Yes
Mechanic
  • Weight without Stand
    31.4
    Weight with Stand
    34.6
  • Weight in Shipping
    44.5
    Size without Stand
    1678 x 964 x 59.9
  • Size with Stand
    1678 x 1045 x 378
    Size in Shipping
    1820 x 1205 x 228
  • Bezel Width (L/R/U/B) : On Bezel
    13.9/13.9/13.9/19.9
    Bezel Width (L/R/U/B) : Off Bezel
    7.9/7.9/7.9/18.4
  • Standby Power Consumption
    TBD
POWER
  • Power Supply (Voltage, Hz)
    AC 100 ~ 240V, 50/60Hz
    Power Consumption(Max)
    TBD
  • Power Consumption(Typ)
    TBD
Required Listing(Certification)
  • Safety
    UL
    EMC
    FCC
Accessory
  • Remote type
    S-Con / MMR (Option)
    Chromecast Dongle Anti-theft Cover
    Yes (Option)
  • Power Cable
    attached 2.0m
