TV Signage

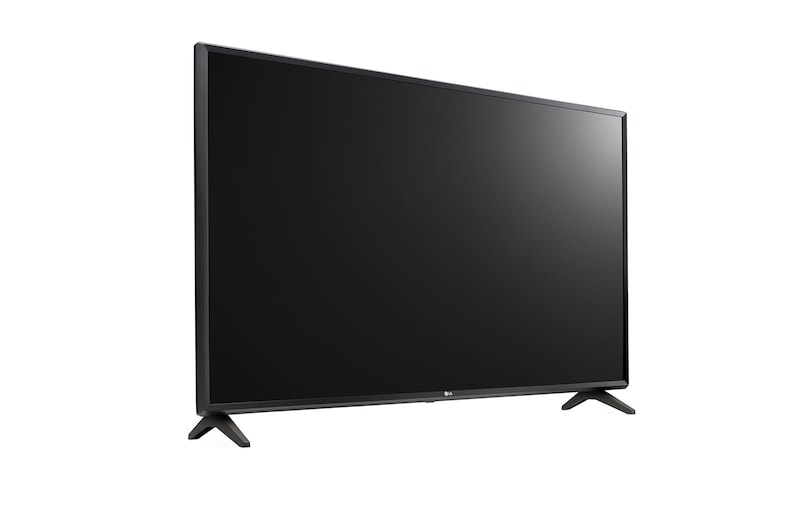

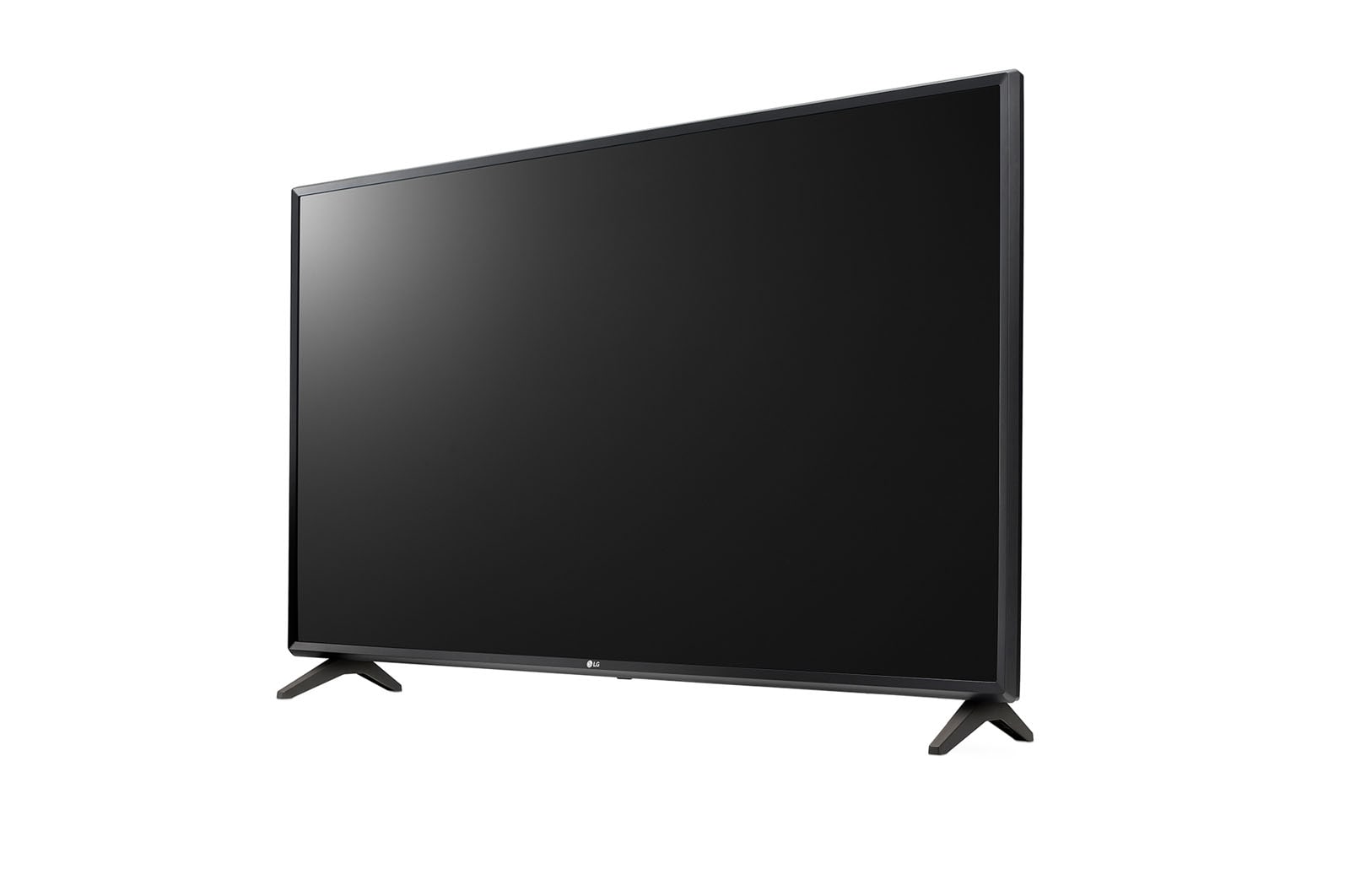

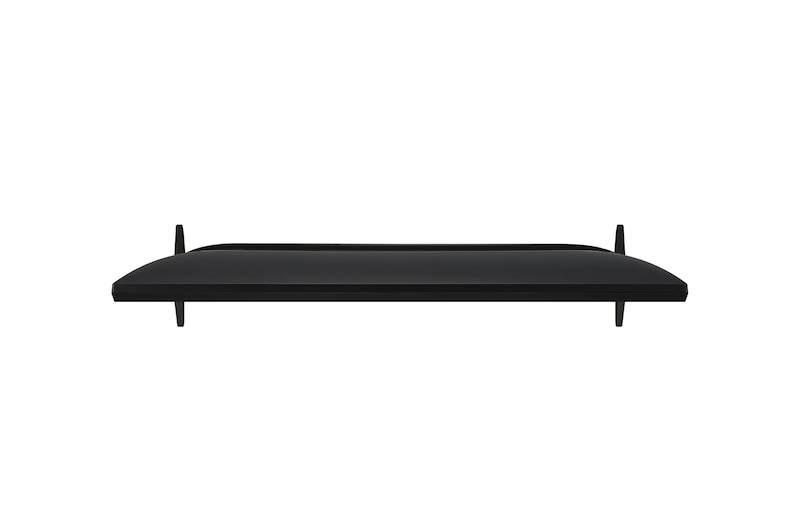

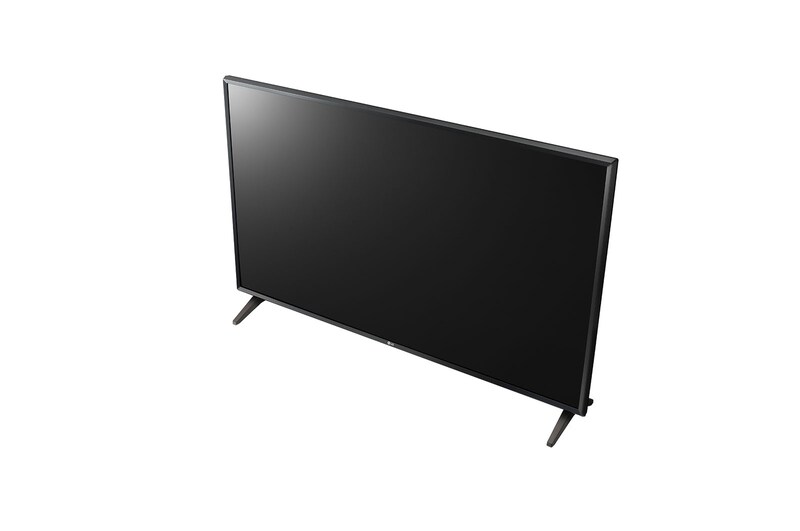

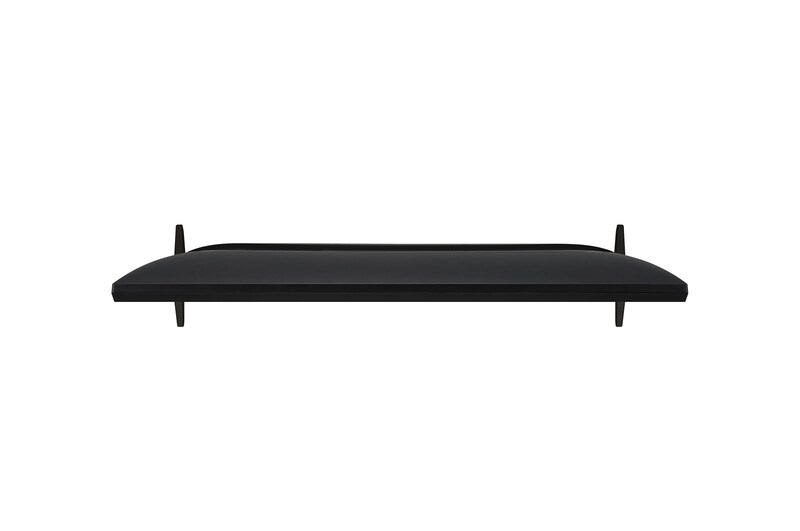

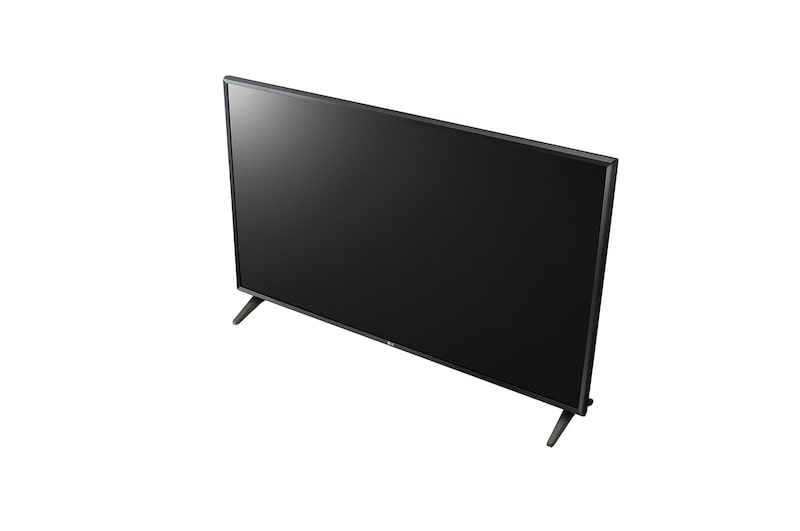

32LN340CBUD

TV Signage

(1)

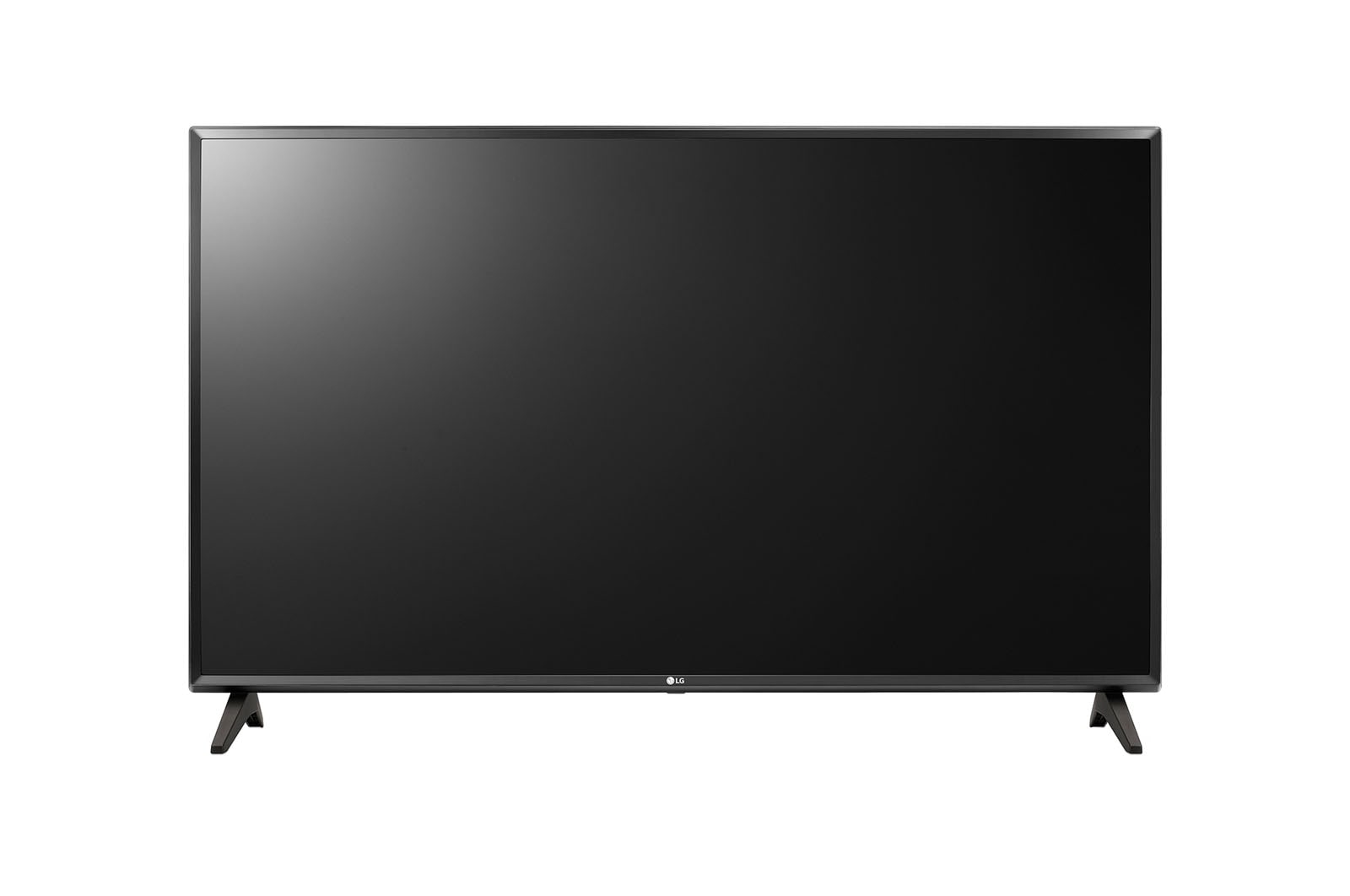

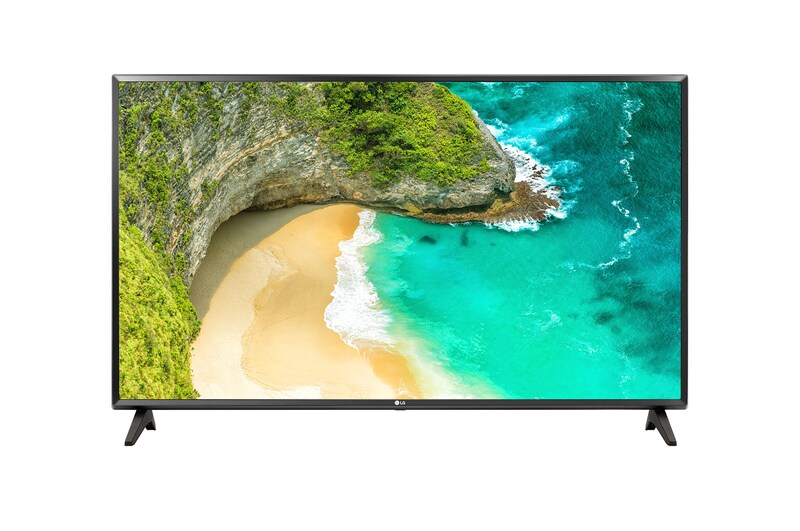

Front view with infill image

LG webOS TV Signage with Multiple Use

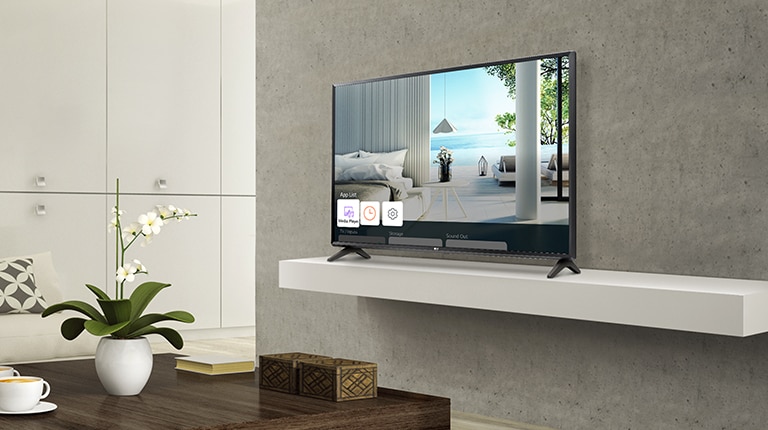

A TV is placed on the hotel’s wall and various menu items such as an app list are displayed on its screen.

* All images in this web page are for illustrative purposes only.

A man is managing several displays at once in his office using an LG SuperSign Control+ solution.

Easy Group Control

The LN340C supports SuperSign Control+ Free version which can manage up to 100 displays through a single account and server. Power, volume, and scheduling can be remotely adjusted, and firmware updates supported.

A TV is easily set up by copying pre-stored information onto a USB.

USB Cloning

USB data cloning makes managing multiple displays more efficient for optimal operation. Instead of setting up each display one by one, data can be copied to a USB for one display and can be sent to the other displays through a USB plug-in.

* USB is not provided by LG. FAT32 or NTFS formatting is recommended.

The LG TV Signage, windows, and lights are all connected to the controller placed on the desk.

Compatibility with AV Control Systems

The LN340C has Crestron Connected® Certification, a function that is dedicated to meeting room and that meets the growing need in corporate meeting space market.

* It is a network based control system. Available AV control systems may differ by regions.

The TV is on when there's an HDMI signal, and it is off when there's no signal.

Display Power Management

DPM (Display Power Management) can be configured to be On only when there is a TV signal present to manage power efficiently.

There's a calendar icon on the TV screen.

On/Off Time Setting

Create your own time scheduler of your Commercial TV. Once you set opening / closing hours and holidays, the TV will turn on/off according to work schedule.

A TV is making sounds in one space, and a man and a woman are listening the sound of TV through external speakers in another space.

External Speaker Out

Enhance the entertainment experience with an additional speaker (sold separately). Guests can listen to the TV audio from other rooms within their suite, not only the room where the TV is located.

* Use only with the 3 pole 3.5 mm stereo jack when connecting external speakers.
Print

All Spec

ACCESSORIES

  • Power Cable

    YES (1.8M, Angle Type)

  • Remote type

    L-Con

AUDIO (SOUND)

  • LG Sound Sync

    YES(Optical)

  • Speaker (Audio Output)

    10W

BROADCASTING SYSTEM

  • Analog (NTSC / SECAM / PAL)

    NTSC

  • Digital

    ATSC / Clear QAM / VSB

CONNECTIVITIES

  • AV In

    YES

  • Digital Audio Out (Optical)

    YES

  • External Speaker Out(3.5mm Phone jack)

    YES

  • HDMI In

    YES (2ea)

  • RF In

    YES (1ea)

  • RJ45 (Usage Purpose)

    YES (SNMP&MHEG)

  • RS-232C (D-Sub 9pin / Phone jack)

    YES (D-Sub 9pin)

  • USB (Ver.)

    YES (1ea / 2.0)

DESIGN

  • Front Color

    Ceramic Black

  • Stand Type

    2 Pole

  • Tool Name

    LJ61

DIMENSIONS/WEIGHT

  • Bezel Width (L/R/U/B, Off Bezel)

    18.8/18.8/18.8/21.6mm

  • Bezel Width (L/R/U/B, On Bezel)

    20.7/20.7/20.6/23.4mm

  • Dimension in Shipping (W x H x D)

    812 x 142 x 510mm

  • Dimension without Stand (W x H x D)

    739 x 441 x 84mm

  • Dimension with Stand (W x H x D)

    739 x 168 x 472mm

  • Weight in Shipping

    6.1kg

  • Weight without Stand

    4.85kg

  • Weight with Stand

    4.9kg

DISPLAY

  • Brightness (Typ.)

    240 nit

  • Resolution

    HD (1,366 x 768)

  • Size (Inch)

    32

HOSPITALITY FEATURE

  • Diagnostics

    YES (Self Diagnostics(USB))

  • Energy Saving mode

    YES

  • External Speaker Out / Line Out

    YES (Ext. Speaker Out)

  • Hotel Mode / PDM / Installer Menu

    YES

  • HTNG-CEC (Version)

    YES (1.4)

  • Insert Image

    YES

  • IR Out

    YES (RS-232C)

  • Lock mode

    YES

  • Multi IR Code

    YES

  • RJP (Remote Jack Pack) Compatibility

    YES

  • Simplink(HDMI-CEC) (Version)

    YES (1.4)

  • SNMP

    YES

  • USB Auto playback / playback+

    YES (USB Auto playback)

  • USB Cloning

    YES

  • Welcome Screen (Splash Image)

    YES

  • Welcome Video

    YES

  • WOL

    YES

INFO

  • Category

    Commercial lite

MECHANICAL

  • Kensington Lock

    YES

  • VESA Compatible

    200 x 200mm

POWER SPEC.

  • Power Consumption(Max)

    49W

  • Power Consumption(Typ)

    37.1W

  • Power Supply (Voltage, Hz)

    AC 120V, 50/60Hz

  • Standby Power Consumption

    Under 0.5W

SMART FUNCTION

  • webOS version

    webOS 22

STANDARD

  • EMC

    FCC

  • Safety

    UL

SUPERSIGN SW COMPATIBILITY

  • Control / Control Plus

    YES

VERTICAL FUNCTION (CORPORATE/RETAIL)

  • Crestron Certi. Compatibility

    YES

  • DPM (Digital Power Management)

    YES

  • NTP sync timer

    YES

  • Time scheduler

    YES
