US340C Series

55US340C0UD

Key Features

Brightness(Typ.) : 300 cd/m²
WOL (Wake on LAN)
Welcome Screen
Crestron Connected® (Network-based)
USB Cloning & Auto Playback

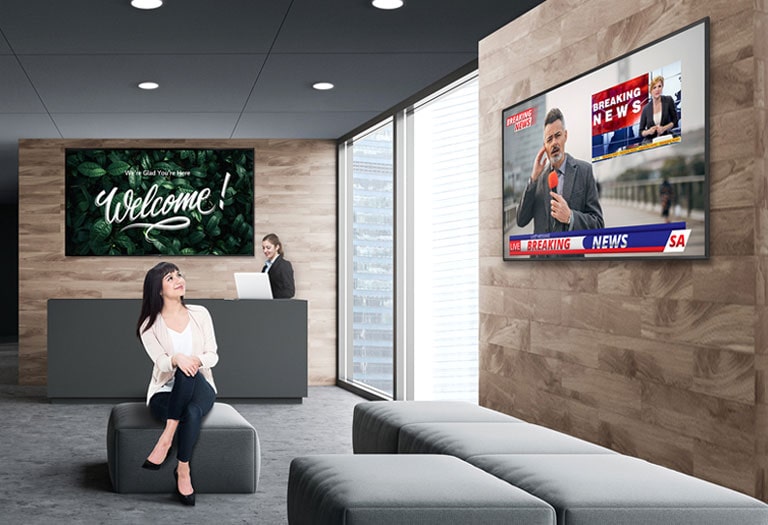

High Efficient TV Signage for Business Use

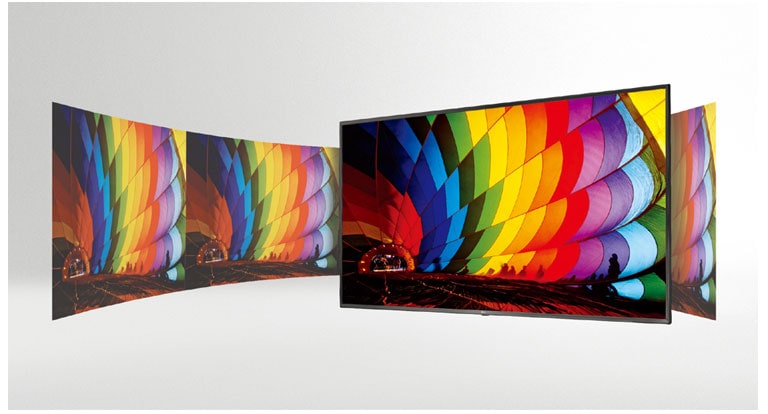

High Picture Quality

With the ultra HD resolution, the US340C series makes the colour and details more vivid and realistic. The 4K Upscaler automatically upgrades FHD content to UHD quality through the upscaling process. Moreover, the US340C series can deliver more intense colours and deep black by supporting HDR10.

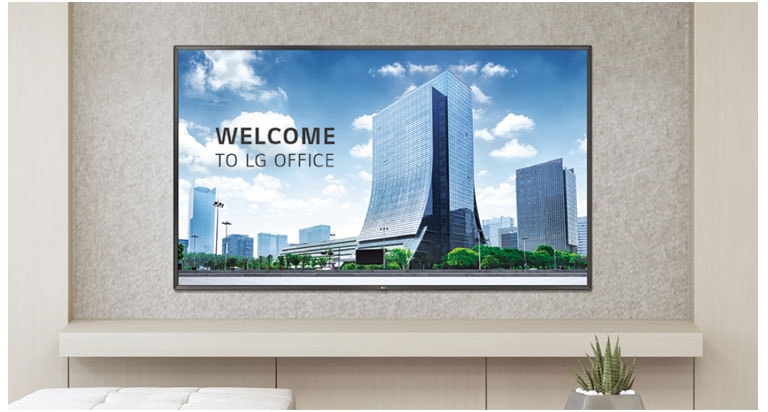

Customizable Screen

The US340C series allows for a greater variation of greeting messages to make customers feel more welcome and cared for. Also, if there is no input signal, it is possible to show the content preset by the user instead of the conventional No Signal message.

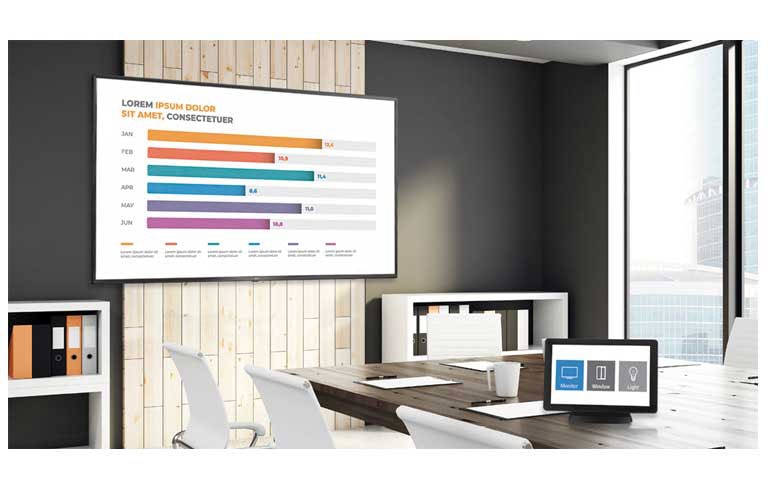

Compatibility with AV Control Systems

The US340C series has been certified Crestron Connected®, proving that it has a higher level of compatibility with professional AV controls. This results in seamless integration and automated control*, boosting business management efficiency.

*Network based control.

USB Auto Playback

USB data cloning makes managing multiple displays more efficient for optimal operation. Instead of setting up each display one by one, data can be copied to a USB for one display, and then that data will be sent to the other displays through a USB plug-in.

DPM
(Display Power Management)

Display Power Management (DPM) can be configured to be On only when there is a TV signal present to manage power more efficiently.

Time Scheduler

Create your own time scheduler of your TV. Once you set opening / closing hours and holidays, the TV will turn on / off according to work schedule.

Brightness(Typ.) : 300 cd/m²
WOL (Wake on LAN)
Welcome Screen
Crestron Connected® (Network-based)
USB Cloning & Auto Playback

All Spec

POWER

Power Supply (Voltage, Hz)
AC 120 V ~ 50 / 60 Hz
Power Consumption(Max. / Typ.)
163 W / 136 W
Standby Power Consumption
Under 0.5W

DISPLAY

Inch
55"
Resolution
3,840 x 2,160 (UHD)
Brightness
400 nit
Dynamic Contrast Ratio (Dynamic MCI (Hz))
1,000,000 : 1
Static (Panel) Contrast Ratio
1,200 : 1
Response Time
8 ms (G to G)

CERTIFICATION

Safety
UL
EMC
FCC

AUDIO

Speaker (sound output)
10W + 10W
Speaker System
2.0 ch

BROADCASTING SYSTEM

Digital TV Reception (Terrestrial,Cable,Satellite)
ATSC, Clear QAM, Analog NTSC

VIDEO

HDR_HDR 10 Pro
Yes
HDR_HLG
Yes

JACK INTERFACE

Set Side - HDMI In
2 (2.0)
Set Side - USB
1 (2.0)
Set Rear - HDMI In (HDCP)
1 (1.4)
Set Rear - RF In
1 (tuner)
Set Rear - AV In
1 (Phone Jack Type)
Set Rear - Digital Audio Out (Coaxial / Optical)
1 (Optical)
Set Rear - RS-232C(D-Sub 9pin)
1 (Control & Service)
Set Rear - RJ45 (Usage Purpose)
1
Set Rear - External Speaker Out(3.5mm phone jack)
1 (Spk-out fixed 0.01W~1.00W)
Set Rear - Debug (Phone Jack Type)
1
Set Rear - VESA Compatible
300 × 300

DESIGN

Stand Type
2 pole (No-Stand Available)
front colour
Ceramic Black

SIGNAGE FEATURE

Crestron Certi. Compatibility
Yes
DPM (Digital Power management)
Yes
Time scheduler
Yes
NTP sync timer
Yes

HOSPITALITY FEATURE

Hotel Mode / PDM / Installer Menu
Yes
Lock mode
Yes (Limited)
Welcome Screen (Splash Image)
Yes
Insert Image
Yes
External Speaker Out
Yes (Int / Fixed, 3.5mm, Stereo, Single ended Type(GND,L+,R+), 1W with 8Ω)
RJP (remote jack pack) Compatibility
YesTeleadapt/Guestlink (HDMI CEC)
USB Auto playback / USB Auto playback+ (playlist)
Yes/Yes
Moving Picture Playback (SD/HD/Plus HD)
Yes
Auto Off / Sleep Timer
Yes/Yes
Smart Energy Saving
Yes
Motion Eye Care
Yes

MAINTENANCE FEATURE

USB Cloning
Yes
WOL / WOWL
Yes (WOL)
SNMP
Yes
Diagnostics
Yes (Self Diagnostics (USB))
Simplink(HDMI-CEC)
Yes (1.4)
IR Out
Yes (RS-232C)
Multi IR Code
Yes

SUPERSIGN COMPATIBILITY

Control / Control+
Yes (Control)

MECHANIC

Weight (without Stand / with Stand)
11.3 kg / 11.5 kg
Weight (Shipping)
14.3 kg
Dimensions (without Stand / with Stand)
1,244 x 726 x 87.1 mm / 1,244 x 786 x 231 mm
Dimensions (Shipping)
1,360 x 835 x 175 mm
