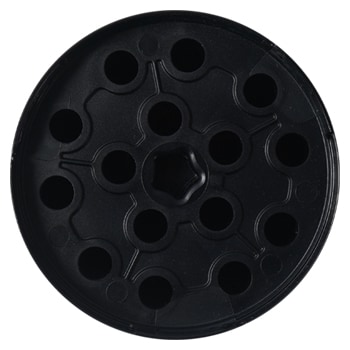

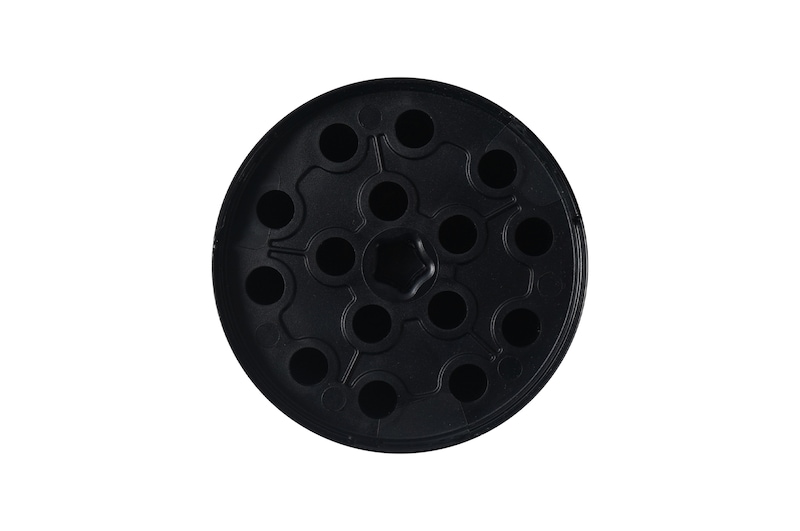

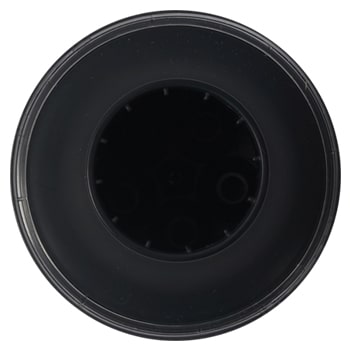

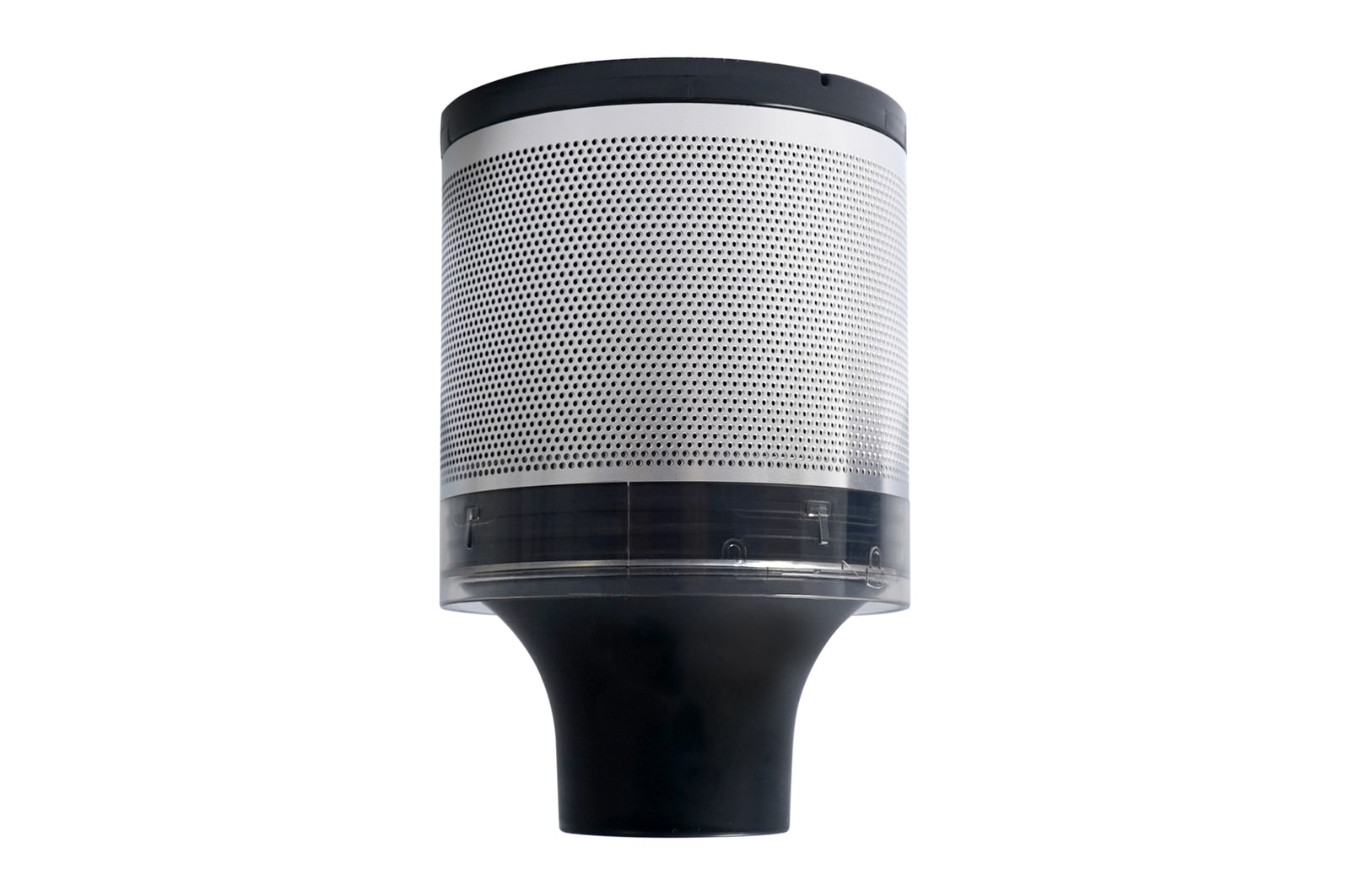

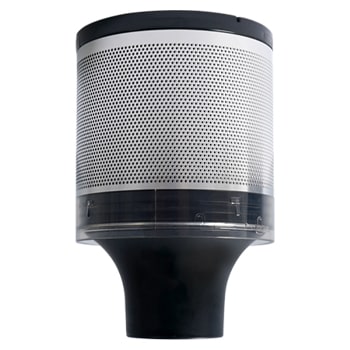

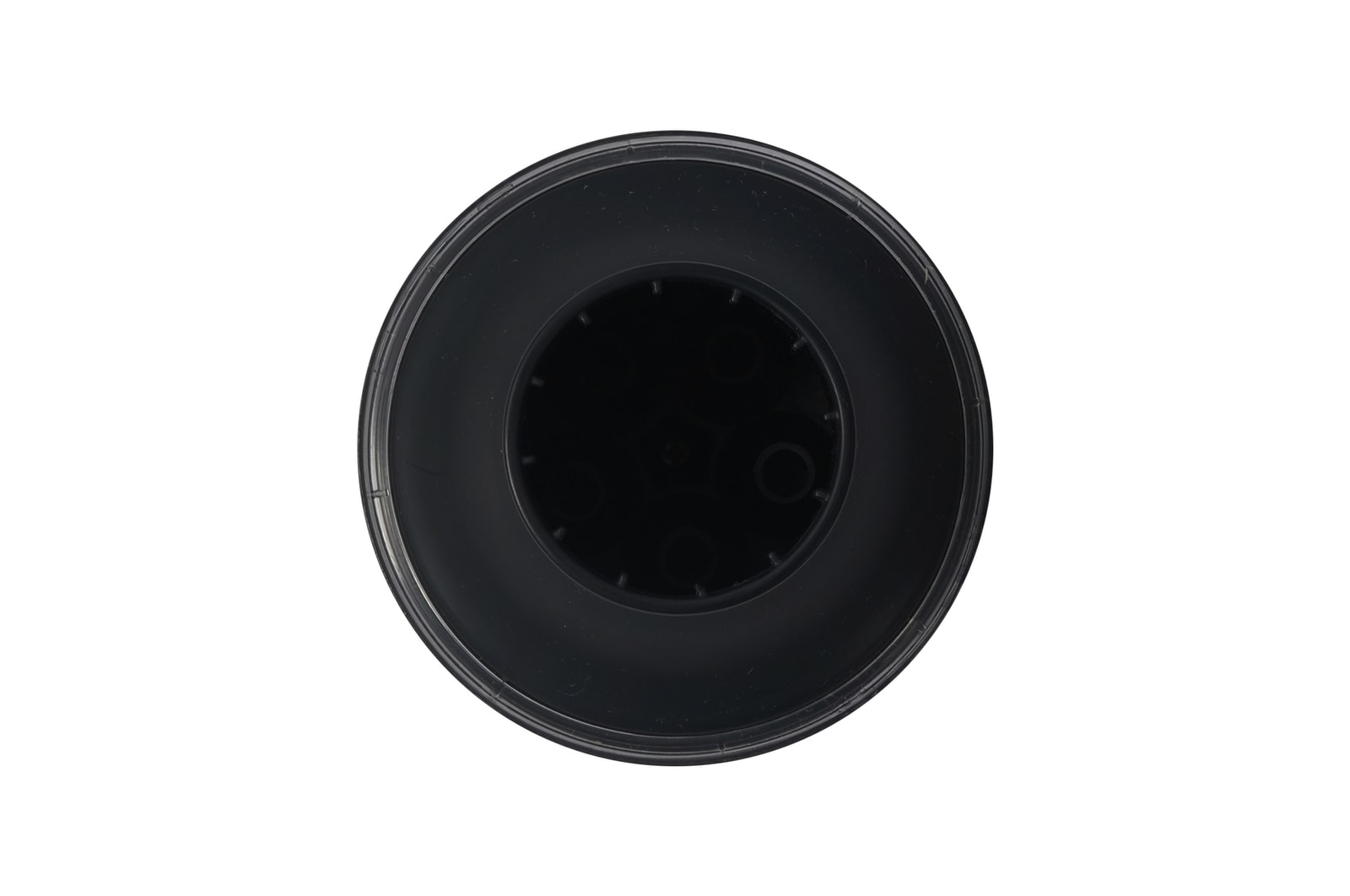

LG CordZero™ A9 Mesh Metal Filter (Black)

ADV30068805

Key Features

LG Vacuum Cleaners Genuine Filter & Dust Bag

A9T-CORE

A9T-STEAM

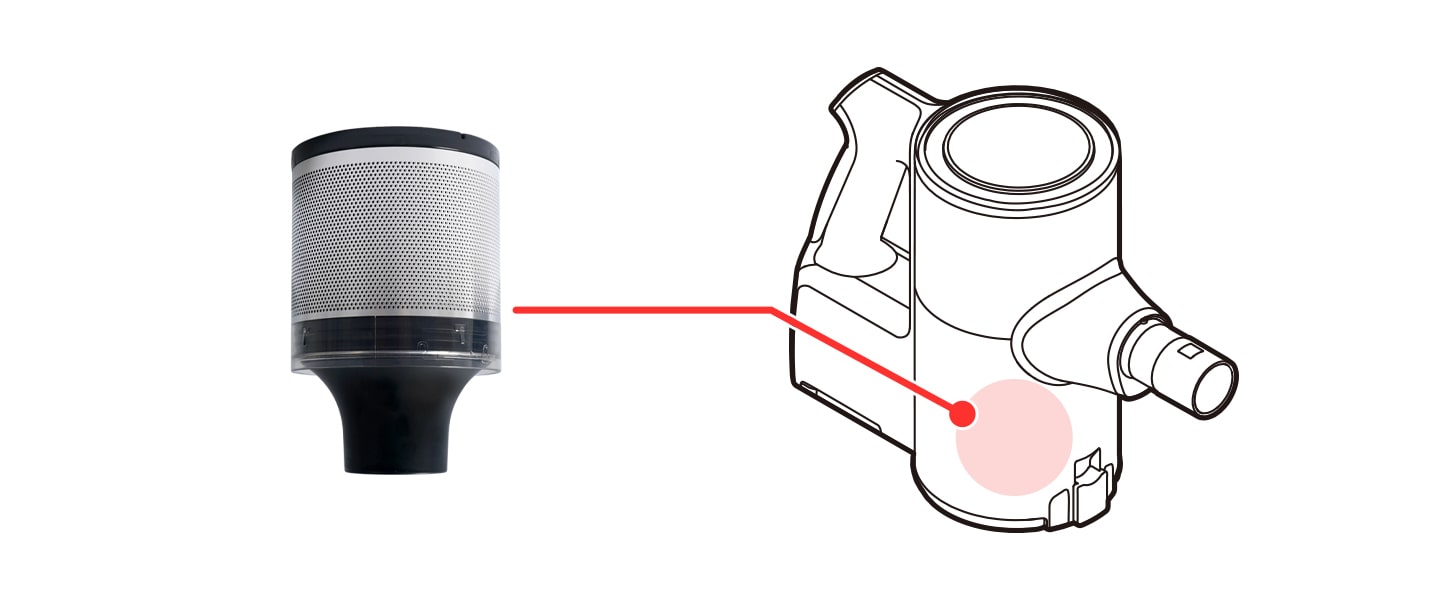

Mounting Location

*The actual installation location of this item may vary depending on product model.

*For more detailed information, please refer to the product manual for your model.

How to Clean

For more detailed information, please refer to the product manual for your model.

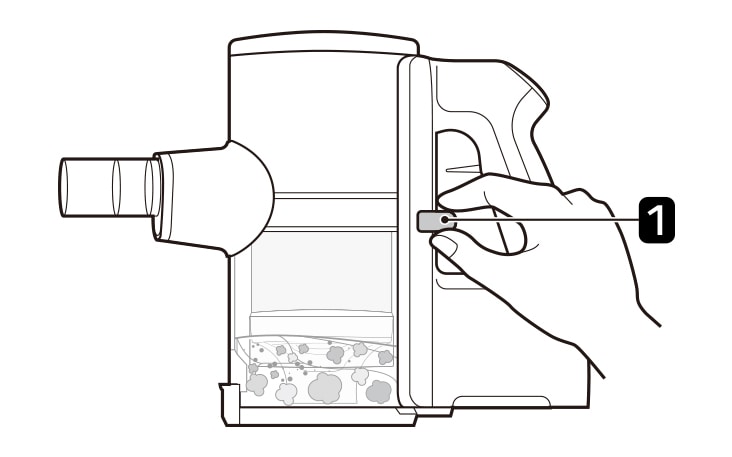

STEP 1

Remove the battery from the product body before cleaning the dust bin.

Push down the Kompressor lever ① several times to collect and compact the dust from the outside of the cyclonic mesh filter and the interior walls of the dust bin.

- Foreign objects which become lodged in the cyclonic mesh filter may be difficult to dislodge with the Kompressor lever. Remove the cyclonic mesh filter and use the cleaning brush, etc. to clean it.

A person removes the battery from the vacuum cleaner body before cleaning the dust bin. They press the Kompressor lever several times to gather and compress dust from the outside of the cyclonic mesh filter and the inner walls of the dust bin. If any foreign objects are stuck in the cyclonic mesh filter and cannot be removed with the lever, the filter is detached and cleaned thoroughly using a cleaning brush or similar tool

STEP 2

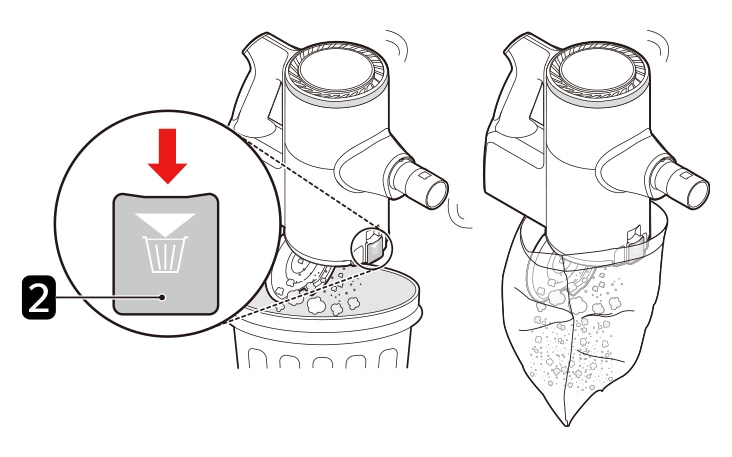

Press the dust bin cover release button ② to open the dust bin cover. Shake the dust bin to empty it.

- Be careful as dust or foreign objects may spill out when opening the dust bin. Empty the dust bin into a wastebasket or where dust and foreign objects can be easily removed.

- The dust bin can be wrapped in a plastic bag to contain the dust when emptying the dust bin.

A person presses the dust bin cover release button to open the dust bin cover and shakes the dust bin to empty it. When opening, dust or foreign objects may spill out, so the dust bin is emptied into a wastebasket or another suitable area. The dust bin can also be wrapped in a plastic bag to prevent dust from scattering while being emptied

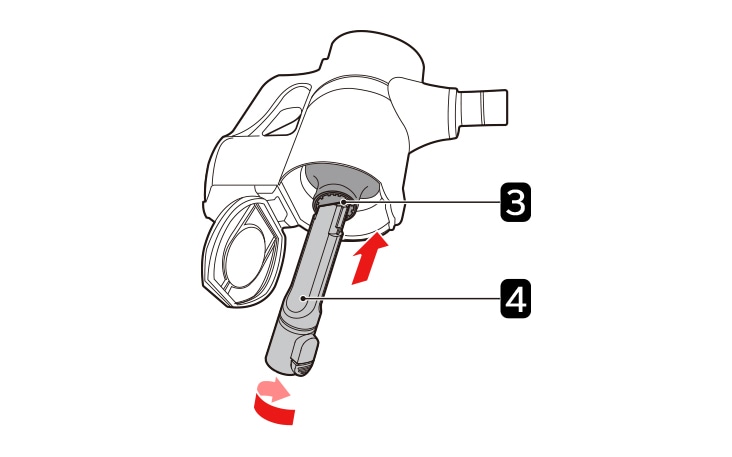

STEP 3

Insert the crevice tool ④ into the cyclonic mesh filter ③ and turn it counterclockwise to remove the filter.

A person inserts the crevice tool into the cyclonic mesh filter and turns it counterclockwise to detach and remove the filter from the vacuum cleaner

STEP 4

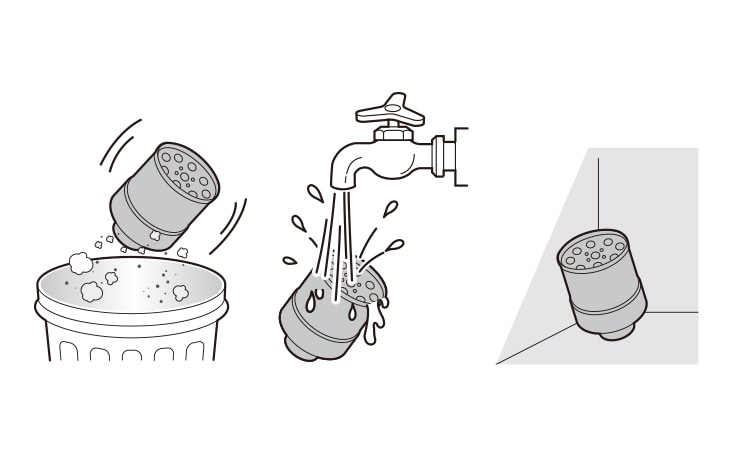

Wash the cyclonic mesh filter and the dust bin under running water.

- To avoid odour and the malfunction of the motor, allow the cyclonic mesh filter and the dust binto dry completely in a well-ventilated area out of direct sunlight for at least 24 hours before reassembling.

A person rinses the cyclonic mesh filter and dust bin under running water. After washing, both parts are placed in a well-ventilated area out of direct sunlight to dry completely for at least 24 hours before reassembling, preventing odor and motor malfunction

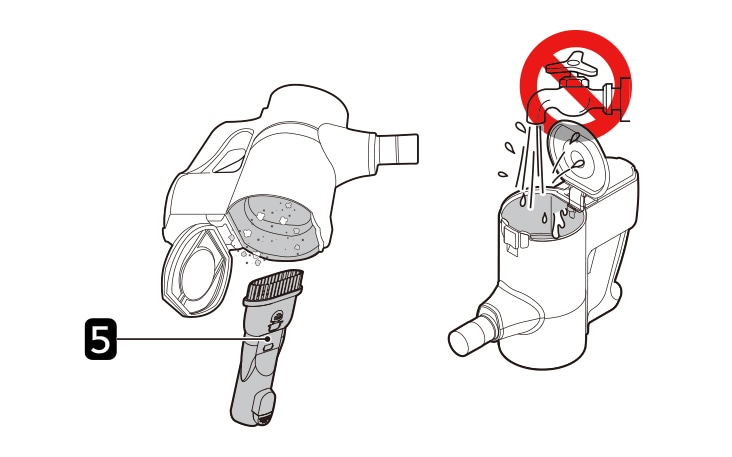

STEP 5

Use the combination tool ⑤ to clean out dust or foreign objects inside the dust bin.

- Do not wash the product body or motor with water.

Use combination tool to remove dust or foreign objects inside the dust bin. Do not wash the main body or motor with water

STEP 6

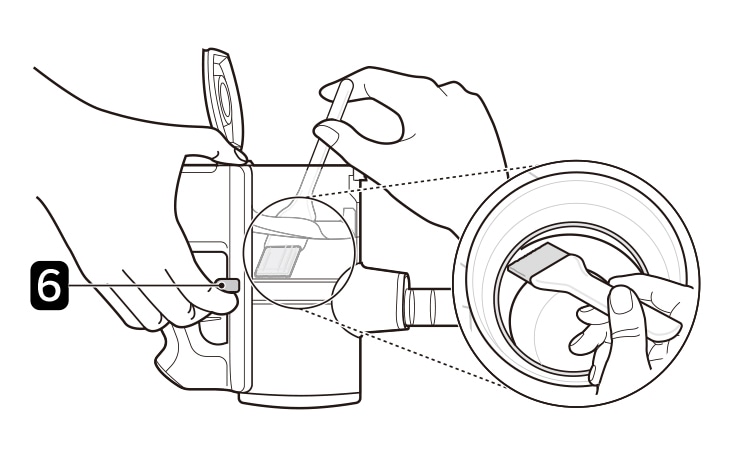

Turn the product body over and lift the Kompressor lever ⑥ up to clean the inside of the working plate with the cleaning brush, etc.

- Do not push the Kompressor lever down hard. The working plate may be damaged.

Turn the product body over and lift the Kompressor lever upward to clean the inside of the working plate using a cleaning brush or similar tool. Do not press the Kompressor lever down forcefully, as it may damage the working plate

STEP 7

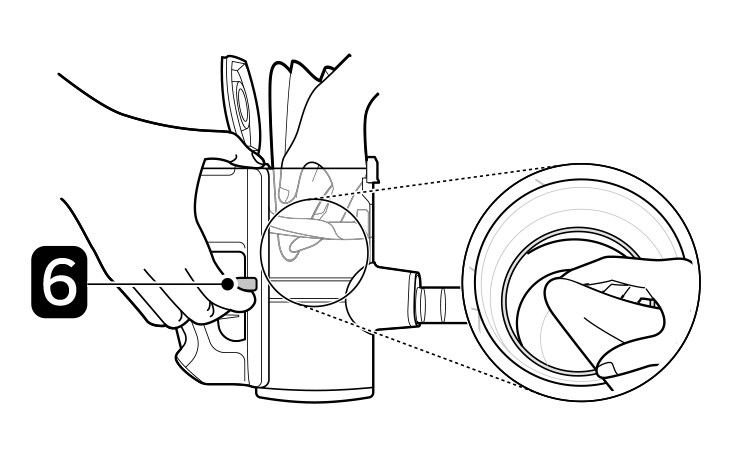

Turn the product body over again and shake it while pressing down the lever to remove the dust.

Turn the product body over, lift the Kompressor lever ⑥ up, and clean the inside of the working plate with the cleaning towel.

Turn the product body over again and shake it while pressing down the lever to remove dust. Then, turn the product body over, lift the Kompressor lever upward, and clean the inside of the working plate using a cleaning towel.

* Product images and features may contain advertising expressions and may differ from the actual product. Product appearance, specifications, etc. may change without prior notice for product improvement.

* All product images are photo cuts and may differ from the actual product. Product color may vary depending on monitor resolution, brightness settings, and computer specifications.

* The performance of the product may vary depending on the usage environment, and availability may vary by store.

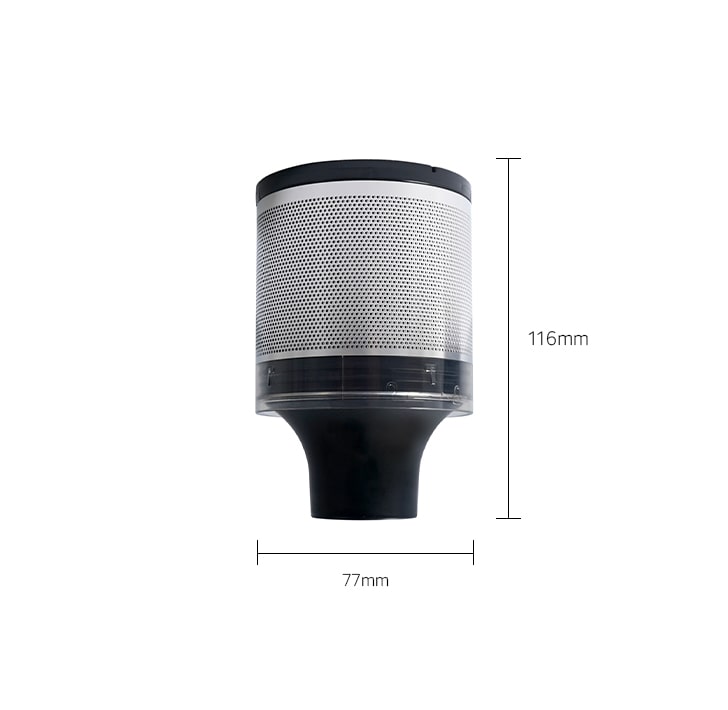

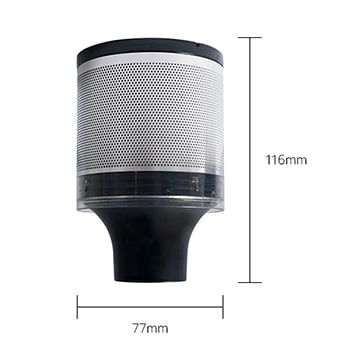

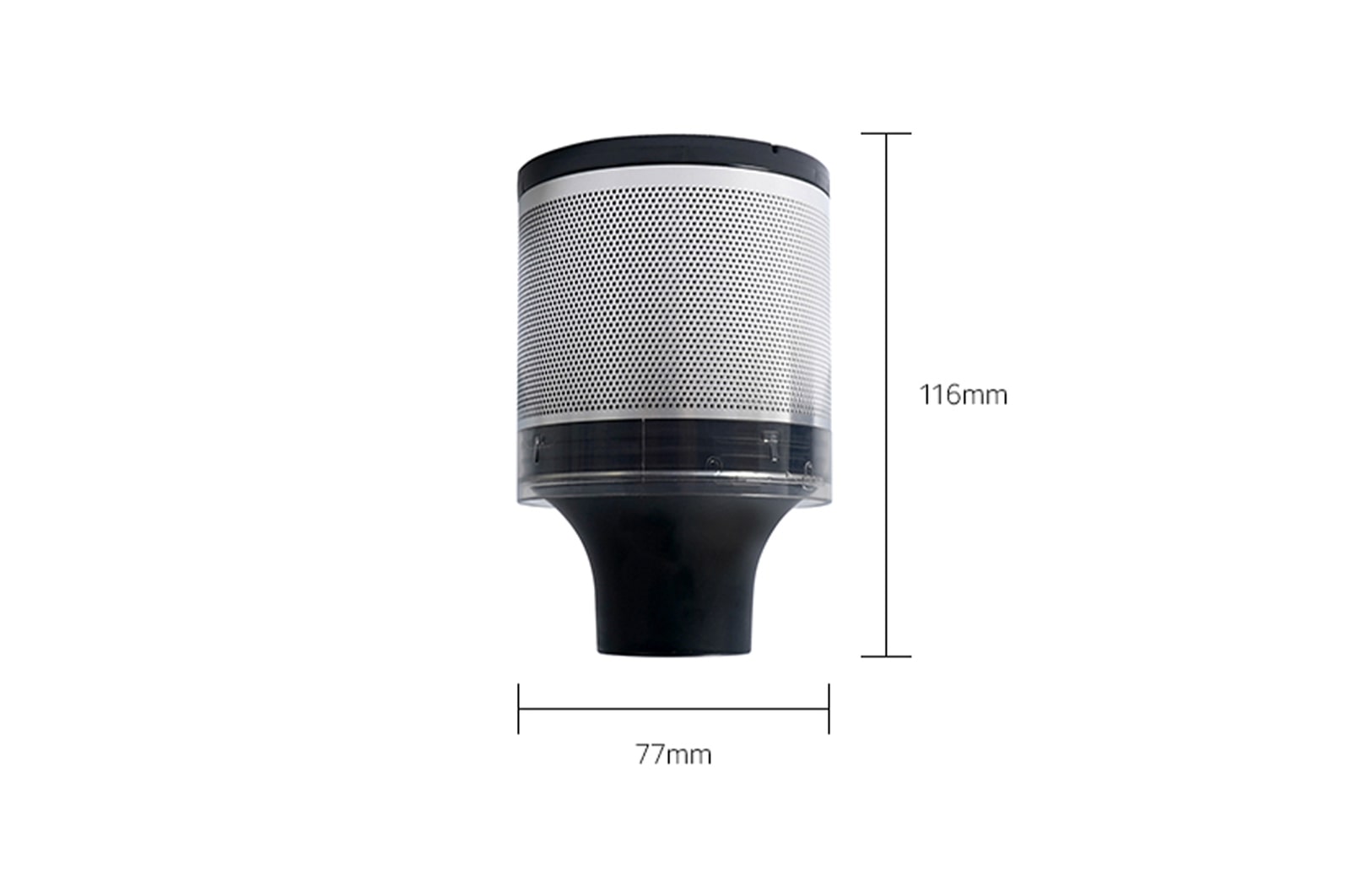

DIMENSIONS

All Spec

GENERAL

Category
Filter
