LG CordZero™ A9 Mesh Metal Filter

ADV75957709

Key Features

LG Vacuum Cleaners Genuine Filter

Mounting Location

*The actual installation location of this item may vary depending on product model.

*For more detailed information, please refer to the product manual for your model.

How to Clean

For more detailed information, please refer to the product manual for your model.

STEP 1

Remove the battery from the product body before cleaning the dust bin.

Push down the Kompressor lever ① several times to collect and compact the dust from the outside of the cyclonic mesh filter and the interior walls of the dust bin.

- Foreign objects which become lodged in the cyclonic mesh filter may be difficult to dislodge with the Kompressor lever. Remove the cyclonic mesh filter and use the provided cleaning brush to clean it.

Instructions for cleaning the dust bin of the product. The image shows the steps to remove the battery before cleaning, operate the Kompressor lever several times to collect and compact dust around the cyclonic mesh filter, and remove the filter to clean it with the provided brush if foreign objects are stuck

STEP 2

Press the dust bin cover release button ② to open the dust bin cover. Shake the dust bin to empty it.

- Be careful as dust or foreign objects may spill out when opening the dust bin. Empty the dust bin into a wastebasket or where dust and foreign objects can be easily removed.

- The dust bin can be wrapped in a plastic bag to contain the dust when emptying the dust bin.

Instructions for emptying the dust bin. The image shows pressing the dust bin cover release button to open the cover, shaking the dust bin to empty it, and taking care to prevent dust or foreign objects from spilling. It also suggests wrapping the dust bin in a plastic bag to contain dust while emptying

STEP 3

Insert the crevice tool ④ into the cyclonic mesh filter ③ and turn it counterclockwise to remove the filter.

Instructions for removing the cyclonic mesh filter. The image shows inserting the crevice tool into the cyclonic mesh filter and turning it counterclockwise to detach and remove the filter from the product

STEP 4

Wash the cyclonic mesh filter under running water.

- To avoid odour and the malfunction of the motor, allow the cyclonic mesh filter to dry completely in a well-ventilated area out of direct sunlight for at least 24 hours before reassembling.

Instructions for cleaning the cyclonic mesh filter. The image shows washing the filter under running water and then placing it in a well-ventilated area out of direct sunlight to dry completely for at least 24 hours before reassembling to prevent odour and motor malfunction

STEP 5

Use the combination tool ⑤ to clean out dust or foreign objects inside the dust bin.

- Do not wash the product body or motor with water.

Instructions for cleaning the inside of the dust bin. The image shows using the combination tool to remove dust or foreign objects from inside the dust bin, with a caution not to wash the product body or motor with water

STEP 6

Turn the product body over and lift the Kompressor lever ⑥ up to clean the inside of the working plate with the provided cleaning brush.

- Do not push the Kompressor lever down hard. The working plate may be damaged.

Turn the product body over again and shake it while pressing down the lever to remove the dust.

Instructions for cleaning the inside of the working plate. The image shows turning the product body over, lifting the Kompressor lever upward, and using the provided cleaning brush to clean the inside of the working plate. It also shows turning the product body back over and shaking it while pressing down the lever to remove remaining dust, with a caution not to push the Kompressor lever down hard to avoid damaging the working plate

STEP 7

Wrap the provided cleaning brush with a wet paper towel, tucked into the slots ⑦ on the handle.

Turn the product body over, lift the Kompressor lever ⑧ up, and clean the inside of the working plate with the towel-wrapped brush handle.

Instructions for deep cleaning the inside of the working plate. The image shows wrapping the provided cleaning brush with a wet paper towel and tucking it into the slots on the handle. Then, the product body is turned over, the Kompressor lever is lifted upward, and the towel-wrapped brush handle is used to clean the inside of the working plate

* Product images and features may contain advertising expressions and may differ from the actual product. Product appearance, specifications, etc. may change without prior notice for product improvement.

* All product images are photo cuts and may differ from the actual product. Product color may vary depending on monitor resolution, brightness settings, and computer specifications.

* The performance of the product may vary depending on the usage environment, and availability may vary by store.

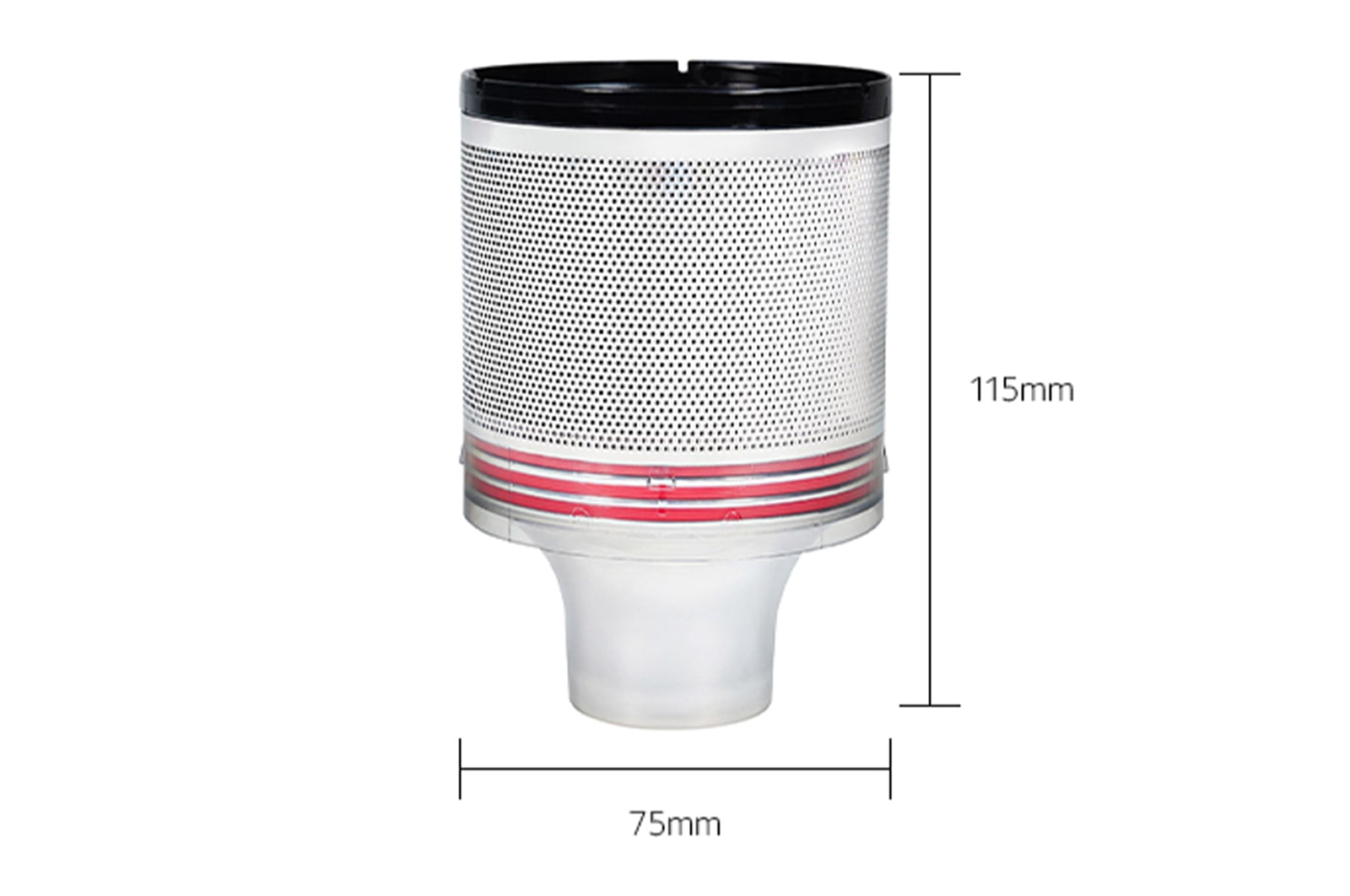

DIMENSIONS

All Spec

GENERAL

Part Number
ADV75957709
Category
Filter

DIMENSIONS & WEIGHTS

Diameter (cm)
7.5
Inner Diameter (mm)
32
Length (cm)
11.5
Net Weight (g)
110
Outer Diameter (mm)
37
