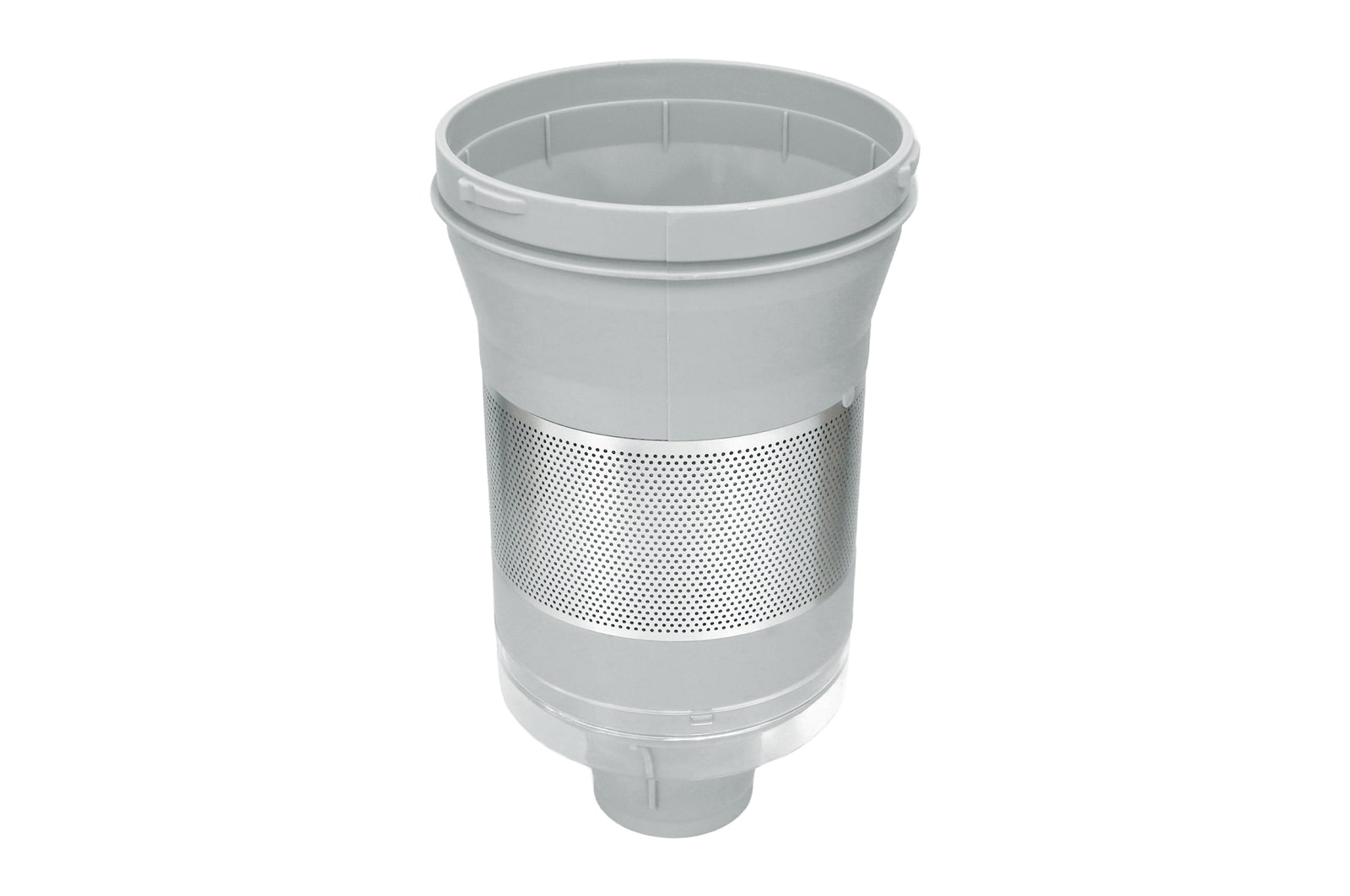

LG CordZero™ A9LSlim Mesh Metal Filter

COV37742401

Key Features

LG Vacuum Cleaners Genuine Filter

A9LSLIM

A9LSLIMMOP

Mounting Location

*The actual installation location of this item may vary depending on product model.

*For more detailed information, please refer to the product manual for your model.

How to Replace

The replacement instruction for this item may differ slightly from the information below.

For more detailed information, please refer to the product manual for your model.

STEP 1

Remove the battery from the body of the product before cleaning.

Press the dust bin cover release button ① to open the dust bin cover and empty the dust bin.

- Empty the dust bin into a larger waster bin.

- For less dust, the dust bin can first be emptied into a plastic or paper bag before disposing the bag into a waste bin.

Instructions showing how to clean the product — remove the battery from the main body before cleaning, press the dust bin cover release button to open the cover, and empty the dust bin into a larger waste bin or into a plastic or paper bag first to reduce dust

STEP 2

Rotate the cyclonic mesh filter ② counterclockwise to detach it.

- When the cyclonic mesh filter is removed, the pre-filter ③ should be attached to the cyclonic mesh filter. If it is not attached with the cyclonic mesh filter then, check the inside of the vacuum cleaner and take it out by hand.

Instructions showing how to remove the cyclonic mesh filter — rotate the cyclonic mesh filter counterclockwise to detach it. When the filter is removed, the pre-filter should be attached to it; if not, check inside the vacuum cleaner and remove the pre-filter by hand

STEP 3

Remove dust from the cyclonic mesh filter and pre-filter and wash with water at least once a month.

- If there is any stubborn dust left in the cyclonic mesh filter, soak it in lukewarm water (about 40°C) for 30 minutes and then gently clean it with a brush before

rinsing it again.

- Never tap or hit the cyclonic mesh filter against any surface as it will damage.

- Allow all the filters to dry in a well-ventilated area out of direct sunlight for at least 24 hours before reassembling.

- Any remaining moisture or undried filters may cause odour or severe damage to the suction motor.

Instructions showing how to clean and maintain the cyclonic mesh filter and pre-filter — remove dust and wash both with water at least once a month. If stubborn dust remains, soak the mesh filter in lukewarm water (about 40°C) for 30 minutes and gently clean it with a brush before rinsing again. Do not tap or hit the filter to avoid damage. Dry all filters completely in a well-ventilated area out of direct sunlight for at least 24 hours before reassembling, as any remaining moisture may cause odor or damage to the suction motor

STEP 4

Use the cleaning brush ④ to remove the dust inside the dust bin.

Instructions showing how to clean the dust bin — use the cleaning brush to remove any dust or debris remaining inside the dust bin

* Product images and features may contain advertising expressions and may differ from the actual product. Product appearance, specifications, etc. may change without prior notice for product improvement.

* All product images are photo cuts and may differ from the actual product. Product color may vary depending on monitor resolution, brightness settings, and computer specifications.

* The performance of the product may vary depending on the usage environment, and availability may vary by store.

DIMENSIONS
