Discontinued
22MP48D-P
22'' Class Full HD IPS LED Monitor
  • IPS Display
  • Reader Mode / Flicker Safe
  • On Screen Control
  • Screen Split / PIP
  • Color Weakness Mode
22" Class Full HD IPS LED Monitor

MULTI

  • Size(Inch)
    21.5“ / 54.6cm
    Panel Type
    IPS
  • Color Gamut (CIE1931)
    72%
    Pixel pitch(mm)
    0.24795 x 0.24795
  • Color Depth(Number of Colors)
    16.7M colors
    Aspect Ratio
    16:9
  • Resolution
    1920 x 1080
    Brightness(Typ.)
    250cd/m2
  • Contrast Ratio(Original)
    1000:1
    Contrast Ratio(DFC)
    Mega
  • Response Time (GTG)
    14ms
    Viewing Angle(CR≥10)
    178/178
  • Surface Treatment
    Anti glare ,3H

SIGNAL INPUT

  • D-Sub
    Yes
    DVI-D
    Yes

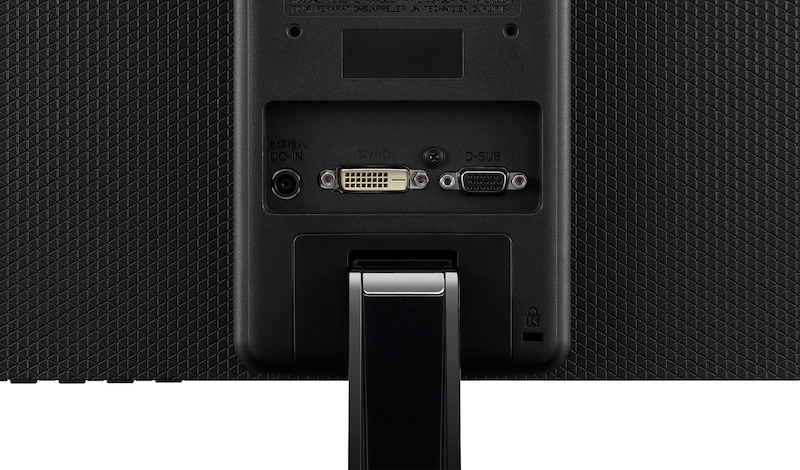

  • [ Jack Location ]
    Back (horizontal)

POWER INPUT/OUTPUT

  • Type
    Adapter
    Input
    100-240Vac, 50/60Hz
  • Output
    19V/1.3A

POWER CONSUMPTION

  • Normal On(EPA)
    20W
    Normal On(typ.)
    23W
  • Sleep Mode(Max)
    0.3W
    DC Off(Max)
    0.3W

D-SUB

  • H-Frequency
    30~83kHz
    V-Frequency
    56~75Hz

DVI-D

  • H-Frequency
    30~83kHz
    V-Frequency
    56~75Hz

PC

  • D-sub
    1920 x 1080
    Digital (DVI-D / HDMI)
    1920 x 1080

CONTROL KEY

  • Key Number (Power Key Included)
    6
    Key Type
    Tact type
  • LED Color (On mode)
    White
    LED Color (Power save mode)
    White blinking
  • [Key Location]
    Bottom

LANGUANGE

  • Country
    English, Germanic, French, Spanish, Italian, Swedish, Finnish, Portuguese, Polish, Russian, Greek, Chinese, Japanese, Korean, Ukrainian, Portuguese(brazil), Hindi
    Number of Language
    17


  • Picture Mode
    Yes
    Reader Mode
    Yes
  • Original Ratio
    Yes

GENERAL FUNCTION

  • DDC/CI
    Yes
    HDCP
    Yes
  • Intelligent Auto (Auto Resolution)
    Yes
    Key Lock
    Yes
  • Plug & Play
    Yes

SPECIAL FEATURE

  • Color Weakness
    Yes
    Flicker Safe
    Yes
  • Six Axis Control
    Yes
    Smart Energy Saving
    Yes
  • 4 screen split
    Yes
    On Screen Control
    Yes

COLOR

  • Front
    Black high glossy
    B/Cover
    Black hairline + texture
  • Stand
    Black high glossy
    Base
    Black high glossy
  • Others
    Black Texture

STAND

  • Base Detachable
    Yes
    Tilt (Angle)
    Yes / -5º (front) ~ 20º(rear)

DIMENSION(W*D*H)(MM)

  • Set (with Stand)
    508.4 x 187.4 x 387.6
    Set (without Stand)
    508.4 x 57.3 x 313.1
  • Box
    577 x 381 x 118
    Wall Mount size (mm)
    75 x 75

WEIGHT(KG)

  • Set (with Stand)
    2.7kg
    Set (without Stand)
    2.5kg
  • Box
    4kg

STUFFING

  • Pallet(20ft/40ft/40ft HC)
    900/1980/2200

WRAP

  • Packing Material
    EPS
    Stacking Type
    Face Down
  • Box Printing Type
    Flexo
    Handle
    Handle

STANDARD

  • UL(cUL)
    Yes
    TUV-TYPE
    Yes
  • FCC-B, CE
    Yes
    Windows
    Yes (win10)

ACCESSORY

  • Power Cord
    Option
    D-Sub
    Option
  • DVI-D
    Option
