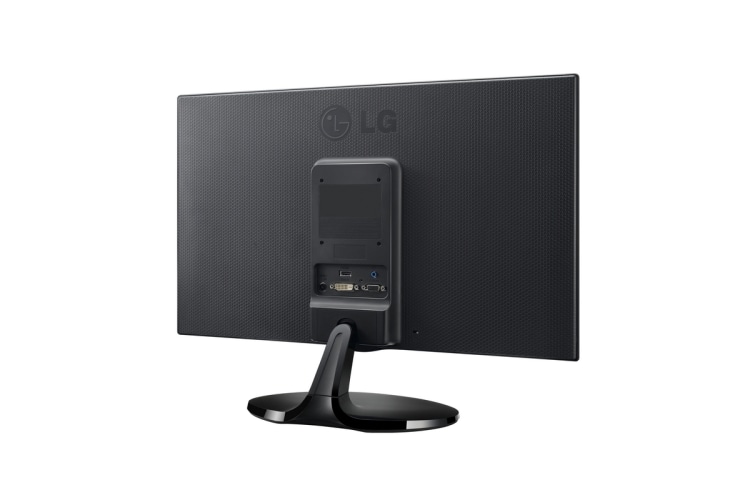

LG 23 inch IPS LED Monitor EA63V Series
![](/content/dam/channel/wcms/hk_en/images/monitors/23ea63v/gallery/medium01.jpg)
All Spec
BASIC
-
Screen Size
23
-
Panel Type
IPS
-
Color Gamut
72%
-
Color Depth (Number of Colors)
16.7M
-
Pixel Pitch (mm)
0.2652 mm x 0.2652 mm
-
Aspect Ratio
16:9
-
Resolution
1920*1080
-
Brightness (cd/m²)
250 cd/m²
-
Contrast Ratio
1000:1
-
Response Time (GTG)
5ms
-
Viewing Angle (CR≥10)
178/178
-
Lamp Q'ty
3
-
Inverter
Without
-
Surface Treatment
Anti-Glare,3H
INPUTS/OUTPUTS
-

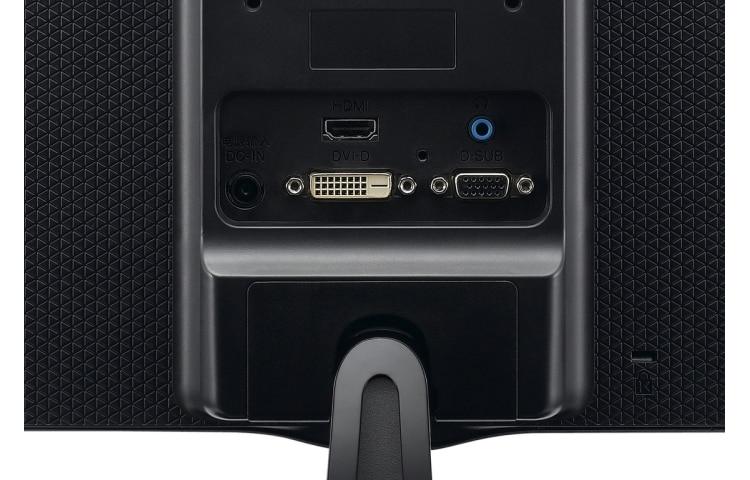

[Jack Location] - Signal Input
Back
-
D-Sub
Yes
-
DVI-D
Yes
-
HDMI
Yes
-
Headphone Out
Yes
POWER
-
Power Type (Adapter or LIPS)
Adaptor
-
Input
100-240V
-
Power: Normal On (Typ.)
29W
-
Power Save/Sleep Mode(Max)
<0.3W (at RGB/DVI PC)
-
DC Off(Max)
<0.3W
FREQUENCY
-
H-Frequency (Analog)
30~83kHz
-
V-Frequency (Analog)
56∼75kHz
-
H-Frequency (Digital)
30~83kHz
-
V-Frequency (Digital)
56~75kHz
-
V-Frequency (HDMI)
30~83kHz
-
H-Frequency (HDMI)
56~61Hz
RESOLUTION
-
Analog (PC)
1920*1080
-
Digital (PC)
1920*1080
-
HDMI (Video)
1920*1080
CONTROL KEY
-
[Key Location]
Front (bottom)
-
Key Number (Power Key Included)
6 keys
-
Key Type
Touch
-
LED Color (On mode)
Red
-
LED Color (Power save mode)
Blinking
OSD
-
Number of Language
17
-
Country (Language)
English, Germanic, French, Spanish, Italian, Swedish, Finnish, Portuguese, Polish, Russian, Greek, Chinese, Japanese, Korean, Ukrainian,Portuguese(brazil), Hindi
SPECIAL FEATURE
-
Picture Mode
Yes
-
Super Energy Saving
Yes
-
My Key Setting
Yes
-
PC
Yes
-
DDC/CI
Yes
-
Video
Yes
-
HDCP
Yes
-
Intelligent Auto (Auto Resolution)
Yes
-
Plug & Play
Yes
-
Other1
Dual Package
-
Other2
Dual Smart Solution
-
Other3
Factory Calibration
-
Other4
SUPER+RESOLUTION demo
-
Other5
OD(Type:Middle; High 5ms/Middle 7ms/Low 9ms)
MECHANIC
-
Front Color
BLACK Glossy (Deco : Hair Line / Step : Texture)
-
Back Cover Color
BLACK Texture (Patterned Texture)
-
Stand Color
BLACK Gloss (Recessed area : Texture)
-
Base Color
BLACK Gloss (Recessed and Bottom area : Texture)
-
Base Detchable
Yes
-
Tilt
Yes / -5º (front) ~ 20 º(rear)
DIMENSION(W*D*H)(CM)
-
Set (with Stand)
53.0(W)*39.5(D)*18.0(H)
-
Wall Mount
Wall Mount VESA Compatible (75mmx75mm)
WEIGHT(KG)
-
Set (with Stand)
3.0
-
Set (without Stand)
2.8
STANDARD
-
UL(cUL)
Yes
-
FCC-B, CE
Yes
-
TUV-GS
Yes
-
EPA
Yes
-
VESA Mount
Yes
