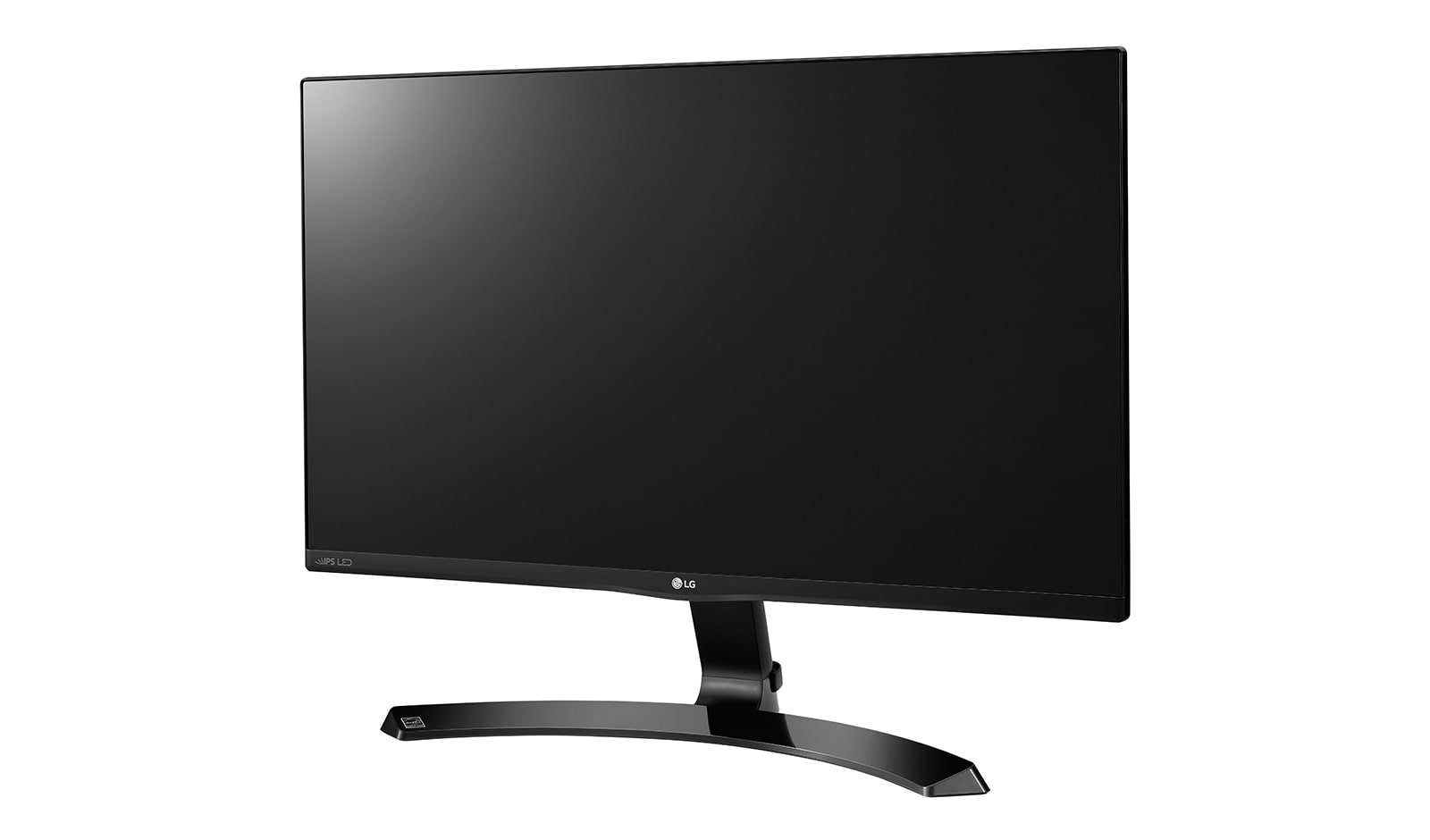

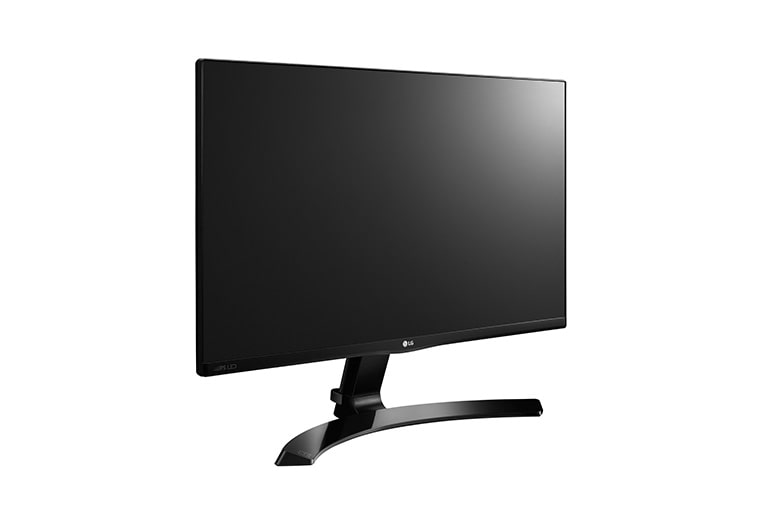

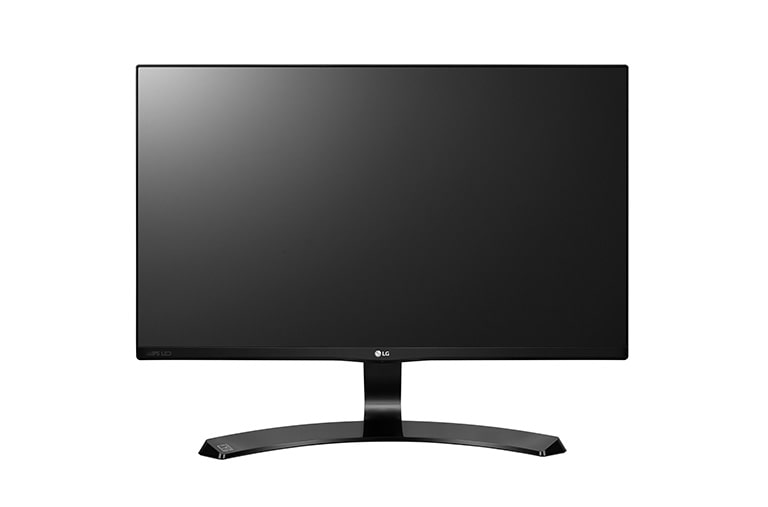

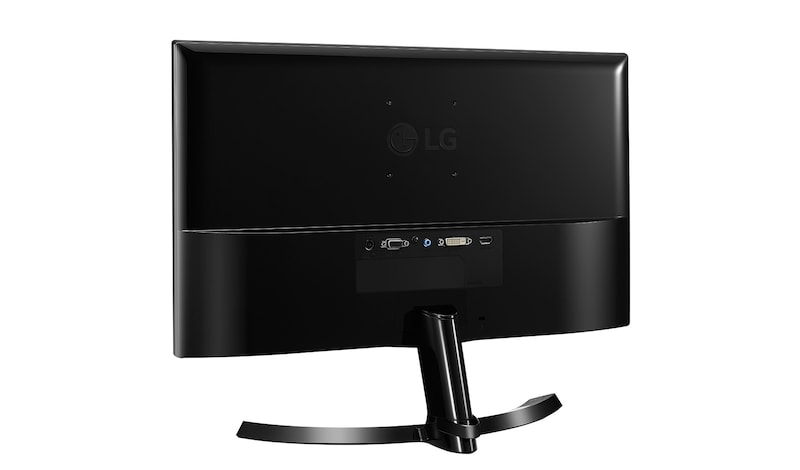

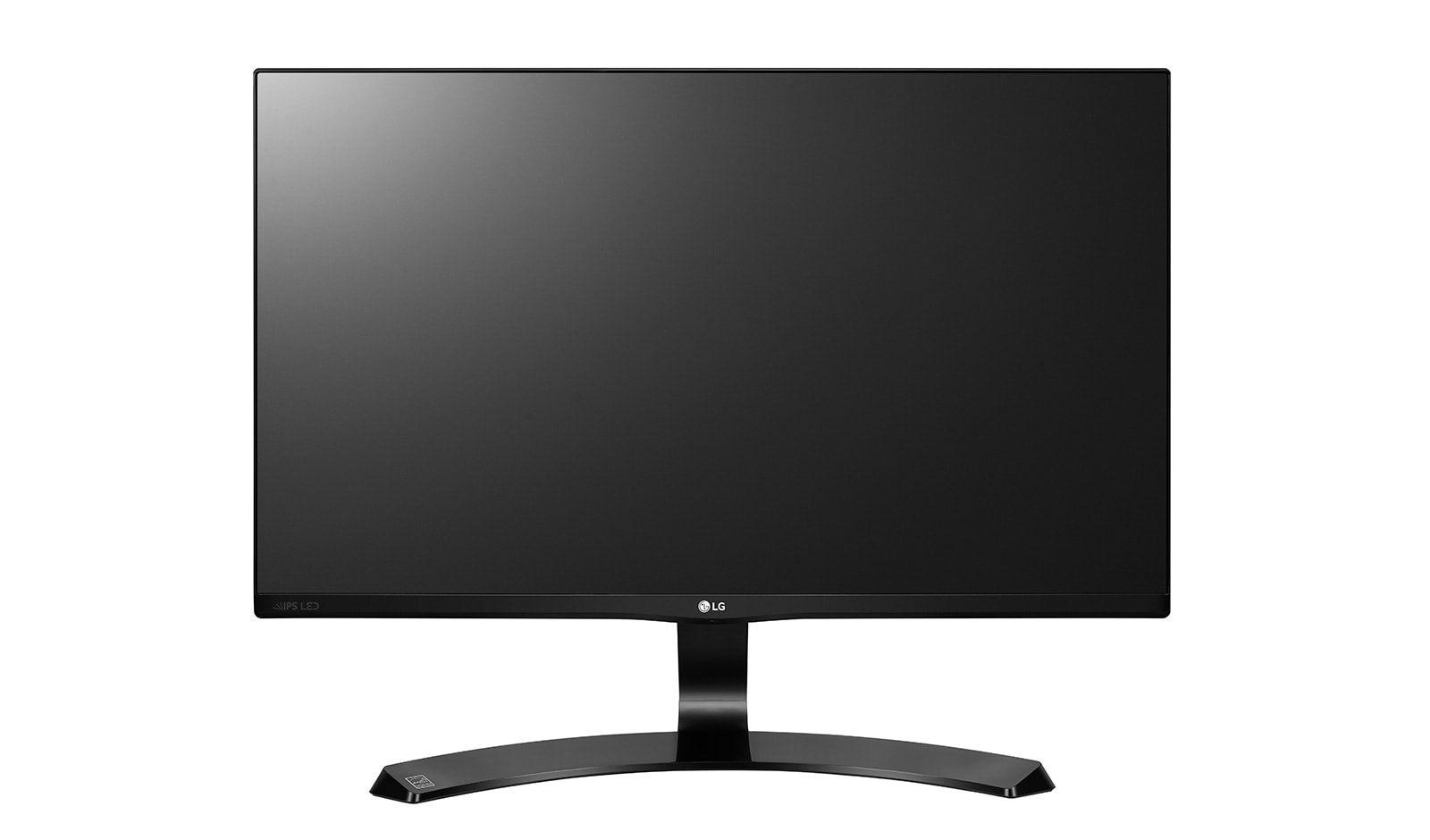

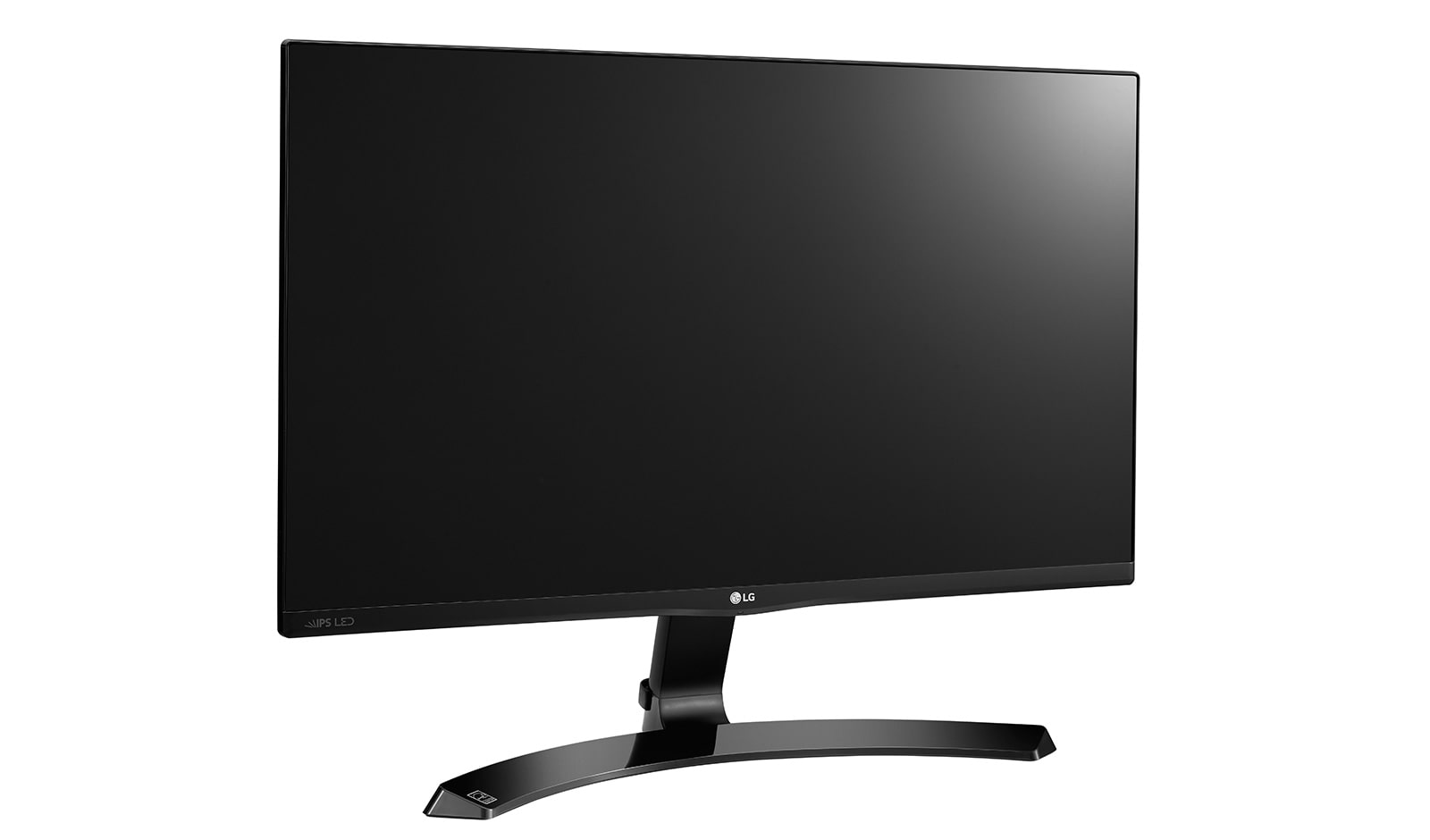

23" Class Full HD IPS LED Monitor

23" Class Full HD IPS LED Monitor

23MP68VQ-P

23" Class Full HD IPS LED Monitor

23" Class Full HD IPS LED Monitor

All Spec

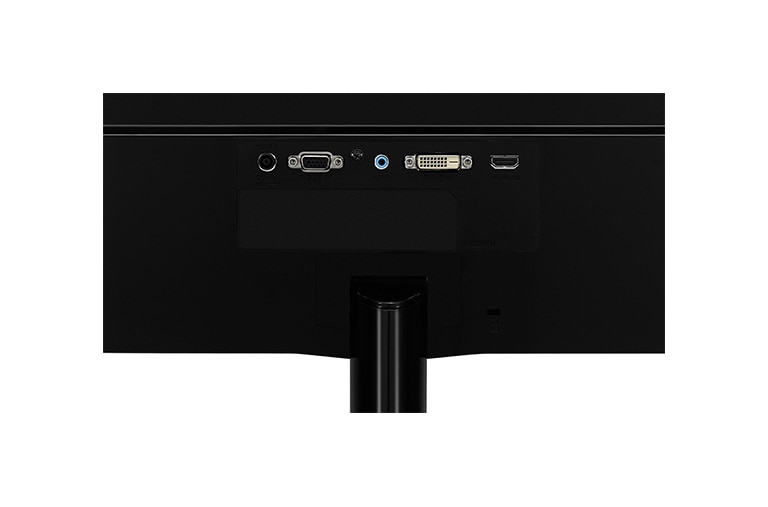

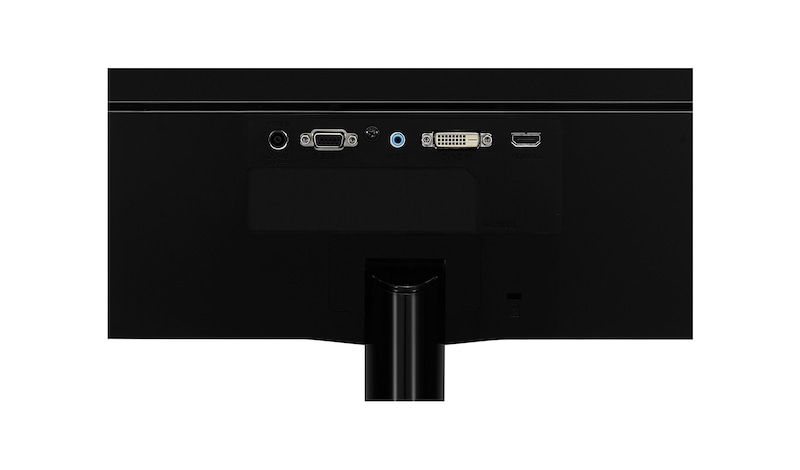

SIGNAL INPUT

HDMI

Yes

D-Sub

Yes

DVI-D

Yes

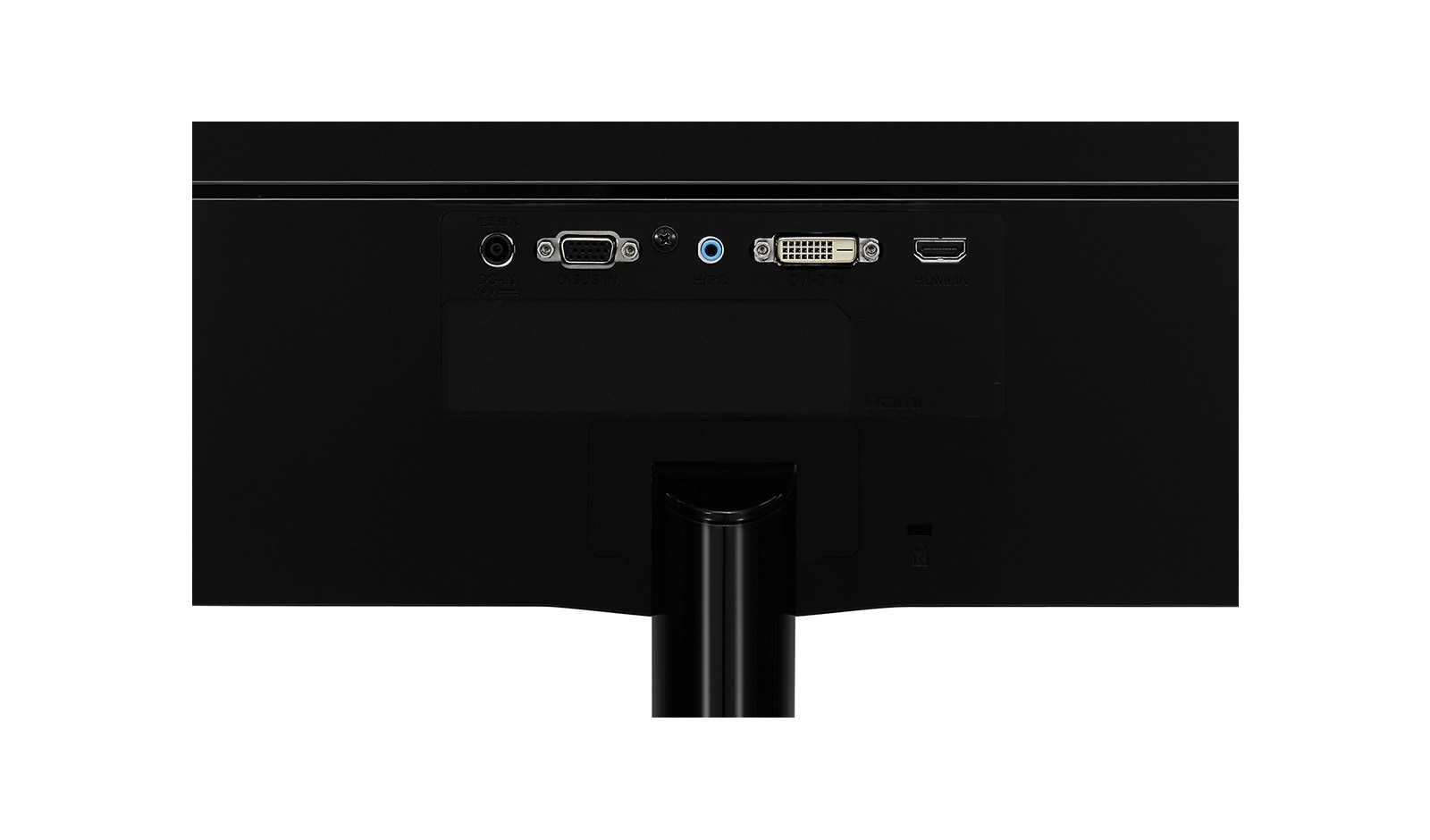

[ Jack Location ]

Back

AUDIO INPUT

[ Jack Location ]

Back

AUDIO OUTPUT

Headphone Out

Yes

[ Jack Location ]

Back

POWER INPUT/OUTPUT

Type

Adapter

Input

100-240Vac, 50/60Hz

POWER CONSUMPTION

Normal On(EPA)

13.9W

Normal On(typ.)

19.1W

Sleep Mode(Max)

Under 0.3W

DC Off(Max)

Under 0.3W

D-SUB

H-Frequency

30~83kHz

V-Frequency

56~75Hz

DVI-D

H-Frequency

30~83kHz

V-Frequency

56~75Hz

HDMI

H-Frequency

30~83kHz

V-Frequency

56~75Hz

PC

D-sub

1920 x 1080

Digital (DVI-D / HDMI)

1920 x 1080

VIDEO

HDMI

1080P

CONTROL KEY

Key Number (Power Key Included)

1

Key Type

Joystick

LED Color (On mode)

White

LED Color (Power save mode)

White Blinking

[Key Location]

Bottom

LANGUANGE

Country

English, Germanic, French, Spanish, Italian, Swedish, Finnish, Portuguese, Polish, Russian, Greek, Chinese, Japanese, Korean, Ukrainian, Portuguese(brazil), Hindi,Traditional Chinese

Number of Language

18


Picture Mode

Custom, Reader 1, Reader 2, Photo, Cinema, Game, Color weakness

Reader Mode

Yes

Original Ratio

Yes

FreeSync

Off(Deafult)

GENERAL FUNCTION

DDC/CI

Yes

HDCP

Yes

Intelligent Auto (Auto Resolution)

Yes

Key Lock

Yes

Plug & Play

Yes

Response Time Control

Yes

SPECIAL FEATURE

Color Weakness

Yes

Flicker safe

Yes

Automatic Standby

Yes

SIX Axis Control

Yes

Smart Energy Saving

Yes

Super Resolution+

Yes

4 screen split

Yes

Freesync

Yes

On Screen Contol

Yes

Others

Black stabilizer

COLOR

Front

Black high glossy

B/Cover

Black high glossy

Stand

Black high glossy / Texture

Base

Black high glossy / Texture

Others

Black high glossy

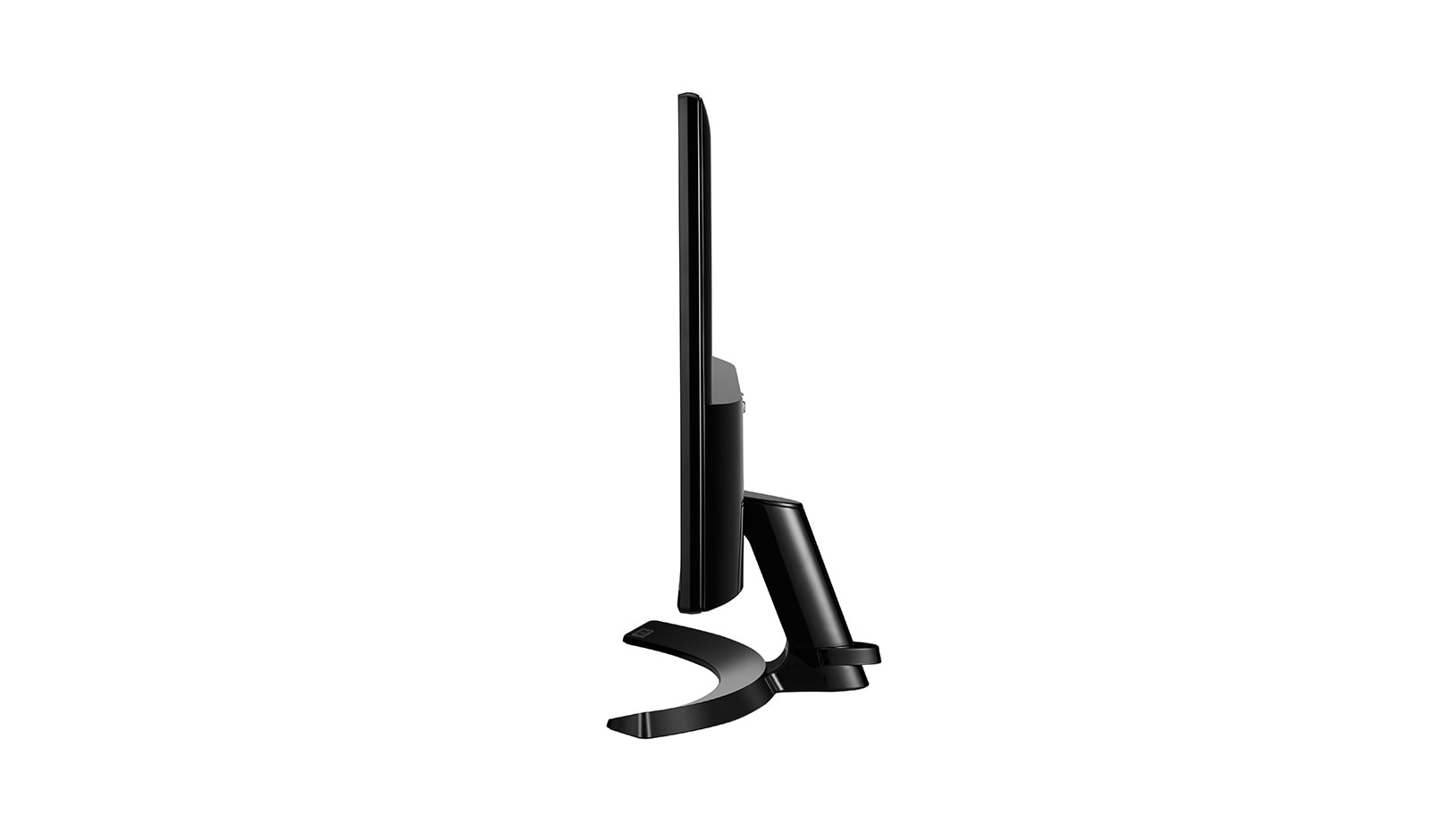

STAND

Base Detachable

Yes

Tilt (Angle)

-2 ~ 15 Degree

DIMENSION(W*D*H)(CM)

Set (with Stand)

523.9 x 186.8 x 406.1

Set (Without Stand)

523.9 x 91.7 x 311.7

Box

593 x 381 x 139

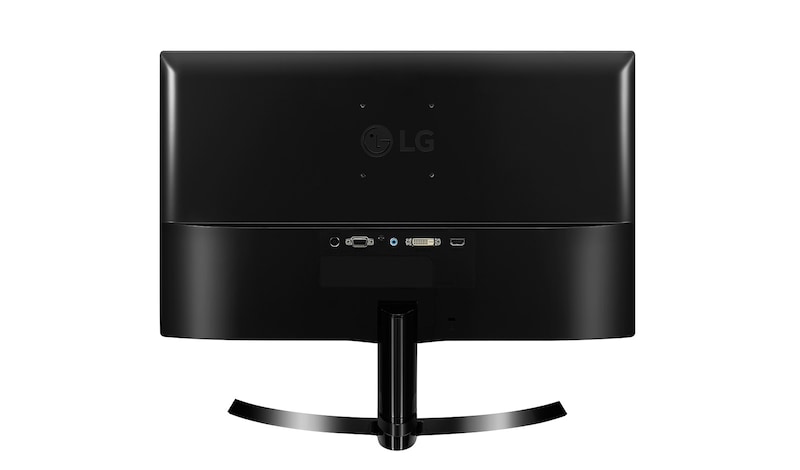

Wall Mount size (mm)

75 x 75

WEIGHT(KG)

Set (with Stand)

3.1

Set (without Stand)

2.7

Box

4.3

STUFFING

Individual(20ft/40ft/40ft HC)

864 / 1920 / 2280

Pallet(20ft/40ft/40ft HC)

675 / 1575 / 1785

WRAP

Packing Material

EPS

Stacking Type

Face Down

Box Printing Type

Flexo

Handle

Handle

STANDARD

UL(cUL)

Yes

TUV-TYPE

Yes

FCC-B, CE

Yes

EPA 7.0

EPA7.0

ENERGY STAR®

ENERGY STAR® Qualified

ErP

Yes

EPEAT(USA)

Yes (Gold)

EPEAT(Germany)

Yes (Gold)

EPEAT

Yes (Gold)

Windows

Yes (win10)

Others(CCC,KC)

Yes

ACCESSORY

Power Cord

Option

D-Sub

Option

stand body

Yes

Stand base

Yes

cable holder

Yes

CD

Yes

ESG

Yes

Manual

Yes

DVI-D

Option

HDMI

Option
