49XEB3E-B component-copyModelName

Outdoor Display

LG Outdoor Display, 49XEB3E-B, thumbnail 1

LG Outdoor Display, 49XEB3E-B, thumbnail 2

LG Outdoor Display, 49XEB3E-B, thumbnail 3

LG Outdoor Display, 49XEB3E-B, thumbnail 4

LG Outdoor Display, 49XEB3E-B, thumbnail 5

LG Outdoor Display, 49XEB3E-B, thumbnail 6

LG Outdoor Display, 49XEB3E-B, thumbnail 7

LG Outdoor Display, 49XEB3E-B, thumbnail 8

LG Outdoor Display, 49XEB3E-B, thumbnail 9

LG Outdoor Display, 49XEB3E-B, thumbnail 10

LG Outdoor Display, 49XEB3E-B, thumbnail 11

LG Outdoor Display, 49XEB3E-B, thumbnail 12

ADD TO WISHLIST

Discontinued

49XEB3E-B component-copyModelName

Outdoor Display

Key Features

High Brightness
Visible with Polarised Sunglasses
Smart Brightness Control
Secured Protection with IP56 Design
Conformal Coating

Enquire To Buy Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

High Brightness
Visible with Polarised Sunglasses
Smart Brightness Control
Secured Protection with IP56 Design
Conformal Coating

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Outdoor Display

Outstanding Visibility

High Brightness

With a powerful brightness of 3,000 cd/㎡ and wide viewing angles, the XE series delivers content clearly and catches the attention of passers-by no matter where they are, making it the ultimate display for outdoor visibility.

Outstanding Visibility

Visible with Polarised Sunglasses

QWP* enables clear visibility even when the viewer is wearing polarised sunglasses.

*Quarter Wave Plate

Outstanding Visibility

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.

Outdoor Reliability

Protection from Dust & Humidity

The XE series is sealed with IP56 design, ensuring reliable operation. Water projected in powerful water jets against the enclosure will have no harmful effects, nor will dust enter the unit in sufficient quantity to interfere with the operation of the equipment.

Outdoor Reliability

Conformal Coating

The XE series have been designed with the LG Conformal Coating to provide additional protection to circuit boards in harsh environments such as dust and humidity.

Outdoor Reliability

Electrical Safety

Circuit breaker and surge suppressor are integrated inside ensuring protection from overcurrent short circuits, and unwanted voltages. This type of integration establishes preventative solutions for signage's from having future damages.

*Addtional accessory is needed for 49"

Outdoor Reliability

Protective Glass

Tempered and laminated front glass ensures high level protection from external impacts.

*Image is for illustration purposes only

Wide Range of Operating Temperature<br>1

Outdoor Reliability

Wide Range of Operating Temperature

The panel offers superb reliablity under a wide range of operating temperatures, so the XE series requires fewer constraints for outdoor installation.

Easy Management

Replaceable Front Glass

Outdoor displays are at a high rick of vandalism. The protective glass of 49XEB3E can be detached from its main body, simplifying the repair of damaged glass.

Easy Management

Optional Configuration

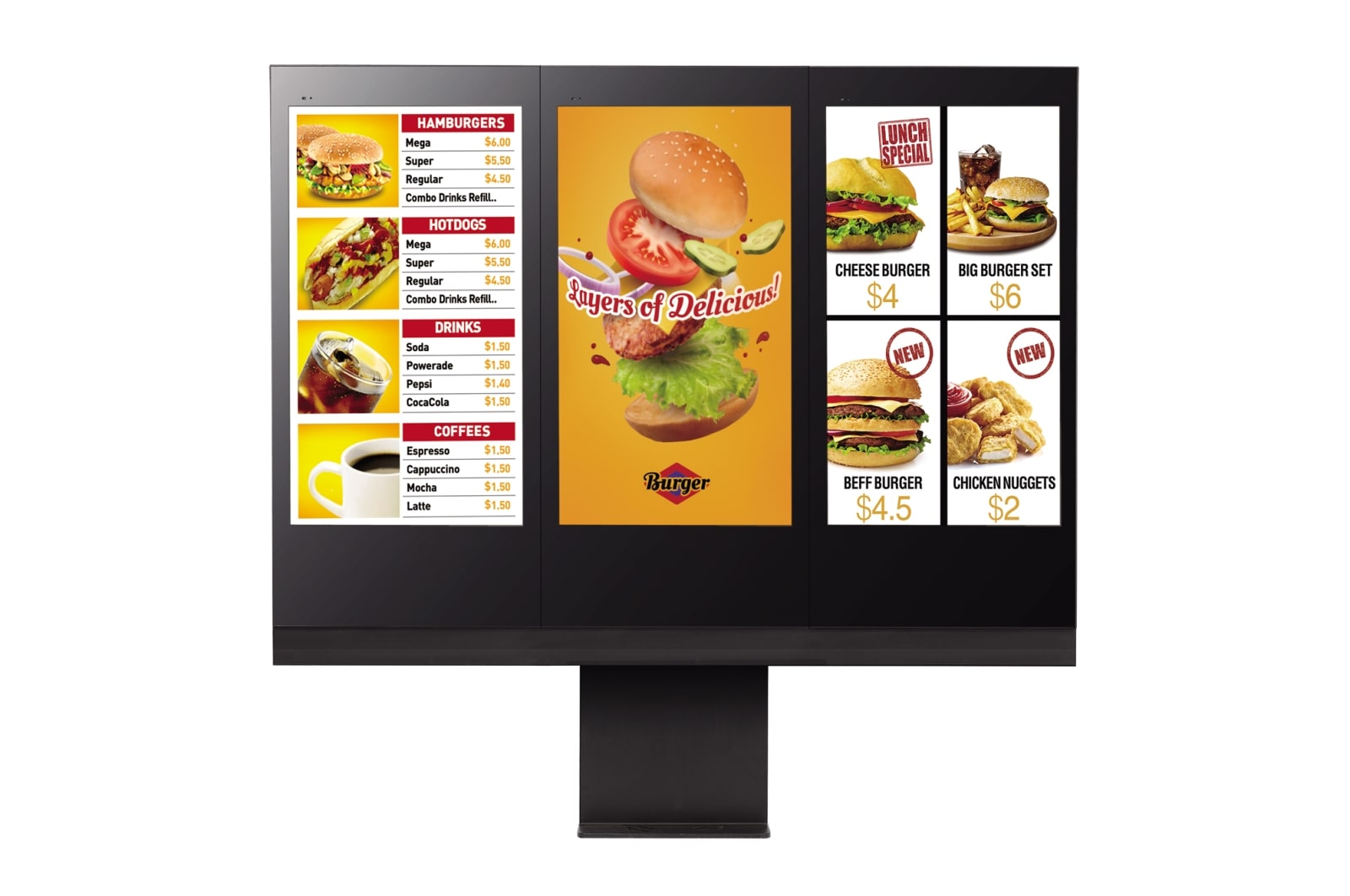

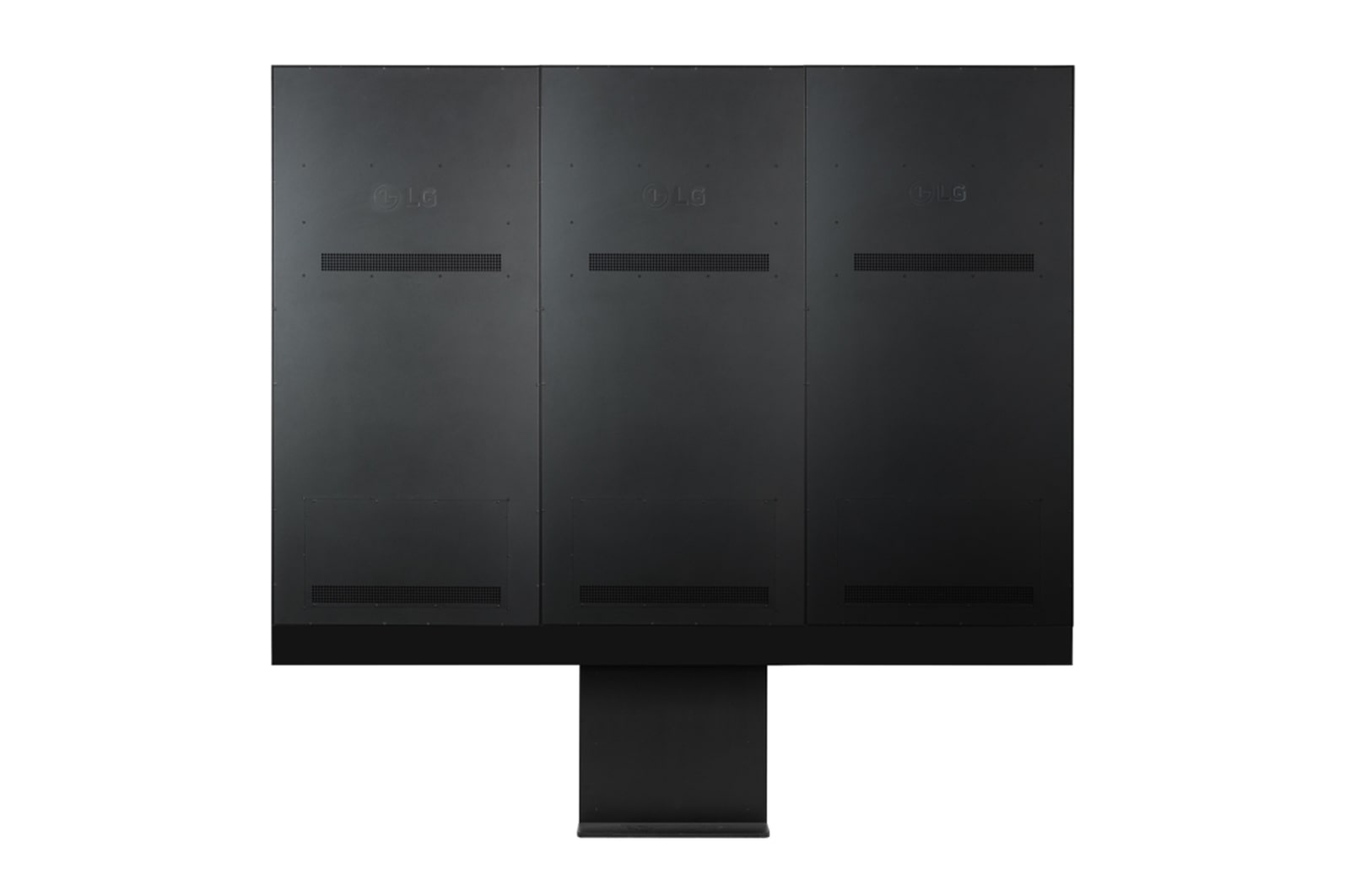

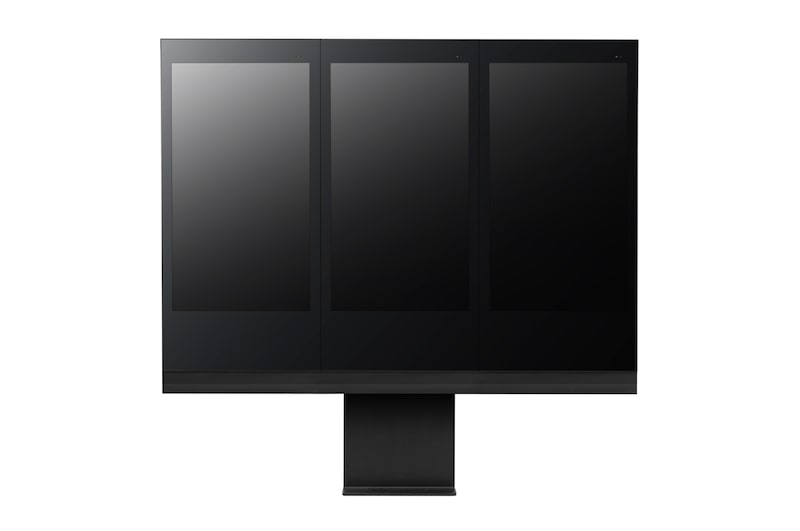

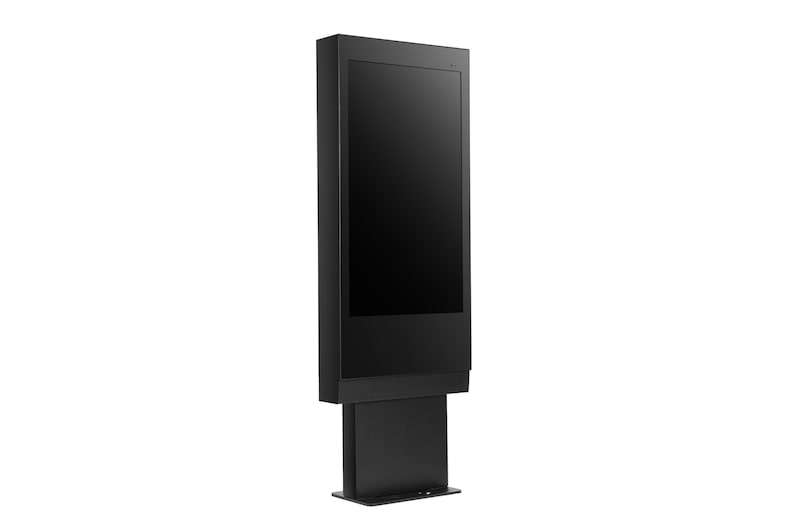

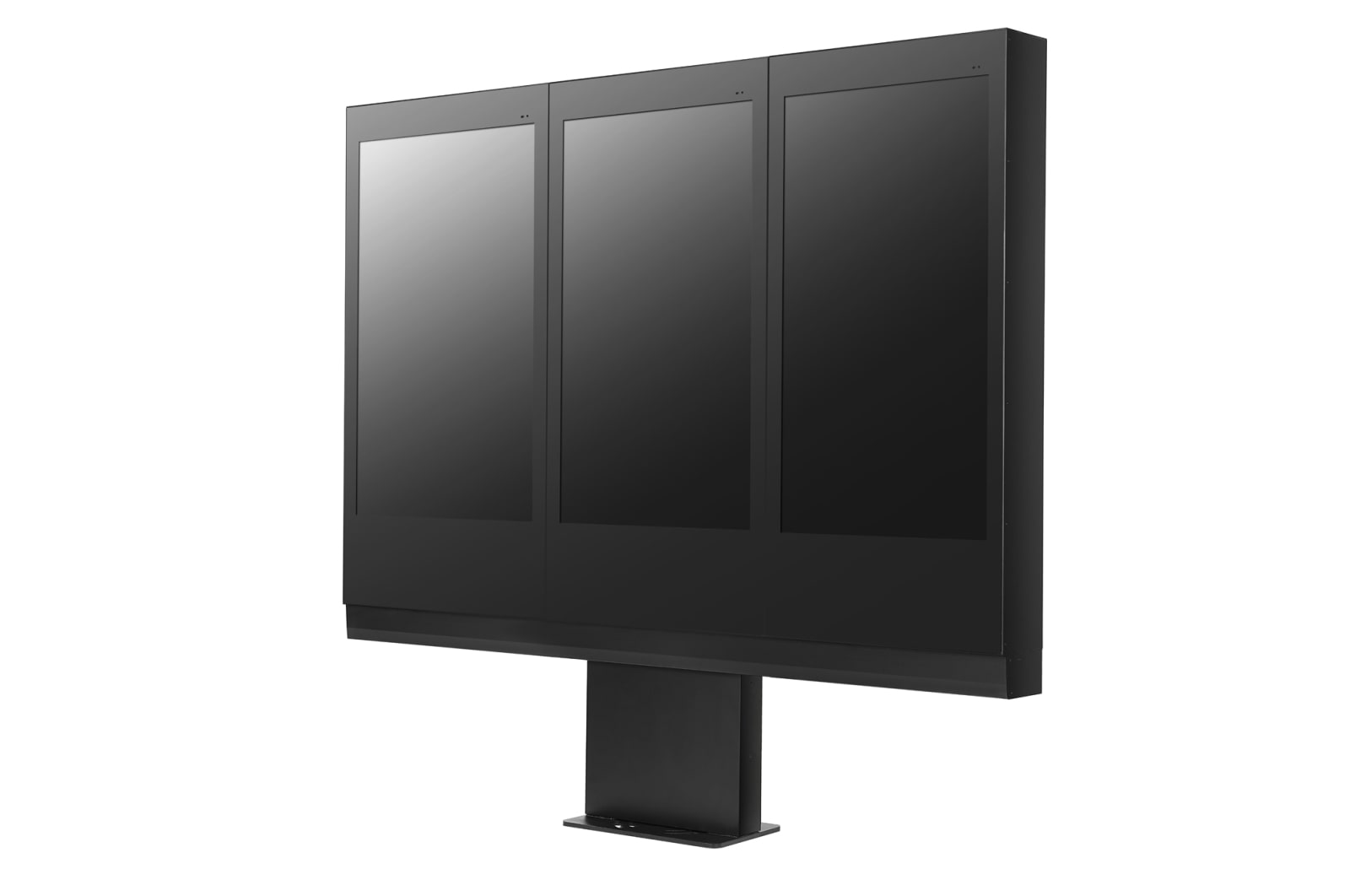

Optional stand accessories are provided to allow panel to stand freely on the ground and facilitate easy cable management. As for 49XEB3E, the exclusive stand for 1x3 configuration is also available to meet various business requirements.

PDF SPEC SHEET

PANEL

Screen Size

49"(123cm)

Panel Technology

IPS
Aspect Ratio

16 : 9

Resolution

1,920 x 1,080 (FHD), M+ (WRGB)
Brightness

3000cd/m2(Typ.) through front protective glass

Viewing Angle (H x V)

178 x 178
Response Time

8 ms (G to G BW, Typ.)

Surface Treatment

AGLR(Haze 3%), QWP
QWP Polarizer

Yes

Life time

50,000 Hrs
Operation Hours

24Hrs

Orientation

Portrait only

CONNECTIVITY

Input

HDMI, DP, DVI-D, Audio In, USB 3.0

Output

DP, External Speaker out
External Control

RS232C In/out, RJ45 In

PHYSICAL SPECIFICATION

Front glass

6.8mm (AR, Laminate Safety Vandal Glass)

Bezel Colour

Black
Bezel Width

103.0 mm (T), 262.0 mm (B), 46.5 mm (L/R)

Monitor Dimension (W x H x D)

701 x 1,445 x 179 mm
Weight (Head)

58.6 kg

Packing Dimensions (W x H x D)

863 x 1,624 x 333 mm
Packed Weight

73.4 kg

SPECIAL FEATURES

SPECIAL FEATURES

Temperature Sensor, Auto Brightness Sensor, Pixel Sensor, Cooling FAN, ISM Method, DPM Select, Energy Saving, Smart Energy Saving, File Play with USB, Internal Memory 8GB (System 4GB + Available 4GB), USB Cloning, Easy Brightness Control, Wake on LAN, Fail Over, DP Daisy Chain, Control Manager

ENVIRONMENT CONDITIONS

Operation Temperature

-30°C to 50°C

Operation Humidity

5% to 100%
Dust / Water Proofing

IP56

POWER

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power
Power Consumption (Typ./Max)

270 W / 400 W

Power Consumption (Smart Energy Saving)

145 W

STANDARD(CERTIFICATION)

Safety

AS/NZS 60950,CB Scheme

EMC

AS/NZS CISPR32,RCM(Class A)

SOFTWARE COMPATIBILITY

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control/Control+

ACCESSORIES

Basic

Remote Controller, Manual (EIG, ESG), Regulation Book, Phone to RS232C Gender, USB Cable, HDMI Cable

Optional

Enclosure Stand (ST-491X, ST-493X), Circuit Breaker & Surge Suppressor (KT-PS)
