55SH7E-B
55'' 700 nits FHD 60 Hz Standard Signage
  • webOS 4.0 Smart Platform
  • IPS Panel with 700 cd/m2 brightness
  • Signage 365 Care for Real-time control and monitoring
  • Embedded CMS for content management

component-OBScountrySelectDesc

55" 700 nits FHD 60 Hz Standard Signage
*Additional charges apply
*SKD: Software Development Kit
*Sensors need to be purchased separately from third party suppliers
*CMS: Content Management System

PANEL

  • Screen Size
    55"(139cm)
    Panel Technology
    IPS
  • Aspect Ratio
    16 : 9
    Native Resolution
    1,920 x 1,080 (FHD)
  • Refresh Rate
    60Hz
    Brightness
    700cd/m²
  • Viewing Angle (H x V)
    178 x 178
    Surface Treatment (Haze)
    Hard Coating (2H), Anti-glare Low Reflection Treatment of the Front Polariser (Haze 3% (Typ.))
  • Operation Hours
    24 Hrs
    Orientation

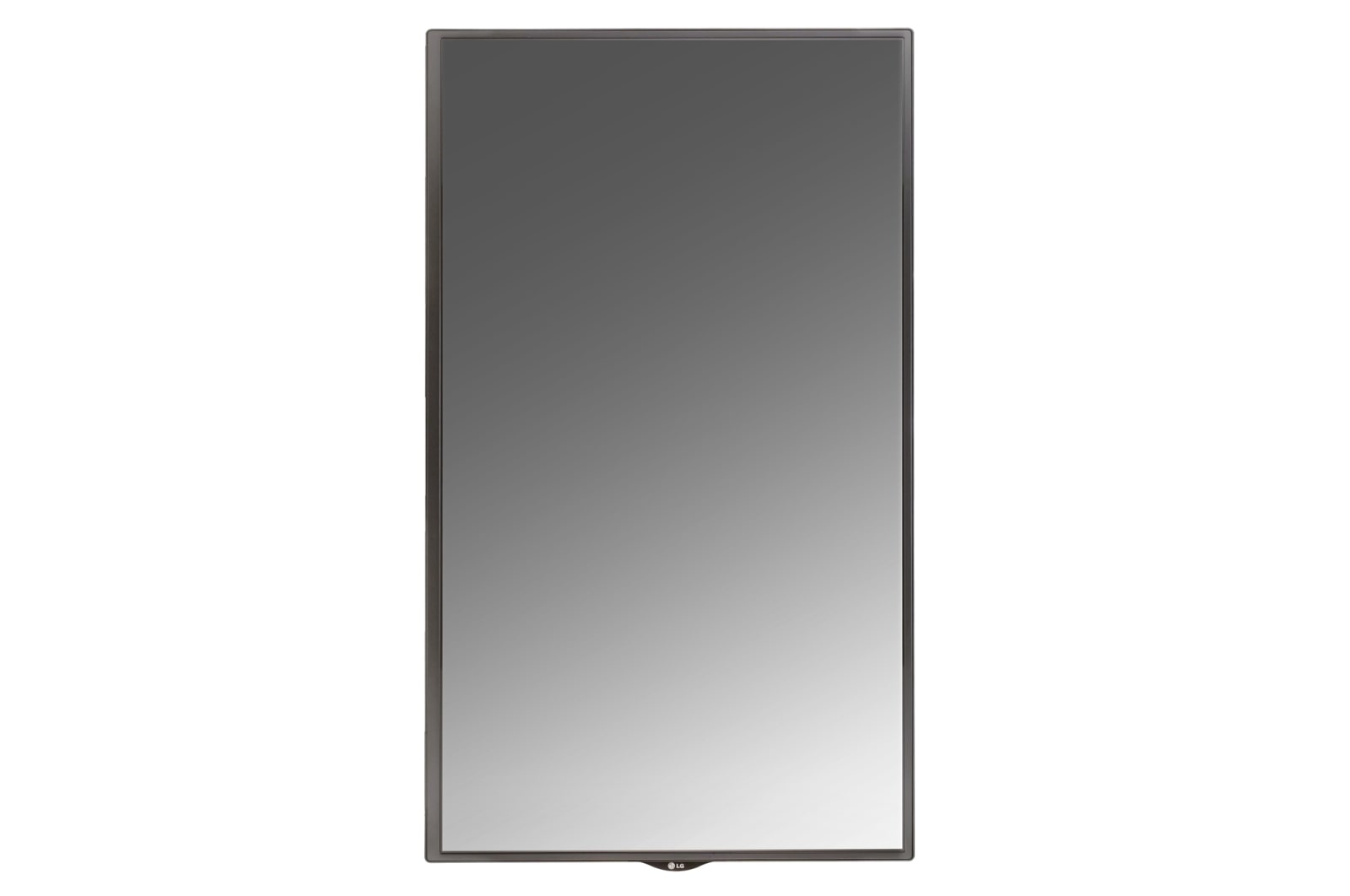

    Landscape & Portrait

CONNECTIVITY

  • Input
    HDMI (3), DP, DVI-D, Audio, USB 3.0
    Output
    DP (SST),Audio (Off/Fixed/Variable)
  • External Control
    RS232C in/out, RJ45 in, IR in

MECHANICAL SPECIFICATION

  • Bezel Colour
    Black
    Bezel Width
    11.9 mm (T/R/L), 18 mm (B)
  • Monitor Dimension (W x H x D)
    1,238 x 714.9 x 54 mm
    Weight (Head)
    17.5 kg
  • Monitor Dimension with Optional Stand
    1,238 x 773.4 x 219.6 mm
    Weight (Head+Stand)
    20.8 kg
  • Carton Dimensions (W x H x D)
    1,330 x 807 x 170 mm
    Packed Weight
    21.7 kg
  • VESA™ Standard Mount Interface
    300 x 300 mm

ENVIRONMENTAL CONDITIONS

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%

POWER

  • Power Type
    100-240V~, 50/60Hz
    Power Supply
    Built-In Power
  • Power Consumption-Typ./Max.
    130 W / 150 W
    Power Consumption-Smart Energy Saving
    91 W

CERTIFICATION

  • Safety
    AS/NZS 60950,CB Scheme
    EMC
    AS/NZS CISPR32,RCM(Class A)
  • ErP / Energy Star
    N/A / Yes (Energy Star 8.0)

MEDIA PLAYER COMPATIBILITY

  • OPS Type Compatible
    Yes
    External Media Player Attachable
    Yes

SOFTWARE COMPATIBILITY

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control/Control+

ACCESSORIES

  • Basic
    Remote Controller (2 Batteries Included), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender
    Optional
    Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T55E)
