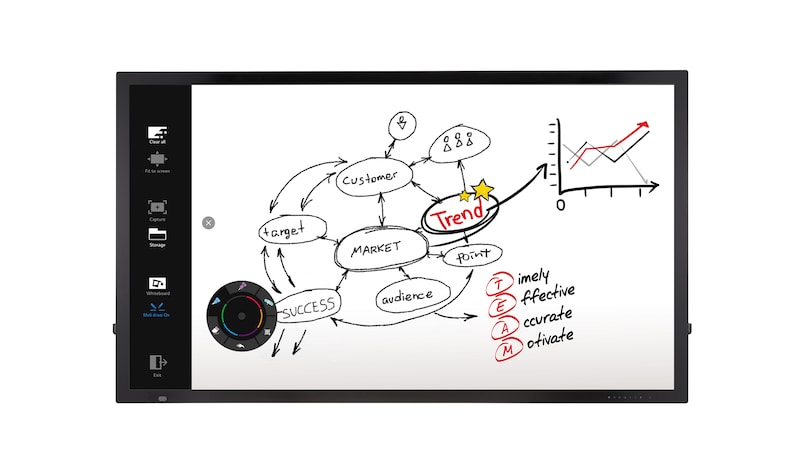

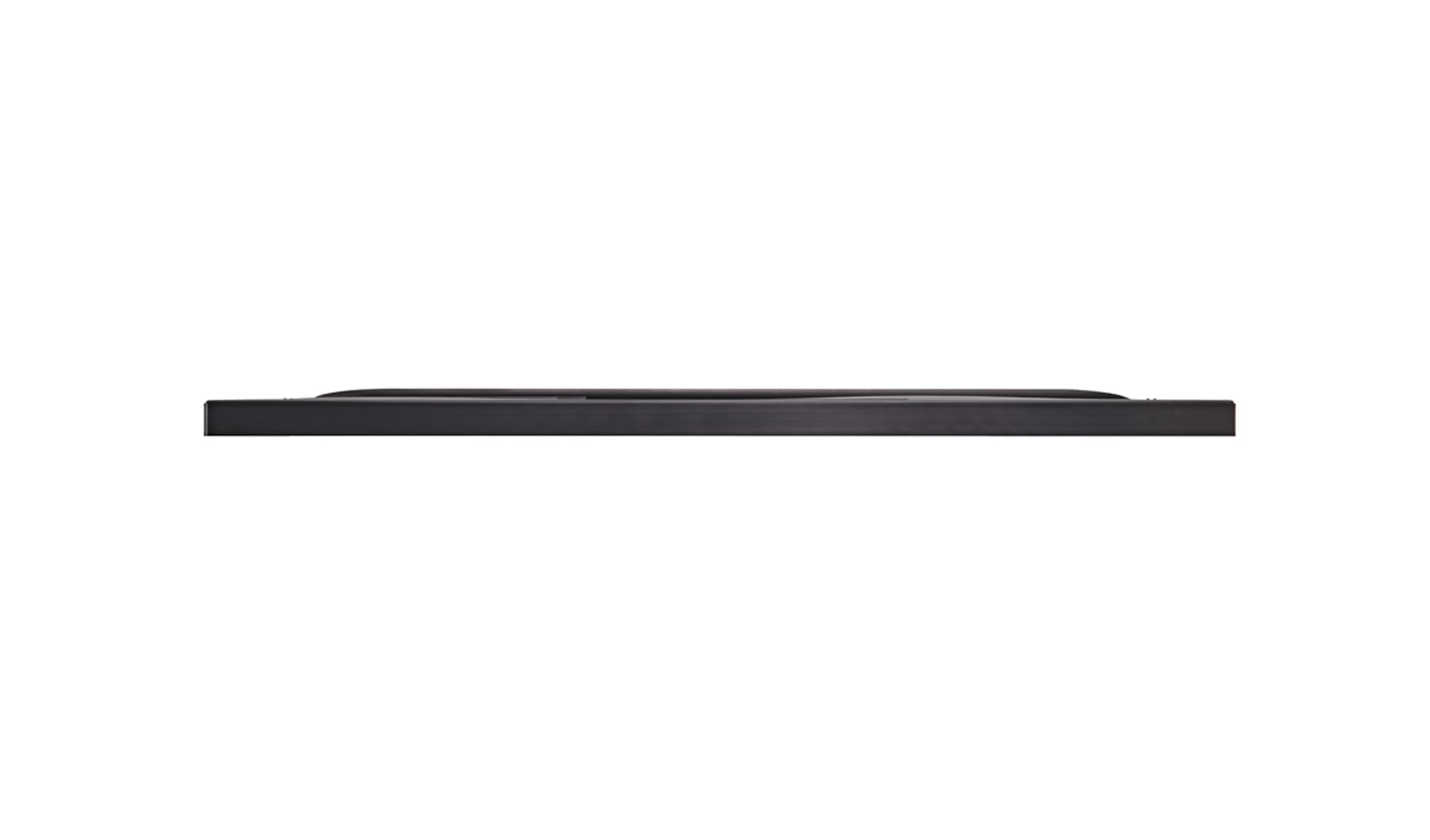

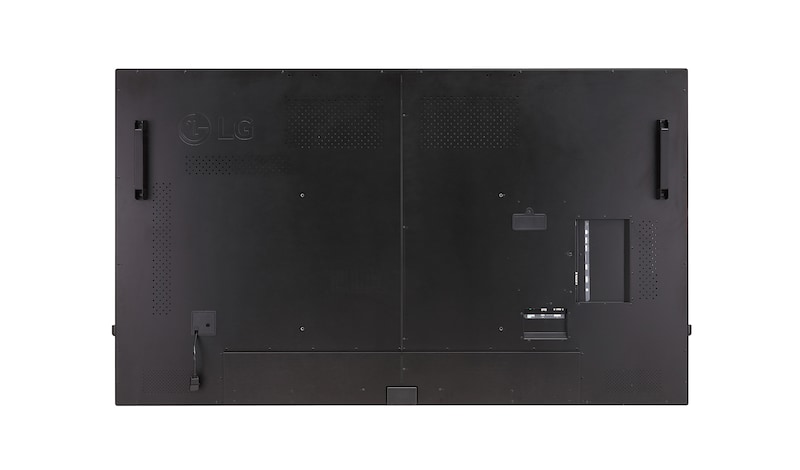

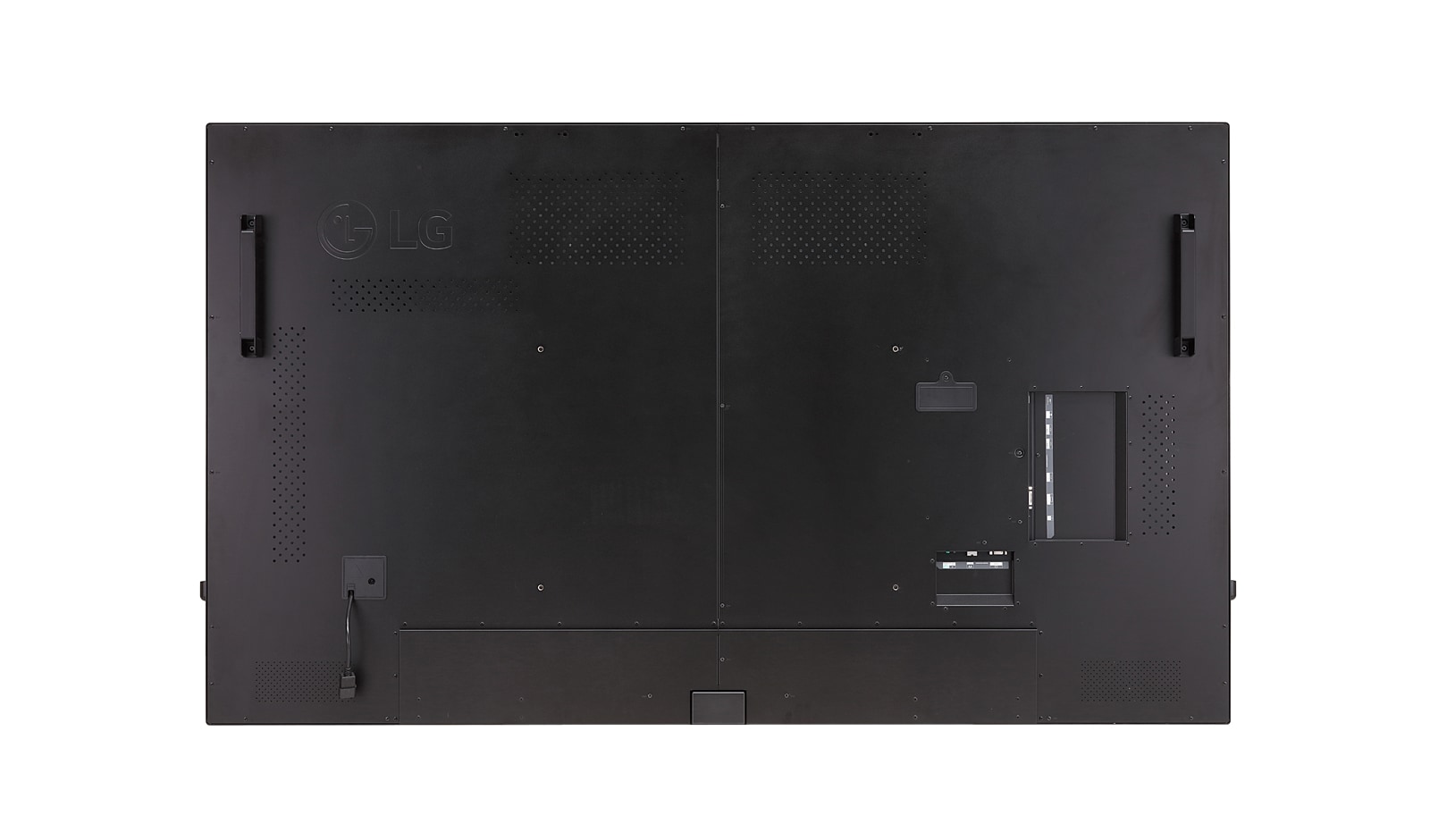

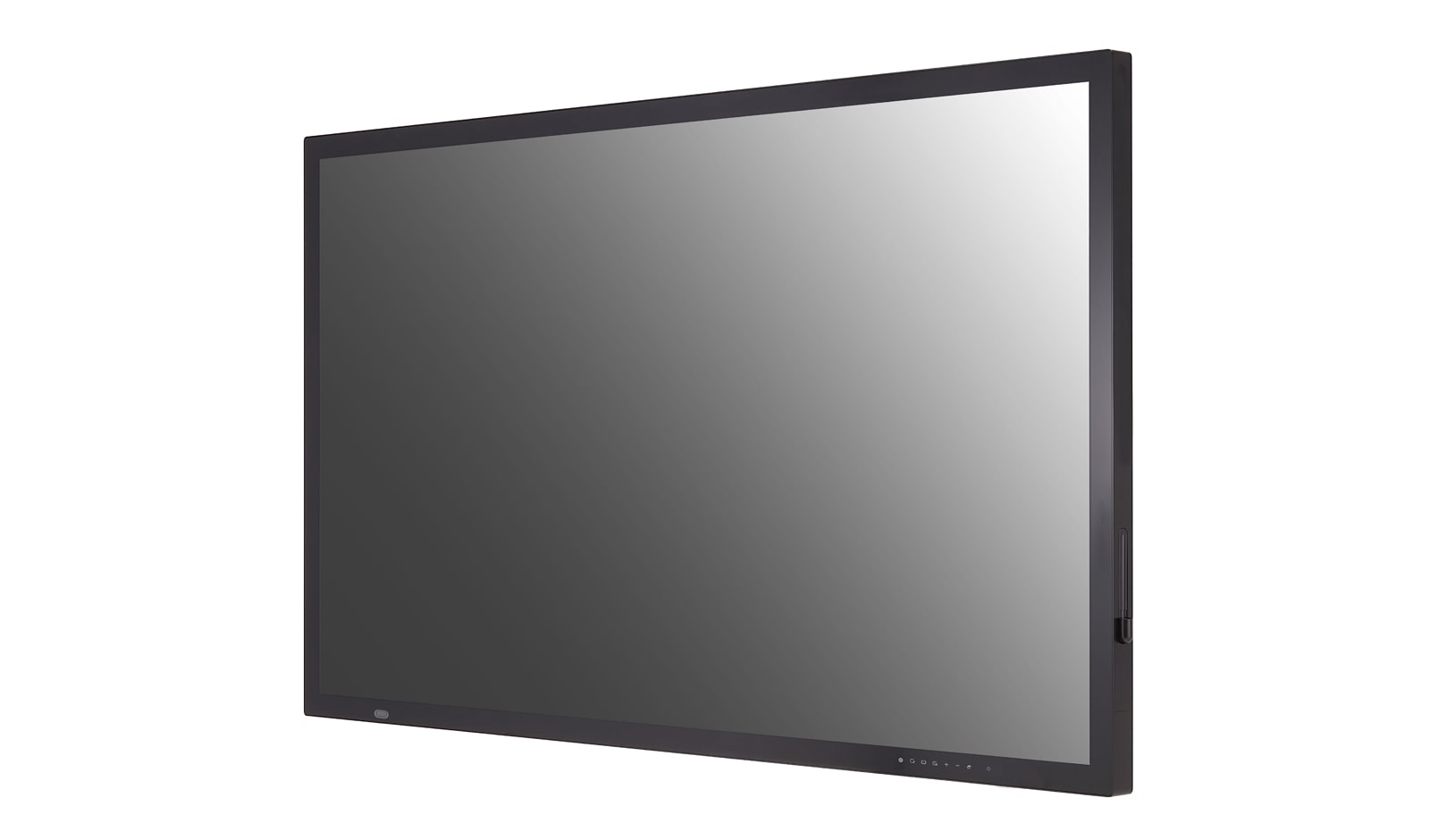

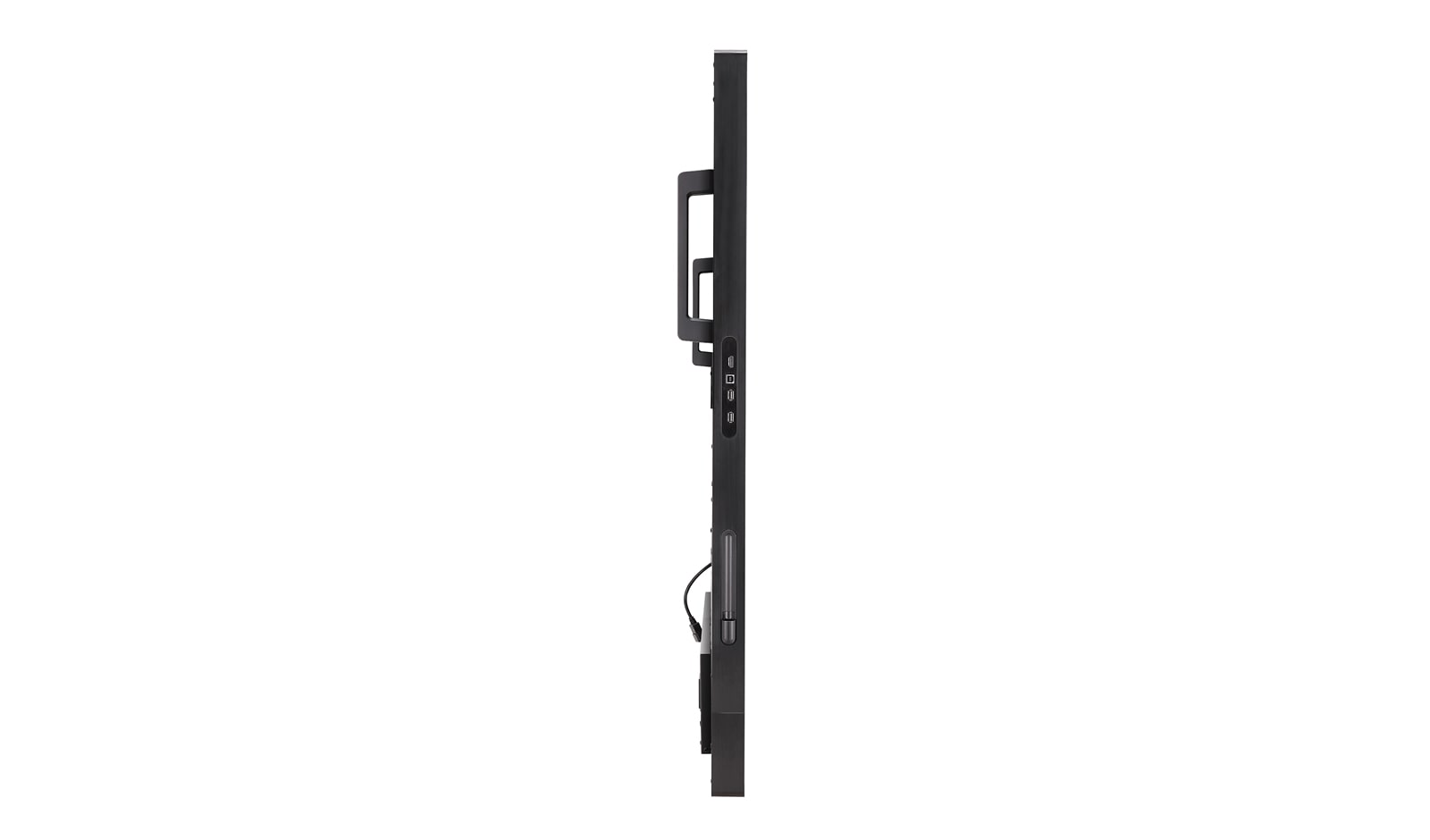

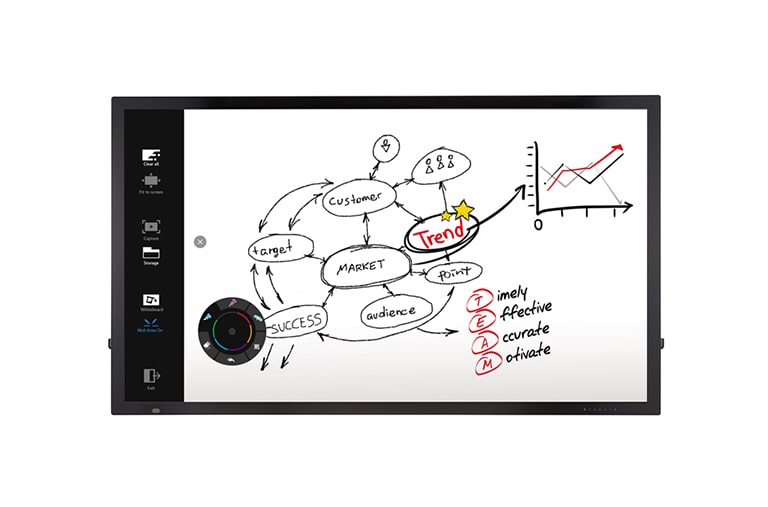

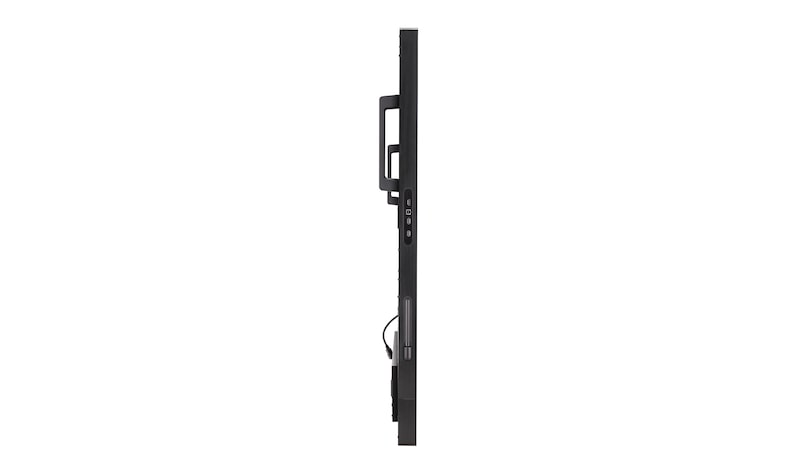

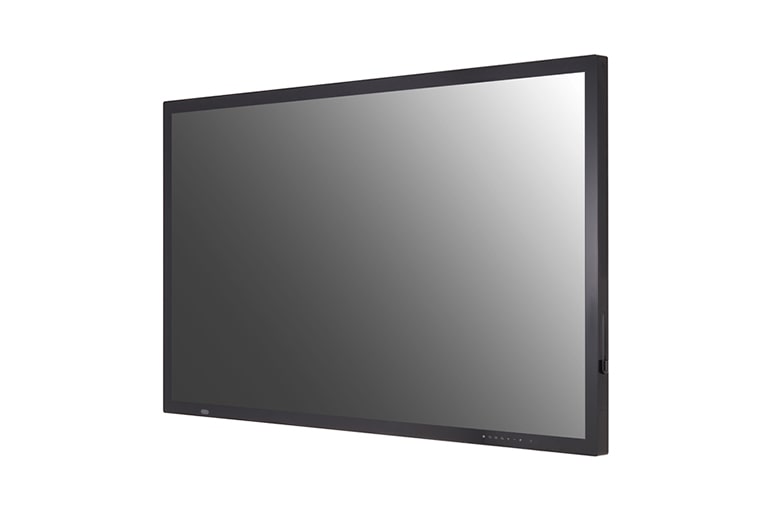

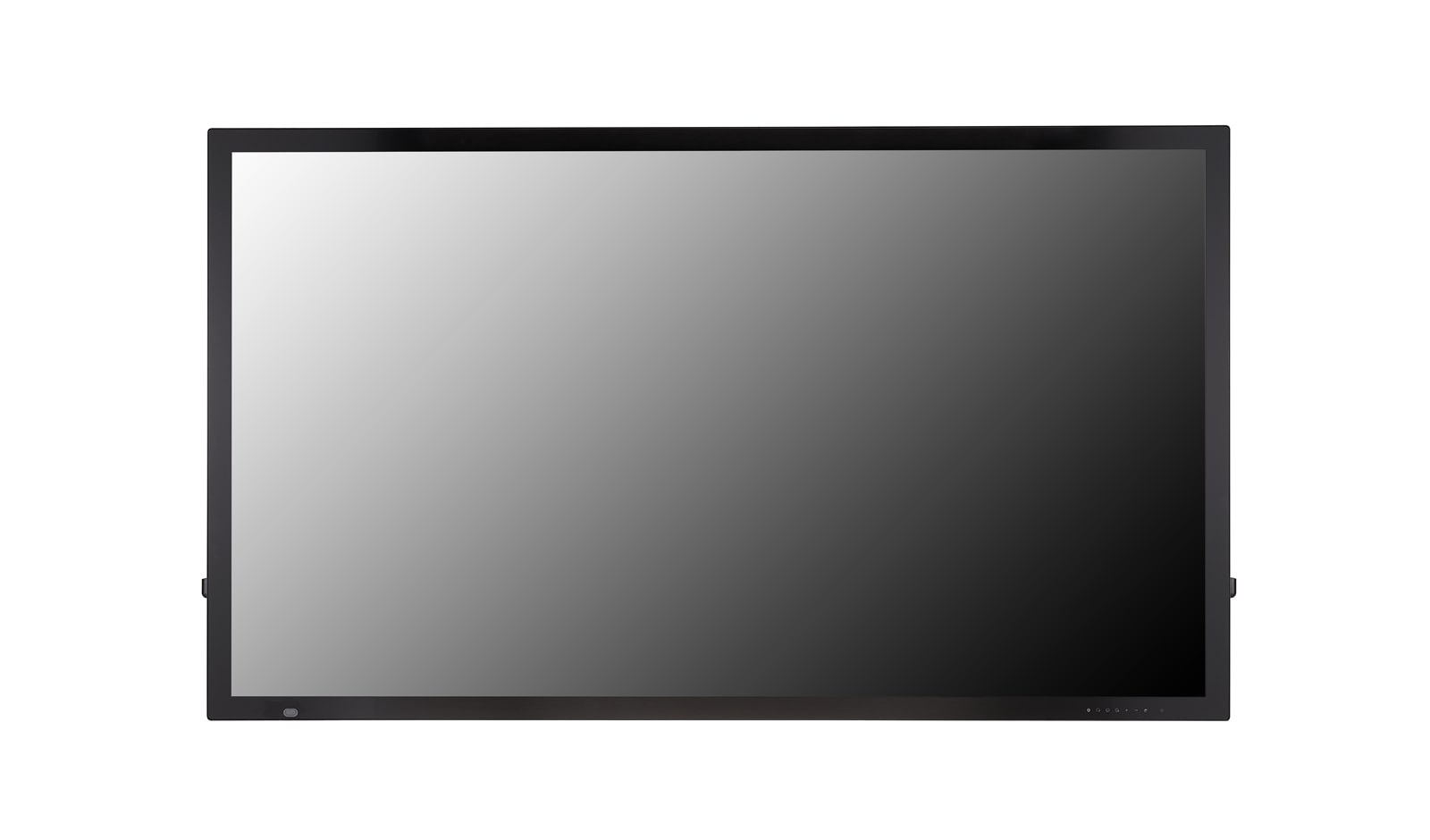

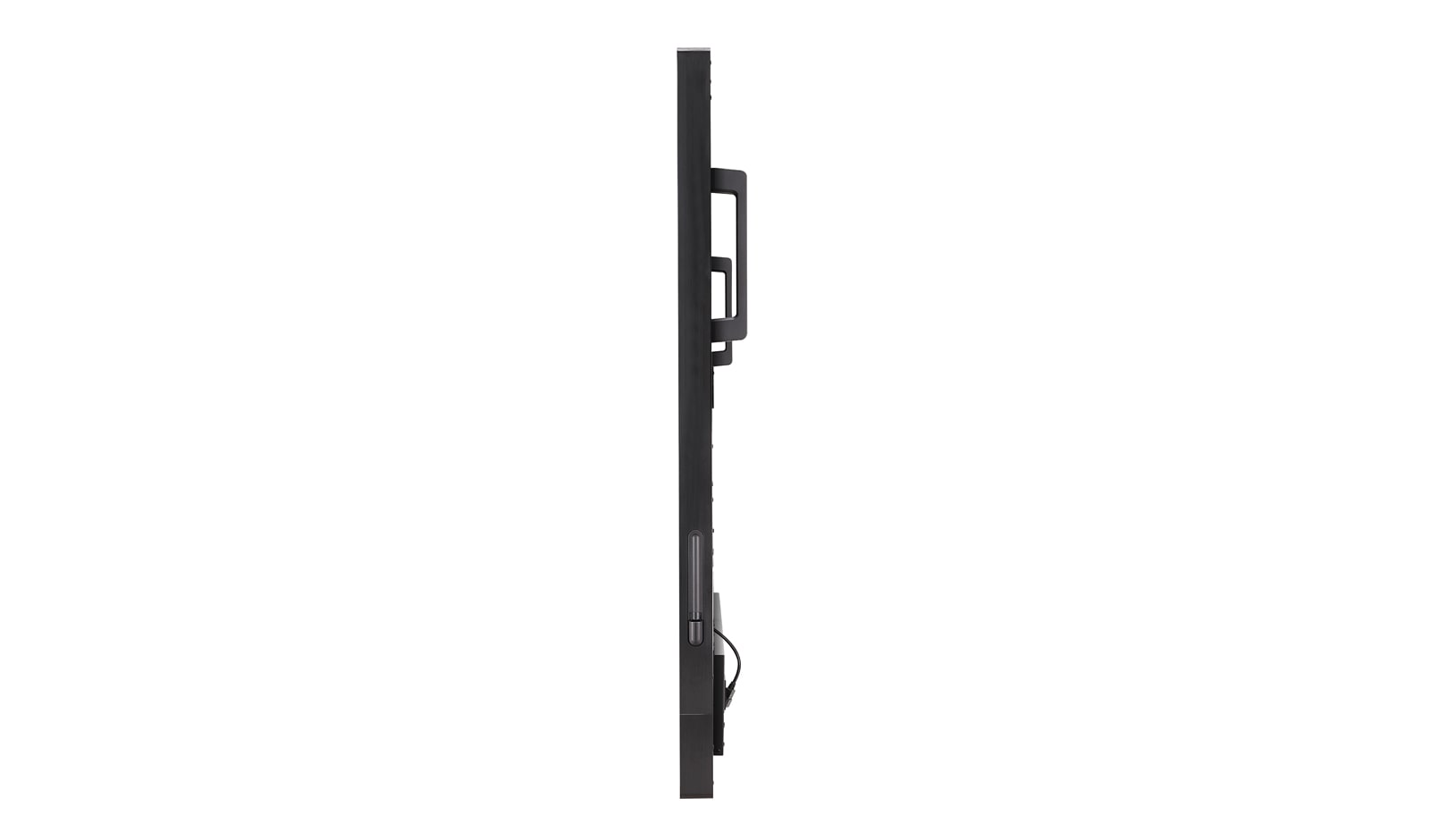

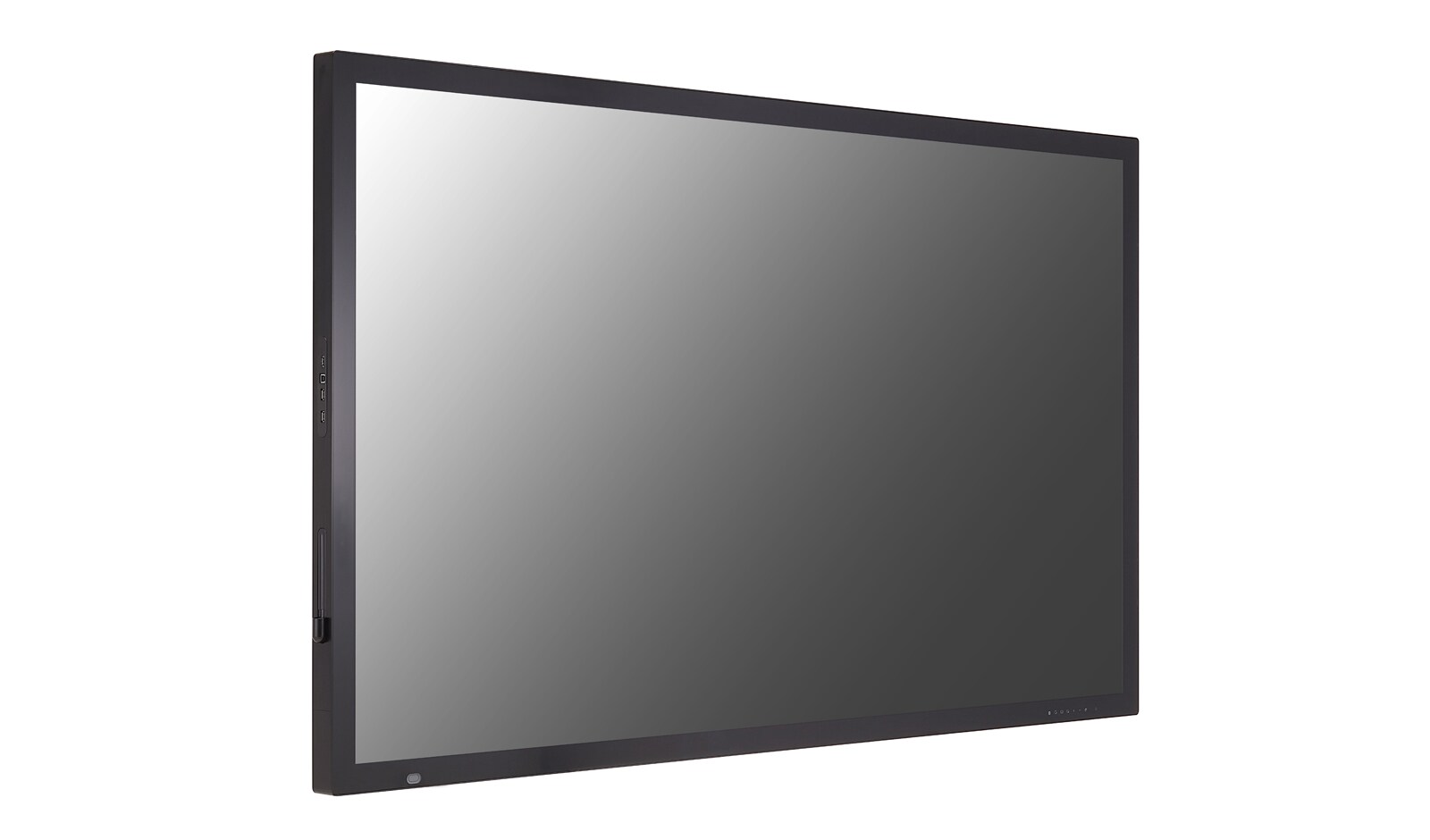

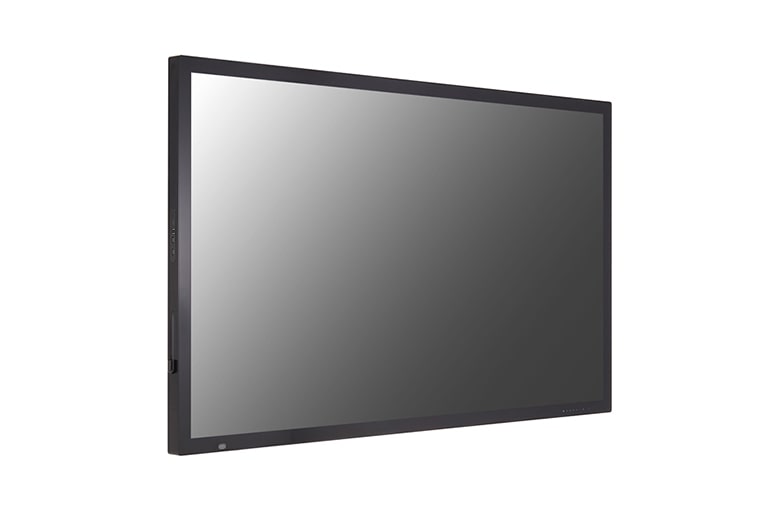

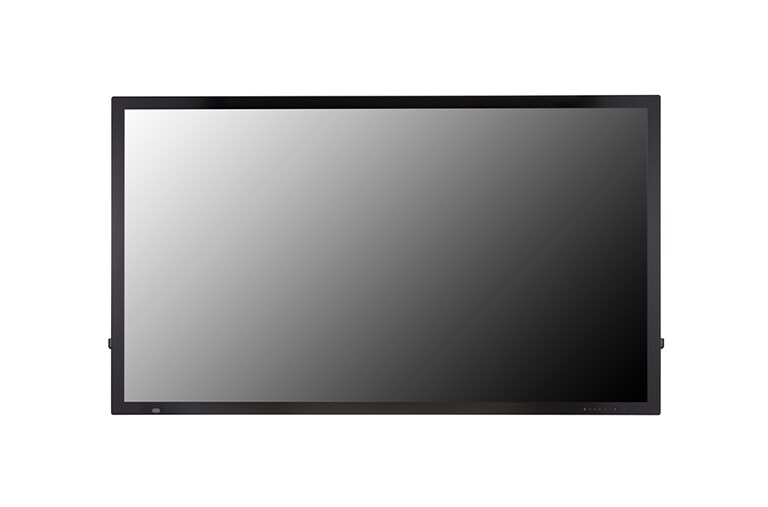

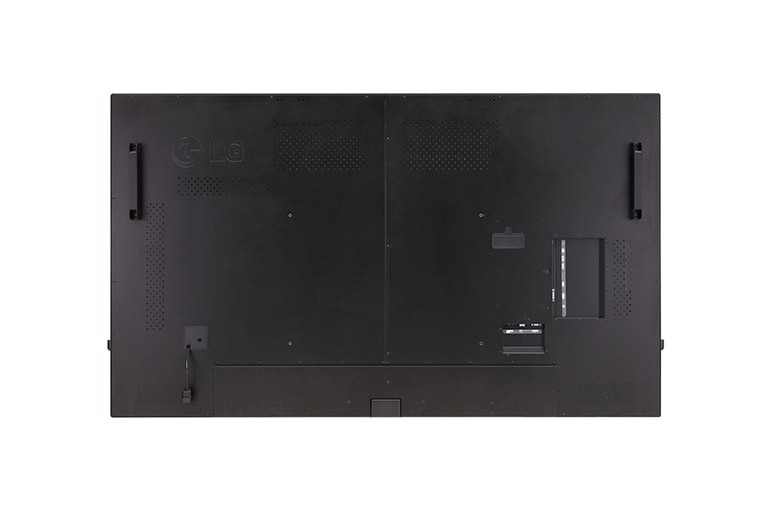

75TC3D-B
Interactive Digital Board
  • IDB App for Efficient Collaboration
  • IPS Panel with Wide Viewing Angles
  • Intuitive Touch and Writing
  • Auto Signal/Touch Switching
Interactive Digital Board
MSRP $
*Images simulated
*Failover function needs to be enabled to enable auto switch

PANEL

  • Screen Size
    75”
    Panel Technology
    IPS
  • Aspect Ratio
    16:9
    Native Resolution
    3,840 x 2,160 (UHD)
  • Brightness*
    500 cd/m2 (410 cd/m2 w/Protection Glass)
    Viewing Angle (H x V)
    178 x 178

CONNECTIVITY

  • Input
    HDMI (3), DP, DVI-D, RGB, Audio, USB 3.0, USB 2.0, OPS USB 2.0
    Output
    Touch USB 2.0 (2)
  • External Control
    RS232C in/out, RJ45 in

PHYSICAL SPECIFICATION

  • Bezel Width
    41.6 mm(T/L/R/B)
    Monitor Dimension (W x H x D)
    1,732.8 x 1011.1 x 69.7 mm (w/o Handle)
  • Weight (Head)
    74.5 kg
    Carton Dimensions (W x H x D)
    1,870 x 1,264 x 285 mm(with pallet)
  • Packed Weight
    94 kg
    VESA™ Standard Mount Interface
    600 x 400 mm

KEY FEATURES

  • KEY FEATURES
    webOS 3.0+, Embedded IDB App, Crestron Connected® (Network Based Control), Mirroring, Soft AP, Beacon, Reader Mode, Auto Brightness Sensor, Internal Memory 64GB(System 8GB for TC3D and 4GB for TR3E)

SPECIAL FEATURES

  • SPECIAL FEATURES
    Temperature Sensor, ISM Method, DPM Select, Brightness Control, PM Mode, Wake on LAN, Energy Saving, File Play with USB, 2 PIP/PBP, Built-in Wi-Fi (802.11n Combo), USB Cloning, Failover, No Signal Image

ENVIRONMENT CONDITIONS

  • Operation Temperature Range
    0°C to 40°C
    Operation Humidity Range
    10% to 80%

POWER

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
  • Power Consumption-Typ.
    ≤ 240 W
    Power Consumption-Smart Energy Saving
    ≤ 170 W
  • Power Consumption-DPM
    ≤ 0.5 W

AUDIO

  • Built-in Speker
    20 W (10W×2)

STANDARD(CERTIFICATION)

  • Safety
    AS/NZS 60950,CB Scheme
    EMC
    AS/NZS CISPR32,RCM(Class A)

MEDIA PLAYER COMPATIBILITY

  • OPS Type Compatible
    Yes

SOFTWARE COMPATIBILITY

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control/Control +

ACCESSORIES

  • Basic
    Remote Controller (2 BatteriesIncluded), Power Cord, QSG, HDMI (3M), Regulation Book, Phone to RS232C Gender, Touch Pen (2ea), Eyebolt (2ea, 86TR3E Only), Touch Pen Tip (1ea, TC3D Only)
    Optional
    OPS Kit (KT-OPSA), Wall Mount (LSW640A/B)

TOUCH SPECIFICATIONS

  • Touch Type
    P-Cap (Ag Metal Mesh)
    Available Object Size for Touch
    more than Ø 6 mm
  • Accuracy
    2 mm
    Interface
    USB 2.0
  • Protection Glass Thickness
    4T (Anti-glare)
    Multi Touch Point
    Max. 40 Points (Supported by Windows Application, Max 10 Points for WebOS)
