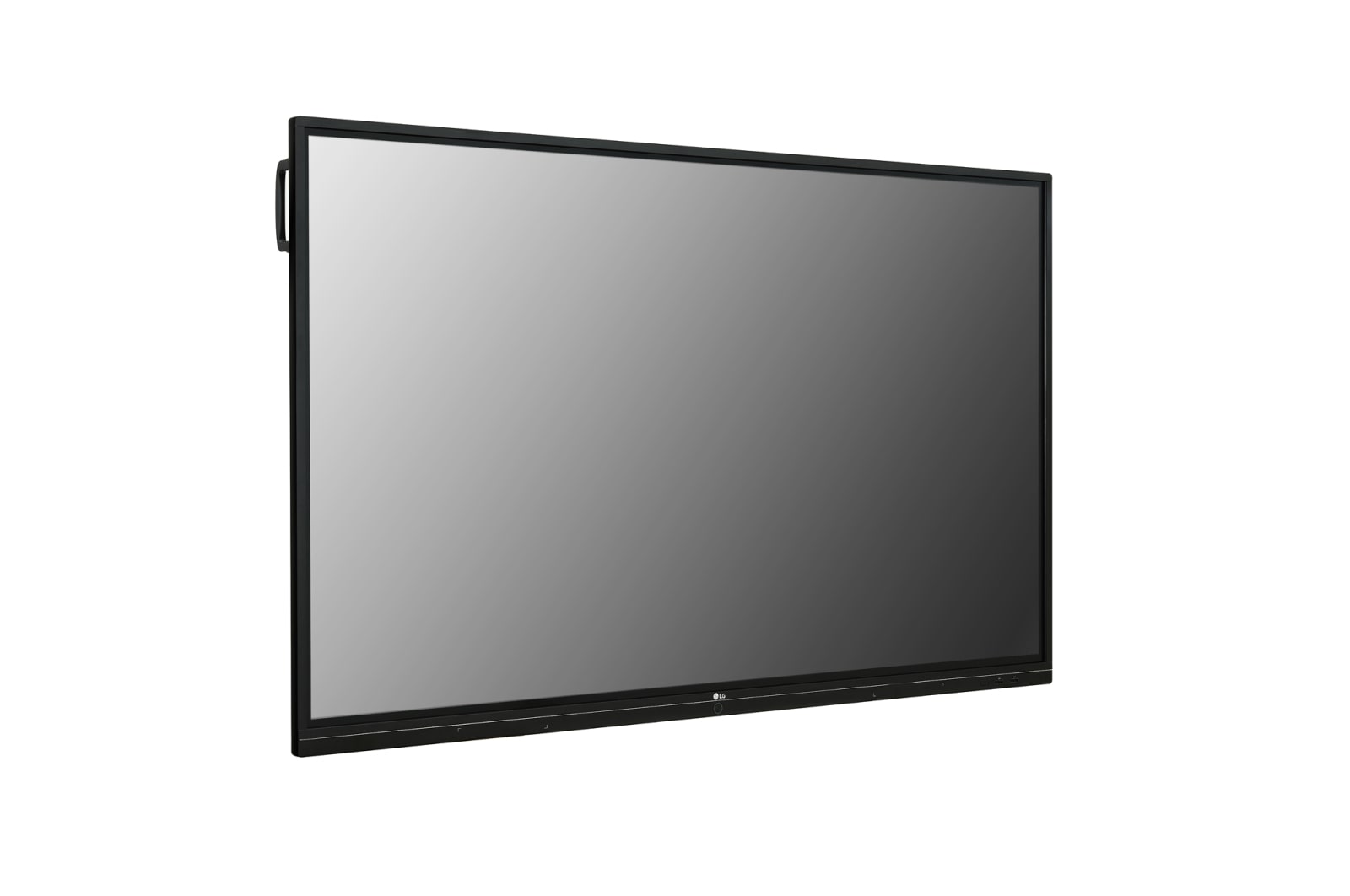

75'' 280 nits UHD Interactive Digital Board

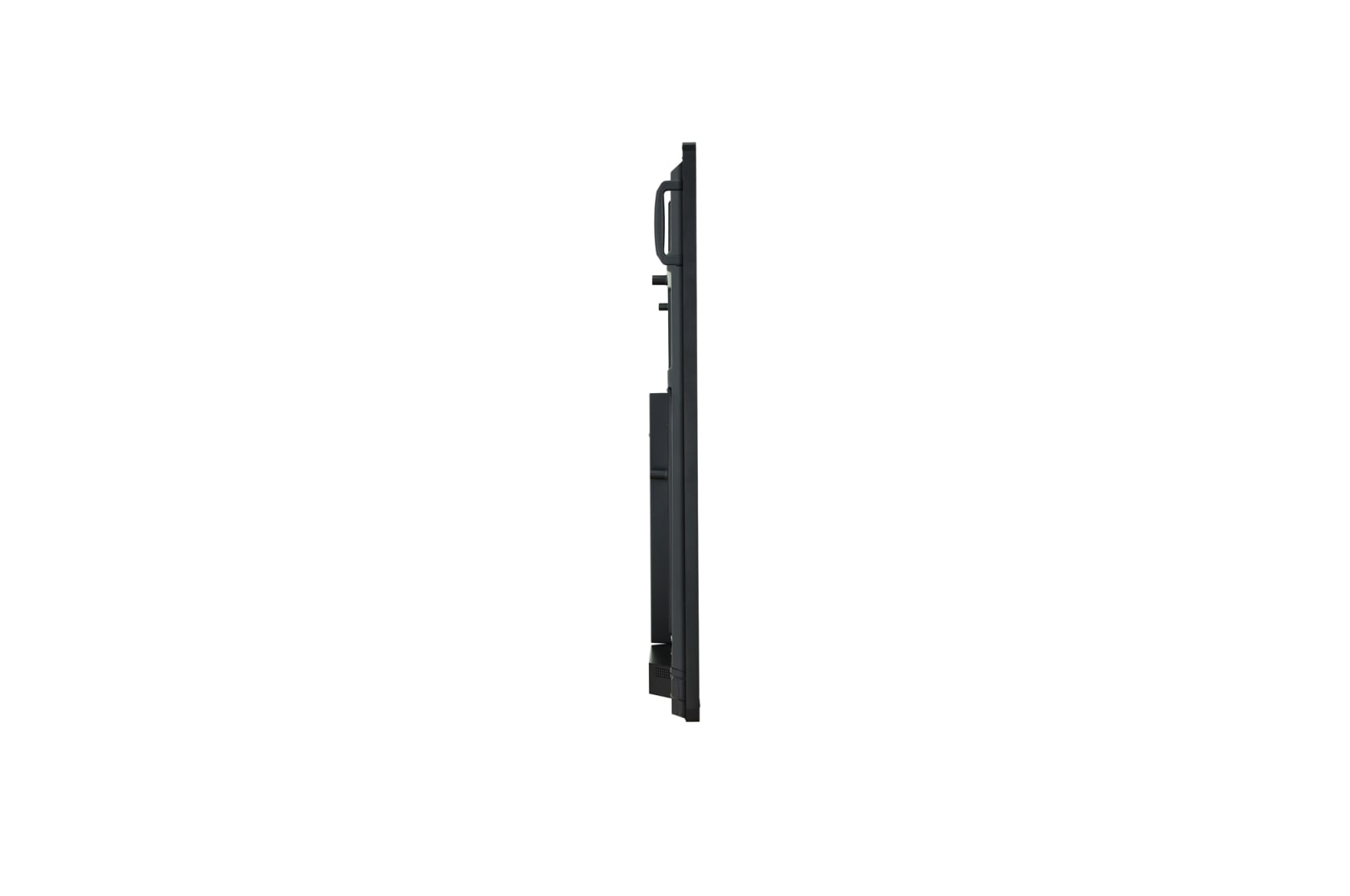

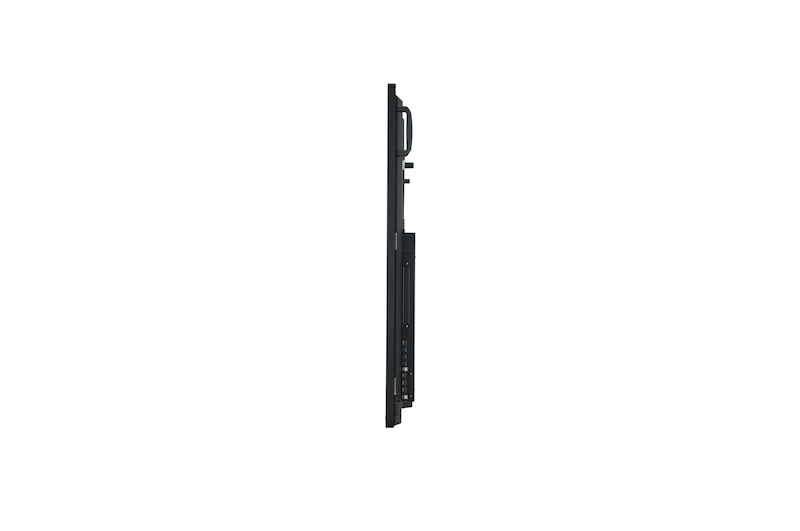

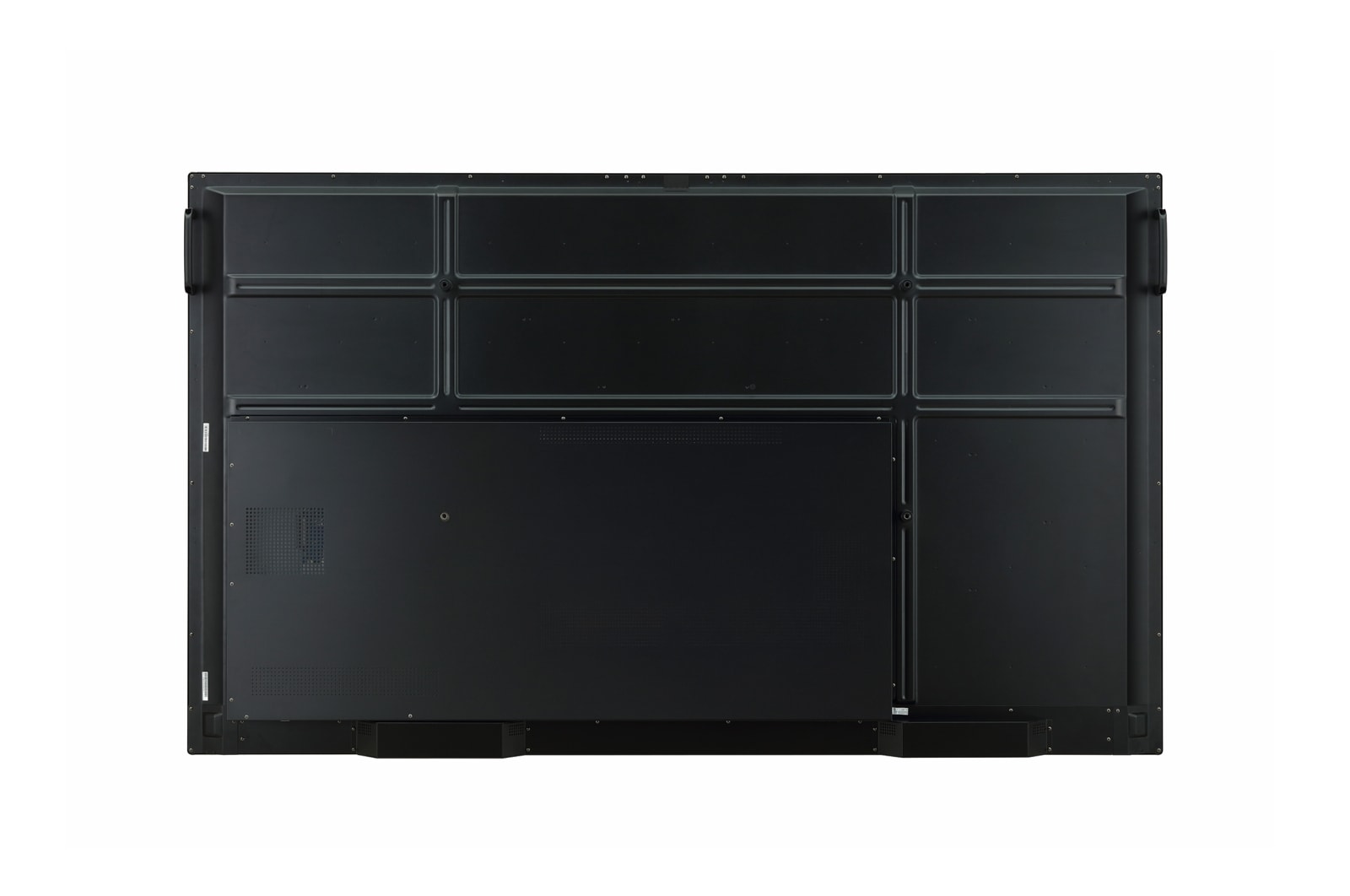

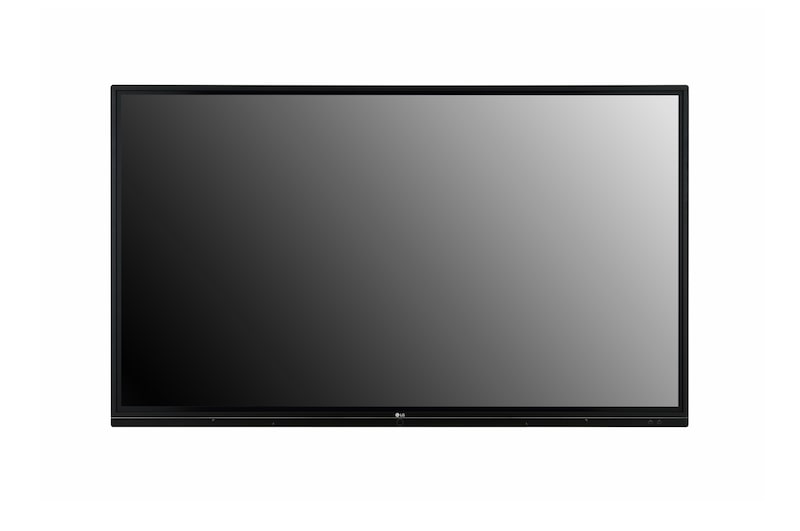

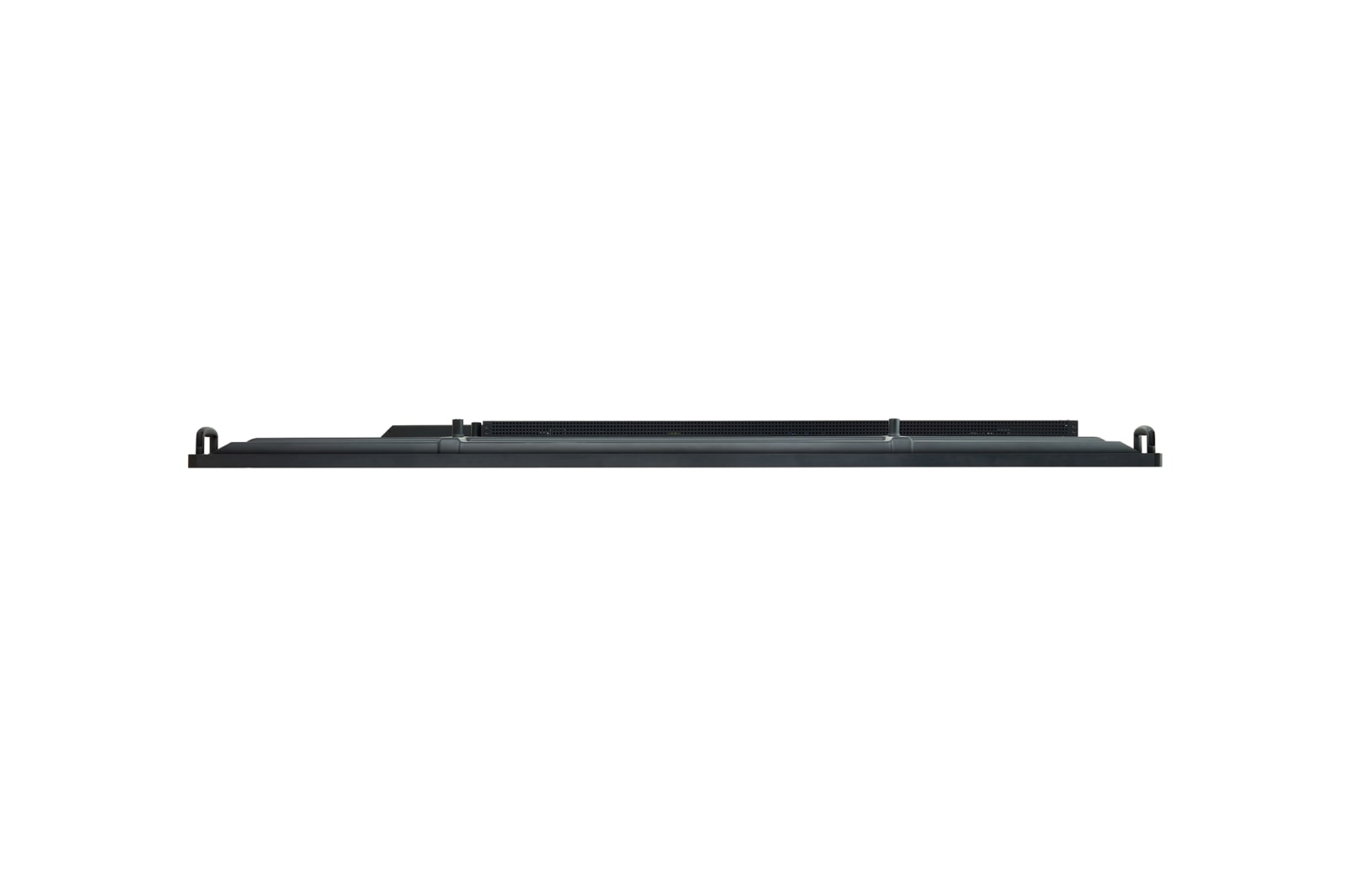

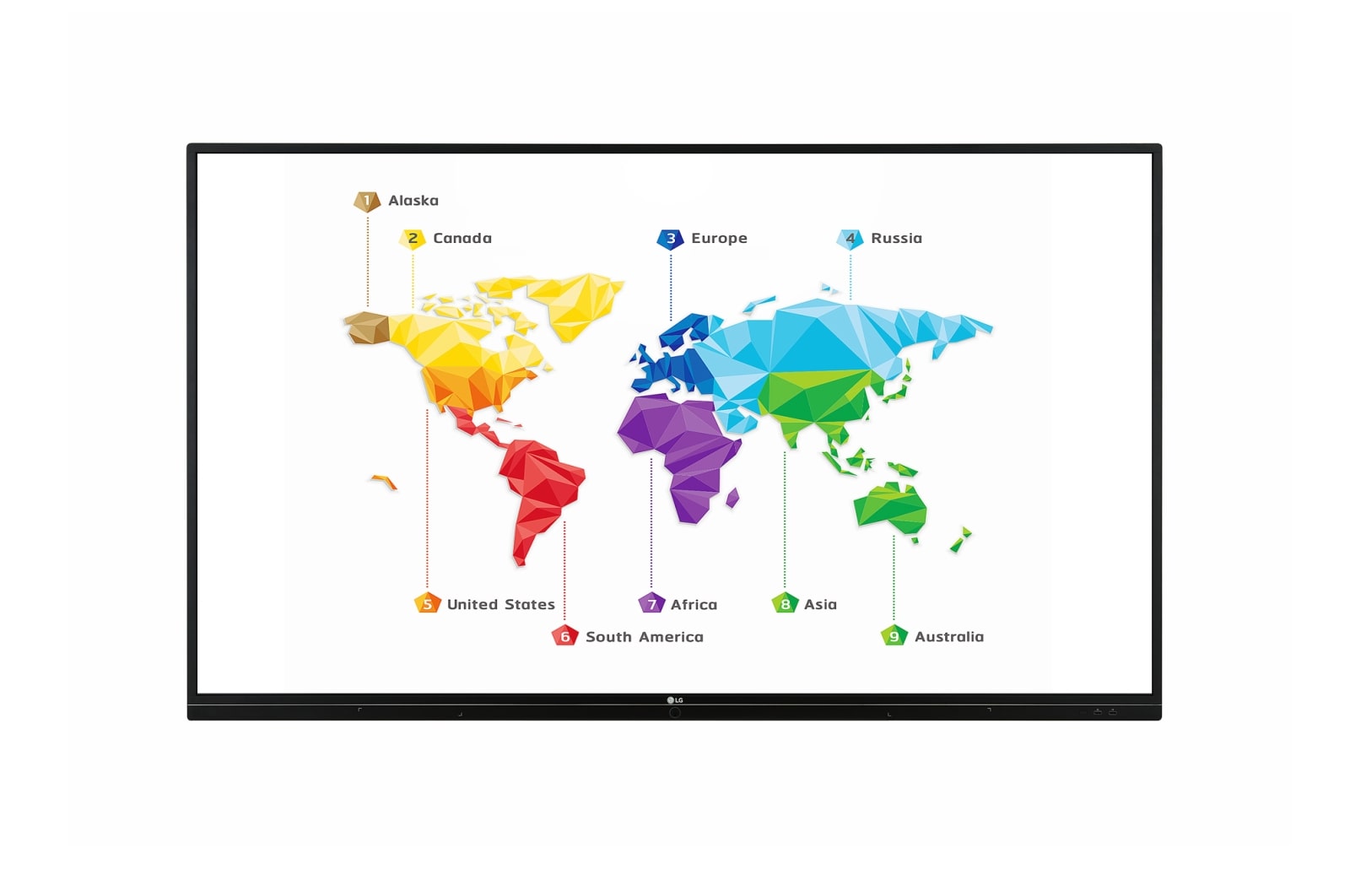

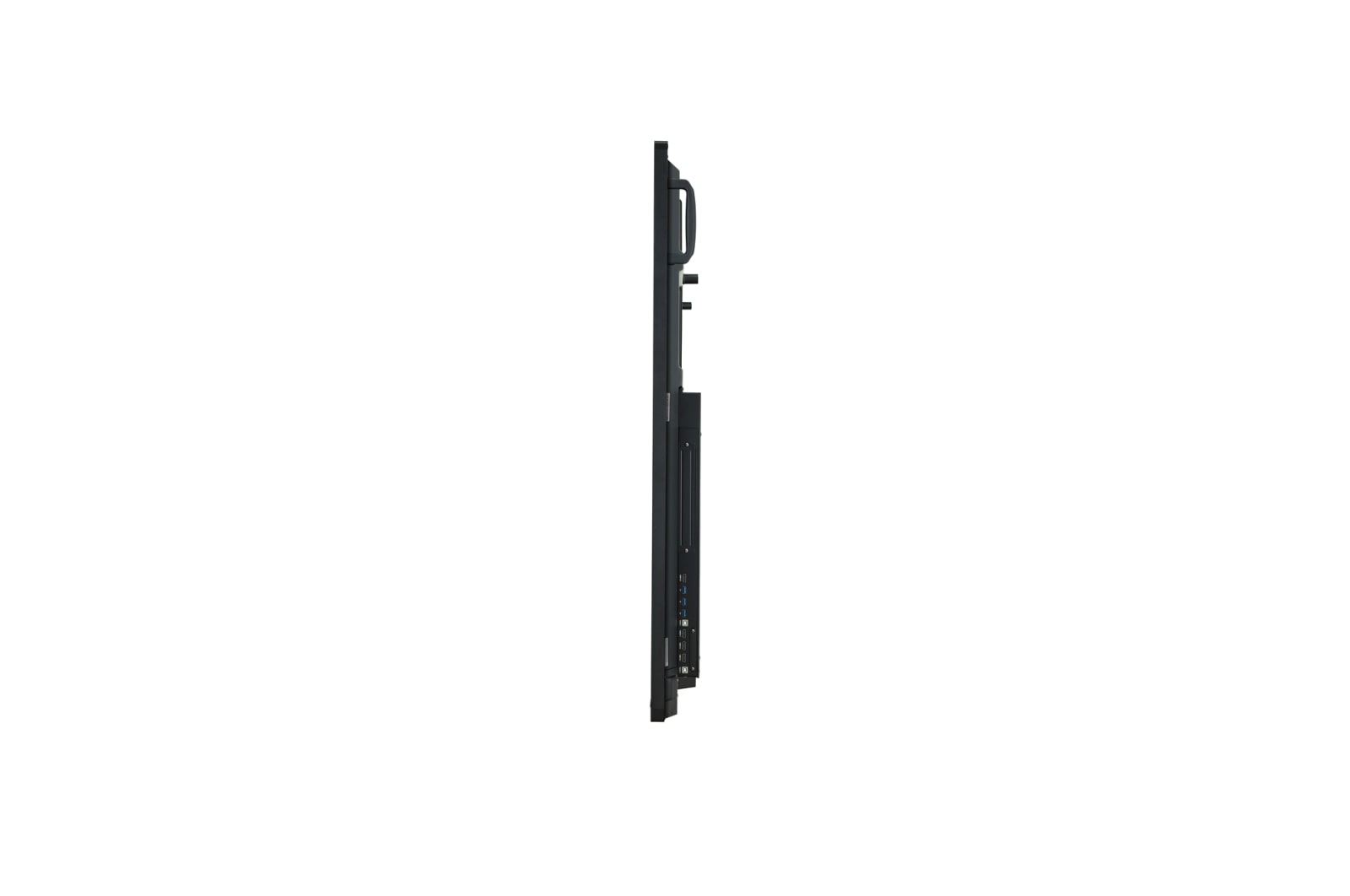

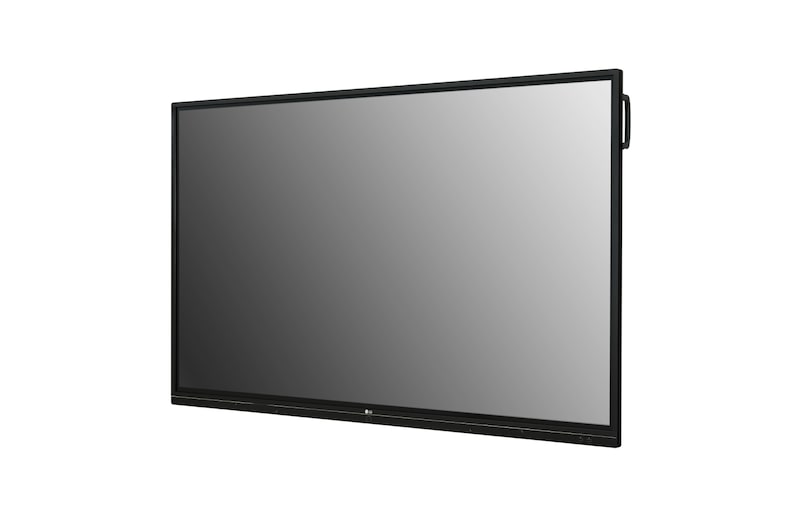

LG 75'' 280 nits UHD Interactive Digital Board, 75TR3BF-B, thumbnail 1

LG 75'' 280 nits UHD Interactive Digital Board, 75TR3BF-B, thumbnail 2

LG 75'' 280 nits UHD Interactive Digital Board, 75TR3BF-B, thumbnail 3

LG 75'' 280 nits UHD Interactive Digital Board, 75TR3BF-B, thumbnail 4

LG 75'' 280 nits UHD Interactive Digital Board, 75TR3BF-B, thumbnail 5

LG 75'' 280 nits UHD Interactive Digital Board, 75TR3BF-B, thumbnail 6

LG 75'' 280 nits UHD Interactive Digital Board, 75TR3BF-B, thumbnail 7

LG 75'' 280 nits UHD Interactive Digital Board, 75TR3BF-B, thumbnail 8

LG 75'' 280 nits UHD Interactive Digital Board, 75TR3BF-B, thumbnail 9

ADD TO WISHLIST

Discontinued

75TR3BF-B component-copyModelName

75'' 280 nits UHD Interactive Digital Board

Key Features

Brightness(w/Protection Glass) : 330 cd/m²
Touch Type : IR
Multi Touch Point : Max 20 points / Max 10 writing

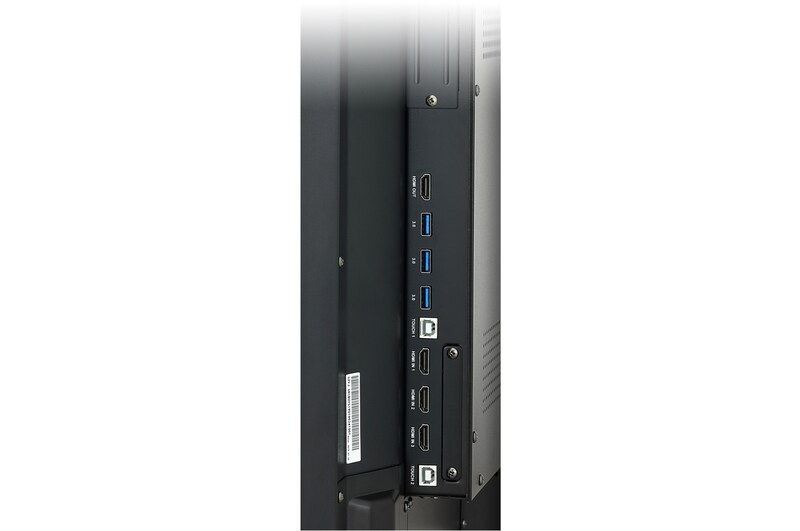

Interface: HDMI (3), RGB / Audio In, RS232C In, RJ45, USB 2.0 (3, Front: 2ea, Bottom side: 1ea - Only for software update), USB 3.0 (3), Touch Out (USB2.0, B Type) (2), HDMI (1), Optical Output / Audio Out

Enquire To Buy Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(w/Protection Glass) : 330 cd/m²
Touch Type : IR
Multi Touch Point : Max 20 points / Max 10 writing
Interface: HDMI (3), RGB / Audio In, RS232C In, RJ45, USB 2.0 (3, Front: 2ea, Bottom side: 1ea - Only for software update), USB 3.0 (3), Touch Out (USB2.0, B Type) (2), HDMI (1), Optical Output / Audio Out

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

75" 280 nits UHD Interactive Digital Board

True Interactivity for Bringing People Together

The TR3BF series supports multi-touch & writing functions which provide accurate drawing and touchscreen functionality, with up to 20 multi-touch points. Additional features such as Air Class and a web browser can help support interactive learning and promote effective collaboration.

INTUITIVE TOUCH & WRITING EXPERIENCE

Palm Erasing

Besides using the stylus, users can also erase pictures and text from the screen using the palms of their hands. It is not only easier, but also feels natural and intuitive.

EASY CONNECT & SHARING

Air Class

Air Class supports connections to up to 30 devices and offers interactive meetings for devices on the same network, providing a variety of tools such as voting, answering, and sharing project text.

EASY CONNECT & SHARING

Screen Sharing

The TR3BF Series allows you to mirror screens and can easily share content with laptops and other mobile devices, helping to make meetings as efficient and immersive as possible.

EASY CONNECT & SHARING

Built-in OPS kit

The TR3BF Series supports OPS slots, allowing you to easily and conveniently mount an OPS desktop at the back of the digital board without the hassle of connecting to an external desktop.

USER FRIENDLY EXPERIENCE

Web Browsing

With the inbuilt web browser, users can search the web easily and quickly, without the need to connect to an external desktop.

USER FRIENDLY EXPERIENCE

All-in one

The TR3BF Series integrates both Android and Note Apps into a high performance SoC, without a PC.

ULTRA HIGH DEFINITION

Exceptional Picture Definition

With the Ultra High Definition display, users can view content in ultra high detail, even when zoomed-in. Ultra HD provides an exceptionally high-quality media experience at four times higher definition than Full HD.

Lifelike Picture Quality

LG IPS panels allow you to enjoy lifelike picture quality with minimal variation from wide viewing angles. Featuring excellent consistency in colour temperature and less change in contrast, LG IPS panels boast excellent image reproduction.

*Images dramatised for illustrative effect.

PDF SPEC SHEET

PANEL

Screen Size

75

Panel Technology

IPS
Back Light Type

Direct

Aspect Ratio

16 : 9
Native Resolution

3,840 x 2,160 (UHD)

Brightness (Typ.)

280cd/m² (w/Protection Glass)
Viewing Angle (H x V)

178 x 178

Surface Treatment

Hard coating(2H), Anti-glare low reflection treatment of the front polarizer (Haze 28%(Typ.)
Lifetime (Typ.)

30,000 Hrs

Operation Hours

16Hrs
Orientation

Landscape

CONNECTIVITY

Input

HDM(3), RGB, Audio, USB (USB3.0)(3), USB(USB2.0)(3, one for software update only)

Output

HDMI, Audio, Coaxial/optical, Touch USB 2.0(2)
External Control

RS232 In, RJ45 In

PHYSICAL SPECIFICATION

Bezel Colour

Black

Bezel Width

17.7 mm (T/L/R), 45.7 mm (B)
Monitor Dimension (W × H × D)

1709 × 1020 × 86 mm

Weight (Head)

53 kg
VESA^TM Standard Mount Interface

800 x 400 mm

ENVIRONMENT CONDITIONS

Operation Temperature

0 °C to 40 °C

Operation Humidity

10 % to 80 %

POWER

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power
Power Consumption (Typ. / Max.)

175/294 W

STANDARD(CERTIFICATION)

Safety

CB / NRTL

EMC

AS/NZS CISPR32,RCM(Class A)
ErP / Energy Star

Yes (EU Only) / No

MEDIA PLAYER COMPATIBILITY

OPS Type Compatible

Yes

TOUCH SPECIFICATIONS

Touch Type

IR

Available Object Size for Touch

Ø3 mm ↑
Accuracy

± 1.5 mm

Interface

USB 2.0
Protection Glass Thickness

4T (Anti-glare)

Multi Touch Point ¹⁾

Max 20 points / Max 10 writing
