75XS2C
WINDOW-FACING DISPLAY 75XS2C SERIES
  • Window-facing
  • Brightness: 2,500 cd/m2
  • Depth: 116mm (75"), 89mm (55")
  • Fan-less design for noise reduction
  • For outdoor use, enclosure required

component-OBScountrySelectDesc

WINDOW-FACING DISPLAY 75XS2C SERIES

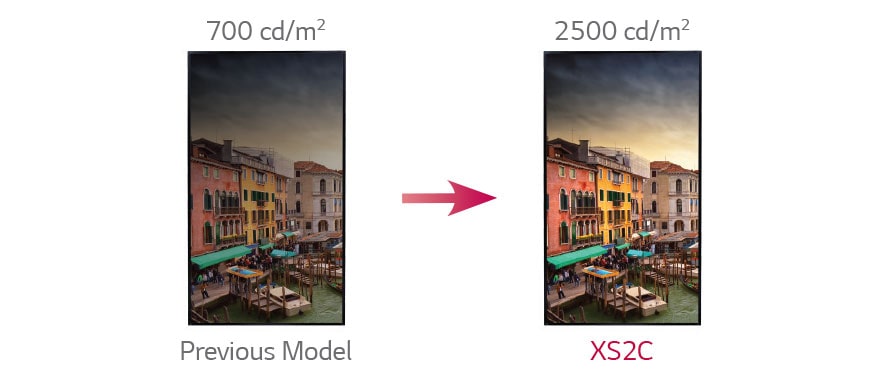

Increased Brightness

The high brightness outdoor display maintains high picture quality and image readability in an outdoor environment even when used for continuous business use (24/7).
Increased Brightness Increased Brightness

Less Noise. No Cooling Fan

XS2C can be installed in an in-window retail environment as it operates quietly without having a cooling fan.
Less Noise. No Cooling Fan Less Noise. No Cooling Fan

Smart Brightness Control

The high brightness outdoor display maintains high picture quality and image readability in an outdoor environment.
Smart Brightness Control Smart Brightness Control
Dust & Humidity Protection

Dust & Humidity Protection

The XS2C Series has been designed with the LG Conformal Coating to provide additional protection to circuit boards in harsh environments such as dust and humidity.

High Operating Temperature

Even under high operating temperature of up to 45°C, it presents clearer images without hot spots.
High Operating Temperature High Operating Temperature

Real-Time Remote Monitoring

Real Time Display Remote Management through SuperSign C or Simple Network Management Protocols (SNMP) is available in addition to RS-232C and other network protocol.
Real-Time Remote Monitoring Real-Time Remote Monitoring

Saving System Log Files

The XS2C supports 'log file back-up' of display failure and allows to check when specific error occured.
Saving System Log Files Saving System Log Files

PANEL

  • Screen Size
    75" (189cm)
    Panel Technology
    IPS, M+ (WRGB)
  • Aspect Ratio
    16:9
    Resolution
    3,840 x 2,160 (UHD)
  • Brightness
    2,500cd/m2 (Typ.)
    Contrast Ratio
    1200:1
  • Dynamic CR
    500,000:1
    Viewing Angle (H x V)
    178 x 178
  • Surface Treatment
    AGLR(Haze 3%) ,QWP
    Orientation
    Landscape & Portrait

CONNECTIVITY

  • Input
    HDMI(2), DP, DVI-D, Audio, USB
    Output
    DP, External Speaker Out (L/R)
  • External Control
    RS232C In/Out, RJ45, IR Receiver, Pixel Sensor

PHYSICAL SPECIFICATION

  • Bezel Colour
    Black
    Bezel Width
    11.8 mm (even bezel)
  • Monitor Dimension (W x H x D)
    1,675.2 x 953.6 x 116 mm
    Weight (Head)
    43 kg
  • Carton Dimensions (W x H x D)
    1,816 x 1,106 x 285 mm
    Packed Weight
    52.2 kg
  • VESATM Standard Mount Interface
    600 x 400 mm

SPECIAL FEATURES

  • SPECIAL FEATURES
    Temperature sensor, Tile mode (Up to 15x15), Natural mode@Tile mode, Source selection, Brightness/Contrast/Backlight, DPM select, Energy saving, Smart energy saving, File play with USB, Internal memory, Wi-Fi dongle ready

ENVIRONMENT CONDITIONS

  • Operation Temperature Range
    0°C to 40°C(w/o Direct sunlight),
    0°C to 30°C (Direct sunlight)
    Operation Humidity Range
    10% to 85%

POWER

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
  • Power Consumption (Typ./Max)
    650 W / 650 W
    Power Consumption (Smart Energy Saving)
    280 W

STANDARD(CERTIFICATION)

  • Safety
    AS/NZS 60950,CB Scheme
    EMC
    AS/NZS CISPR32,RCM(Class A)

SOFTWARE COMPATIBILITY

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control/Control+

ACCESSORIES

  • Accessories
    Remote controller (including battery 2ea), Power cord, HDMI cable, Manual (ESG&EIG)
    Optional Accessories
    LSW630 (Wall-mount), AN-WF500(Wi-Fi Dongle), KT-SP0(Pixel sensor)
