86" 350 nits UHD Interactive Digital Board
Enquire To Buy
Adding Interactivity to Collaboration1 Adding Interactivity to Collaboration2

Adding Interactivity to Collaboration

The TN3F series features In-Cell Touch and & Active Pen compatibility, which make it an ideal solution for meeting rooms and classrooms. The In-Cell Touch and Active Pen, which incorporates state-of-the-art touch technology, provides an exceptional cursive writing experience.

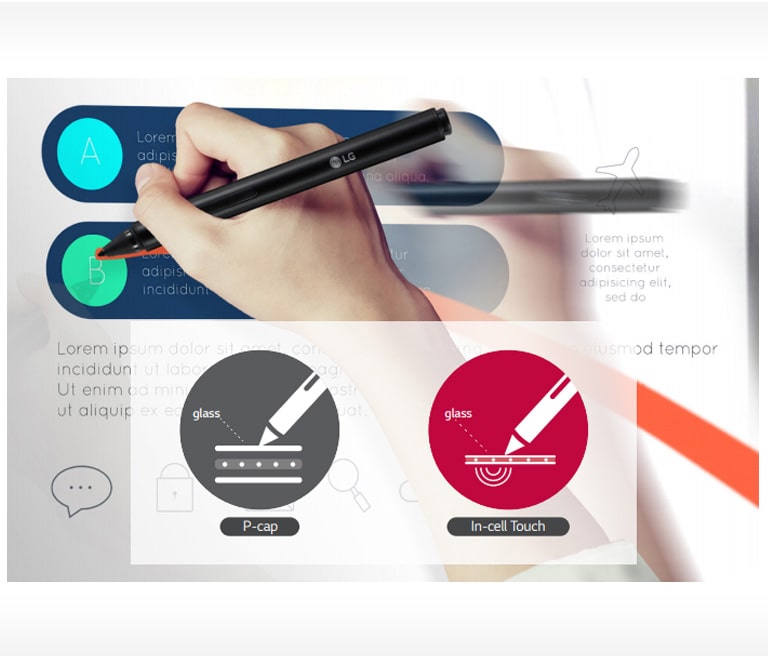

In-Cell Touch1 In-Cell Touch2
OUTSTANDING WRITING EXPERIENCE

In-Cell Touch

In-Cell Touch technology provides excellent writing performance, visibility and design because the LCD panel and protective glass are directly bonded with no air gaps. Signage with In-Cell Touch technology delivers a high-quality user experience and boosts the efficiency of users with its slim design and outstanding writing performance.

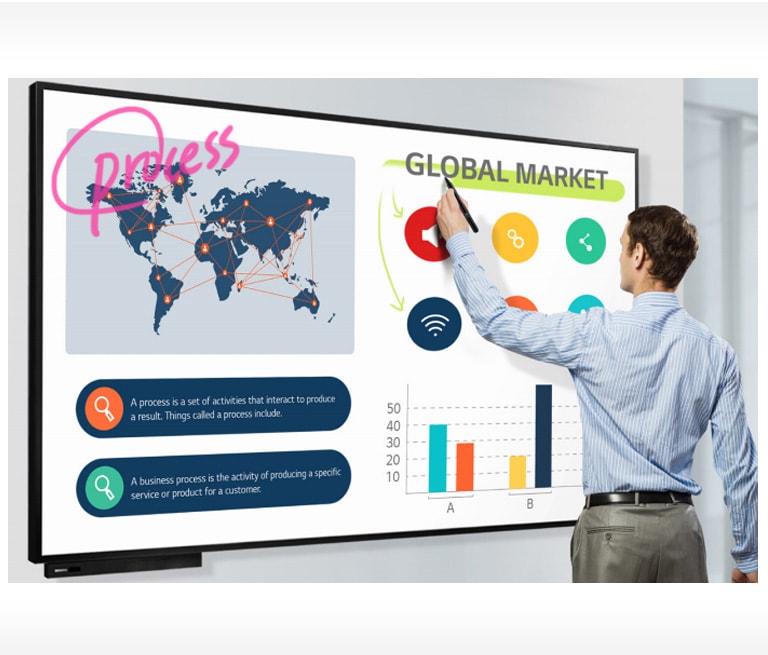

Active Pen1 Active Pen2
OUTSTANDING WRITING EXPERIENCE

Active Pen

The TN3F series is compatible with the Active Pen, which is pressure sensitive. Writing strokes can be thick or thin and the user's handwriting can be accurately reproduced on the screen.
Data Mirroring1 Data Mirroring2
COLLABORATE & CONNECT

Data Mirroring

Data mirroring technology enables two-way writing and real-time sharing to remotely share notes and to facilitate collaboration in meetings that span across different physical locations.
*All parties require an internet connection and compatible displays for data mirroring.
Screen & File Sharing1 Screen & File Sharing2
COLLABORATE & CONNECT

Screen & File Sharing

For effective collaboration and immersive meetings, LG IDB allows files to be directly shared between the interactive board and laptops/mobile devices via an internet connection.
Interactive UX-UI1 Interactive UX-UI2
USER-FRIENDLY EXPERIENCE

Interactive UX-UI

The New Interactive Display Application supports intuitive UX/UI that includes a simple launcher menu, easy control centre and seamless tool bar.

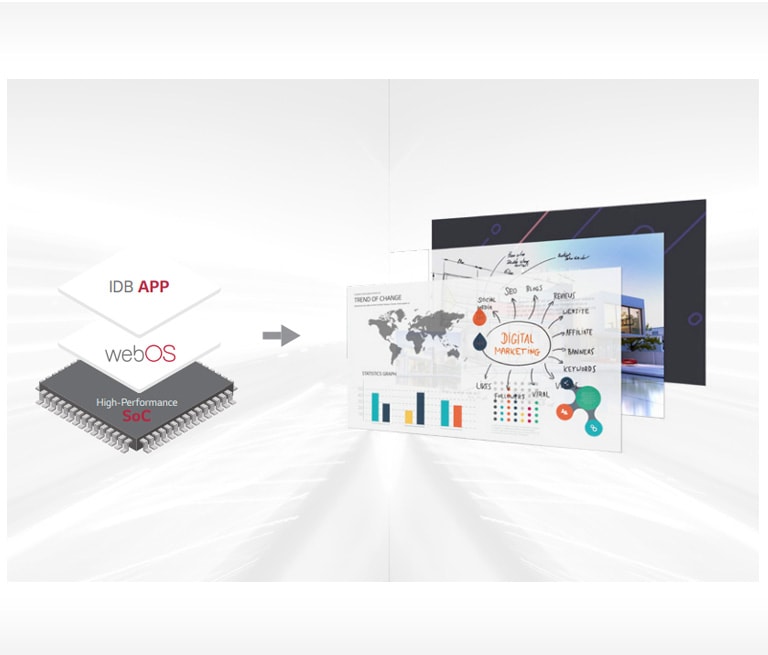

All-in one1 All-in one2
USER-FRIENDLY EXPERIENCE

All-in one

The TN3F integrates both webOS and IDB apps with a high-performance SoC*, without the need for a separate PC. The IDB mode can be activated easily.

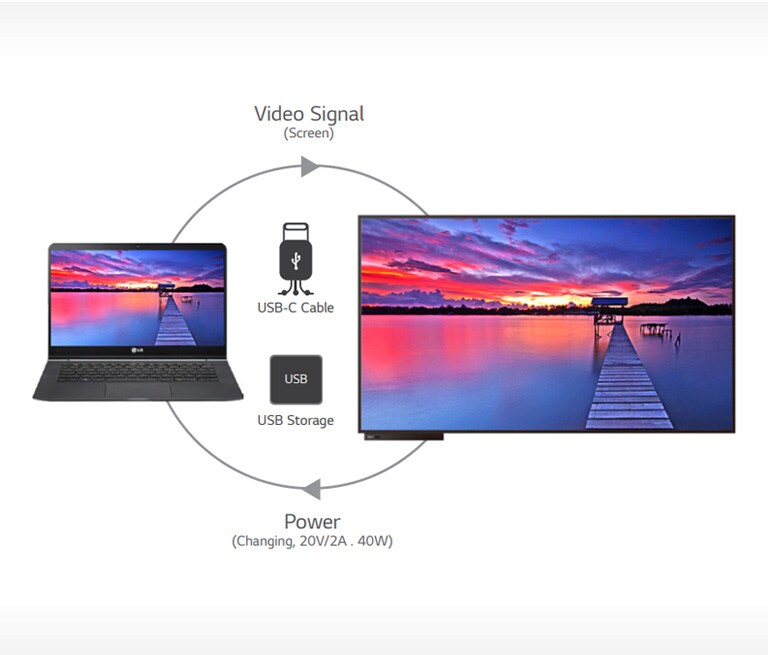

USB-C Type Ready1 USB-C Type Ready2
USER-FRIENDLY EXPERIENCE

USB-C Type Ready

The TN3F is compatible with USB Type-C™ that can transmit video, audio data and power all at the same time. It is also able to simultaneously charge mobile devices up to 40W.
Lifelike Picture Quality1 Lifelike Picture Quality2

Lifelike Picture Quality

LG IPS panels allow you to enjoy lifelike picture quality with minimal variation from wide viewing angles. Featuring excellent consistency in colour temperature and less change in contrast, LG IPS panels boast excellent image reproduction.

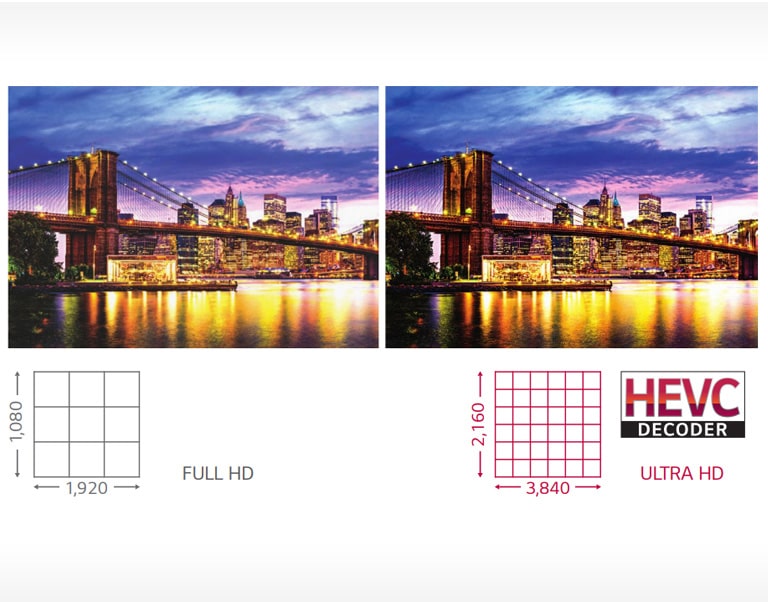

Exceptional Picture Definition1 Exceptional Picture Definition2
ULTRA HIGH DEFINITION

Exceptional Picture Definition

With the Ultra High Definition display, users can view content in ultra high detail, even when zoomed-in. Ultra HD provides an exceptionally high-quality media experience at four times higher definition than Full HD.
*Images dramatised for illustrative effect.
Close
PANEL
  • Screen Size
    85.6"
    Panel Technology
    IPS
  • Aspect Ratio
    16 : 9
    Native Resolution
    3,840 × 2,160 (UHD)
  • Brightness (Typ.)
    350cd/m2 (w/Protection Glass)
    Viewing Angle (H × V)
    178 × 178
  • Surface Treatment
    Anti Glare(coating, 4%)
    Lifetime (Typ.)
    30,000 Hrs
  • Operation Hours
    16 Hrs
    Orientation
    Landscape
CONNECTIVITY
  • Input
    HDMI(2),DP,DVI-D,USB Type C(DP interface), USB Type C(USB2.0), USB Type A (USB 2.0)(2)
    Output
    Touch USB (2)
  • External Control
    RS232C in/out, RJ45 in
PHYSICAL SPECIFICATION
  • Bezel Colour
    Black
    Bezel Width
    (T/L/R/B) 28.8mm
  • Monitor Dimension (W × H × D)
    1952.6 x 1164.1 x 86.4 mm
    Weight (Head)
    66.7 kg
  • VESA™ Standard Mount Interface
    600 × 400 mm
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-in Power
  • Power Consumption (Typ.)
    ≤ 360 W
    Power Consumption (Smart Energy Saving)
    ≤ 108 W
AUDIO
  • Built-in Speaker
    20 W (10W × 2)
STANDARD(CERTIFICATION)
  • Safety
    CB / NRTL
    EMC
    AS/NZS CISPR32,RCM(Class A)
MEDIA PLAYER COMPATIBILITY
  • OPS Type Compatible
    Yes
    optional
    OPS Kit (KT-OPSF)
TOUCH SPECIFICATIONS
  • Touch Type
    In-Cell
    Available Object Size for Touch
    Ø 5 mm ↑
  • Accuracy
    1.5 mm
    Interface
    USB 2.0
  • Protection Glass Thickness
    1.85T (Anti-Glare)
    Protection Glass Transmission
    88%
  • Multi Touch Point 1)
    Max. 20 Points
