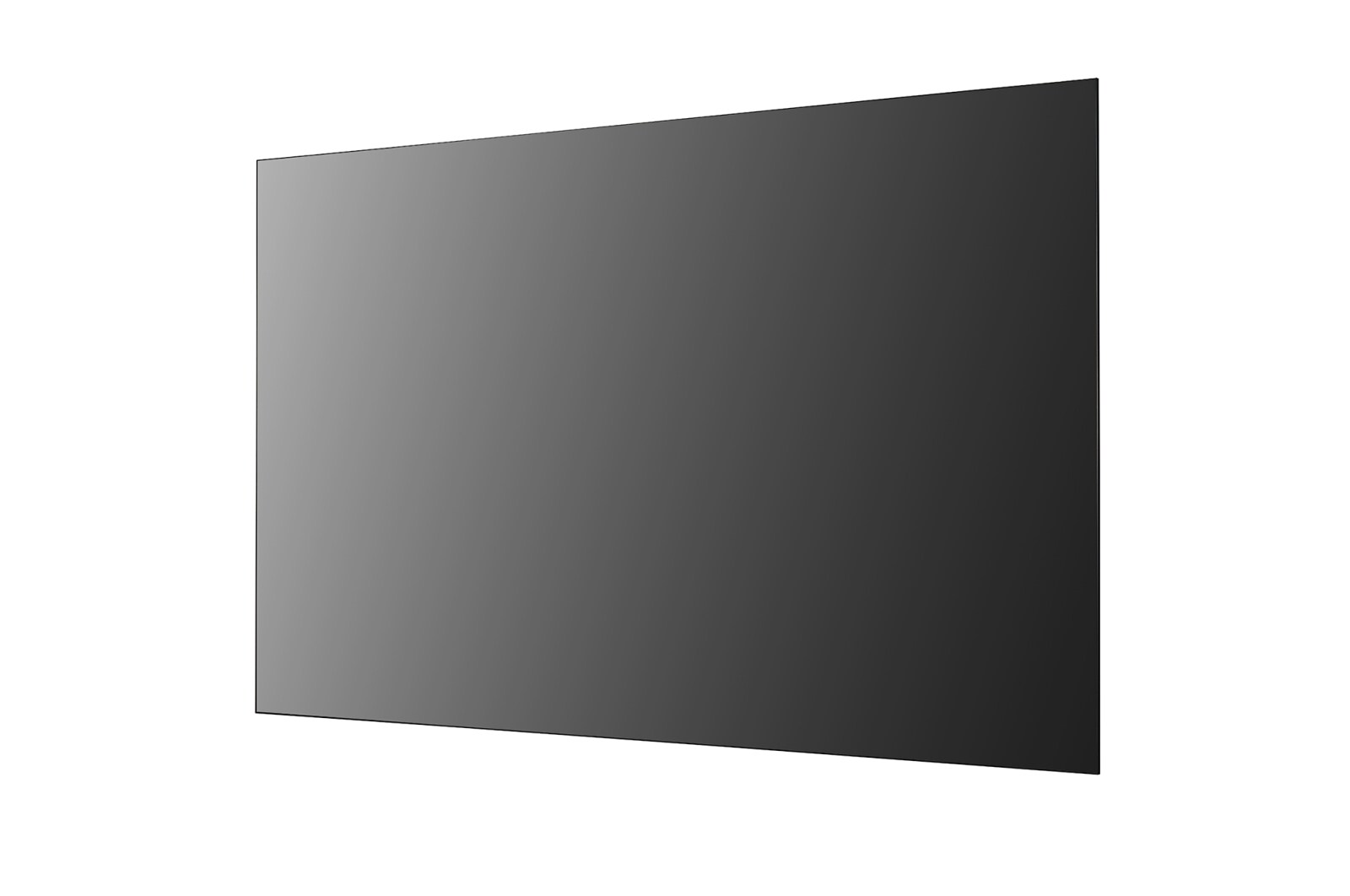

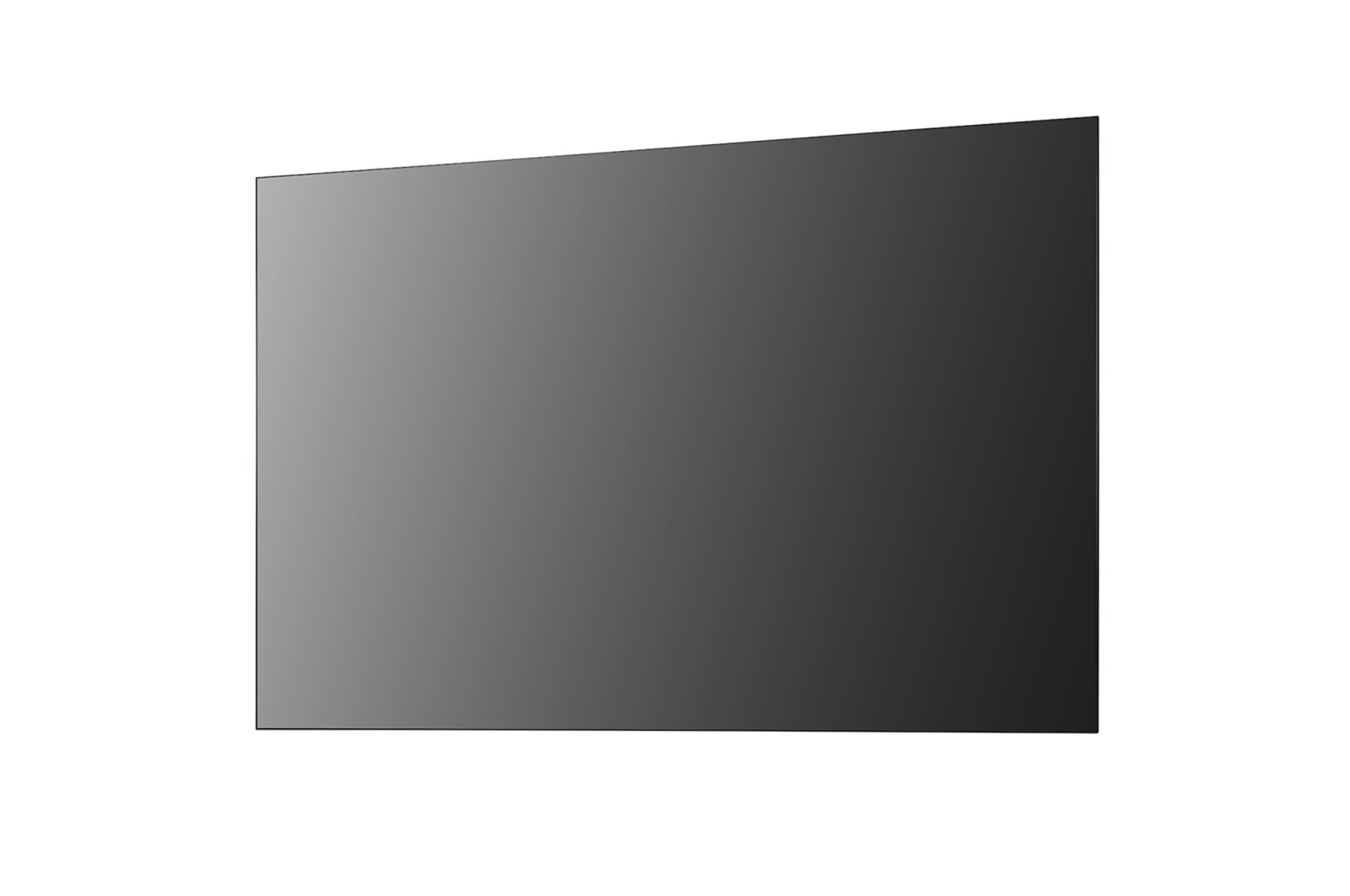

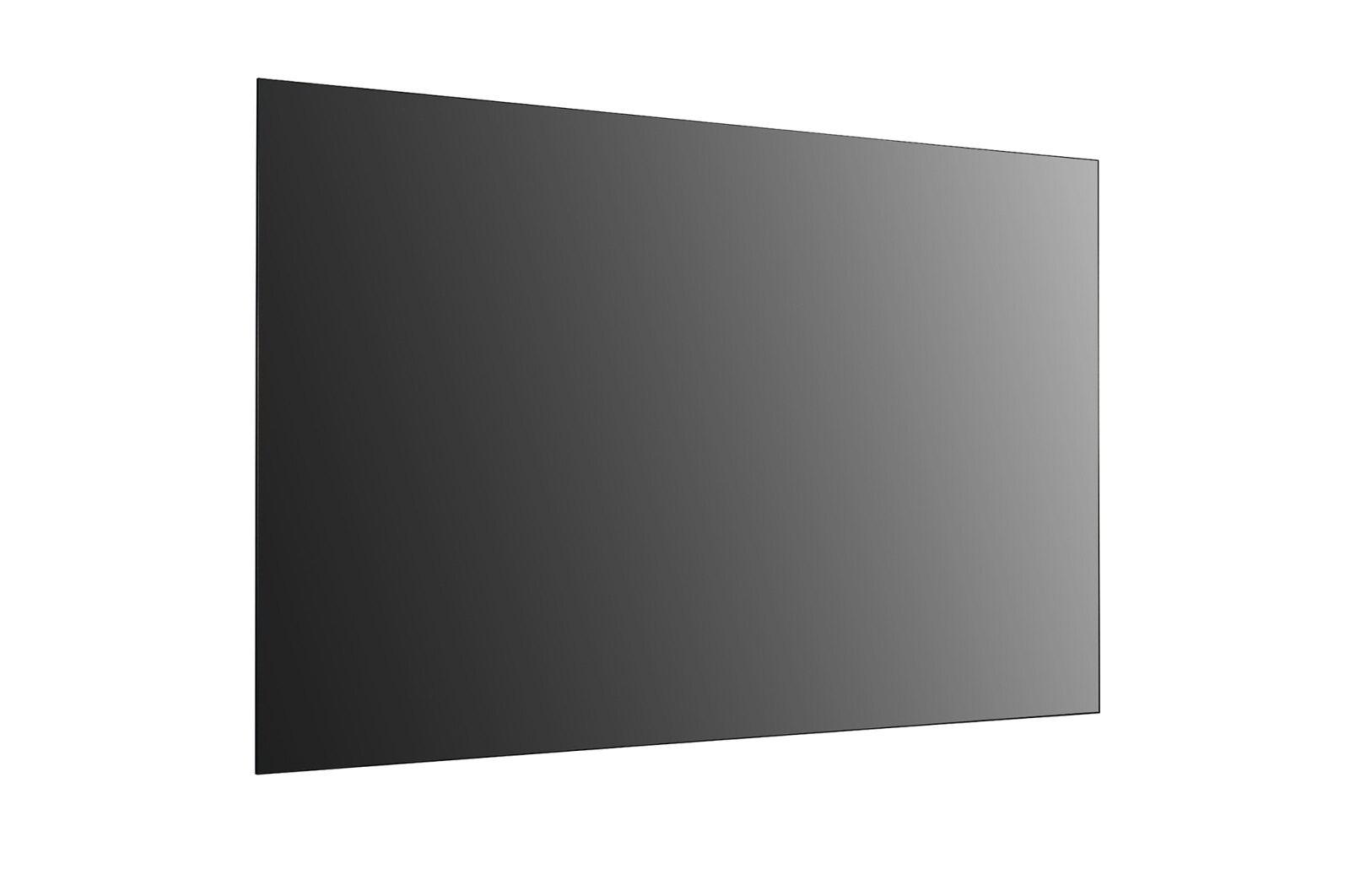

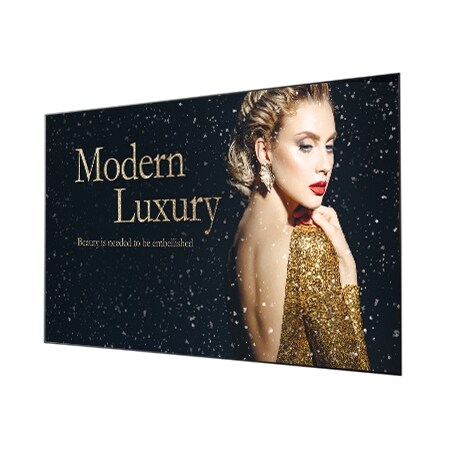

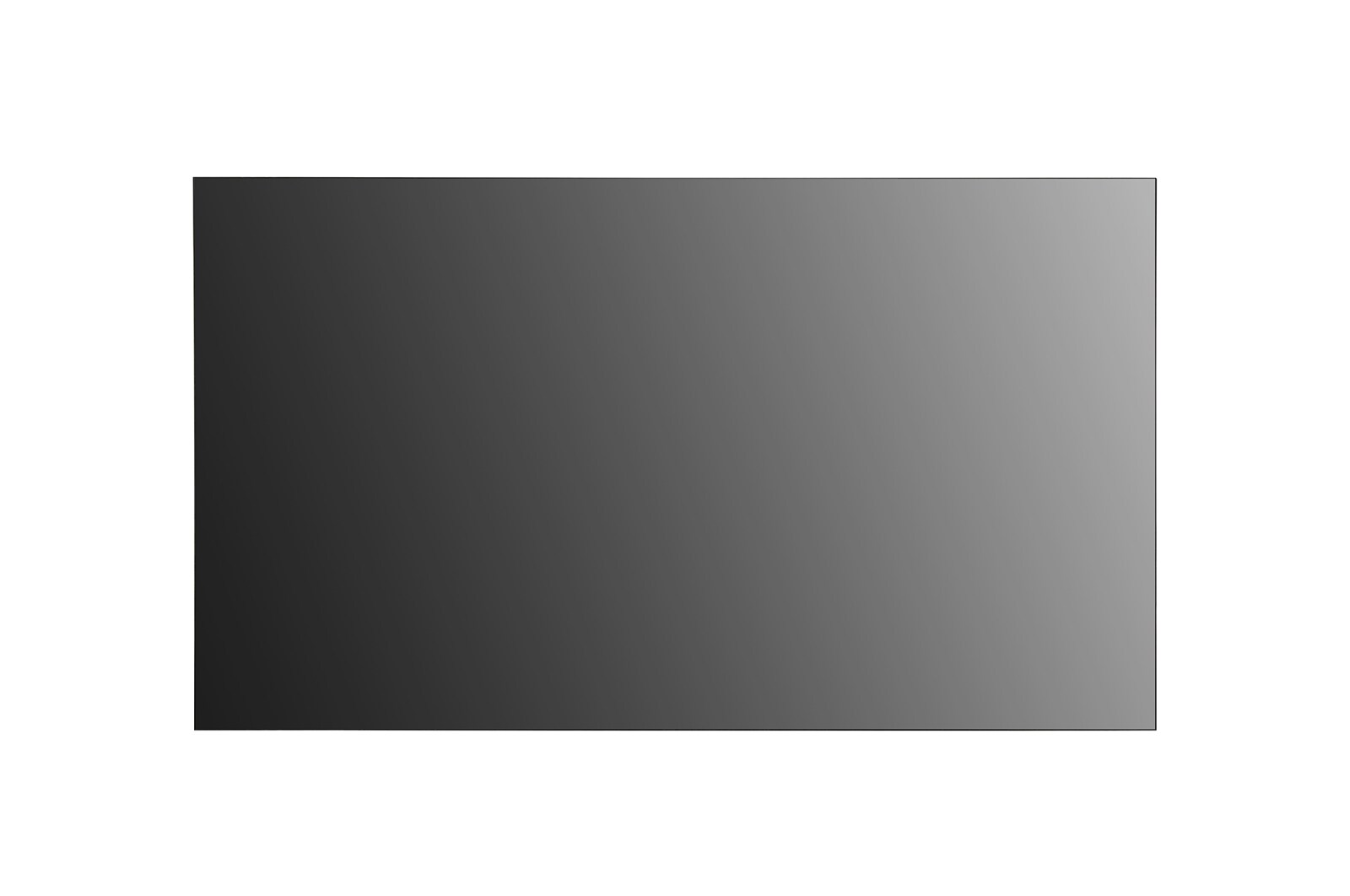

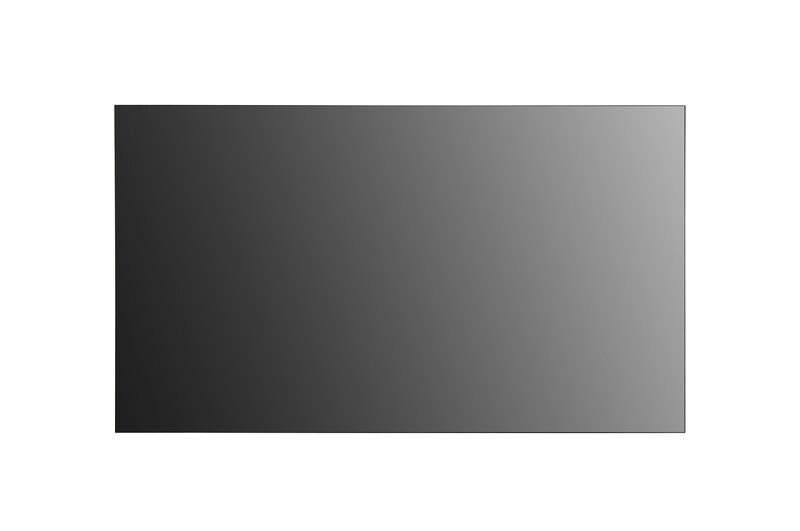

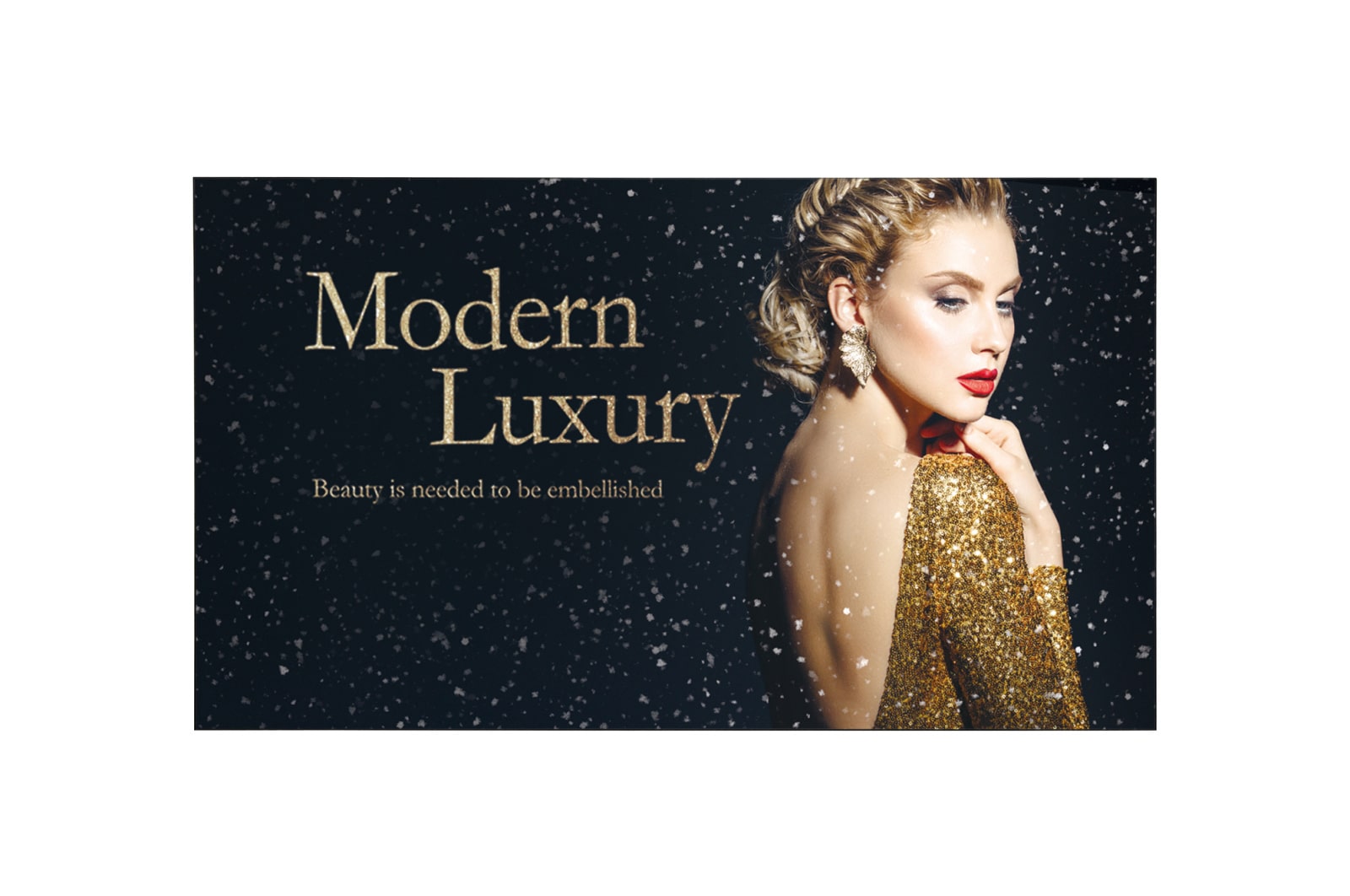

55" 400 nits FHD Wallpaper OLED
All Spec
ACCESSORIES
Basic

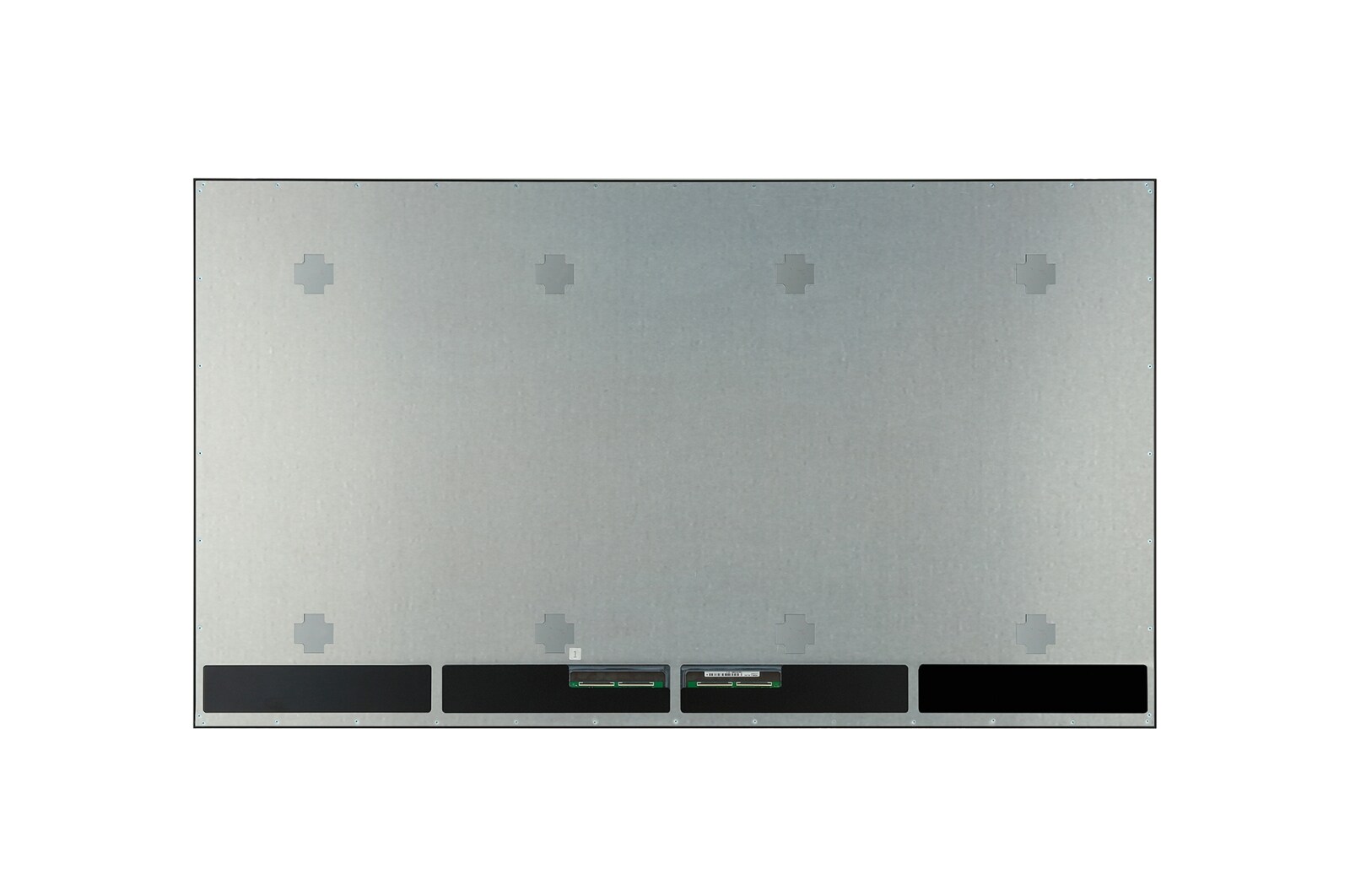

Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, RS232 Cable (4p-4p), FFC Cables (for Connection Between Panel and Signage Box), DP Cable, LAN Cable, LC (VLC Cable), Wall Fixers, Wall Fixer Install Guide, Install Guide Sheets, Tapes (for Cabling and Dust Proof), Screws
CONNECTIVITY
Input
HDMI, DP, USB 2.0 (2)
Output
DP, Audio
External Control
RS232C In/out, RJ45 (LAN) In/out, IR In
ENVIRONMENT CONDITIONS
Operation Temperature Range
0°C ~ 40°C
Operation Humidity Range
10% ~ 80%
MEDIA PLAYER COMPATIBILITY
OPS Type Compatible
No
External Media player Attachable
Yes
PANEL
Screen Size
55"
Panel Technology
OLED
Aspect Ratio
16 : 9
Native Resolution
1,920 x 1,080 (FHD)
Brightness (Typ.)
400/150 cd/m<sup>2</sup> (Average Picture Level 25%/100%)
Viewing Angle (H x V)
178 x 178
Response Time
1ms (G to G), 8ms (MPRT)
Surface Treatment (Haze)
Hard Coating (2H), Anti-reflection Treatment of the Front Polariser (Reflectance Typ. 1.2%)
Life Time (Typ.)
30,000 Hrs
Operation Hours
18 Hrs / 7 Days *Moving Video Only
Orientation
Landscape & Portrait
PHYSICAL SPECIFICATION
Bezel Colour
Black
Bezel Width

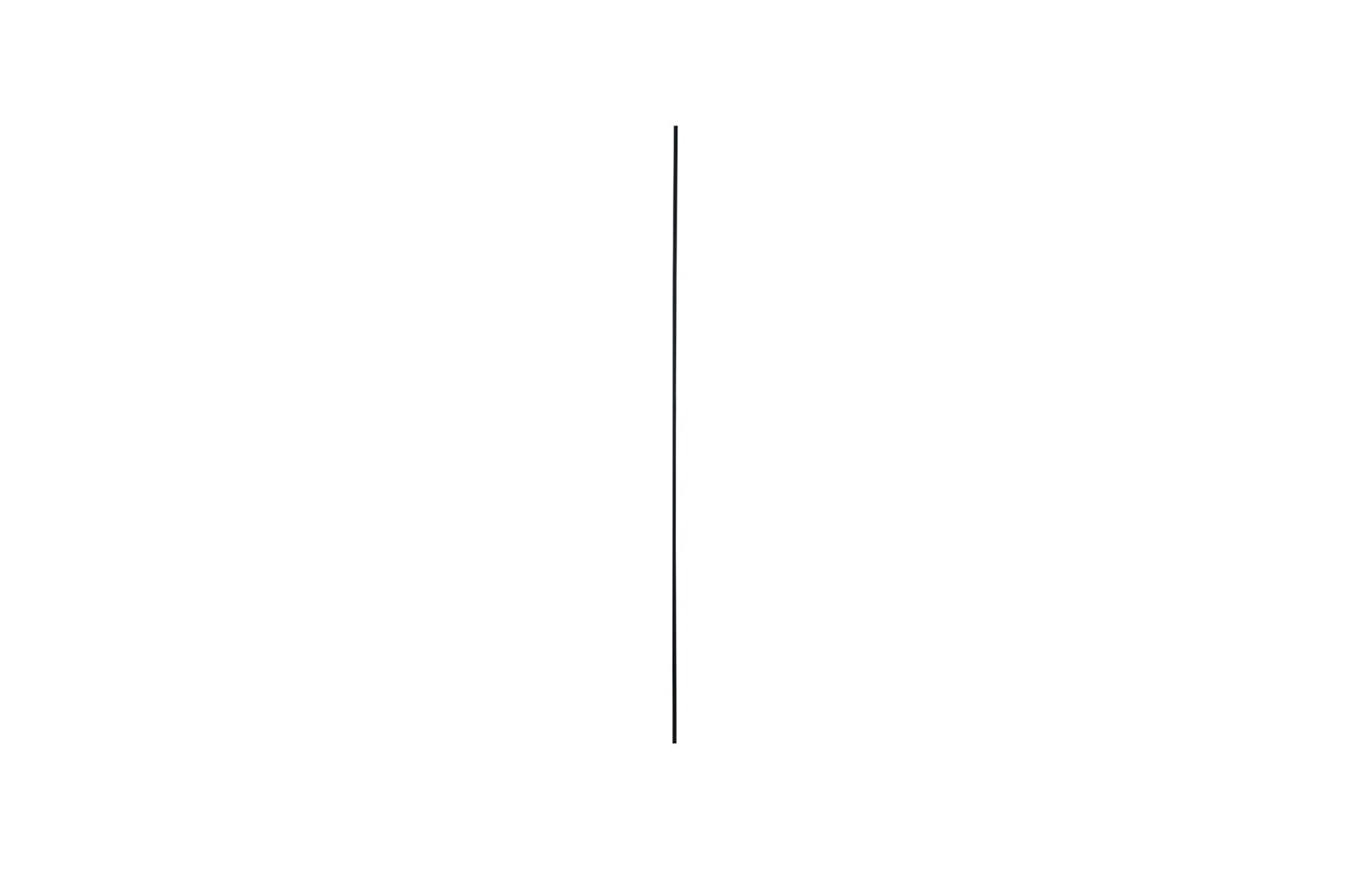

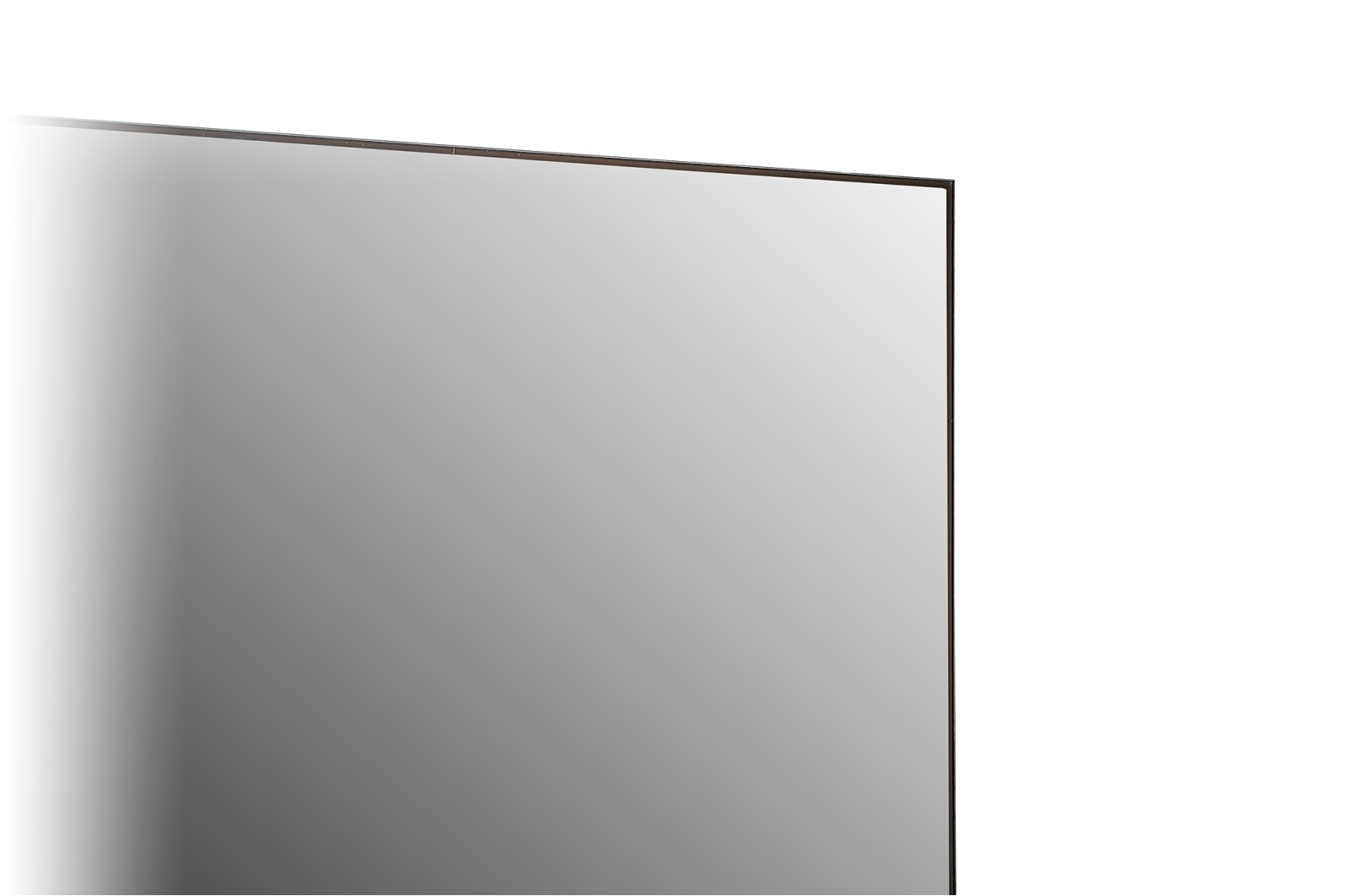

0.9 mm (Even) *Off-Bezel5.3 mm (T/L/R),11.0 mm (B) *On-Bezel
Dimension (W x H x D)

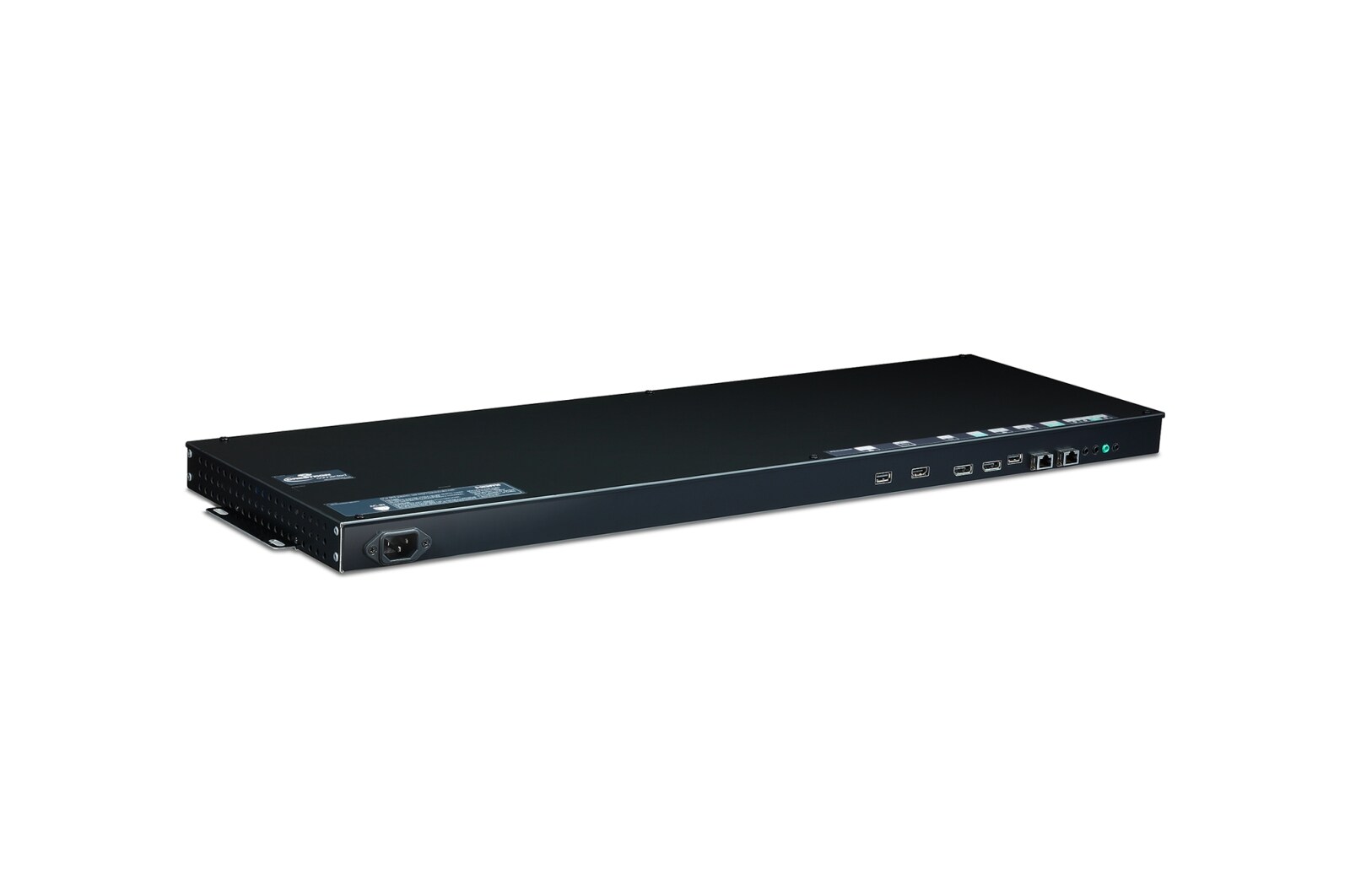

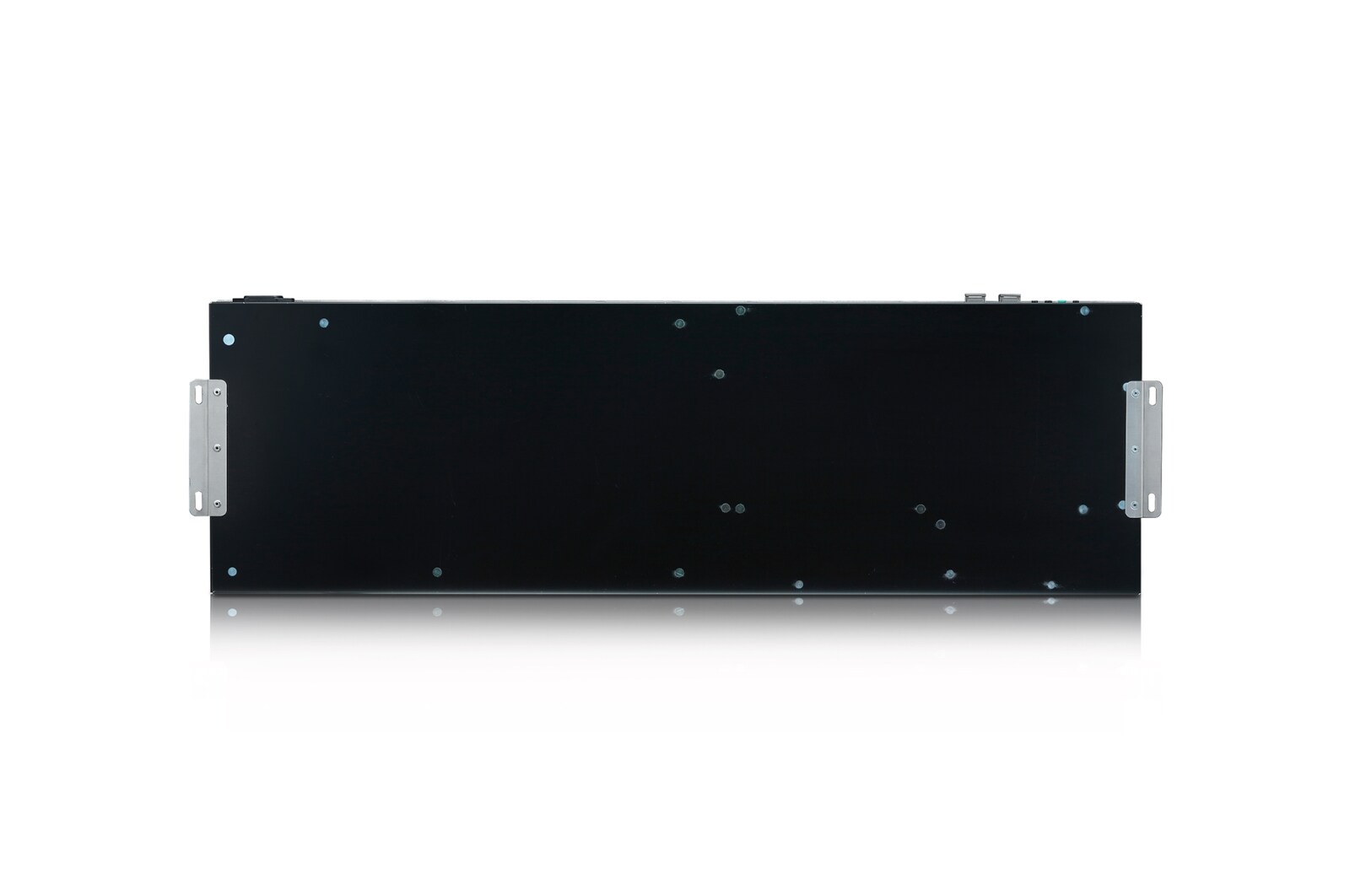

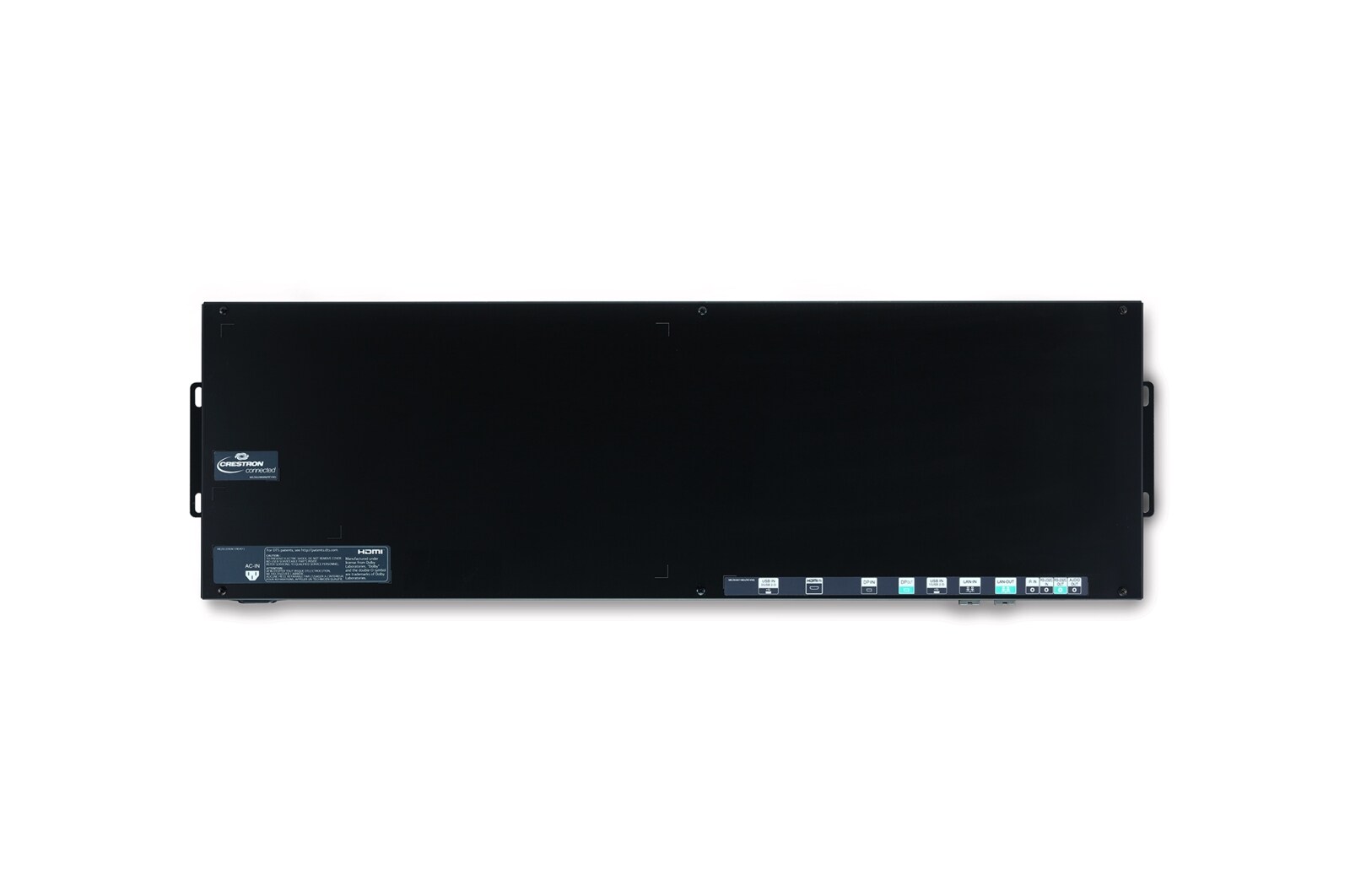

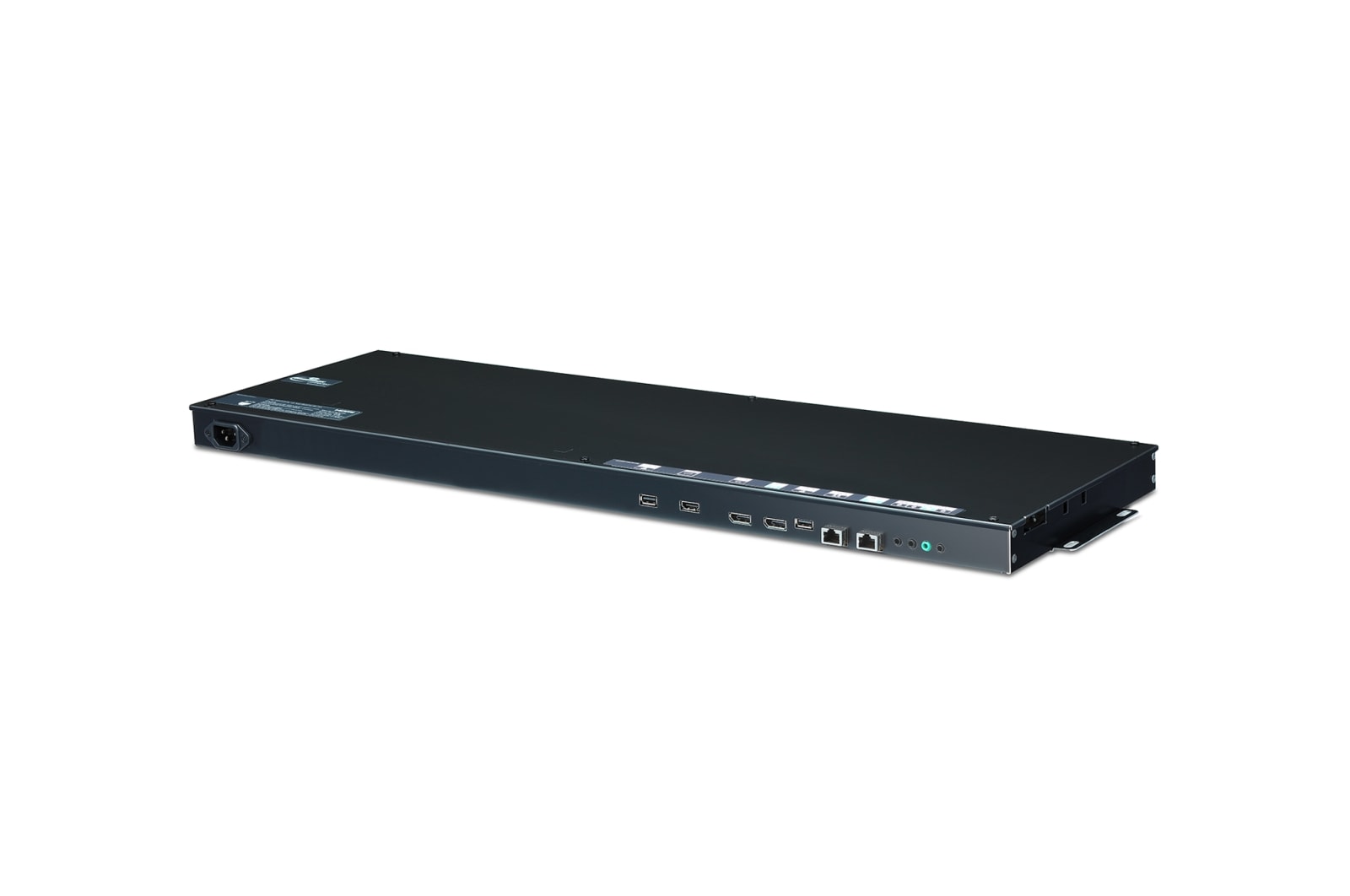

(Head) 1220.3 x 696.8 x 4.9 mm(Signage Box) 782.8 x 238.4 x 34.7 mm
Weight
10 kg (Set)
Carton Dimensions (W x H x D)
1,350 x 837 x 250 mm
Packed Weight
22.9 kg
POWER
Power Supply
100-240V~, 50/60Hz
Power Type
Built-In Power
Power Consumption Typ. / Max.
309 W / 318 W *8 Colour Bar
SOFTWARE COMPATIBILITY
Content Management Software
SuperSign CMS
Control and Monitoring Software
SuperSign Control+ / Control
SPECIAL FEATURES
Special Features
Internal Memory (64GB), Temperature Sensor, Embedded CMS (USB Auto Playback, Local Contents Scheduling, Group Manager), Fail Over, Content Sync (RS232C, Local Network), OSD Rotation, Tile Mode Setting, Setting Data Cloning, Firmware Update by Network, SNMP, ISM Mode, Control Manager, Crestron Connected<sup>Ⓡ1</sup>), DPM, PM Mode, Wake on LAN, Power on Delay, HDMI-CEC<sup>2</sup>), SI Server Setting, webRTC
STANDARD(CERTIFICATION)
Safety
AS/NZS 60950,CB Scheme
EMC
AS/NZS CISPR32,RCM(Class A)
ErP / Energy Star
Yes / No
